Alibaba Cloud Model Studio:AOQ connection

Learn the AOQ Client SDK workflow: obtain credentials, initialize the SDK, configure media directions, connect, exchange model events, and release resources.

AOQ transmits audio, video, and model events on separate tracks. The SDK handles media capture, encoding, decoding, transport, and playback. Your application sends model events and handles responses over Data tracks. Select the media directions and event protocol required by your target model.

Prerequisites

• Complete the preparations in Connection overview and confirm the target model, region, and AOQ support.

• Import the SDK for your platform from SDK download. Import the corresponding plugin if you use Opus.

• Implement Token authentication on your application server (AppServer). Keep the API key on AppServer and provide temporary connection credentials to the client.

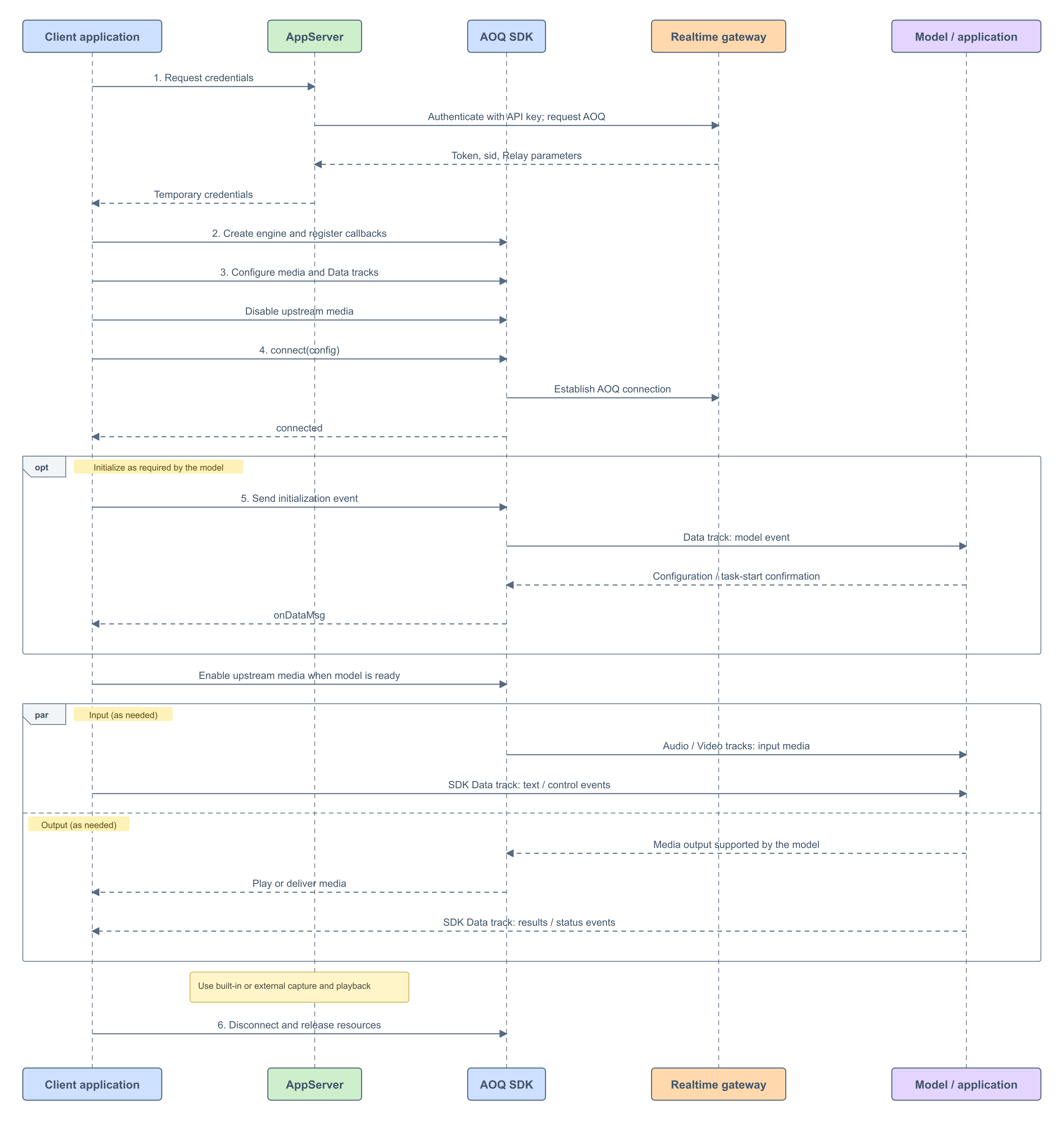

Workflow

1. Obtain connection credentials through AppServer.
2. Create the SDK engine and register callbacks.
3. Configure media and Data tracks, and disable upstream media transmission.
4. Establish the AOQ connection and wait for it to connect.
5. Configure the model according to its protocol. Enable the required upstream media after confirmation.
6. Disconnect and release resources when interaction is complete.

1. Obtain connection credentials

The client requests credentials from AppServer. AppServer selects the Realtime or Inference connection endpoint for the target model and sends the API key and x-dashscope-rtc-transport: moq header to the gateway. For endpoints, requests, and fields, see Token authentication.

Map the response to AoqConnectConfig:

Gateway response	SDK configuration
aoqTokenForClient	token
sid	sid
clientRelayCertFingerprint	certFingerprint
clientRelayEndpoints	relayEndpoints: convert each endpoint to the required structure
extraInfo.workspaceIdHash	workspaceIdHash

Obtain new credentials for each new connection. Whether a session can be reused or another task can start within the same connection depends on the target model's protocol.

2. Initialize the SDK and register callbacks

Create the engine and register callbacks for connection status, Data messages, and errors. The following example uses Swift on iOS:

let createConfig = AoqCreateConfig()
createConfig.workDir = workDir
createConfig.enableDumpAudio = false
engine = AoqClientEngine.createEngine(createConfig, delegate: self)

Implement AoqEngineDelegate: maintain connection status in onConnectionStatusChange, parse model events in onDataMsg, and handle SDK errors in onError. Handle model error events separately in the Data message handler. For SDK interfaces and errors, see AOQ client SDK.

3. Configure the SDK

Select media directions

Directions are relative to the client. Configure only the input and output modalities that your application needs. Do not add tracks for unused directions.

Direction	Configuration	Typical use
Send audio	Publish an Audio track, configure the encoder, and use built-in or external capture	Speech recognition, conversation, and translation
Receive audio	Subscribe to an Audio track, configure the decoder, and use built-in or external playback	Speech synthesis and spoken responses
Send video	Publish a Video track and configure camera or external input and encoding	Provide images to a model that supports visual input
Receive video	Configure subscription and reception only if the target model or application explicitly supports video output	Follow the target model or application documentation

Data tracks are independent of these four directions: publish a Data track to send model events and subscribe to receive responses. Text input and output also require Data tracks.

Choose directions for your model

The following table lists typical configurations. For supported models and versions, see Realtime API overview and the model documentation.

Model or application	Send audio	Receive audio	Send video	Receive video
Qwen-Omni-Realtime	For speech input	For spoken responses	For visual input	Not supported
Qwen-Audio-Realtime	For voice conversations	For spoken responses	Not supported	Not supported
Qwen-Audio-TTS, CosyVoice	Not supported	Enabled	Not supported	Not supported
Qwen-Audio-ASR-Flash-Streaming, Fun-ASR-Realtime	Enabled	Not supported	Not supported	Not supported
Qwen-LiveTranslate-Realtime	For speech input	For spoken translations	Depends on the version and scenario	Not supported
multimodal-dialog	Based on application input	Based on application output	Based on application capabilities	Only if explicitly supported by the application

Configure media parameters and tracks

Configure upstream and downstream audio separately: use setAudioEncoderConfig for upstream audio and setAudioDecoderConfig for downstream audio. These parameters control network transmission; the gateway converts audio to the format required by the model. Configure transport encoding and the audio format in model events according to the SDK and target model requirements, respectively.

Start startAudioCapture, startAudioPlayer, or startVideoCapture as needed. For custom input and output, see Advanced features below.

publishTracks are sent by the client, and subscribeTracks are received by the client:

Scenario	publishTracks	subscribeTracks
Voice conversation	Audio, Data	Audio, Data
Voice conversation with visual input	Audio, Video, Data	Audio, Data
Speech recognition	Audio, Data	Data
Speech synthesis	Data	Audio, Data

Disable upstream media before connecting to prevent input from reaching the model before it is ready:

engine.enableSendMediaStream(.audio, enable: false)
engine.enableSendMediaStream(.video, enable: false)

Capture, track publication, and permission to send are separate operations. Disabling transmission does not stop local capture or affect Data events. Enabling transmission does not create tracks that were not added.

4. Establish the connection

Populate AoqConnectConfig with credentials and track configuration, then call:

engine.connect(connectConfig)

Wait for .connected in onConnectionStatusChange before initializing the model. A return from connect does not mean that the connection has succeeded.

5. Exchange model events and media

Send and parse model events

Send events over the Data track. Example for Swift on iOS:

// Build eventJSON according to the target model client event protocol.
let msg = AoqDataMsg()
msg.data = eventJSON.data(using: .utf8)!
engine.send(msg)

Parse responses in onDataMsg. Do not assume that every event uses type: Realtime events typically use type, whereas Inference server events use header.event. Follow the target model's documentation for fields, parameters, and completion conditions.

Enable media after the model is ready

After the current model, session, or task satisfies its readiness conditions, enable only the configured upstream directions. For speech input, call:

engine.enableSendMediaStream(.audio, enable: true)

Enable .video only if video input is needed. TTS takes text input and requires no upstream audio or video.

Transmit audio and video on their media tracks, and model events and text on Data tracks. For example, Omni over AOQ does not require input_audio_buffer.append or input_image_buffer.append to send the same media again. Handle downstream audio with the configured player or external playback logic.

6. End interaction and release resources

When the connection is no longer needed, call the AOQ SDK disconnect and resource-release interfaces from your application:

engine.disconnect()
AoqClientEngine.destroy()

After an unexpected disconnection, clear the application's readiness state and follow Connection state management. Initialize the model again after reconnecting.

Send and receive events over Data tracks

Publish and subscribe to Data tracks when connecting. To send an event, serialize it into AoqDataMsg and call engine.send(msg). Parse received messages in onDataMsg.

Follow the target model's client event definitions for outgoing event names, fields, parameters, and timing. Follow its server event definitions for response parsing, state changes, results, and errors. Send initialization events as required by the model, and subsequent text and control events as required by your application.

Model or application	Client events (send)	Server events (receive)
Qwen-Omni-Realtime	Client events	Server events
Qwen-Audio-Realtime	Client events	Server events
Qwen-Audio-TTS, CosyVoice	Client events	Server events
Qwen-Audio-ASR-Flash-Streaming, Fun-ASR-Realtime	Client events	Server events
Qwen-LiveTranslate-Realtime	Client events	Server events
multimodal-dialog	Input Message in the interaction protocol	Output Message in the interaction protocol

The multimodal interaction suite defines both directions in one interaction protocol. Select event definitions for the actual model version; models do not share one fixed event schema.

Also follow these rules:

• Identify event types and correlation identifiers according to the model. Realtime events typically use type; Inference clients use header.action, servers use header.event, and tasks are correlated through task_id.

• Handle initialization confirmation, input submission, response cancellation, and task completion over Data tracks as required by the protocol. These operations are distinct from closing the transport connection.

• For example, Inference models use finish-task to end a task and task-finished to confirm completion. Receive any remaining results before releasing the connection. If complete playback is required, also drain pending local audio.

• Media uses media tracks. When referring to model event documentation, follow this AOQ page for media transport and available interaction modes; do not copy WebSocket media-upload mechanisms.

Advanced features

Capability	Use case	Documentation
Control audio and video transmission separately	Wait for model readiness, pause upstream media, or enable video as needed	Media transmission management
Audio devices and processing	Encoding, decoding, speakers, file mixing, and audio frame callbacks	Common audio features
External audio input	Use an application-provided audio source	Custom audio capture
External audio output	Process or play output audio in your application	Custom audio playback
Video capture and input	Use a camera or application-provided images	Common video features, Custom video input

Media transmission controls affect media only. Model response cancellation and turn submission still require the target model's events.

Best practices

• Omni real-time calls: audio/video input, spoken responses, and session events.

• Omni push-to-talk: button-controlled input and manual turns.

• Qwen-Audio voice conversations: bidirectional audio.

• Qwen-Audio speech synthesis: text input on Data tracks and speech output on Audio tracks.

• Fun-ASR speech recognition: audio input on Audio tracks and recognition results on Data tracks.
