Quick BI supports the configuration of column-level permissions within an organization, enabling control over access to specific fields. Users can apply data masking to sensitive fields, such as phone numbers and ID cards, by establishing organization-level column-level permissions. This topic describes the procedure for setting column-level permissions and explains the rules governing their application.
Scenarios
In the realm of enterprise data security management, to prevent the disclosure of sensitive information, you can implement Data Masking or Do Not View restrictions within column-level permissions at the organization level. This approach conceals sensitive fields, including phone numbers and ID cards. Once the permission rules are established, users can only access field values that fall within the defined parameters, thus safeguarding data security.
Limits
Only organization administrators and users with custom roles that include the enterprise security feature can configure organization-level column-level permissions.
This applies exclusively to the updated version of row and column permissions. If you are using the previous version, please upgrade to the new version.
A maximum of 10 column-level permission rules can be created.
Procedure
Log on to the or the international Quick BI console.

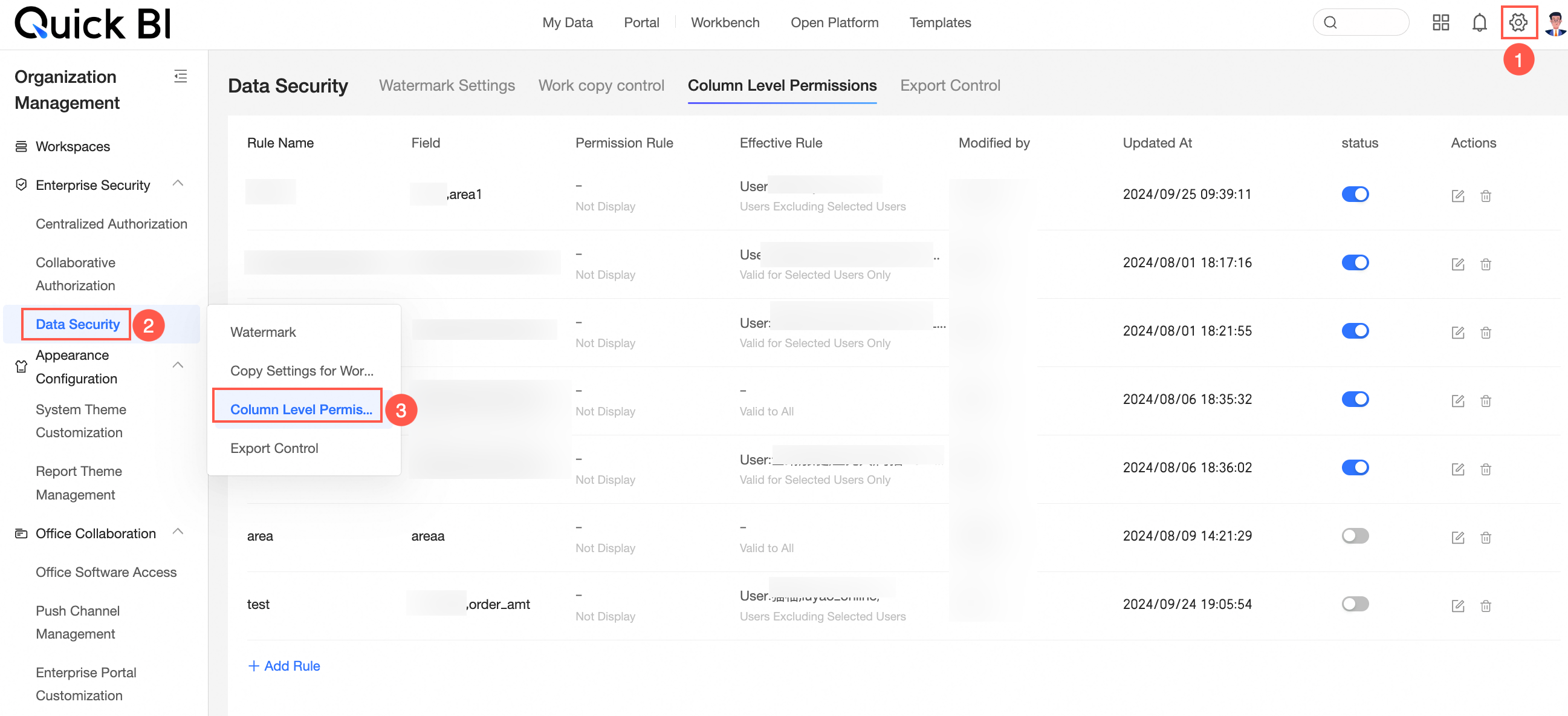

Navigate to the column-level permissions settings page as shown in the steps.
On the column-level permissions settings page, you can click Add Rule to configure the following settings.
Configuration item
Description
① Rule Name
You can customize the rule name, and duplicate names are not supported.
② Field Name
If the dataset field name is hit, the field will be masked. If multiple field names are entered, separate them with commas. Duplicate field names are not supported.
③ Set Rule
Do Not View
Fields set to Do Not View are displayed as "- -" in cross tables and are not displayed in other visualization charts.
Data Masking
Set fields that need masking in the dataset. The system will blur sensitive data in the field, displaying it in a masked form in dashboards, workbooks, or downloads to protect data security.
④ Who is it effective for
Supports setting Effective for Everyone, Valid for Selected Users Only, and Invalid for Selected Users Only.
Data can only be viewed when the user has both dataset permissions and organization-level permissions.
For specific rules, see Effect Display and Rule Description.
Click Complete.
Effect display and rule description
Do Not View
Set Rule

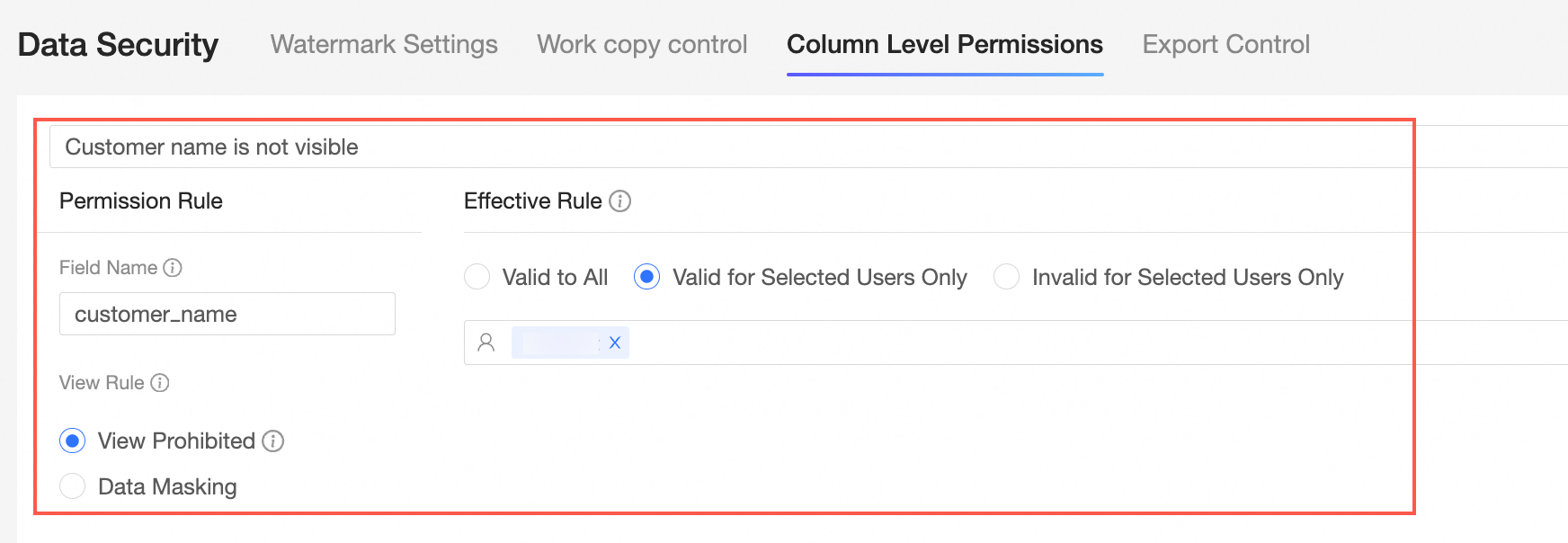

For instance, configure a rule to prevent viewing of customer names.
Effect Display

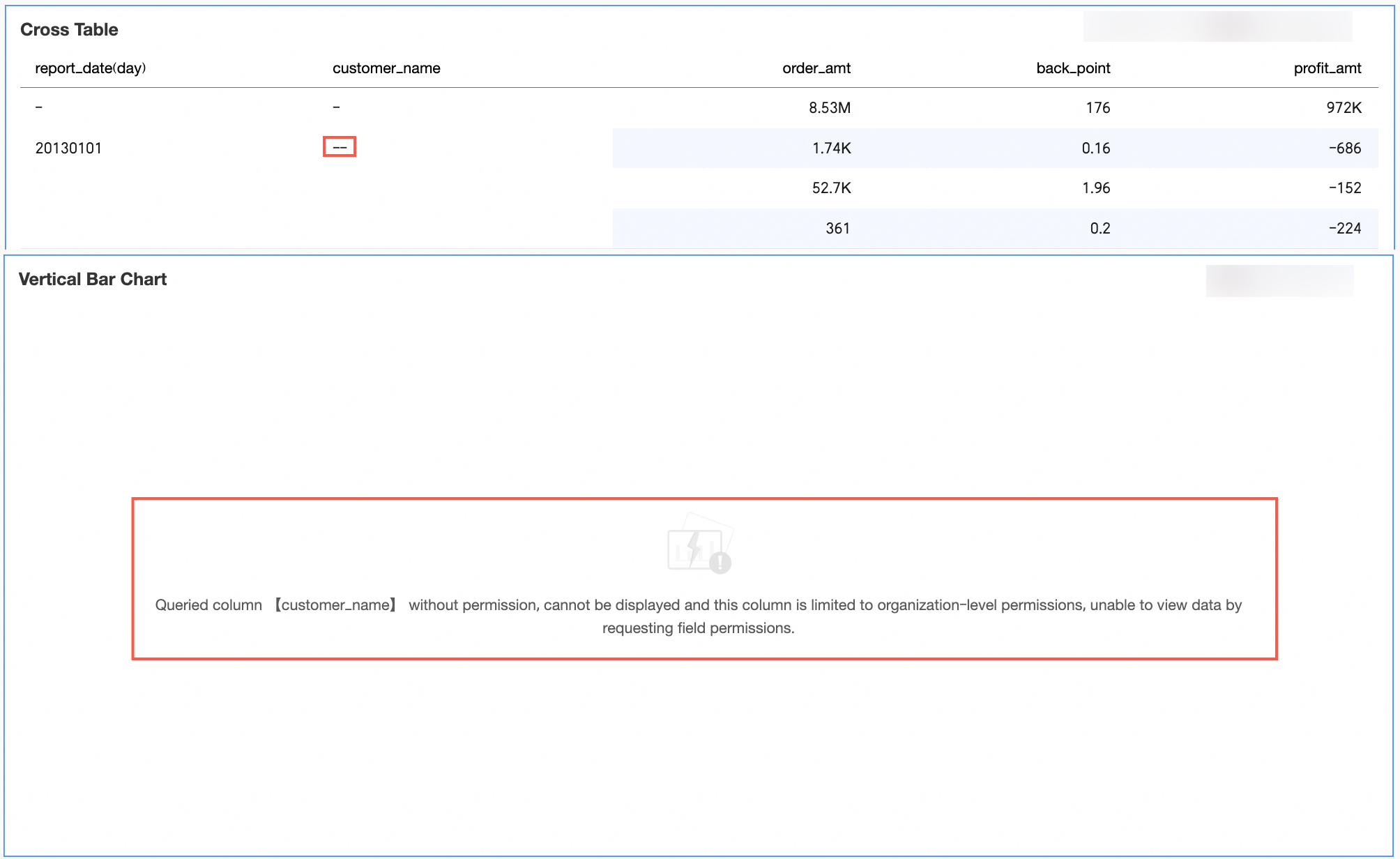

After the setting is complete, the user will see the field displayed as "- -" in the cross table and the field will be hidden in chart visualizations such as bar charts.
Data Masking
Set Rule

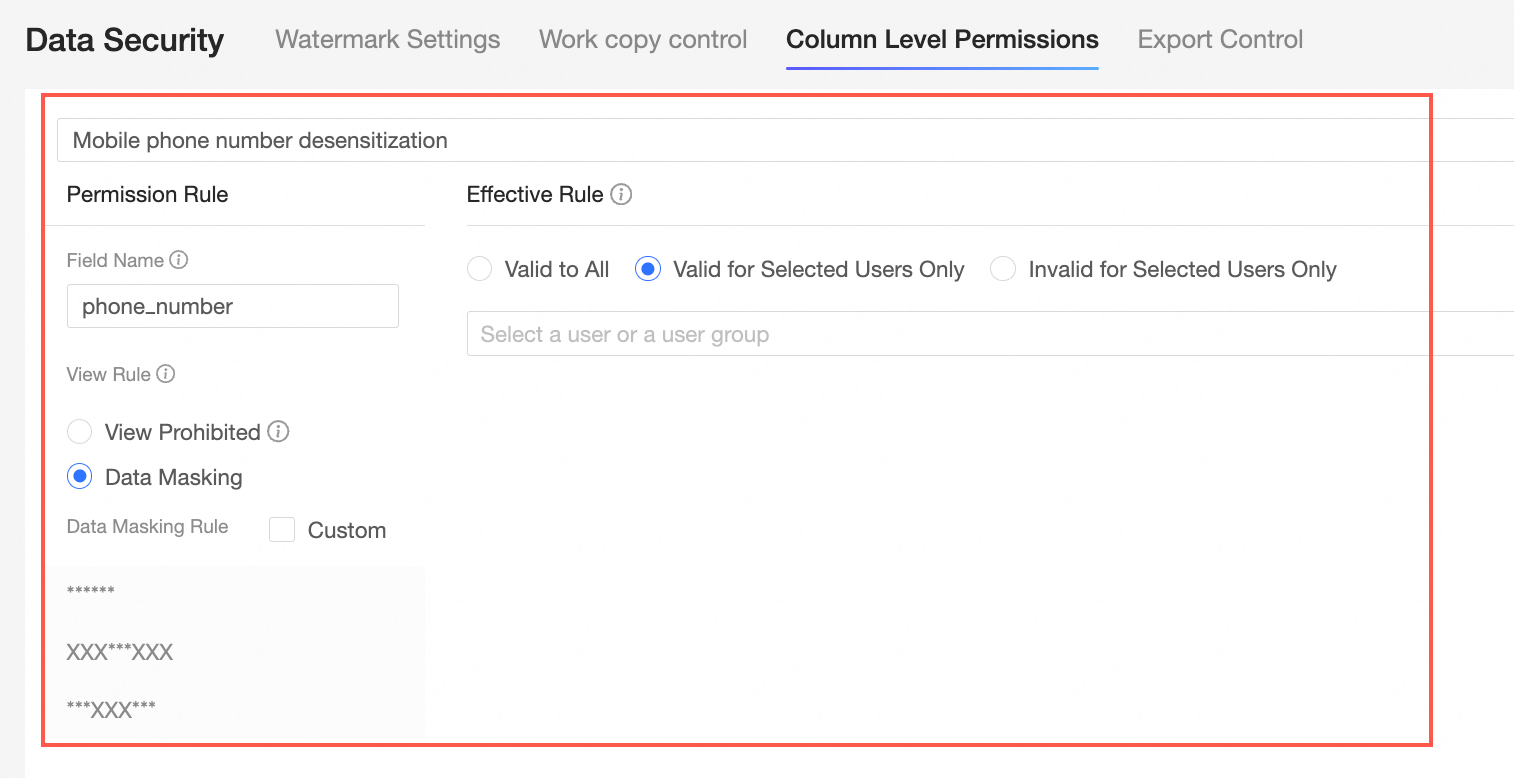

For example, set up a rule to mask phone numbers, making it effective for all users.
You can customize masking rules as well. For detailed configurations, refer to Data Masking.
Effect Display

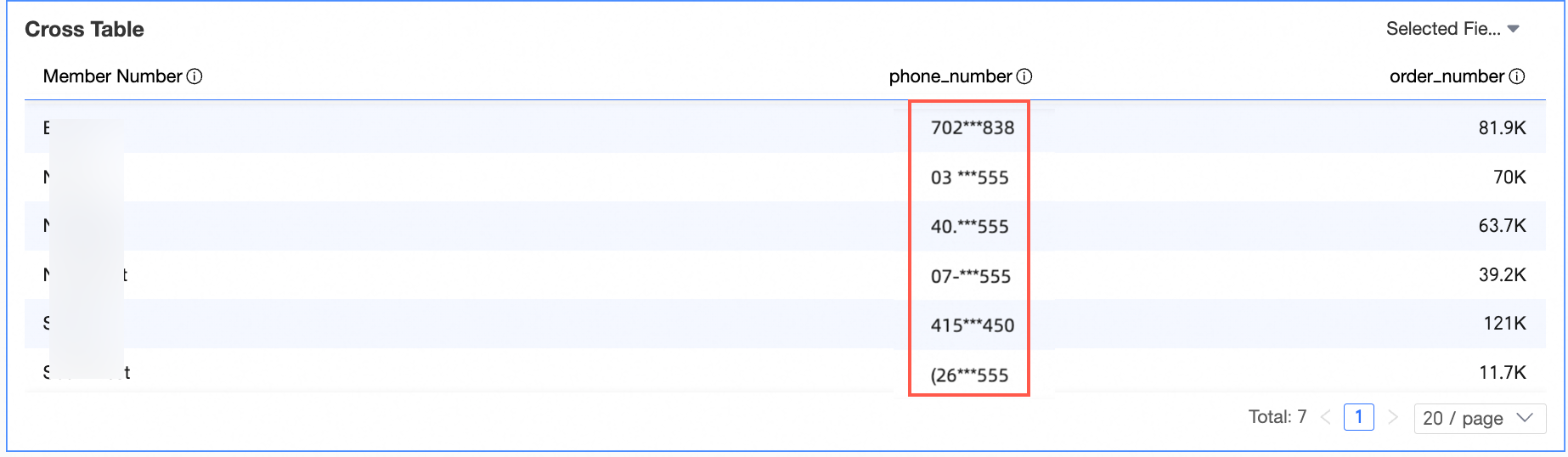

After the setting is complete, all users will only be able to view the masked phone numbers.
Effect description
Authorized object | Parameter description |
Effective for Everyone | When viewing the values of the specified fields:
|
Valid for Selected Users Only | After specifying users or user groups, when viewing the values of the specified fields:
|
Invalid for Selected Users Only | After specifying users or user groups, when viewing the values of the specified fields:
|
Special instructions
Data can only be viewed when the user possesses both dataset and organization-level permissions.
Organization-level column-level permissions take precedence over dataset permissions. When fields in a dataset are governed by global column-level permissions, the masking rules will be applied regardless of other settings. In the event of conflicting rules, the global rules will take priority.
For an explanation of column-level permissions within a dataset, refer to Configure Column-level permissions.
Manage column-level permissions
Access the column-level permissions settings page.

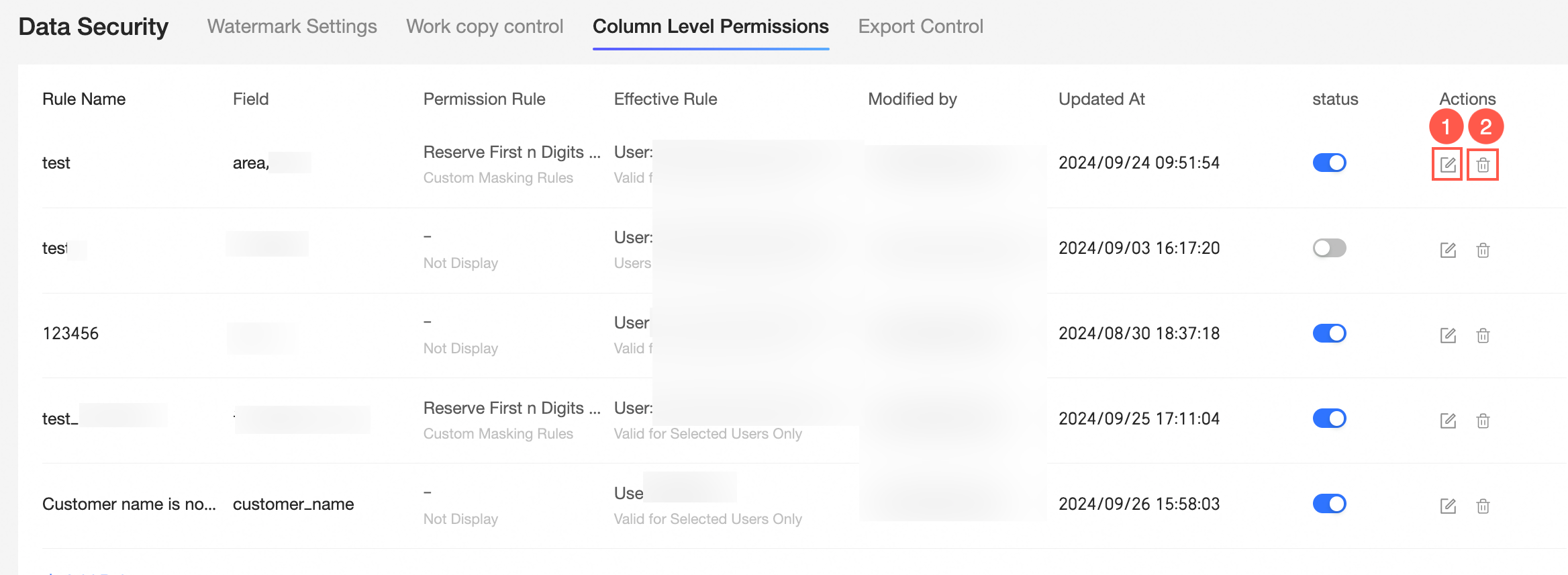

On the management page, you can edit (①) or delete (②) existing permission rules.
