Container Compute Service:Event-driven auto scaling based on RocketMQ metrics (KEDA)

Feature introduction

RocketMQ is a high-performance, highly reliable, and highly scalable distributed message middleware that has been widely used in enterprise applications. However, when using RocketMQ, message accumulation issues can easily occur, especially under high load conditions. Message accumulation can lead to high system load and even service crashes.

In this scenario, you can use the Kubernetes event-driven autoscaling tool KEDA to trigger horizontal pod autoscaling based on custom RocketMQ message accumulation metrics. This solution helps you implement automatic and efficient application scaling, thereby improving system reliability and stability. If you are using open-source RocketMQ, you can achieve similar capabilities by providing message accumulation data through JMX's Prometheus Exporter.

This topic uses Alibaba Cloud Prometheus as the data source and describes how to implement RocketMQ message accumulation scaling object configuration.

Prerequisites

• The ack-keda component is installed.

• An ApsaraMQ for RocketMQ 5.x series instance is created, along with a topic and a group named keda.

  RocketMQ 5.x Serverless instances can quickly scale resources based on business load, allocate resources and calculate fees based on actual usage, which can effectively reduce costs.

• The Alibaba Cloud RocketMQ (5.0) service is integrated in ARMS.

• The Golang runtime environment is installed.

Step 1: Deploy a workload

This example creates a Nginx sample application named sample-app.

1. Log on to the ACS console. In the left-side navigation pane, click Clusters.

2. On the Clusters page, find the cluster that you want to manage and click its ID. In the left-side navigation pane of the cluster details page, choose Workloads > Deployments.

3. On the Deployments page, click Create From YAML, select Sample Templates as Custom as prompted, and use the following content to create a Nginx application named sample-app.

   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: sample-app
     namespace: default
     labels:
       app: sample-app
   spec:
     replicas: 1
     selector:
       matchLabels:
         app: sample-app
     template:
       metadata:
         labels:
           app: sample-app
       spec:
         containers:
         - name: sample-app
           image: registry.cn-hangzhou.aliyuncs.com/acs-sample/nginx:latest # You can modify this to your actual RocketMQ consumer image as needed.
           resources:
             limits:
               cpu: "500m"

Step 2: Configure the ScaledObject scaling policy

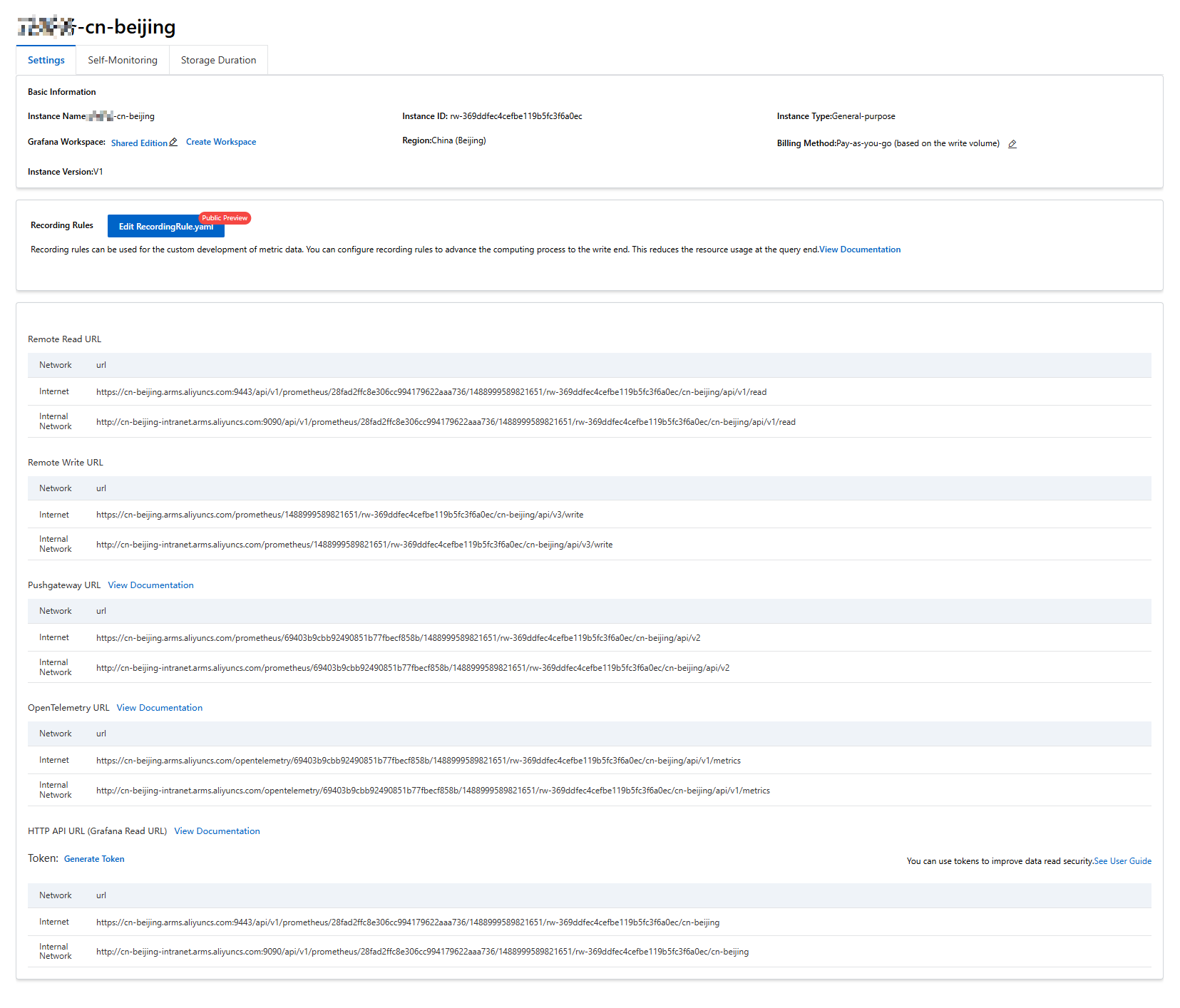

You can configure the KEDA scaling policy by configuring ScaledObject, including the scaling object, maximum and minimum number of replicas, scaling thresholds (message accumulation threshold), and more. Before configuring ScaledObject, you need to obtain information such as the Prometheus address for RocketMQ instance metric data.

Step 3: Configure producers and consumers

package main

import (
	"context"
	"fmt"
	"github.com/apache/rocketmq-client-go/v2"
	"github.com/apache/rocketmq-client-go/v2/primitive"
	"github.com/apache/rocketmq-client-go/v2/producer"
	"os"
	"time"
)

func main() {
	p, err := rocketmq.NewProducer(
		producer.WithNsResolver(primitive.NewPassthroughResolver([]string{"http://rmq-cn-uaxxxxxxy02.cn-beijing.rmq.aliyuncs.com:8080"})), // RocketMQ instance address
		producer.WithCredentials(primitive.Credentials{
			AccessKey: "xxxxxxxxxxx",  // RocketMQ instance username
			SecretKey: "xxxxxxxxxxx",  // RocketMQ instance password
		}),
		producer.WithRetry(2),
	)

	if err != nil {
		fmt.Printf("failed to start producer: %s", err.Error())
		os.Exit(1)
	}

	err = p.Start()
	if err != nil {
		fmt.Printf("start producer error: %s", err.Error())
		os.Exit(1)
	}
	for true {
		res, err := p.SendSync(context.Background(), primitive.NewMessage("keda",
			[]byte("Hello RocketMQ Go Client!")))

		if err != nil {
			fmt.Printf("send message error: %s\n", err)
		} else {
			fmt.Printf("send message success: result=%s\n", res.String())
		}
		time.Sleep(100 * time.Millisecond)
	}
	err = p.Shutdown()
	if err != nil {
		fmt.Printf("shutdown producer error: %s", err.Error())
	}
}

package main

import (
	"context"
	"fmt"
	"github.com/apache/rocketmq-client-go/v2"
	"github.com/apache/rocketmq-client-go/v2/consumer"
	"github.com/apache/rocketmq-client-go/v2/primitive"
	"os"
	"time"
)

func main() {
	sig := make(chan os.Signal)
	c, _ := rocketmq.NewPushConsumer(
		consumer.WithGroupName("keda"),
		consumer.WithCredentials(primitive.Credentials{
			AccessKey: "xxxxxxxxxxx", // RocketMQ instance username
			SecretKey: "xxxxxxxxxxx", // RocketMQ instance password
		}),
		consumer.WithNsResolver(primitive.NewPassthroughResolver([]string{"http://rmq-cn-uaxxxxxxy02.cn-beijing.rmq.aliyuncs.com:8080"})), // RocketMQ instance address
	)
	err := c.Subscribe("keda", consumer.MessageSelector{}, func(ctx context.Context,
		msgs ...*primitive.MessageExt) (consumer.ConsumeResult, error) {
		for i := range msgs {
			fmt.Printf("subscribe callback: %v \n", msgs[i])
			time.Sleep(1 * time.Second)
		}

		return consumer.ConsumeSuccess, nil
	})
	if err != nil {
		fmt.Println(err.Error())
	}
	// Note: start after subscribe
	err = c.Start()
	if err != nil {
		fmt.Println(err.Error())
		os.Exit(-1)
	}
	<-sig
	err = c.Shutdown()
	if err != nil {
		fmt.Printf("shutdown Consumer error: %s", err.Error())
	}
}

package main

import (
	"context"
	"fmt"
	"log"
	"os"
	"strconv"
	"time"

	rmq_client "github.com/apache/rocketmq-clients/golang/v5"
	"github.com/apache/rocketmq-clients/golang/v5/credentials"
)

const (
	Topic     = "xxxxxx" // Topic Name
	Endpoint  = "xxxxxx" // RocketMQ instance address
	AccessKey = "xxxxxx" // RocketMQ instance username
	SecretKey = "xxxxxx" // RocketMQ instance password
)

func main() {
	os.Setenv("mq.consoleAppender.enabled", "true")
	rmq_client.ResetLogger()
	// In most case, you don't need to create many producers, singleton pattern is more recommended.
	producer, err := rmq_client.NewProducer(&rmq_client.Config{
		Endpoint: Endpoint,
		NameSpace: "rqm-xx-xxxxxx", // RocketMQ instance address
		Credentials: &credentials.SessionCredentials{
			AccessKey:    AccessKey,
			AccessSecret: SecretKey,
		},
	},
		rmq_client.WithTopics(Topic),
	)
	if err != nil {
		log.Fatal(err)
	}
	// start producer
	err = producer.Start()
	if err != nil {
		log.Fatal(err)
	}
	// graceful stop producer
	defer producer.GracefulStop()

	for i := 0; i < 10; i++ {
		// new a message
		msg := &rmq_client.Message{
			Topic: Topic,
			Body:  []byte("this is a message : " + strconv.Itoa(i)),
		}
		// set keys and tag
		msg.SetKeys("a", "b")
		msg.SetTag("ab")
		// send message in sync
		resp, err := producer.Send(context.TODO(), msg)
		if err != nil {
			log.Fatal(err)
		}
		for i := 0; i < len(resp); i++ {
			fmt.Printf("%#v\n", resp[i])
		}
		// wait a moment
		time.Sleep(time.Second * 1)
	}
}

package main

import (
	"context"
	"fmt"
	"log"
	"os"
	"time"

	rmq_client "github.com/apache/rocketmq-clients/golang/v5"
	"github.com/apache/rocketmq-clients/golang/v5/credentials"
)

const (
	Topic         = "xxxxxx" // Topic Name
	ConsumerGroup = "xxxxxx" // Consumer Group Name
	Endpoint  = "xxxxxx" // RocketMQ instance address
	AccessKey = "xxxxxx" // RocketMQ instance username
	SecretKey = "xxxxxx" // RocketMQ instance password
)

var (
	// maximum waiting time for receive func
	awaitDuration = time.Second * 5
	// maximum number of messages received at one time
	maxMessageNum int32 = 16
	// invisibleDuration should > 20s
	invisibleDuration = time.Second * 20
	// receive messages in a loop
)

func main() {
	// log to console
	os.Setenv("mq.consoleAppender.enabled", "true")
	rmq_client.ResetLogger()
	// In most case, you don't need to create many consumers, singleton pattern is more recommended.
	simpleConsumer, err := rmq_client.NewSimpleConsumer(&rmq_client.Config{
		Endpoint:      Endpoint,
		NameSpace: "rqm-xx-xxxxxx", // RocketMQ instance address
		ConsumerGroup: ConsumerGroup,
		Credentials: &credentials.SessionCredentials{
			AccessKey:    AccessKey,
			AccessSecret: SecretKey,
		},
	},
		rmq_client.WithSimpleAwaitDuration(awaitDuration),
		rmq_client.WithSimpleSubscriptionExpressions(map[string]*rmq_client.FilterExpression{
			Topic: rmq_client.SUB_ALL,
		}),
	)
	if err != nil {
		log.Fatal(err)
	}
	// start simpleConsumer
	err = simpleConsumer.Start()
	if err != nil {
		log.Fatal(err)
	}
	// graceful stop simpleConsumer
	defer simpleConsumer.GracefulStop()

	go func() {
		for {
			fmt.Println("start receive message")
			mvs, err := simpleConsumer.Receive(context.TODO(), maxMessageNum, invisibleDuration)
			if err != nil {
				fmt.Println(err)
			}
			// ack message
			for _, mv := range mvs {
				simpleConsumer.Ack(context.TODO(), mv)
				fmt.Println(mv)
			}
			fmt.Println("wait a moment")
			fmt.Println()
			time.Sleep(time.Second * 3)
		}
	}()
	// run for a while
	time.Sleep(time.Minute)
}

Step 4: Implement scaling using production and consumption data

The following example demonstrates using a RocketMQ 5.x instance.

1. Log on to the ApsaraMQ for RocketMQ console. In the left-side navigation pane, click Instances.

2. In the top navigation bar, select a region, such as China (Hangzhou), and then click the name of the target instance in the instance list to view and record the Endpoint and Network Information.

3. In the navigation pane on the left, click Access Control, and then click the Intelligent Authentication tab to view and record the instance username and password.

4. Run the Producer program to produce data and check the HPA scaling status.

   1. Produce data.

      go run producer.go

   2. Check the HPA scaling status.

      kubectl get hpa

      Expected results:

      NAME                               REFERENCE               TARGETS           MINPODS   MAXPODS   REPLICAS   AGE
      keda-hpa-prometheus-scaledobject   Deployment/sample-app   32700m/30 (avg)   2         10        10         47m

      As you can see, the sample-app application has scaled out to the maximum number of replicas set by the KEDA component.

5. Close the Producer program, run the Consumer program, and check the HPA scaling status.

   1. Consume data.

      go run consumer.go

   2. Check the HPA scaling status

      kubectl get hpa -w

      Expected results:

      NAME                               REFERENCE               TARGETS            MINPODS   MAXPODS   REPLICAS   AGE
      keda-hpa-prometheus-scaledobject   Deployment/sample-app   222500m/30 (avg)   2         10        10         50m
      keda-hpa-prometheus-scaledobject   Deployment/sample-app   232400m/30 (avg)   2         10        10         51m
      keda-hpa-prometheus-scaledobject   Deployment/sample-app   0/30 (avg)         2         10        10         52m
      keda-hpa-prometheus-scaledobject   Deployment/sample-app   0/30 (avg)         2         10        2          57m

   As you can see, after the data consumption is completed (about 5 minutes), the sample-app application scales in to the minimum number of replicas set by the KEDA component.

References

You can also implement KEDA based on RabbitMQ metrics to monitor queue length and message rate metrics. For more information, see Horizontal pod autoscaling based on RabbitMQ metrics.
