The All Access Activities page displays real-time activity information about all hosts protected by Cloud Firewall. Such information includes traffic trends, as well as source locations and sessions of inbound and outbound traffic.

Prerequisites

The All Access Activities page displays the analysis data only after you activate Cloud Firewall. For information about how to activate Cloud Firewall, see Activate Cloud Firewall.

Procedure

  1. Log on to the Cloud Firewall console.
  2. In the left-side navigation pane, choose Traffic Analysis > All Access Activities.
  3. On the All Access Activities page, view the threat activities and trend charts in the last 15 minutes, 1 hour, 4 hours, 1 day, 7 days, or a specified time range.

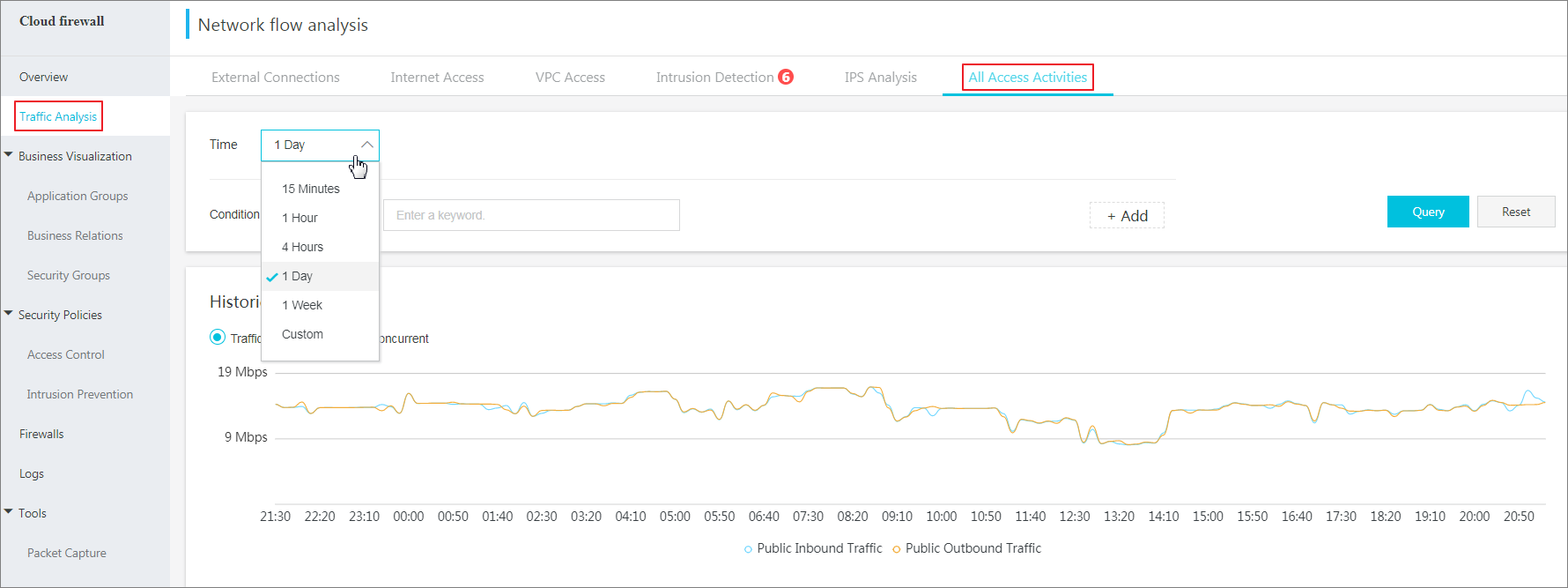

    Select a time range
    Note You can specify a time range as required.
    • Select a search condition from the Condition drop-down list and enter or select the condition details. Click Query to query historical traffic trends that meet the condition. To delete the search condition, click Reset.Search condition
      Note You can click Add to add search conditions. All conditions take effect at the same time when you click Query. You can configure a maximum of three conditions.
    • In the Historical Trends section, view the trend charts of inbound and outbound traffic, the number of new connections, and concurrent traffic.Historical trends

      You can select Traffic, New, or Concurrent to switch between the trend charts of inbound and outbound traffic, the number of new connections, and the inbound and outbound concurrent traffic.

      Note A trend chart displays traffic data in the last 15 minutes, 1 hour, 4 hours, 1 day, 7 days, or a specified time range. You can specify a time range as required.
    • In the Rankings of Visits by Traffic section, you can view top 10 source locations and applications of inbound and outbound traffic, as well as the percentages of traffic for each source location and application.Rankings of Visits by Traffic
    • Click View Details to check the statistics on source or destination locations or application protocols.
    • Click Add to Condition to add the condition to the query condition setting section. After you click Query, the Historical Trends and Rankings of Visits by Traffic sections display trend charts of access activities that meet the condition.

References

Traffic from unknown applications accounts for a large proportion of all traffic. Does this occur because Cloud Firewall cannot identify the applications that generate traffic in the Internet?
