Cloud Firewall supports access control on the Internet firewall. You can configure policies to control the traffic between the Internet and your ECS instances.

Prerequisites

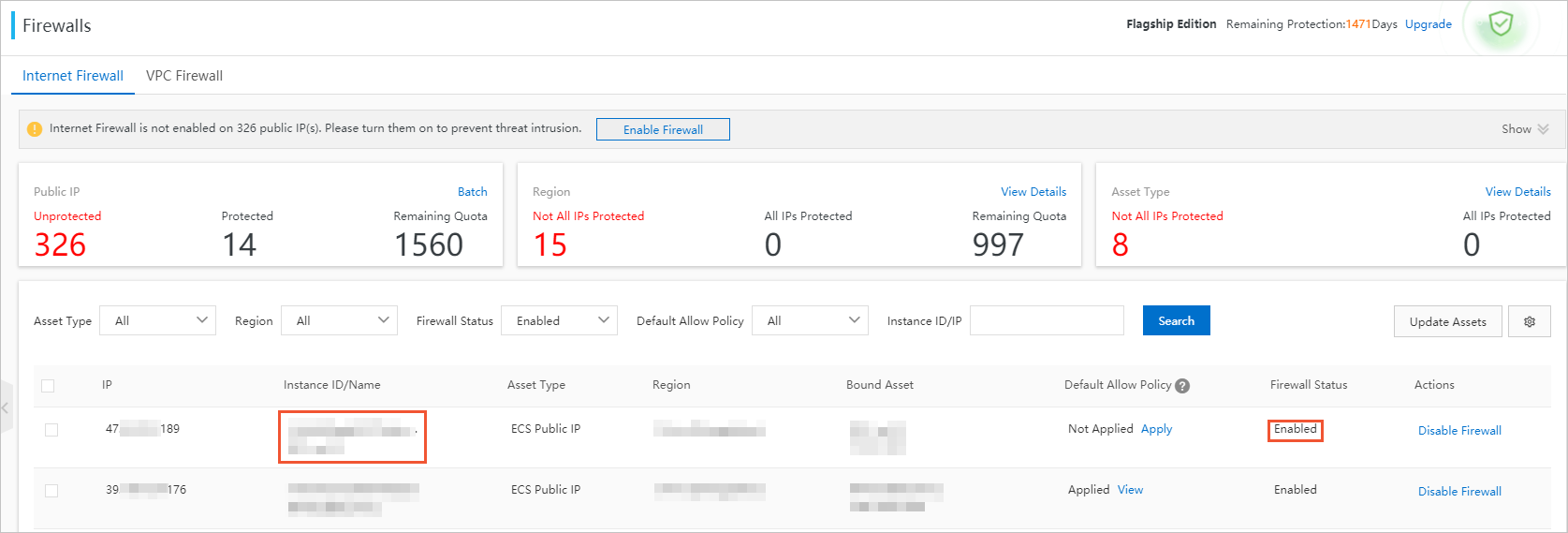

Internet Firewall is enabled. Otherwise, the access control policies you configured on the Internet firewall do not take effect. For more information, see Enable or disable Internet Firewall.Internet firewall

Background information

The Internet firewall allows you to configure Outbound Policies and Inbound Policies.

Outbound access control

  1. Log on to the Cloud Firewall console.
  2. In the left-side navigation pane, choose Security Policies > Access Control.
  3. On the Internet Firewall page, click the Outbound Policies tab.
  4. On the Outbound Policies tab, click Create Policy.
    Create a policy
  5. In the Create Outbound Policy dialog box, perform the following operations to create an outbound access control policy.
    Create an access control outbound policy
    1. In the first outbound policy, allow traffic from trusted IP addresses.
      1. Configure the parameters as described in the following table. For more information, see Parameters in an access control policy.
        Parameter Description
        Source Type Select IP or Address Book.
        • IP: Specify only one CIDR block.
        • Address Book: Select a preconfigured address book. The address book contains multiple CIDR blocks, which simplifies the configuration of access control policies.
        Source The source IP address (public IP address) of the request.
        • If Source Type is set to IP, enter a CIDR block, for example, 1.1.1.1/32. You can configure only one CIDR block for each policy.
        • If Source Type is set to Address Book, find the required address book and click Select in the Actions column to configure IP addresses in the address book as the source.
          Note You can select only one address book at a time. If you want to use multiple address books, click Create Policy.
        Destination Type
        Select IP, Address Book, Domain Name, or Region.
        Note If you select Region, you can select a destination from all seven continents in the world and regions in China. The regions in China include 23 provinces, 4 municipalities, 5 autonomous regions, and 2 special administrative regions.
        Destination Specify the destination addresses that can be accessed.
        • If Destination Type is set to IP, enter a CIDR block, for example, 1.1.1.1/32. You can configure only one CIDR block for each policy.
        • If Destination Type is set to Address Book, find the required address book and click Select in the Actions column to configure IP addresses in the address book as the destination.
          Note You can select only one address book at a time. If you want to use multiple address books, click Create Policy.
        • If Destination Type is set to Domain Name, Cloud Firewall automatically resolves the domain name and implements access control. For more information, see Configure access control policies for domain names.
        • If Destination Type is set to Region, select the region where the destination resides.
        Protocol Select the protocol for outbound traffic. Valid values: TCP, UDP, ICMP, and ANY. If you are not sure about the protocol, select ANY, which means that all protocols are matched.
        Port Type Valid values: Ports and Address Book.
        • Ports: Specify only one port range.
        • Address Book: Select a preconfigured port address book. A port address book contains multiple ports, which simplifies policy configuration.
        Ports Specify the ports on which you want to control traffic. If Port Type is set to Ports, enter a port number range. If Port Type is set to Address Book, find the required port address book and click Select in the Actions column.
        Note You can select only one address book at a time. If you want to use multiple address books, click Create Policy.
        Application Select the application to which the policy applies.
        Note If Destination Type is set to Domain Name, you can set Application to HTTP, HTTPS, SMTP, or SMTPS.
        Policy Action Specify whether the Internet firewall allows or denies the traffic of the protocol type. Select Allow in this step.
        Description Enter a description to identify the policy.
        Priority Configure the priority of the policy. The default priority is Lowest.
      2. Click Submit.
        Note The created policy is displayed in the last row on the last page of the policy list.
    2. In the second outbound access control policy, deny traffic from all unauthorized IP addresses.

      Set Source to 0.0.0.0/0 and Policy Action to Deny to prevent all unauthorized access activities. Configure other parameters based on the descriptions in the preceding table.

    3. Make sure that the priority of the allow policy on the trusted IP addresses is higher than that of the deny policy.
    Note By default, Cloud Firewall assigns priorities to access control policies based on the order in which the policies are created. A new policy has a lower priority than existing policies. For more information about the policy priorities, see Change the priority of an access control policy.

    For more information about policy parameters, see Parameters in an access control policy.

Inbound access control

  1. Log on to the Cloud Firewall console.
  2. In the left-side navigation pane, choose Security Policies > Access Control.
  3. On the Internet Firewall tab, click the Inbound Policies tab. Then, click Create Policy.
    Inbound policies
  4. In the Create Inbound Policy dialog box, create a policy to allow traffic from trusted external IP addresses.

    Set Source to a trusted CIDR block or IP address book. Set Policy Action to Allow. For information about how to configure other parameters, see the parameter descriptions in Outbound access control.

    Note If Source Type is set to Address Book, you can select an IP address book or a cloud address book as the source. If Destination Type is set to Address Book, you can select only an IP address book as the destination.
  5. Create another inbound access control policy to deny the traffic from all unauthorized external IP addresses.

    Set Source to 0.0.0.0/0 and Policy Action to Deny to prevent all unauthorized access activities.

  6. Make sure that the priority of the allow policy on the trusted IP addresses is higher than that of the deny policy.

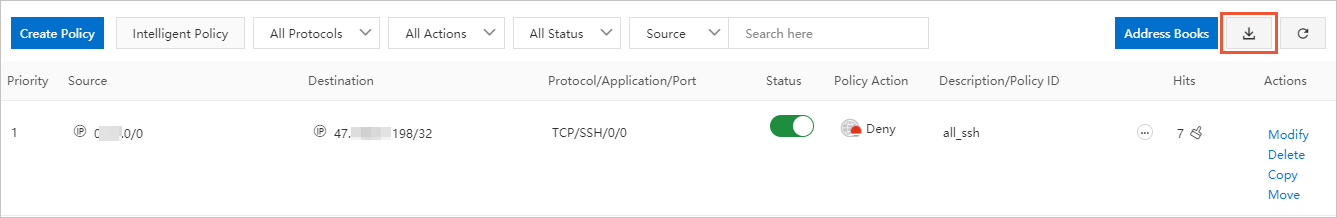

Export policies

You can export inbound or outbound policies for the Internet firewall based on your business requirements.Export policies

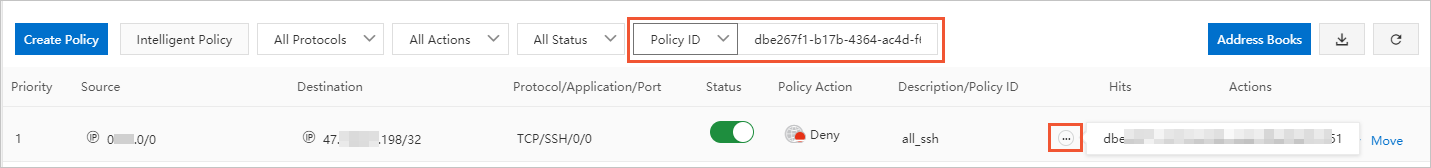

Search for a specific policy based on the policy ID

Each access control policy for the Internet firewall has a policy ID. You can use this policy ID to identify a specific access control policy. This gives you the ability to know the status of the policy and adjust the policy based on your business requirements.

To view the ID of a policy, you can find the policy on the Internet Firewall tab and move the pointer over the Policy display icon icon in the Description/Policy ID column.View the ID of a policy

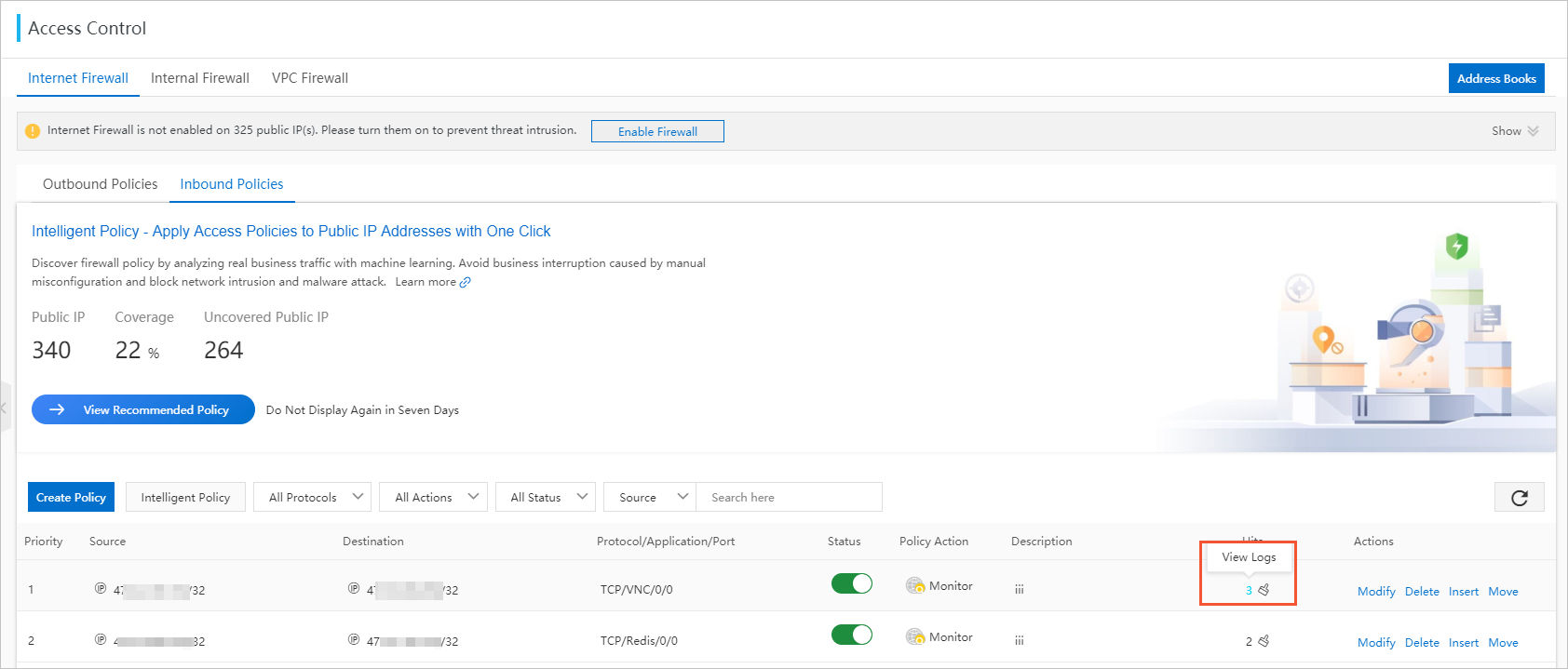

Check whether access traffic hits a control policy

By default, an access control policy takes effect immediately after it is created. However, if the policy parameters are incorrectly configured or the Internet firewall is disabled, the policy does not take effect.

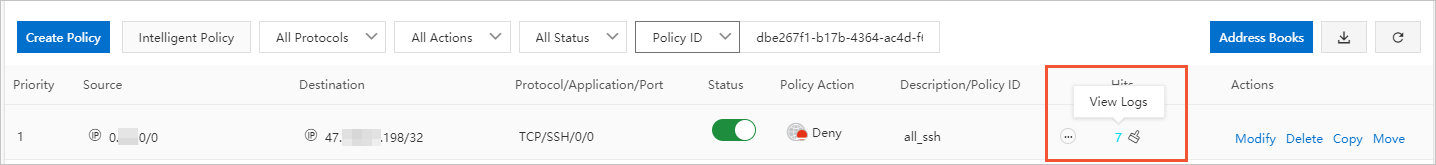

In the access control policy list, if the number in the Hits column is greater than 0 for an access control policy, access traffic hits the policy. The number in the Hits column indicates the number of times traffic hits the policy.Hits
You can click the number to go to the Traffic Logs tab. On the Traffic Logs tab, the names of access control policies the traffic hits are displayed in the Policy Name column.
Note This tab displays the traffic generated in the last seven days. If the traffic hits an access control policy more than seven days ago, this policy is not displayed on the Traffic Logs tab.

Parameters in an access control policy

Parameter Description
Source Type The type of the source address. Valid values:
  • IP: Enter a CIDR block in the Source field.
  • Address Book: Select a preconfigured address book.
    Note You can add multiple CIDR blocks to an address book to simplify policy configurations.
Source The source CIDR block of the traffic.
Note You can enter only one CIDR block, for example, 1.1.1.1/32.
If you set Source Type to Address Book, select a preconfigured address book.
Note
  • In an outbound access control policy, if Source Type is set to Address Book, you can only select an IP address book. However, if Destination Type is set to Address Book, you can select an IP address book, domain address book, or cloud address book.
  • In an inbound access control policy, if Source Type is set to Address Book, you can select an IP address book or cloud address book. However, if Destination Type is set to Address Book, you can select only an IP address book.
  • You can select only one address book at a time. If you want to use multiple address books, click Create Policy.
Destination Type Set this parameter in the following way:
  • If you select IP, enter a CIDR block in the Destination field.
  • If you select Address Book, select a preconfigured address book.
  • If you select Domain Name, set the destination to a domain name. You can specify a wildcard domain name, for example, *.aliyun.com.
    Note By default, if an HTTP header does not contain the host field or an HTTPS request does not contain the Server Name Indication (SNI), Cloud Firewall allows the traffic.
  • If you select Region, select a region as the destination. You can select a region inside or outside China.
Destination If you set Destination Type to IP, the destination must be set to a CIDR block. Only one CIDR block can be configured.

If you set Destination Type to Domain Name, set the destination to a domain name. Wildcard domain names are supported.

Note
  • In an outbound access control policy, if Source Type is set to Address Book, you can select only an IP address book. However, if Destination Type is set to Address Book, you can select an IP address book, domain address book, or cloud address book.
  • In an inbound access control policy, if Source Type is set to Address Book, you can select an IP address book or cloud address book. However, if Destination Type is set to Address Book, you can select only an IP address book.
  • You can select only one address book at a time. If you want to use multiple address books, click Create Policy.
Protocol Valid values:
  • ANY: any protocol type
  • TCP
  • UDP
  • ICMP
Port Type Set this parameter in the following way:
  • If you select Ports, enter a port range.
  • If you select Address Book, select a preconfigured port address book. A port address book contains multiple ports, which simplifies policy configurations.
Ports Specify the ports on which you want to control traffic. If Port Type is set to Ports, enter a port number range. If Port Type is set to Address Book, find the required port address book and click Select in the Actions column.
Note
  • You can select only one address book at a time. If you want to use multiple address books, click Create Policy.
  • If you set Protocol to ICMP, the port configuration does not take effect. If you set Protocol to ANY, the destination ports you specify do not take effect in controlling ICMP traffic.
Application Valid values: ANY, HTTP, HTTPS, Memcache, MongoDB, MQTT, MySQL, RDP, Redis, SMTP, SMTPS, SSH, and VNC.

If Protocol is set to TCP, the preceding protocols are supported. If Protocol is set to another value, you can select only ANY.

Note Cloud Firewall identifies applications based on packet characteristics, instead of port numbers. If Cloud Firewall fails to identify an application in a packet, it allows the packet. If you want to block traffic from unknown applications, we recommend that you enable the strict mode. For more information, see Strict mode of the Internet firewall.
Policy Action Specifies whether the Internet firewall allows or denies the traffic. Set this parameter in the following way:
  • Allow: If traffic meets the preceding conditions that you specify for the policy, the traffic is allowed.
  • Deny: If traffic meets the preceding conditions that you specify for the policy, the traffic is denied, and no notifications are sent.
  • Monitor: If traffic meets the preceding conditions that you specify for the policy, the traffic is recorded and allowed. After you observe the traffic for a period of time, you can change the policy action to Allow or Deny.
Description Enter a description to identify the policy.
Priority The priority of a policy, Set this parameter in the following way:
  • Lowest: The policy takes effect in the last priority.
  • Highest: The policy takes effect in the first priority.

The default value is Lowest.

Related operations

After an access control policy is created, you can perform the following operations in the policy list: modify, delete, or copy the policy, or change its priority.
Note After you delete an access control policy, Cloud Firewall does not control the traffic to which the policy applies. Perform this operation with caution.
