    Security Center:Import Tencent Cloud log data

    Document Center

    Security Center:Import Tencent Cloud log data

    Last Updated:Jan 19, 2026

    In multi-cloud environments, scattered security logs complicate unified threat detection and incident response. Security Center's Agentic SOC centralizes the import and analysis of security logs from Tencent Cloud Web Application Firewall (WAF), for unified security management across your cloud environments.

    How it works

    1. Log aggregation at the source: Logs from Tencent Cloud products, such as WAF, are consolidated into Tencent Cloud Log Service (CLS).

    2. Data export: Logs are exported from CLS to a TDMQ for CKafka or Cloud Object Storage (COS), which acts as an intermediary for cross-cloud data transfer.

    3. Cross-cloud data import: The Agentic SOC platform subscribes to and pulls log data from the message queue or COS using standard Kafka or S3 protocols. It then sends the data to a specified data source.

    4. Ingestion and normalization: You create an Ingestion Policy in the Agentic SOC platform and apply a Standardization Rule. This policy and rule parse and normalize the raw logs before storing them in a data warehouse.


    Supported logs

    This solution supports importing only the Web Application Firewall (WAF) Alert Log from Tencent Cloud.

      Ship logs to CLS

      First, consolidate the security logs from your Tencent Cloud products into CLS.

      Web Application Firewall

      Note

      For detailed instructions, see the official Tencent Cloud documentation: Log Shipping.

      1. Authorize and enable log service

        1. Log on to the or . Navigate to the Access Log > Log shipping page or the Attack Log > Log shipping page. Click Configure and follow the prompts to complete the authorization.

        2. Once authorized, click Create on the LogShipping page.

          Important

          After authorization, the system automatically creates a Logset named waf_post_logset.

      2. Enable log shipping

        Enable log delivery for the logs you want to collect. For more information, see Enabling Log Shipping.

        • Enable Attack Log Shipping: In the left-side navigation pane of the WAF Console, choose Instance Management. On the instance details page, turn on the Attack log shipping switch.

        • Enable Access Log Shipping:

          1. In the left-side navigation pane of the WAF Console, choose Connection Management > Domain names. In the Actions column for the domain, click More > Log shipping.

          2. In the advanced settings window, select Delivery Target and click Save.

      Choose an import method

      Select the method that best fits your business needs, considering their differences in real-time performance, cost, and configuration complexity. To import Tencent Cloud CLS logs into Security Center, you can choose between Kafka protocol consumption and COS.

      Item

      Kafka protocol consumption

      COS

      Real-time performance

      Near real-time.

      Minute-level latency.

      Configuration complexity

      Low. Requires configuring Kafka protocol consumption.

      Low. Requires configuring a COS delivery task.

      Cost structure

      • Tencent Cloud: Log Service fees.

      • Alibaba Cloud: Agentic SOC log ingestion traffic fees.

      • Tencent Cloud: COS storage fees.

      • Alibaba Cloud: Agentic SOC log ingestion traffic fees.

      Use cases

      High real-time requirements for log analysis, such as stream-based security computing or rapid alert response.

      Low real-time requirements, with a focus on cost-effectiveness, log archival, or batch offline analysis.

      Configure data import

      Import data by using Kafka protocol consumption

      Step 1: Configure Kafka protocol consumption and get an AccessKey pair in Tencent Cloud

      Create a task to ship data from CLS via Kafka protocol consumption

      Note

      For detailed instructions, see the official Tencent Cloud documentation: Consume Logs over Kafka.

      1. Enable Kafka protocol consumption

        1. Go to the Tencent Cloud - Log Topic page and select the appropriate log storage Region in the upper-left corner.

        2. Click the name of the target Log Topic to go to its details page.

          • Web Application Firewall: Typically found under the plain Logset. For details, see Ship logs to CLS.

        3. In the left-side navigation pane, click Consumption over Kafka. On the Basic Information tab, click Edit on the right and turn on the Current Status switch. Configure the settings as described below, and then click OK.

          • Timestamp Range: History + Latest.

          • Consumer Data Format: JSON (select Disable Escape) or Raw Content.

          • Data Compression Format: No Compression.

          • Public Access: Enabled.

          • Service Log: Enabled.

      2. Get the information required to connect to the Kafka service

        After completing the configuration, view consumer parameters to get the required configuration information: the CLS public service address (endpoint), username, and consumer topic. Note this information for use when you Authorize Security Center to access COS and Create a data import task.

        Parameter

        Description

        Public endpoint

        Format: kafkaconsumer-${region}.cls.tencentcs.com:9096.

        topic

        The Kafka topic.

        username

        Set to ${LogSetID}, which is the Logset ID.

        password

        Set to ${SecretId}#${SecretKey}.

      Set the AccessKey pair

      • Use a main account key: Go to the Tencent Cloud - API Key Management page and click Create Key. Securely save the generated SecretId and SecretKey by clicking Download CSV File or copying them to a local file. For more information, see Managing Main Account Access Keys.

        Note

        You can use either an API key or a project key.

      • Use a sub-account key:

        1. On the Tencent Cloud - Policies page in the CAM console, create a policy with the minimum required permissions to ensure key security. For more information, see Authorization for Kafka Protocol Consumption and Create Custom Policy by Policy Syntax.

          {
    "version": "2.0",
    "statement": [{
        "action": [
            "cls:PreviewKafkaRecharge",
            "cls:CreateKafkaRecharge",
            "cls:ModifyKafkaRecharge"
        ],
        "resource": "*",
        "effect": "allow"
    }]
}

        2. Go to the Tencent Cloud - User List page and select an existing sub-account or create a new one.

          • Attach the access policy you created in the previous step.

          • On the User Details page, go to the API Key tab and click Create Key. Securely save the generated SecretId and SecretKey by clicking Download CSV File or copying them to a local file. For more information, see Managing Sub-account Access Keys.

      Step 2: Configure Kafka log import in Alibaba Cloud

      Authorize Security Center to access Kafka

      1. Go to the Security Center Console > System Settings > Feature Settings. In the upper-left corner of the page, select the Region where your assets are located: Chinese Mainland or Outside Chinese Mainland.

      2. On the Multi-cloud Configuration Management tab, select Multi-cloud Assets, and then click Grant Permission. In the panel that opens, configure the following parameters:

      3. Configure synchronization policy

        AK Service Status Check: Set the interval at which Security Center automatically checks the validity of the Tencent Cloud account's AccessKey pair. You can select Disable to turn off this check.

      Create a data import task

      1. Create a data source

        Create a dedicated Agentic SOC data source for your Tencent Cloud log data. If you have already created one, skip this step.

        1. Go to the Security Center Console > Agentic SOC > Integration Center. In the upper-left corner of the page, select the Region where your assets are located: Chinese Mainland or Outside Chinese Mainland.

        2. On the Data Source tab, create a data source to receive logs from Tencent Cloud. For specific instructions, see Create a data source: Logs are not connected to Log Service (SLS)Data sources.

          • Source Data Source Type: You can select User Log Service or Agentic SOC Dedicated Collection Channel.

          • Add Instances: We recommend creating a new Logstore to isolate the data.

      2. On the Data Import tab, click Add Data. In the panel that opens, configure the following parameters:

      3. Configure the target data source

        • Data Source Name: Select the data source you created in Step 1.

        • Target Logstore: The system automatically fetches the Logstores under the selected data source.

      4. Click OK to save the configuration. After the import configuration is complete, Security Center automatically pulls logs from Tencent Cloud.

      Import data by using COS

      Step 1: Prepare a COS data warehouse and get an AccessKey pair in Tencent Cloud

      Create a task to ship data from CLS to COS

      Note

      For detailed instructions, see the official Tencent Cloud documentation: Create a Shipping Task to COS.

      1. Create a COS delivery task:

        1. Go to the Tencent Cloud - Log Topic page and select the appropriate log storage Region in the upper-left corner.

        2. Click the name of the target Log Topic to go to its details page.

          • Web Application Firewall: Typically found under the waf_post_logset Logset. For details, see Ship logs to CLS.

        3. In the left-side navigation pane, select Shipping to COS, and click Add Shipping Configuration. Configure the parameters as described below:

          Note

          If you see a confirmation page for log archival, click the Still Ship To COS to proceed.

          • Basic Configuration:

            • Time range: To support data analysis, do not set an end time.

            • File Size: Set a trigger value for log delivery. When the accumulated log size reaches this value, the logs are delivered to COS.

            • Shipping Interval: Set the time interval for log delivery. Logs generated within each interval are compressed and delivered to COS.

            Important

            The File Size and Shipping Interval conditions have a logical OR relationship. Log delivery is triggered when either condition is met.

          • Bucket Configuration:

            • COS Bucket: Select or create a Bucket to store the logs from Tencent Cloud products like WAF and CFW.

            • File naming: We recommend selecting Delivery time naming to easily distinguish data.

            • File Compression: Select gzip or No Compression.

              Warning

              Security Center does not support parsing log files with lzop or snappy compression.

            • COS Storage Class: Select Standard. For more information, see Storage Class Overview.

          • Advanced Configuration:

            • Consumer Data Format: Select JSON.

            • JSON: Select Disable Escape.

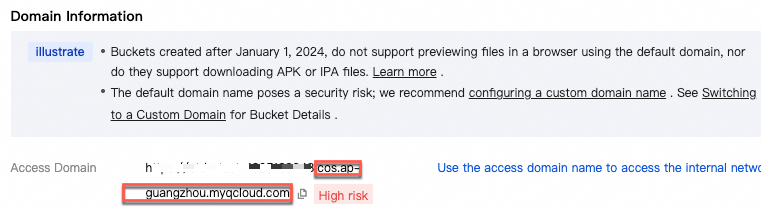

      2. Get the access domain name (Endpoint) of the COS Bucket.

        Go to the Tencent Cloud - Bucket List page and locate the COS Bucket you configured in the previous step. Go to the bucket details page and get the domain name from the Domain Information section.

        Important


      Set the AccessKey pair

      • Use a main account key: Go to the Tencent Cloud - API Key Management page and click Create Key. Securely save the generated SecretId and SecretKey by clicking Download CSV File or copying them to a local file. For more information, see Managing Main Account Access Keys.

        Note

        You can use either an API key or a project key.

      • Use a sub-account key:

        1. On the Tencent Cloud - Policies page in the CAM console, create a policy with the minimum required permissions to ensure key security. For more information, see Authorization for Shipping to COS and Create Custom Policy by Policy Syntax.

          {
    "version": "2.0",
    "statement": [
        {
            "effect": "allow",
            "action": [
                "cls:DescribeTopics",
                "cls:DescribeLogsets",
                "cls:DescribeIndex",
                "cls:CreateShipper"
            ],
            "resource": "*"
        },
        {
            "effect": "allow",
            "action": [
                "tag:DescribeResourceTagsByResourceIds",
                "tag:DescribeTagKeys",
                "tag:DescribeTagValues",
                "cls:ModifyShipper",
                "cls:DescribeShippers",
                "cls:DeleteShipper",
                "cls:DescribeShipperTasks",
                "cls:RetryShipperTask",
                "cls:DescribeShipperPreview",
                "cos:GetService",
                "cam:ListAttachedRolePolicies",
                "cam:AttachRolePolicy",
                "cam:CreateRole",
                "cam:DescribeRoleList"
            ],
            "resource": "*"
        }
    ]
}

        2. Go to the Tencent Cloud - User List page and select an existing sub-account or create a new one.

          • Attach the access policy you created in the previous step.

          • On the User Details page, go to the API Key tab and click Create Key. Securely save the generated SecretId and SecretKey by clicking Download CSV File or copying them to a local file. For more information, see Managing Sub-account Access Keys.

      Step 2: Configure COS log import in Alibaba Cloud

      Authorize Security Center to access COS

      1. Go to the Security Center Console > System Settings > Feature Settings. In the upper-left corner of the page, select the Region where your assets are located: Chinese Mainland or Outside Chinese Mainland.

      2. On the Multi-cloud Configuration Management tab, select Multi-cloud Assets, click Grant Permission, and then select IDC from the dropdown. In the panel that opens, configure the following parameters:

      3. Configure synchronization policy

        AK Service Status Check: Set the interval at which Security Center automatically checks the validity of the Tencent Cloud account's AccessKey pair. You can select Disable to turn off this check.

      Create a data import task

      1. Go to the Security Center Console > Agentic SOC > Integration Center. In the upper-left corner of the page, select the Region where your assets are located: Chinese Mainland or Chinese Mainland.

      2. On the Data Import tab, click Add Data. In the panel that opens, configure the following parameters:

      3. Configure the target data source

        • Data Source Name: Select a custom data source with a normal status (Custom Log Capability/Agentic SOC Dedicated Data Collection Channel). If no suitable data source exists, see Set up data sources to create a new one.

        • Target Logstore: The system automatically fetches the Logstores under the selected data source.

      4. Click OK to save the configuration. After the import configuration is complete, Security Center automatically pulls logs from Tencent Cloud.

      Analyze imported data

      After importing data into SLS, configure ingestion and detection rules to enable log analysis in Security Center.

      1. Create a new ingestion policy

        Refer to Add a product to Agentic SOC 2.0 to create a new ingestion policy with the following configuration:

        • Data Source: Select the Target Data Source configured in the data import task.

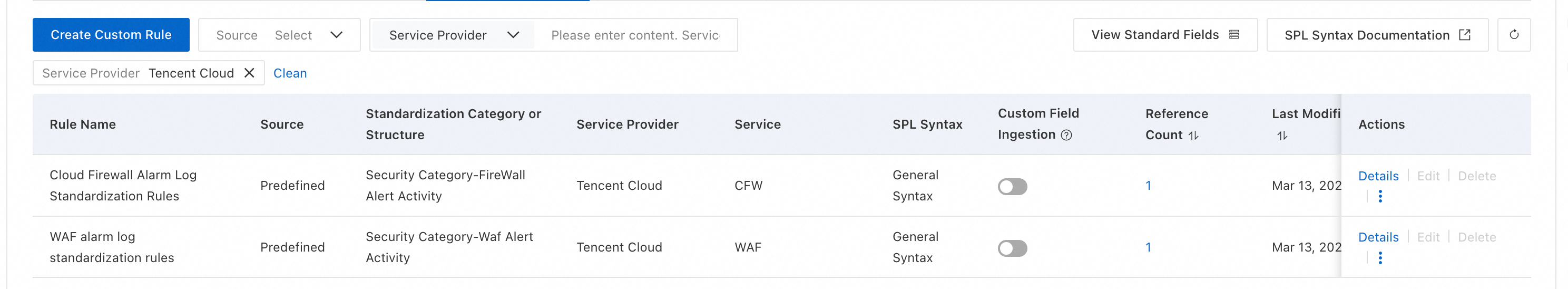

        • Standardized Rule: Agentic SOC provides built-in standardization rules for Tencent Cloud logs. You can also create custom rules by referring to Standardized log access rules.

        • Standardization Method: Defaults to Real-time Consumption and cannot be changed.


      2. Configure threat detection rules

        Based on your security needs, enable or create log detection rules in rule management. This allows the system to analyze logs, generate alerts, and create security events. For specific instructions, see Configure threat detection rules.

      Billing

      This solution involves fees from the following services. Before implementation, carefully review the billing documentation for each product to estimate costs.

      • Tencent Cloud:

        Service name

        Fee items

        Billing documentation

        CLS

        Log storage, read/write operations, etc.

        Tencent Cloud Log Service - Billing Overview.

        COS

        Storage capacity, requests, public network traffic, etc.

        Tencent Cloud COS - Billing Overview.

      • Alibaba Cloud:

        On the Alibaba Cloud side, costs depend on the selected data storage method.

        Note

        For information about Agentic SOC billing, see Agentic SOC Subscription and Agentic SOC Pay-As-You-Go.

        For information about Simple Log Service (SLS) billing, see SLS Billing Overview.

        Data source type

        Agentic SOC fee items

        SLS fee items

        Details

        Agentic SOC Dedicated Collection Channel

        • Log ingestion fees.

        • Log storage and write fees.

        Note

        Both consume Log Ingestion Traffic.

        Fees other than storage and writes (such as public network traffic).

        Agentic SOC creates and manages the SLS resources. Therefore, Agentic SOC is billed for Logstore storage and write operations.

        User Log Service

        Log ingestion fees, which consume Log Ingestion Traffic.

        All log-related fees (including storage, writes, public network traffic, etc.).

        Log resources are fully managed by SLS. Therefore, all log-related fees are billed by SLS.

      FAQ

      • What should I do if I don't see any log data in SLS after creating a data import task?

        1. Check the third-party cloud: Log on to the Tencent Cloud console to confirm that logs have been successfully generated and delivered or shipped to your configured CLS, Kafka Topic, or Object Storage Bucket.

        2. Check authorization credentials: In Security Center, on the Multi-cloud Assets page, check whether the authorization status is normal. Verify that the AccessKey pair is valid and the password is correct, especially the Id#Key concatenated format for Tencent Cloud Kafka.

        3. Check network connectivity: If you are using the Kafka method, ensure that public access is enabled for the Kafka service on the third-party cloud. Also, check that your security group or firewall rules allow access from Security Center's service IPs.

        4. Check the data import task: In Security Center, on the Data Import page, check the task status and error logs. Make corrections based on the information provided.

      • Why should I select Apache or AWS-S3 instead of Tencent Cloud when granting permissions?

        This is because log import uses standard, compatible protocols rather than vendor-specific APIs.

        • IDC represents the protocol vendor, where Apache represents Kafka and AWS-S3 represents object storage.

        • Authorizing Tencent Cloud is only used for integrating Agentic SOC's threat detection rules with Tencent Cloud for security event linkage (such as blocking IPs). This type of authorization cannot be used for log import.
