Quick Start for Flink CDC data ingestion jobs - Realtime Compute for Apache Flink

Realtime Compute for Apache Flink uses Flink Change Data Capture (CDC) to ingest data from a source to a destination. You can develop YAML jobs to synchronize data. This topic describes how to create a Flink CDC data ingestion job to synchronize all data from a MySQL database to StarRocks.

Prerequisites

A Flink workspace is created. For more information, see Activate Realtime Compute for Apache Flink.
Upstream and downstream storage
- An RDS MySQL instance is created. For more information, see Create an RDS MySQL instance.
- A StarRocks instance is created. For more information, see Procedure.
Note
The RDS MySQL and StarRocks instances must be in the same virtual private cloud (VPC) as the Flink workspace. Otherwise, you must establish a network connection and configure an IP address whitelist for the RDS MySQL instance. For more information, see How do I access other services across VPCs?, How do I access the Internet?, and How do I configure a whitelist?.

Background information

Assume that a MySQL instance has a database named order_dw_mysql. This database contains three business tables: orders, orders_pay, and product_catalog. To develop a Flink CDC data ingestion job that synchronizes these tables and their data to the order_dw_sr database in StarRocks, follow these steps:

Step 1: Prepare RDS MySQL test data
Step 2: Develop a Flink CDC data ingestion job
Step 3: Start the Flink CDC data ingestion job
Step 4: View the synchronization result in StarRocks

Step 1: Prepare RDS MySQL test data

Create a database and an account.
On the RDS MySQL instance, create a database named order_dw_mysql and a standard account that has read and write permission on the database. For more information, see Create databases and accounts and Manage databases.
Log on to the RDS MySQL instance using DMS.
For more information, see Log on to an RDS MySQL instance using DMS.

In the SQL Console, enter the following commands and click Execute to create three business tables and insert data.

CREATE TABLE `orders` (
  order_id bigint not null primary key,
  user_id varchar(50) not null,
  shop_id bigint not null,
  product_id bigint not null,
  buy_fee numeric(20,2) not null,
  create_time timestamp not null,
  update_time timestamp not null default now(),
  state int not null
);


CREATE TABLE `orders_pay` (
  pay_id bigint not null primary key,
  order_id bigint not null,
  pay_platform int not null,
  create_time timestamp not null
);


CREATE TABLE `product_catalog` (
  product_id bigint not null primary key,
  catalog_name varchar(50) not null
);

-- Prepare data
INSERT INTO product_catalog VALUES(1, 'phone_aaa'),(2, 'phone_bbb'),(3, 'phone_ccc'),(4, 'phone_ddd'),(5, 'phone_eee');

INSERT INTO orders VALUES
(100001, 'user_001', 12345, 1, 5000.05, '2023-02-15 16:40:56', '2023-02-15 18:42:56', 1),
(100002, 'user_002', 12346, 2, 4000.04, '2023-02-15 15:40:56', '2023-02-15 18:42:56', 1),
(100003, 'user_003', 12347, 3, 3000.03, '2023-02-15 14:40:56', '2023-02-15 18:42:56', 1),
(100004, 'user_001', 12347, 4, 2000.02, '2023-02-15 13:40:56', '2023-02-15 18:42:56', 1),
(100005, 'user_002', 12348, 5, 1000.01, '2023-02-15 12:40:56', '2023-02-15 18:42:56', 1),
(100006, 'user_001', 12348, 1, 1000.01, '2023-02-15 11:40:56', '2023-02-15 18:42:56', 1),
(100007, 'user_003', 12347, 4, 2000.02, '2023-02-15 10:40:56', '2023-02-15 18:42:56', 1);

INSERT INTO orders_pay VALUES
(2001, 100001, 1, '2023-02-15 17:40:56'),
(2002, 100002, 1, '2023-02-15 17:40:56'),
(2003, 100003, 0, '2023-02-15 17:40:56'),
(2004, 100004, 0, '2023-02-15 17:40:56'),
(2005, 100005, 0, '2023-02-15 18:40:56'),
(2006, 100006, 0, '2023-02-15 18:40:56'),
(2007, 100007, 0, '2023-02-15 18:40:56');

Step 2: Develop a Flink CDC data ingestion job

Log on to the Realtime Compute for Apache Flink console.
Click Console to navigate to the required workspace.
In the navigation pane on the left, choose Data Studio > Data Ingestion.

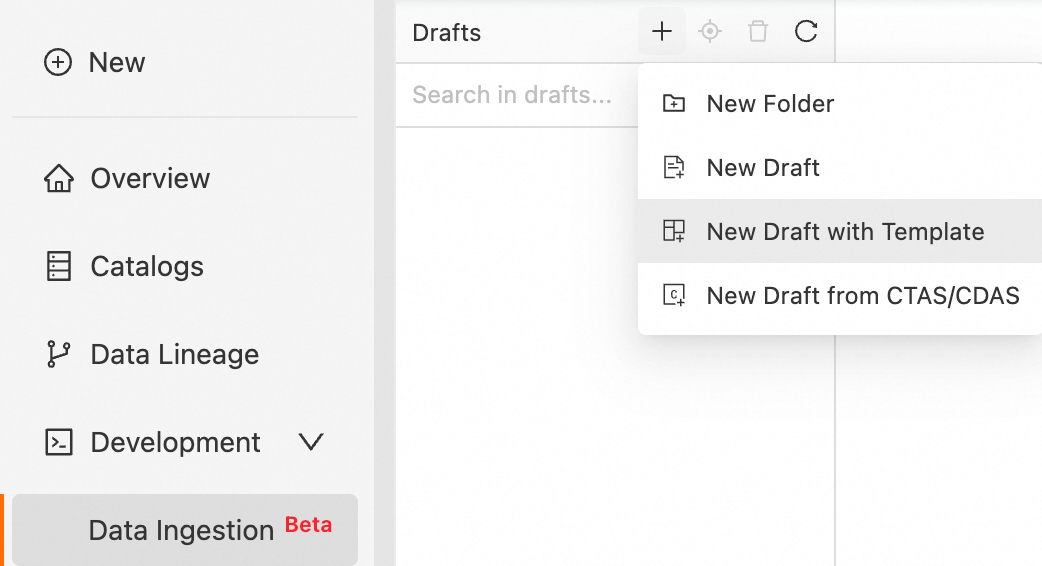

Click the icon, click New from Template, select MySQL to StarRocks Data Synchronization, and then click Next.
Enter a Job Name, specify a Storage Location, select an Engine Version, and then click OK.

Configure the YAML job code.

The following code provides an example of how to synchronize all tables from the order_dw_mysql database in MySQL to the order_dw_sr database in StarRocks.

source:
  type: mysql
  hostname: rm-bp1rk934iidc3****.mysql.rds.aliyuncs.com
  port: 3306
  username: ${secret_values.mysqlusername}
  password: ${secret_values.mysqlpassword}
  tables: order_dw_mysql.\.*
  server-id: 8601-8604
  # (Optional) Synchronize data from newly created tables during the incremental phase.
  scan.binlog.newly-added-table.enabled: true
  # (Optional) Synchronize table and field comments.
  include-comments.enabled: true
  # (Optional) Prioritize the distribution of unbounded chunks to prevent potential TaskManager OutOfMemory errors.
  scan.incremental.snapshot.unbounded-chunk-first.enabled: true
  # (Optional) Enable parsing filters to accelerate reads.
  scan.only.deserialize.captured.tables.changelog.enabled: true

sink:
  type: starrocks
  name: StarRocks Sink
  jdbc-url: jdbc:mysql://fe-c-b76b6aa51807****-internal.starrocks.aliyuncs.com:9030
  load-url: fe-c-b76b6aa51807****-internal.starrocks.aliyuncs.com:8030
  username: ${secret_values.starrocksusername}
  password: ${secret_values.starrockspassword}
  table.create.properties.replication_num: 1
  sink.buffer-flush.interval-ms: 5000 # Flush data every 5 seconds.

route:
  - source-table: order_dw_mysql.\.*
    sink-table: order_dw_sr.<>
    replace-symbol: <>
    description: route all tables in source_db to sink_db

pipeline:
  name: Sync MySQL Database to StarRocks

The following table describes the configuration information required for this example. For more information about data ingestion parameters, see MySQL and StarRocks.

Note

YAML jobs support only project variables. You can use variables to avoid exposing plaintext passwords and other sensitive information. For more information, see Variable Management.

Category	Parameter	Description	Example value
source	hostname	The IP address or hostname of the MySQL database. We recommend that you use a VPC address.	`rm-bp1rk934iidc3****.mysql.rds.aliyuncs.com`
	port	The port number of the MySQL database service.	3306
	username	The username and password for the MySQL database service. Use the account information that you created in Step 1: Prepare RDS MySQL test data.	`${secret_values.mysqlusername}`
	password		`${secret_values.mysqlpassword}`
	tables	The names of the MySQL tables. Regular expressions are supported to read data from multiple tables. This topic synchronizes all tables and data in the order_dw_mysql database.	order_dw_mysql.\.*
	server-id	A numeric ID for the database client.	5405-5415
sink	jdbc-url	The Java Database Connectivity (JDBC) URL. Specify the IP address and query port of the frontend (FE) in the `jdbc:mysql://ip:port` format. On the Instance Details tab in the E-MapReduce console, you can view the FE Internal Network Address and Query Port of the target instance.	`jdbc:mysql://fe-c-b76b6aa51807****-internal.starrocks.aliyuncs.com:9030`
	load-url	The HTTP service URL used to connect to the FE node. You can view the FE Internal Endpoint and HTTP Port of the target instance on the Instance Details tab in the E-MapReduce console.	`fe-c-b76b6aa51807****-internal.starrocks.aliyuncs.com:8030`
	username	The username and password for the StarRocks connection. Use the username and password that you specified when you created the StarRocks instance. Note This example uses variables to avoid exposing plaintext passwords and other sensitive information. For more information, see Variable Management.	`${secret_values.starrocksusername}`
	password		`${secret_values.starrockspassword}`
	sink.buffer-flush.interval-ms	The refresh interval for the internal buffer. Because the data volume in this example is small, a short interval (5 seconds) is set to observe the results sooner.	5000
route	source-table	Specifies the ancestor tables to be routed. You can use a regular expression to match multiple tables. For example, `order_dw_mysql.\.*` routes all tables in the `order_dw_mysql` database.	order_dw_mysql.\.*
	sink-table	Specifies the destination for data routing. You can use the symbol from `replace-symbol` as a placeholder for each ancestor table name to implement many-to-many routing. For more information about routing rules, see Route module.	order_dw_sr.<>
	replace-symbol	The string that represents the ancestor table name when you use the pattern matching feature.	<>

Click Deploy.

Step 3: Start the Flink CDC data ingestion job

On the Data Ingestion page, click Deploy. In the dialog box that appears, click OK.
On the Operation Center > Job O&M page, find the target YAML job and click Start in the Actions column.
Click Start.
In this example, Stateless Start is selected. For more information about parameter settings, see Start a job. After the job starts, you can monitor its runtime information and status on the Job O&M page.

Step 4: View the synchronization result in StarRocks

After the YAML job enters the Running state, you can view the data synchronization results in StarRocks.

Connect to the StarRocks instance using EMR StarRocks Manager.
In the navigation pane on the left, click SQL Editor. On the Databases tab, click the icon.
A database named order_dw_sr appears under default_catalog.

On the Query List tab, click +File to create a query script. Then, enter the following SQL statements and click Run.

SELECT * FROM default_catalog.order_dw_sr.orders order by order_id;
SELECT * FROM default_catalog.order_dw_sr.orders_pay order by pay_id;
SELECT * FROM default_catalog.order_dw_sr.product_catalog order by product_id;

View the synchronization results below the commands.
You can see that the tables and data from the MySQL database now exist in StarRocks.

References

For more information about how to develop a Flink CDC data ingestion job, see Develop a Flink CDC data ingestion job (Public Preview).
For more information about the source, sink, transform, and route modules in Flink CDC data ingestion jobs, see Development reference for Flink CDC data ingestion jobs.
