Elasticsearch:Use the CCR feature in disaster recovery scenarios

Step 1: Connect the remote cluster to the local cluster

1. Log on to the Kibana console of the local cluster. For more information, see Log on to the Kibana console.

2. On the page that appears, click the icon in the upper-right corner and choose Management > Stack Management.

3. In the left-side navigation pane of the Management page, click Remote Clusters.

4. Click Add a remote cluster.

5. On the page that appears, specify information about the remote cluster.

   • Name: the name of the remote cluster. The name must be unique.

   • Connection mode: Turn on Use proxy mode.

   • Proxy address: the address of the proxy server. The address must be in the Endpoint domain name:9300 format. The endpoint domain name is the domain name of the endpoint that corresponds to your PrivateLink endpoint service.

     Note

     During CCR, Kibana uses the IP addresses of data nodes to access clusters over TCP port 9300. HTTP port 9200 is not supported.

6. Click Save.

   Then, the system connects the remote cluster to the local cluster. If the remote cluster is connected to the local cluster, Connected appears.

Sample code for calling the related API

PUT /_cluster/settings
{
	"persistent": {
		"cluster": {
			"remote": {
				"<remote_cluster>": {
					"mode": "PROXY",
					"proxy_address": "Endpoint domain name:9300"
				}
			}
		}
	}
}

Step 2: Configure CCR

1. Go to the Management page in the Kibana console of the local cluster. In the left-side navigation pane, click Cross-Cluster Replication.

2. On the page that appears, click Create a follower index.

3. Configure CCR.

   Parameter	Description
   Remote cluster	The remote cluster that is connected to the local cluster.
   Leader index	The index whose data you want to back up.
   Follower index	The index to which you want to back up data. You must specify a unique index name.

4. Click Create.

   After the follower index is created, the index is in the Active state.

Sample code for calling the related API

When you create a follower index, you must reference the remote cluster and the leader index created in the remote cluster.

PUT /leader-old-copy/_ccr/follow
{
  "remote_cluster": "es-leader",
  "leader_index": "leader-old"
}

Step 3: Verify the data backup result

1. In the Kibana console of the remote cluster, run the following command to insert data into the leader index:

   POST leader-new/_doc/
   {
     "name":"Jack",
     "age":40
   }

2. In the Kibana console of the local cluster, run the following command to check whether the inserted data is backed up to the follower index:

   GET leader-new-copy/_search

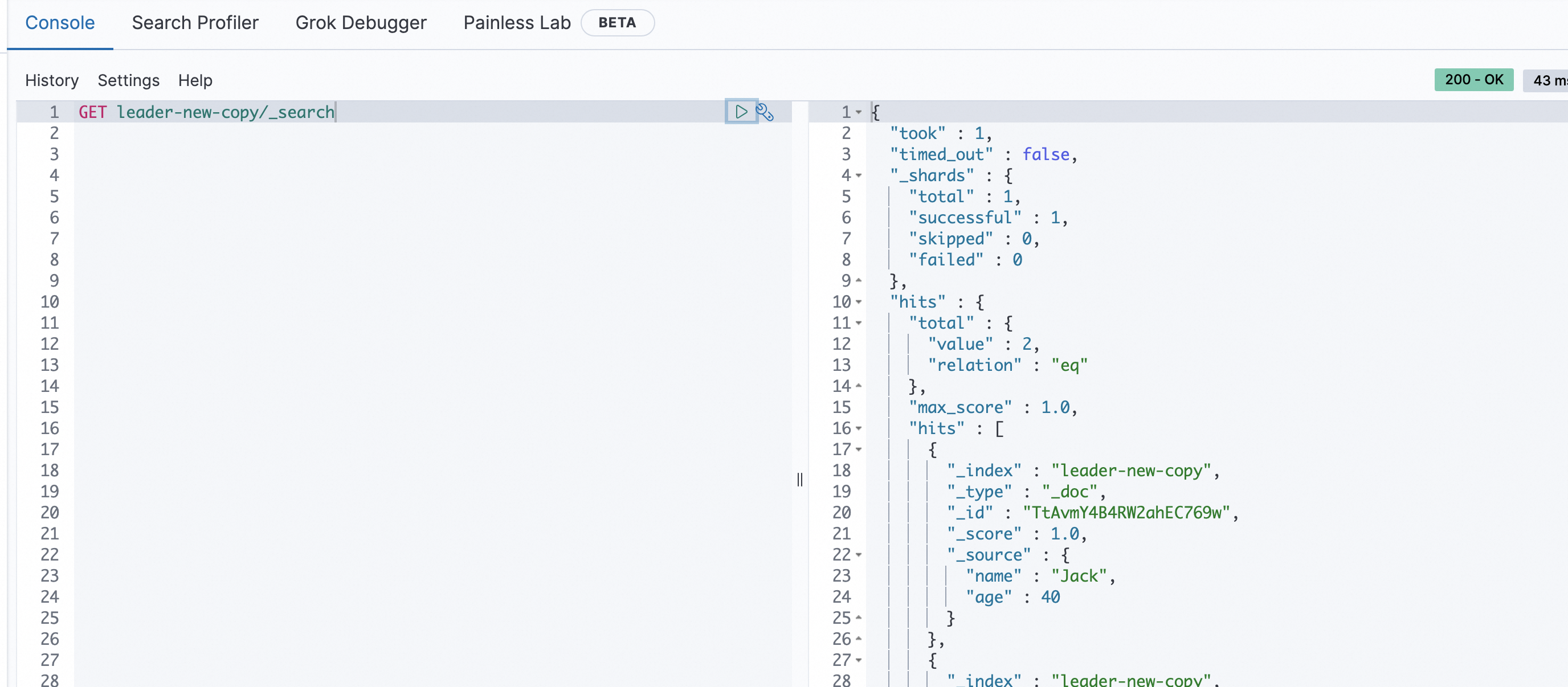

   The result shown in the following figure is returned. The result shows that data in the leader index leader-new of the remote cluster is backed up to the follower index leader-new-copy of the local cluster.

3. Insert a document into the leader index.

   POST leader-new/_doc/
   {
     "name":"Pony",
     "age":50
   }

4. Run the following command on the local cluster to check whether incremental data can be backed up to the follower index in real time:

   GET leader-new-copy/_search

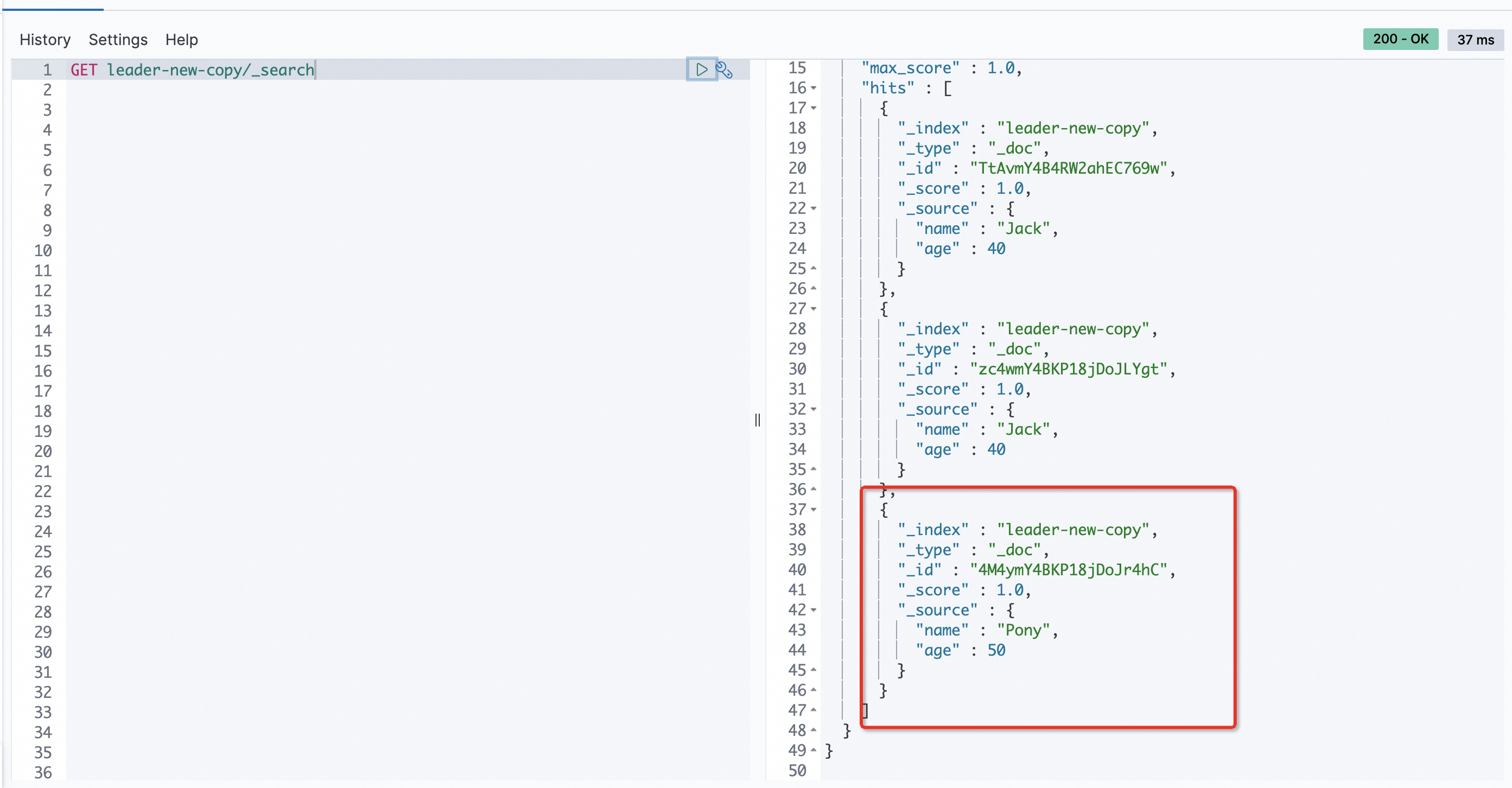

   The command output shows that the incremental data is backed up to the follower index.

Step 1: Connect the remote cluster to the local cluster

1. Log on to the Kibana console of the local cluster. For more information, see Log on to the Kibana console.

2. On the page that appears, click the icon in the upper-right corner and choose Management > Stack Management.

3. In the left-side navigation pane of the Management page, click Remote Clusters.

4. Click Add a remote cluster.

5. On the page that appears, specify information about the remote cluster.

   • Name: the name of the remote cluster. The name must be unique.

   • Connection mode: Turn on Use proxy mode.

   • Proxy address: the address of the proxy server. The address must be in the Endpoint domain name:9300 format. The endpoint domain name is the domain name of the endpoint that corresponds to your PrivateLink endpoint service.

     Note

     During CCR, Kibana uses the IP addresses of data nodes to access clusters over TCP port 9300. HTTP port 9200 is not supported.

6. Click Save.

   Then, the system connects the remote cluster to the local cluster. If the remote cluster is connected to the local cluster, Connected appears.

Sample code for calling the related API

PUT /_cluster/settings
{
	"persistent": {
		"cluster": {
			"remote": {
				"<remote_cluster>": {
					"mode": "PROXY",
					"proxy_address": "Endpoint domain name:9300"
				}
			}
		}
	}
}

Step 2: Configure CCR

1. Go to the Management page in the Kibana console of the local cluster. In the left-side navigation pane, click Cross-Cluster Replication.

2. Click the Auto-follow patterns tab.

3. Click Create auto-follow pattern.

   Configure CCR.

   Parameter	Description
   Remote cluster	The remote cluster that is connected to the local cluster.
   Index patterns	The pattern of indexes whose data you want to back up.

Sample code for calling the related API

PUT /_ccr/auto_follow/beats
{
	"remote_cluster": "es-leader",
	"leader_index_patterns":
	[
		"leader-*"
	],
	"follow_index_pattern": "{{leader_index}}-copy"
}

Step 3: Verify the data backup result

1. In the Kibana console of the remote cluster, run the following command to add an index:

   PUT /leader-new
   {
     "settings": {
       "number_of_shards": 1,
       "number_of_replicas": 0
     },
     "mappings": {
       "properties": {
         "name": {
           "type": "text"
         },
         "age": {
           "type": "integer"
         }
       }
     }
   }

2. In the Kibana console of the local cluster, run the following command to check whether data in the added index is backed up to the local cluster:

   get _cat/indices?v



Preparations

1. Create two Alibaba Cloud Elasticsearch clusters of the same version (6.7 or later). Make sure that the two clusters are deployed in the same VPC and belong to the same vSwitch.

   Note

   • The two clusters are used in the following way:

     • One is used as a remote cluster and provides source data.

     • The other is used as a local cluster and replicates data from one or more indexes in the remote cluster.

   • If you have uploaded a synonym file to the remote cluster, you must upload the synonym file to the local cluster.

2. Configure the remote cluster to connect it to the local cluster. For more information, see Connect Elasticsearch clusters to enable cross-cluster searches.

3. Create indexes (leader indexes) in the remote cluster.

   1. Log on to the Kibana console of the remote cluster. For more information, see Log on to the Kibana console.

   2. On the page that appears, click the icon in the upper-left corner and choose Management > Dev Tools.

   3. Run the following command to create a leader index in the remote cluster:

      PUT myindex
      {
        "settings": {
          "index.soft_deletes.retention.operations": 1024,
          "index.soft_deletes.enabled": true
        }
      }

      Note

      • If you create an index in an Elasticsearch cluster of V7.0 or earlier, you must enable the soft_deletes attribute for the index. Otherwise, an error is reported. You can run the GET /<yourIndexName>/_settings?pretty command to check whether the soft_deletes attribute is enabled. If the soft_deletes attribute is enabled, the configuration of the soft_deletes attribute is displayed in the command output.

      • If you want to back up data in an existing index, you can call the reindex API to enable the soft_deletes attribute.

4. Disable the physical replication feature for the leader index.

   Note

   The physical replication feature is automatically enabled for indexes in Elasticsearch V6.7.0 clusters. Before you use CCR, you must disable the physical replication feature.

   1. Disable the index.

      POST myindex/_close

   2. Update the settings configuration of the index to disable the physical replication feature.

      PUT myindex/_settings
      {
      "index.replication.type" : null
      }

   3. Enable the index.

      POST myindex/_open

Step 1: Connect the remote cluster to the local cluster

1. Log on to the Kibana console of the local cluster. For more information, see Log on to the Kibana console.

2. On the page that appears, click the icon in the upper-right corner and choose Management > Stack Management.

3. In the left-side navigation pane of the Management page, click Remote Clusters.

4. Click Add a remote cluster.

5. On the page that appears, specify information about the remote cluster.

   • Name: the name of the remote cluster. The name must be unique.

   • Proxy address: The address must be in the IP address of a node in the remote cluster:9300 format. To obtain the IP addresses of nodes, log on to the Kibana console of the remote cluster and run the GET /_cat/nodes?v command on the Console tab of the Dev Tools page. The nodes you specify must include a dedicated master node of the remote cluster. We recommend that you specify multiple nodes. This ensures that you can still use CCR if the specified dedicated master node fails.

     Note

     During CCR, Kibana uses the IP addresses of data nodes to access clusters over TCP port 9300. HTTP port 9200 is not supported.

6. Click Save.

   Then, the system connects the remote cluster to the local cluster. If the remote cluster is connected to the local cluster, Connected appears.

Step 2: Configure CCR

1. Go to the Management page in the Kibana console of the local cluster. In the left-side navigation pane, click Cross-Cluster Replication.

2. On the page that appears, click Create a follower index.

3. Configure CCR.

   Parameter	Description
   Remote cluster	The remote cluster that is connected to the local cluster.
   Leader index	The index whose data you want to back up. In this example, the myindex index that is created in Preparations is used.
   Follower index	The index to which you want to back up data. You must specify a unique index name.

4. Click Create.

   After the follower index is created, the index is in the Active state.

Step 3: Verify the data backup result

1. In the Kibana console of the remote cluster, run the following command to insert data into the remote cluster:

   POST myindex/_doc/
   {
     "name":"Jack",
     "age":40
   }

2. In the Kibana console of the local cluster, run the following command to check whether the inserted data is backed up to the local cluster:

   GET myindex_follow/_search

   The result shown in the following figure is returned. The result shows that data in the leader index myindex of the remote cluster is backed up to the follower index myindex_follow of the local cluster.

   Note

   The follower index myindex_follow is read-only. If you want to write data to the follower index, convert the follower index into a common index first. For more information, see Use Elasticsearch CCR to migrate data across data centers.

3. Insert a document into the remote cluster and check whether the document is backed up to the local cluster in real time.

   POST myindex/_doc/
   {
     "name":"Pony",
     "age":50
   }

4. Query the inserted document in the local cluster. The following figure shows the document.

   The preceding figure shows that the CCR feature can implement real-time backup of incremental data.

   Note

   You can also call the APIs for the CCR feature to perform cross-cluster replication operations. For more information, see Cross-cluster replication APIs.
