:Install the NVMe driver on a custom image

NVMe is a high-speed protocol designed for solid-state storage, such as flash-based SSDs. Compared with SCSI and virtio-blk, NVMe delivers higher speed and greater bandwidth.

Procedure

1. Launch an ECS instance from your existing custom image. This instance serves as an intermediate environment to update the image. Connect to the instance.

   Important

   The intermediate instance incurs charges. Release the instance after you create the new custom image to avoid ongoing charges.

2. Based on your instance's operating system, select a method to verify and install the NVMe driver.

   Console configuration

   1. In the ECS console - Instances, locate the target instance and go to its details page. In the upper-right corner, click All actions and then select Configure NVMe Driver Status.

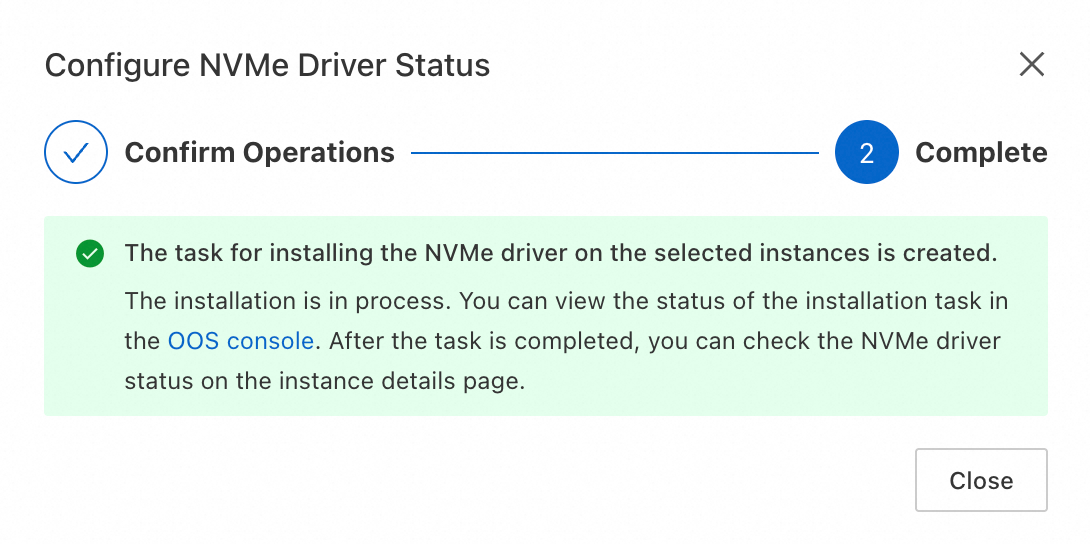

   2. Click Install to install the NVMe driver. The system automatically sets the NVMe driver status to Installed.

   Automatic configuration using Cloud Assistant

   Cloud Assistant provides the ecs_nvme_config plug-in to quickly configure the NVMe driver. It supports only specific operating systems.

   ecs_nvme_config Supported operating systems

   • The ecs_nvme_config plug-in supports these operating systems:

     • Alibaba Cloud Linux

     • Anolis OS

     • CentOS 6.6 and later

     • CentOS Stream

     • Debian 9 and later

     • Ubuntu 16 and later

     • OpenSUSE 42 and later

     • SUSE Linux Enterprise Server 11.4 and later

     • Red Hat Enterprise Linux

     • Fedora

     • Rocky Linux

     • AlmaLinux

   1. Check whether Cloud Assistant Agent is installed and the ecs_nvme_config plug-in is available:

      acs-plugin-manager --list



      • If no Cloud Assistant-related output appears, install the Cloud Assistant Agent first.

      • If the plug-in list includes ecs_nvme_config, proceed to the next step.

   2. Use the ecs_nvme_config plug-in to configure the NVMe driver.

      1. Use the ecs_nvme_config plug-in to check whether the NVMe module exists and can be configured:

         sudo acs-plugin-manager --exec --plugin ecs_nvme_config --params --check

         • If the output contains the following message, the NVMe driver is already installed. Skip to creating a custom image.

           [SUCCESS]  Summary: Your image can Runnig on nvme instance

         • If the output contains an [ERROR] message similar to the following, proceed to the next step.

           [ERROR]  1.initrd/initramfs not has nvme module, Please run acs-plugin-manager --exec --plugin ecs_nvme_config --params -f/--fix to enable nvme;

      2. Configure the NVMe driver based on the check result:

         sudo acs-plugin-manager --exec --plugin ecs_nvme_config --params --fix

      3. Restart the instance after the configuration completes.

         sudo reboot

      4. After the instance restarts, verify successful configuration:

         sudo acs-plugin-manager --exec --plugin ecs_nvme_config --params --check

         Sample success output:

         [OK]  1.initrd/initramfs already contain nvme module;

         [OK]  2.fstab file looks fine and does not contain any device names;

         [OK]  3.The nvme parameters already included.

         [SUCCESS]  Summary: Your image can Runnig on nvme instance

      5. Create a new custom image from the instance where you installed the driver. Then modify the attributes of the new custom image and set the NVMe driver attribute to Supported.

         Important

         If you do not set the NVMe driver attribute to Supported, the system will not recognize the image as NVMe-compatible. You will be unable to select NVMe-capable instance types when creating instances from this image.

   Manual configuration (CentOS/Alibaba Cloud Linux)

   1. Check whether the kernel has loaded the NVMe driver:

      cat /boot/config-`uname -r` | grep -i nvme | grep -v "^#"



      • If the output contains CONFIG_BLK_DEV_NVME=y, the operating system can boot directly on NVMe-enabled instance families. Proceed to Console configuration.

      • If the output contains CONFIG_BLK_DEV_NVME=m, perform the following steps.

   2. Check whether the initramfs contains the NVMe driver:

      sudo lsinitrd /boot/initramfs-`uname -r`.img | grep -i nvme | awk '{print $NF}'



      • If the output matches the figure, the operating system can boot on NVMe-enabled instance families. Proceed to step d.

      • If no output is returned, perform step c.

   3. Add the NVMe driver to the initramfs:

      mkdir -p /etc/dracut.conf.d
      echo 'add_drivers+=" nvme nvme-core "' | sudo tee /etc/dracut.conf.d/nvme.conf > /dev/null
      sudo dracut -v -f

      Note

      If the dracut tool is not installed, run sudo yum -y install dracut to install it.

   4. Add the io_timeout parameter for NVMe in GRUB.

      Note

      Add the io_timeout parameter for NVMe in GRUB to prevent I/O failures caused by device timeouts. Setting this value to the maximum supported limit ensures the system continues processing I/O requests without premature failure.

      In most Linux distributions, the io_timeout parameter defaults to 30 seconds. Before adding a value for the io_timeout parameter, run echo 4294967295 > /sys/module/nvme_core/parameters/io_timeout or echo 4294967295 > /sys/module/nvme/parameters/io_timeout to verify whether io_timeout can be set to the maximum value of 4,294,967,295 seconds. If the command returns -bash: echo: write error: Invalid argument, the Linux version only supports 255 seconds.

      Method 1: Add parameters using grubby

      1. Check whether grubby is available:

         which grubby

         • If the output includes the path to grubby (for example, /usr/sbin/grubby), the system supports grubby. Proceed to the next step.

         • If no output appears, your system does not support grubby. Use Method 2 instead.

      2. Add kernel parameters with grubby:

         sudo grubby --update-kernel=ALL --args="nvme_core.io_timeout=4294967295 nvme_core.admin_timeout=4294967295"

      Method 2: Add parameters by editing the GRUB configuration file

      1. Open the grub file:

         sudo vi /etc/default/grub

      2. Press i to enter insert mode. Locate the GRUB_CMDLINE_LINUX= line and add the nvme_core.io_timeout=4294967295 nvme_core.admin_timeout=4294967295 parameters.

         File content after adding the parameters:



         Note

         If these parameters already exist in the configuration file, do not add them again.

      3. Press Esc to exit insert mode. Enter :wq and press Enter to save and close the file.

      4. Apply the GRUB configuration.

         Select the command that matches the instance startup mode:

         • Legacy BIOS boot mode

           sudo grub2-mkconfig -o /boot/grub2/grub.cfg

         • UEFI boot mode

           1. View the GRUB configuration file:

              # For CentOS, run:
              cat /boot/efi/EFI/centos/grub.cfg
              # For Alibaba Cloud Linux, run:
              cat /boot/efi/EFI/alinux/grub.cfg

           2. Run the appropriate command based on the output:

              • If the configuration file points to another config file (for example, /boot/grub/grub.cfg), run:

                sudo grub2-mkconfig -o /boot/grub2/grub.cfg

              • Otherwise, run the appropriate command for your system:

                # For CentOS
                sudo grub2-mkconfig -o /boot/efi/EFI/centos/grub.cfg
                # For Alibaba Cloud Linux
                sudo grub2-mkconfig -o /boot/efi/EFI/alinux/grub.cfg

      5. Create a new custom image from the instance where you installed the driver. Then modify the attributes of the new custom image and set the NVMe driver attribute to Supported.

         Important

         If you do not set the NVMe driver attribute to Supported, the system will not recognize the image as NVMe-compatible. You will be unable to select NVMe-capable instance types when creating instances from this image.

   5. Verify NVMe-related output:

      sudo lsinitrd /boot/initramfs-`uname -r`.img | grep -i nvme | awk '{print $NF}'

      If the command returns driver filenames (for example, nvme.ko), the configuration is complete. The operating system can now boot on NVMe-enabled ECS instance types.



   Manual configuration (Ubuntu/Debian)

   1. (Optional) Check whether the initrd contains the NVMe driver:

      lsinitramfs /boot/initrd.img-`uname -r` | grep -i nvme

      The following output indicates that Ubuntu loads the NVMe driver in the initrd by default.

   2. Add the io_timeout parameter for NVMe in GRUB.

      Note

      Add the io_timeout parameter for NVMe in GRUB to prevent I/O failures caused by device timeouts. Setting this value to the maximum supported limit ensures the system continues processing I/O requests without premature failure.

      In most Linux distributions, the io_timeout parameter defaults to 30 seconds. Before adding a value for the io_timeout parameter, run echo 4294967295 > /sys/module/nvme_core/parameters/io_timeout or echo 4294967295 > /sys/module/nvme/parameters/io_timeout to verify whether io_timeout can be set to the maximum value of 4,294,967,295 seconds. If the command returns -bash: echo: write error: Invalid argument, the Linux distribution only supports 255 seconds.

      1. Open the /etc/default/grub file:

         sudo vi /etc/default/grub

      2. Press i to enter edit mode. Add the following parameters to the GRUB_CMDLINE_LINUX= line: nvme_core.multipath=n nvme_core.io_timeout=4294967295 nvme_core.admin_timeout=4294967295.

         File content after adding the parameters:

         Note

         If these parameters already exist in the configuration file, do not add them again.

      3. Press Esc to exit insert mode. Enter :wq and press Enter to save and close the file.

   3. Apply the GRUB settings.

      Based on the ECS instance's instance startup mode, select one of the following commands:

      • This command works for Ubuntu and Debian regardless of boot mode:

        sudo update-grub2

      • Legacy BIOS boot mode

        sudo grub-mkconfig -o /boot/grub/grub.cfg

      • UEFI boot mode

        sudo grub-mkconfig -o /boot/efi/EFI/debian/grub.cfg

   4. Create a new custom image from the instance where you installed the driver. Then modify the attributes of the new custom image and set the NVMe driver attribute to Supported.

      Important

      If you do not set the NVMe driver attribute to Supported, the system will not recognize the image as NVMe-compatible. You will be unable to select NVMe-capable instance types when creating instances from this image.

3. (Optional) Redeploy your workload with the new NVMe-compatible custom image. For example, create an instance from a custom image or shared image and select an NVMe-compatible instance type.

References

• NVMe-based ECS instance types support only ESSD and ESSD AutoPL disks. These disks support multi-attach for simultaneous attachment to multiple ECS instances. See Attach a cloud disk to multiple ECS instances (multi-attach).

• If improper io_timeout configuration causes an NVMe disk to become unavailable on a Linux ECS instance, see What do I do if an NVMe disk on a Linux ECS instance is unavailable due to an invalid I/O timeout parameter?.
