Firewall changes for a Basic transit router upgrade - Cloud Firewall

A VPC firewall is created based on the network architecture of Cloud Enterprise Network (CEN). If you upgrade a transit router from Basic Edition to Enterprise Edition, you must also update the VPC firewall to align with the new network architecture. This topic describes how to update the VPC firewall to protect traffic that passes through the upgraded Enterprise Edition transit router.

Key differences after the upgrade

The following table outlines the key differences between a VPC firewall created for a Basic Edition transit router and one created for an Enterprise Edition transit router.

Aspect	Basic Edition firewall	Enterprise Edition firewall
Protection scope	Protects: Traffic between multiple virtual private clouds (VPCs) in the same region Traffic between multiple cross-region VPCs that are connected using a Basic Edition transit router (TR) Traffic between a VPC and a virtual border router (VBR), which represents traffic between a VPC and a data center Traffic between a VPC and a Cloud Connect Network (CCN) instance Does not protect: Traffic between multiple VBRs Traffic between a CCN instance and a VBR Traffic between multiple CCN instances	Protects: Traffic between multiple virtual private clouds (VPCs) in the same region Traffic between multiple cross-region VPCs that are connected using an Enterprise Edition transit router (TR) Traffic between a VPC and a virtual border router (VBR), which represents traffic between a VPC and a data center Traffic between a VPC and a Cloud Connect Network (CCN) instance Traffic between multiple VBRs Traffic between a CCN instance and a VBR Traffic between a VPC and a public VPN gateway Does not protect traffic between multiple CCN instances.
Firewall enablement granularity	A VPC firewall is enabled for each VPC instance.	A VPC firewall is enabled for each Enterprise Edition transit router.
Impact of enabling and disabling the firewall	Creating or deleting the VPC firewall after disabling it has no impact on your services. Creation takes about 5 minutes. Enabling or disabling the VPC firewall takes 5–30 minutes (depending on the number of route entries). Persistent connections experience second-level transient disconnections. Short-lived connections are unaffected. Note Before enabling the VPC firewall, verify that your applications support TCP automatic retransmission and closely monitor connection status to avoid disruptions caused by missing retransmission mechanisms.	Automatic traffic steering Creating a VPC firewall or shutting it down and then deleting it does not affect your services. Creation takes about 5 minutes. Enabling or disabling the VPC firewall takes 5–30 minutes (depending on the number of route entries), with no impact on your services. Manual traffic steering Creating or deleting the VPC firewall after disabling it has no impact on your services. Creation takes about 5 minutes. The duration of service impact when enabling or disabling the VPC firewall varies depending on the traffic switching method.
CIDR block planning for traffic redirection	You must specify a CIDR block for the automatically created Cloud Firewall VPC and vSwitch. Cloud Firewall uses this CIDR block to create a dedicated firewall VPC (named `Cloud_Firewall_VPC`) for traffic redirection. A subnet is created from this CIDR block for the vSwitch of the firewall VPC. The subnet mask must be /29 or shorter and must not conflict with your existing network plan. You must also configure a vSwitch in the service VPC where traffic will be redirected. The elastic network interface required for traffic redirection uses this vSwitch. Cloud Firewall automatically assigns the elastic network interface. If your services are latency-sensitive, you can specify a zone for the service VPC to reduce network latency.	You must configure the VPC CIDR block and zone for the firewall. You also need to specify a CIDR block that is /27 or shorter and does not conflict with your existing network plan. The firewall setup allocates this CIDR block to the vSwitch.
Traffic redirection method	Traffic between the service VPC with the firewall enabled and other connected network instances is redirected to the VPC firewall by default.	Before creating the VPC firewall for the Enterprise Edition transit router, you must decide whether to use automatic or manual traffic redirection. If you choose automatic redirection, you must also select a scenario that matches your service requirements. Instance-Instance: Redirects traffic between two network instances for inspection by Cloud Firewall. This is suitable for simple network topologies. Instance to Instances: Redirects traffic between one network instance and multiple network instances for inspection by Cloud Firewall. This is suitable for star network topologies. You can set the secondary instance to ALL to redirect all traffic destined for the primary instance. This provides the same traffic coverage as a VPC firewall for a Basic Edition transit router. Important If a custom routing policy with a Deny action is configured in the transit router route table, the Instance To Instances scenario is not supported. Use the Interconnected Instances scenario instead. Interconnected Instances: Redirects traffic among multiple network instances for inspection by Cloud Firewall. This is suitable for Full Mesh network topologies.

Considerations

The firewall check fails when you enable the VPC firewall for the Enterprise Edition transit router if its route table is missing the default route (priority 5000), or if this route does not include the new VPN Gateway or Express Connect Router (ECR) instance types. To resolve this, submit a Cloud Enterprise Network (CEN) to request that technical support refresh the default route.
After the upgrade, Cloud Firewall retains the access control policies from the VPC firewall for the Basic Edition transit router.
Important
- When you enable the VPC firewall for the Enterprise Edition transit router, verify that your access control policies allow normal communication for the redirected network instances. If you add new network instances, you must add corresponding access control policies.
- When configuring automatic traffic redirection for the VPC firewall after you upgrade to an Enterprise Edition transit router, consider the following routing points to prevent creation failures or route propagation issues:
  - Replace cross-region cloud service routes with transit router connection instances: If a route in the transit router route table has a next hop that points to a cloud service in another region, you must replace the next hop with the corresponding cross-region transit router connection instance. Otherwise, scenario creation may fail.
  - VPC instance routes may cause unintended propagation: If a cloud service route has a VPC instance as its next hop, the automatic traffic redirection process replaces it with the corresponding transit router connection instance for that VPC. This action may trigger route propagation to the selected network instances for traffic redirection, including cross-region transit router connections. To prevent unwanted propagation, use routing policies to restrict it.
  - Synchronize custom routing policies to the firewall-dedicated route table: If the transit router has custom routing policies, you must add the same policies to the transit router route table associated with the firewall VPC, named Cloud_Firewall_ROUTE_TABLE. You must perform this action after you create the VPC firewall but before you create the automatic traffic redirection scenario. Otherwise, traffic redirection may fail or the system may forward routes incorrectly.

Migration overview

The following diagrams show the network architecture before and after the upgrade:

Detailed plan:

Before you begin, understand the impact of enabling and disabling the VPC firewall on your services. For more information, see What is the impact of enabling the firewall switch on my services?.

Delete the existing VPC firewall for the Basic Edition transit router: Before upgrading to an Enterprise Edition transit router, you must disable and delete the existing firewall.
Before you delete the firewall, you must first disable it. This removes the routes that redirect traffic to Cloud Firewall. Then, delete the VPC firewall.
Upgrade the transit router to Enterprise Edition: After the upgrade, you must wait for the Enterprise Edition assets to be automatically synchronized with CEN. The time required for route learning depends on the number of your routes. You can also synchronize the assets manually. Perform this operation during off-peak hours.
Before you upgrade your network architecture, you should understand how Basic Edition and Enterprise Edition transit routers work. For more information, see How transit routers work.
Create a VPC firewall for the Enterprise Edition transit router: You can use the one-click check feature to diagnose any routing issues. Then, create the VPC firewall. We recommend using the automatic traffic redirection mode.
If the upgrade fails, you must initiate the rollback plan. For more information, see FAQ.

1. Delete the Basic Edition VPC firewall

Important

Disabling the VPC firewall for a Basic Edition transit router causes a brief service interruption.

Log on to the Cloud Firewall console. In the left-side navigation pane, click Firewall.

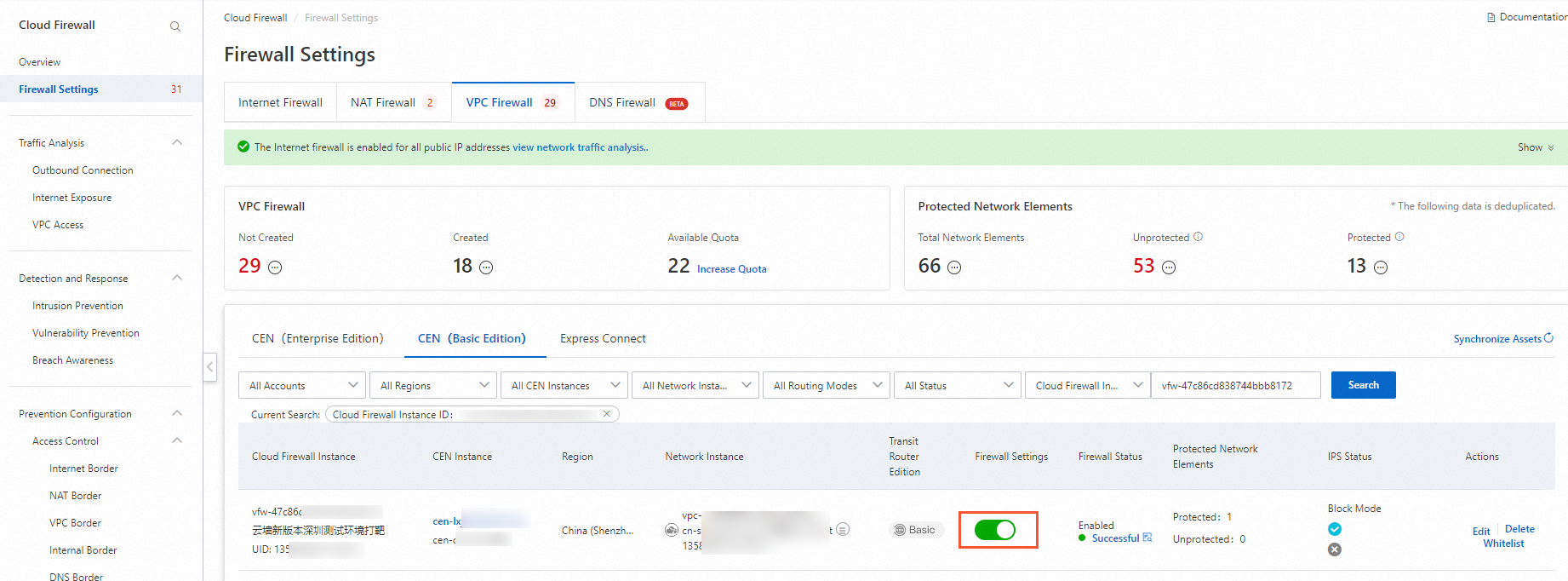

On the VPC Firewall page, click the CEN(Basic Edition) tab, and then disable all VPC firewalls for the Basic Edition transit router that you plan to upgrade.
To disable multiple VPC firewalls at once, use Batch Disable.
In the Actions column, click Delete to remove the VPC firewall.
You can only delete VPC firewalls one by one. Batch deletion is not supported.

2. Upgrade the transit router to Enterprise Edition

During the upgrade, the system converts the dynamic route entries learned from Cloud Enterprise Network (CEN) in a Virtual Private Cloud (VPC) instance into custom route entries with the next hop pointing to an Enterprise Edition transit router. The conversion does not affect your services.
After the upgrade, the Enterprise Edition transit router does not automatically propagate routes to the VPC-connected instance. To enable automatic route propagation, you must enable route synchronization for the VPC-connected instance. For more information, see Route synchronization.
You cannot upgrade Basic Edition transit routers in Cloud Connect Network (CCN) regions. For a list of regions that support the upgrade, see Supported regions and zones for Enterprise Edition transit routers.

For detailed instructions on how to upgrade a Basic Edition transit router, see Upgrade a Basic Edition transit router.

3. Create the Enterprise Edition VPC firewall

In the Cloud Firewall console, navigate to the VPC Firewall page and select the CEN (Enterprise Edition) tab.
If the Enterprise Edition transit router that you want to protect is not listed, click Sync Asset.

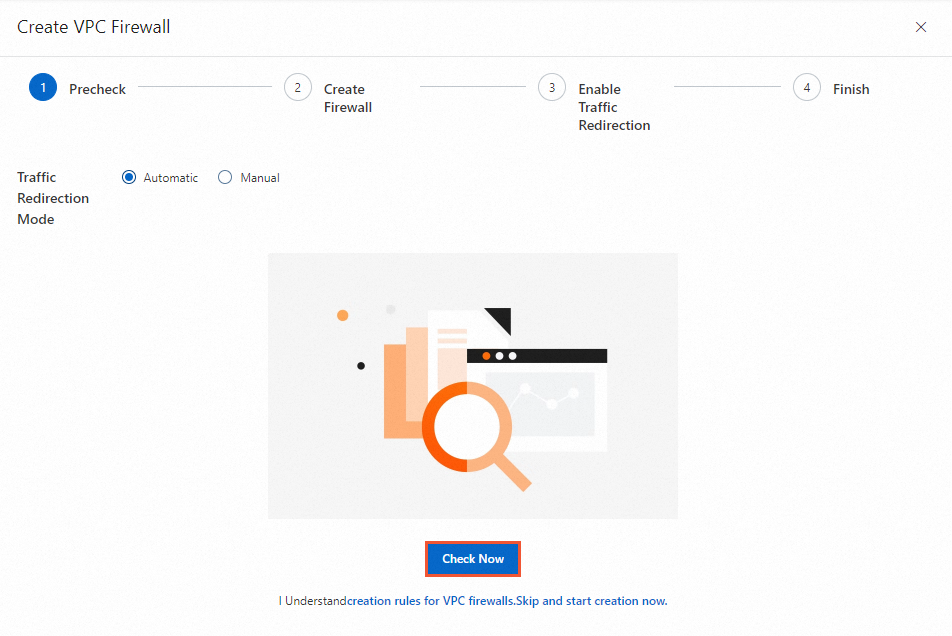

Find the Enterprise Edition transit router instance, and in the Actions column, click Create. Select Automatic traffic redirection mode. Then, run the one-click check to verify that your current assets meet the requirements for enabling the VPC firewall.
You can also select manual traffic redirection based on your service requirements. This topic uses automatic traffic redirection as an example.
After the check is complete, review the diagnostic details. If any items fail the check, follow the recommendations to fix the issues, and then run the check again until all items pass.
Create the VPC firewall.
Important
The VPC CIDR block that you allocate to the VPC firewall cannot conflict with your service CIDR blocks. Select a vSwitch zone close to your services to reduce network latency for traffic that passes through Cloud Firewall.
Create a traffic redirection scenario.
The following steps show how to create an Instance To Instances traffic redirection scenario.

After you create the traffic redirection scenario, Cloud Firewall starts to protect traffic between the network instances that are connected to the Enterprise Edition transit router.
The traffic redirection process is time-consuming. The configuration takes up to 30 minutes to complete.
For detailed instructions on how to create a VPC firewall, see Configure a VPC firewall for an Enterprise Edition transit router.

FAQ

Upgrade failure and rollback

If the upgrade fails, initiate the rollback plan:

Disable the traffic redirection mode for the Enterprise Edition transit router and delete the VPC firewall that you created.

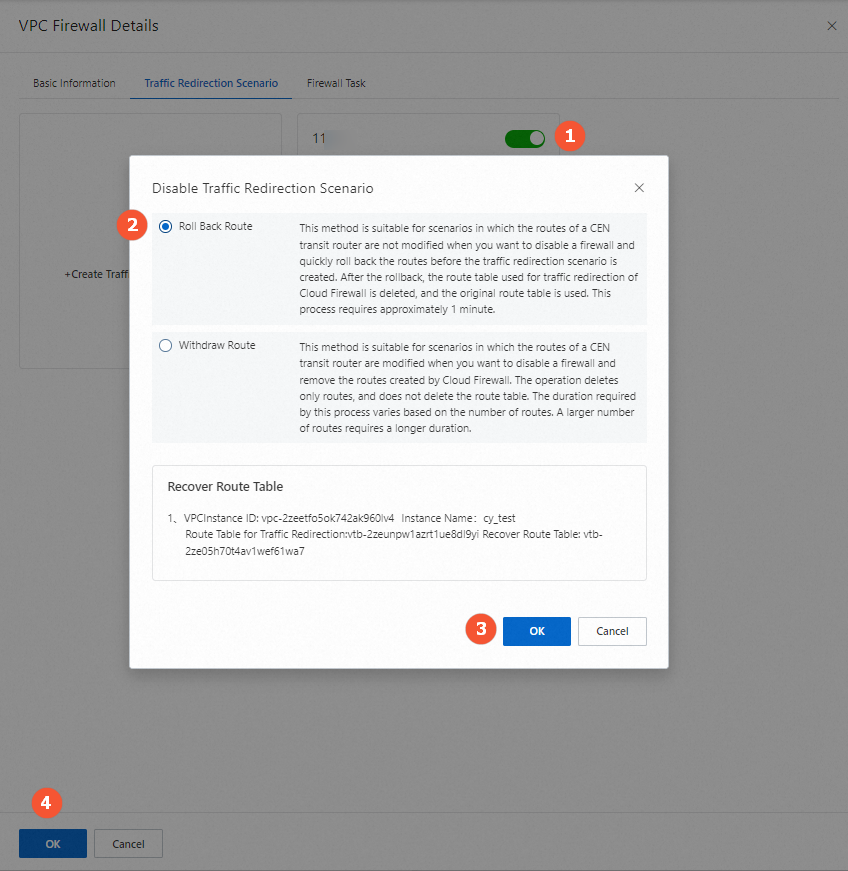

Use the route rollback feature to disable the newly created traffic redirection scenario.
Troubleshoot the issues with the Enterprise Edition transit router and the VPC firewall instance.
After the issues are resolved, create the VPC firewall for the Enterprise Edition transit router again.
