Connect an SAE Go application to ARMS - Application Real-Time Monitoring Service

You can monitor a Go application in Application Real-Time Monitoring Service (ARMS) after you manually install the ARMS agent and deploy the application to Serverless App Engine (SAE). ARMS lets you view various monitoring data, such as application topology, call trace analysis, and SQL performance analysis. This topic describes how to manually install the ARMS agent for an application and deploy it to SAE.

Prerequisites

Activate SAE.
Activate ARMS.
Activate Container Registry and create an Enterprise instance or create a Personal instance.
Ensure that your image build environment can connect to the Internet or the Alibaba Cloud internal network. The security group for the build environment must allow outbound TCP traffic on ports 8080, 9990, 80, and 443.
Check your network environment. For more information, see Network configurations for Go application monitoring.
Verify the operating system and architecture of your image build environment, and check the Go version and framework version. For more information, see Go libraries supported by Application Monitoring.

Limitations

This feature is applicable only to Go applications that are deployed from images.

Procedure

Prepare a project: This topic uses a demo project as an example.
Build an image and push it to an ACR image repository: Build an image for the project and push it to an Alibaba Cloud Container Registry (ACR) repository. This makes the image available for creating a microservice application in SAE.
Create an application: Deploy the image from the image repository to SAE and access the application.
View application monitoring data: View the various monitoring data generated by the application.

Step 1: Prepare the project

Upload the Go project to your environment.

Step 2: Build an image and push it to an image repository

2.1. Build the image

This section provides only the commands to download the compilation tool and build the application.

Download the compilation tool.
```
# Download the wget command.
RUN yum -y install wget

# This topic uses the command to download the compile tool from an endpoint in the China (Hangzhou) region as an example.
RUN wget "http://arms-apm-cn-hangzhou.oss-cn-hangzhou.aliyuncs.com/instgo/instgo-linux-amd64" -O instgo
```
In a production environment, you must select the download endpoint based on the region of your build machine. For more information about the download endpoints, see Download commands for each region.
Note
The compilation tool is the same for all regions. If your environment can access OSS over the Internet, you can use the endpoint for the China (Hangzhou) region to obtain the compilation tool for your operating system and architecture.
Add the execute permission to the binary file.
```
RUN chmod +x instgo
```
Use OpenAPI to obtain the license key. For more information, see DescribeTraceLicenseKey - Lists license keys.

Replace the go build command with ./instgo build to build the application.

# Replace {licenseKey} with the license key that you obtained in the previous step. Add instgo before go build.
RUN ./instgo set --licenseKey="{licenseKey}" --cacheDir=./
RUN ./instgo go build {args1} {args2}

If you want to test the compilation or cannot obtain a license key, you can directly compile the application.

RUN ./instgo go build {args1} {args2}

2.2. Push the image to the image repository

Push the Go image that you built to an Alibaba Cloud Container Registry (ACR) repository. For more information, see Push and pull images using an Enterprise instance or Push and pull an image.

Step 3: Create a Go application

This section describes only the key steps. For detailed instructions about how to create an application, see Deploy an application from an image.

3.1. Create the application

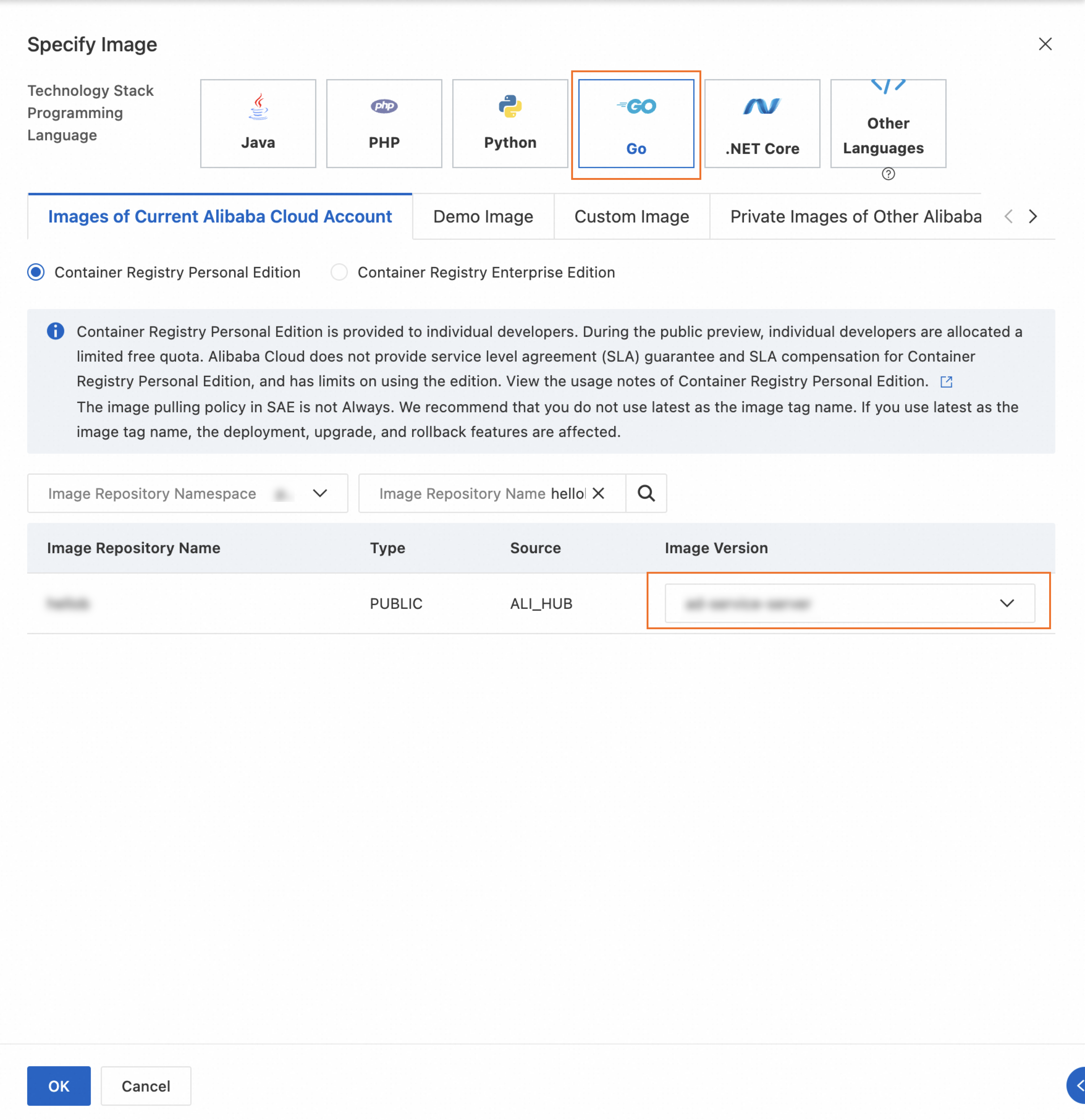

On the Specify Image panel, set Technology Stack Programming Language to Go and select an image version.

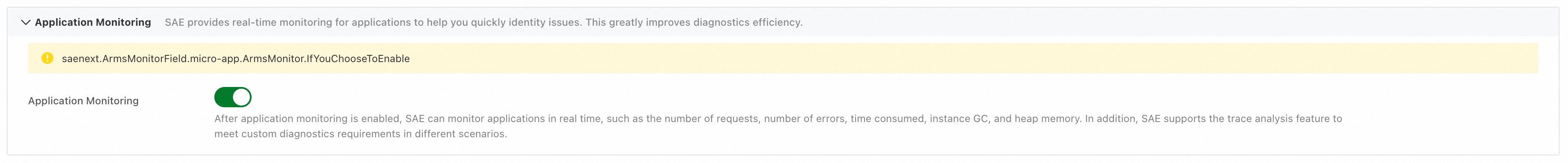

In the Application Monitoring section of the Advanced Settings page, turn on Application Monitoring.
Click Create Application.

3.2. Test access

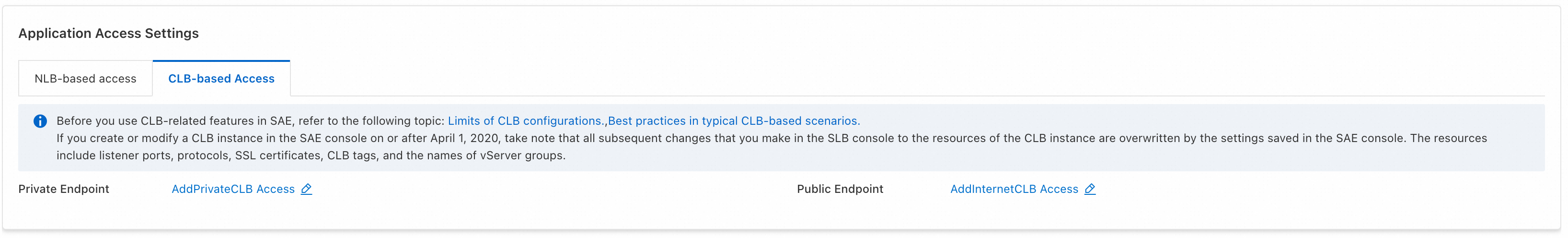

Add an Internet-facing endpoint for the application. For more information, see Attach a CLB instance to an application and generate an internet-facing or internal-facing IP address for the application.
Copy the Internet-facing endpoint and paste it into your browser to test access.

Step 4: View application monitoring data

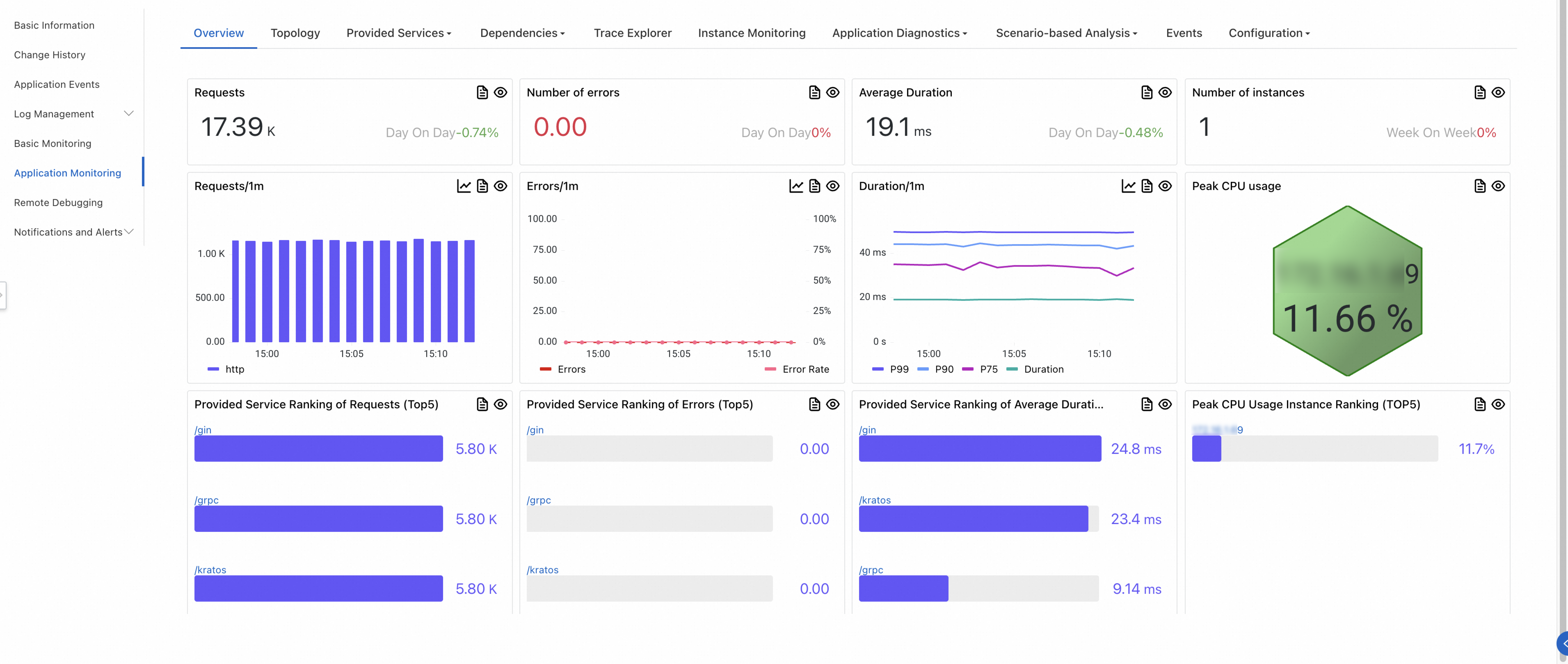

Log on to the ARMS console. In the navigation pane on the left, choose Application Monitoring > Application List. On the Applications page, click an application name to view its monitoring data.
Log on to the SAE console. In the navigation pane on the left, choose Applications > Applications. Click the name of your application to go to its Basic information page. In the navigation pane on the left, click Application Monitoring to view the monitoring data.
