CDN：【FC控制台】通過Function Compute轉存離線日誌到Object Storage Service

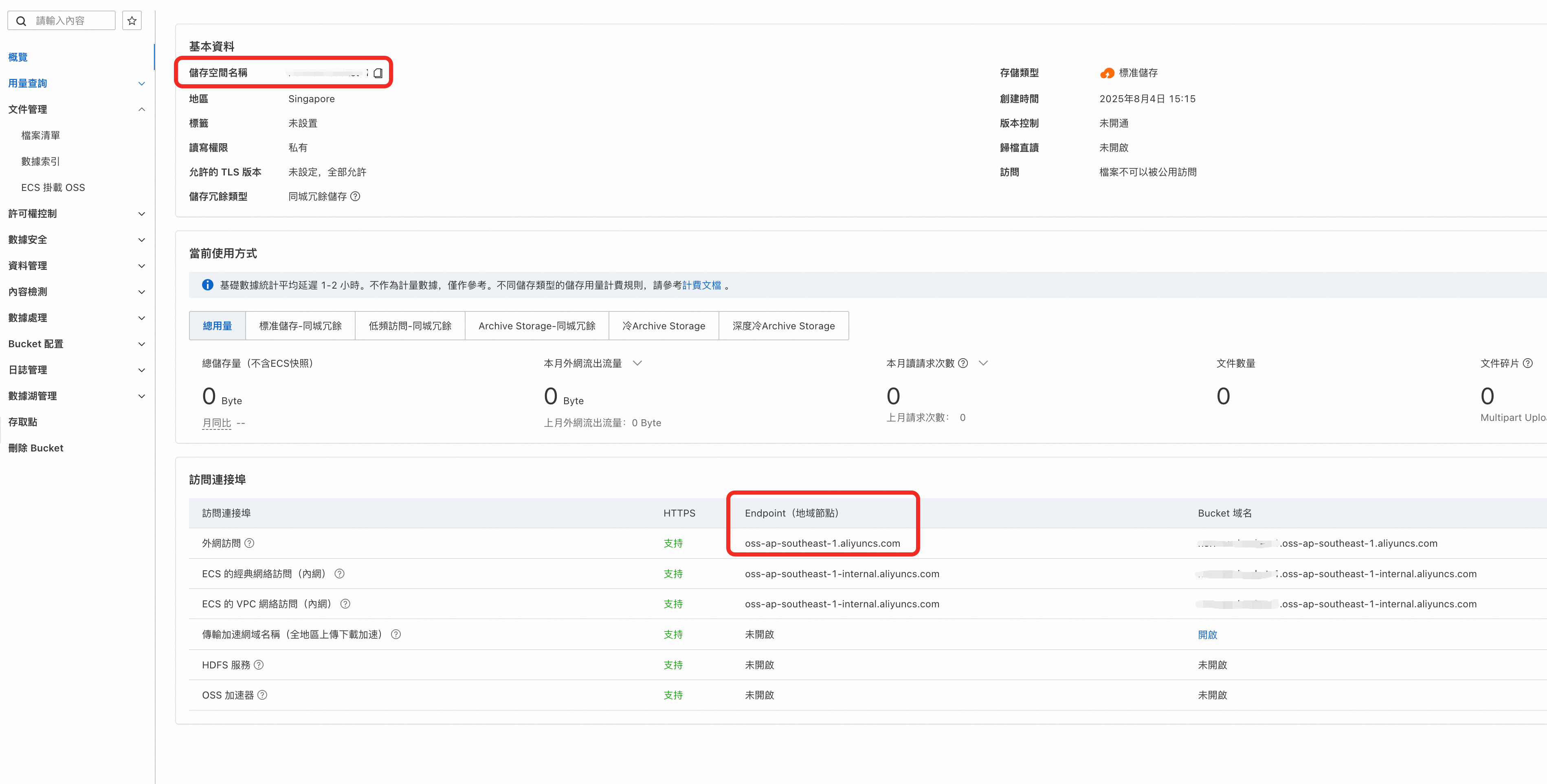

1. 擷取Bucket配置

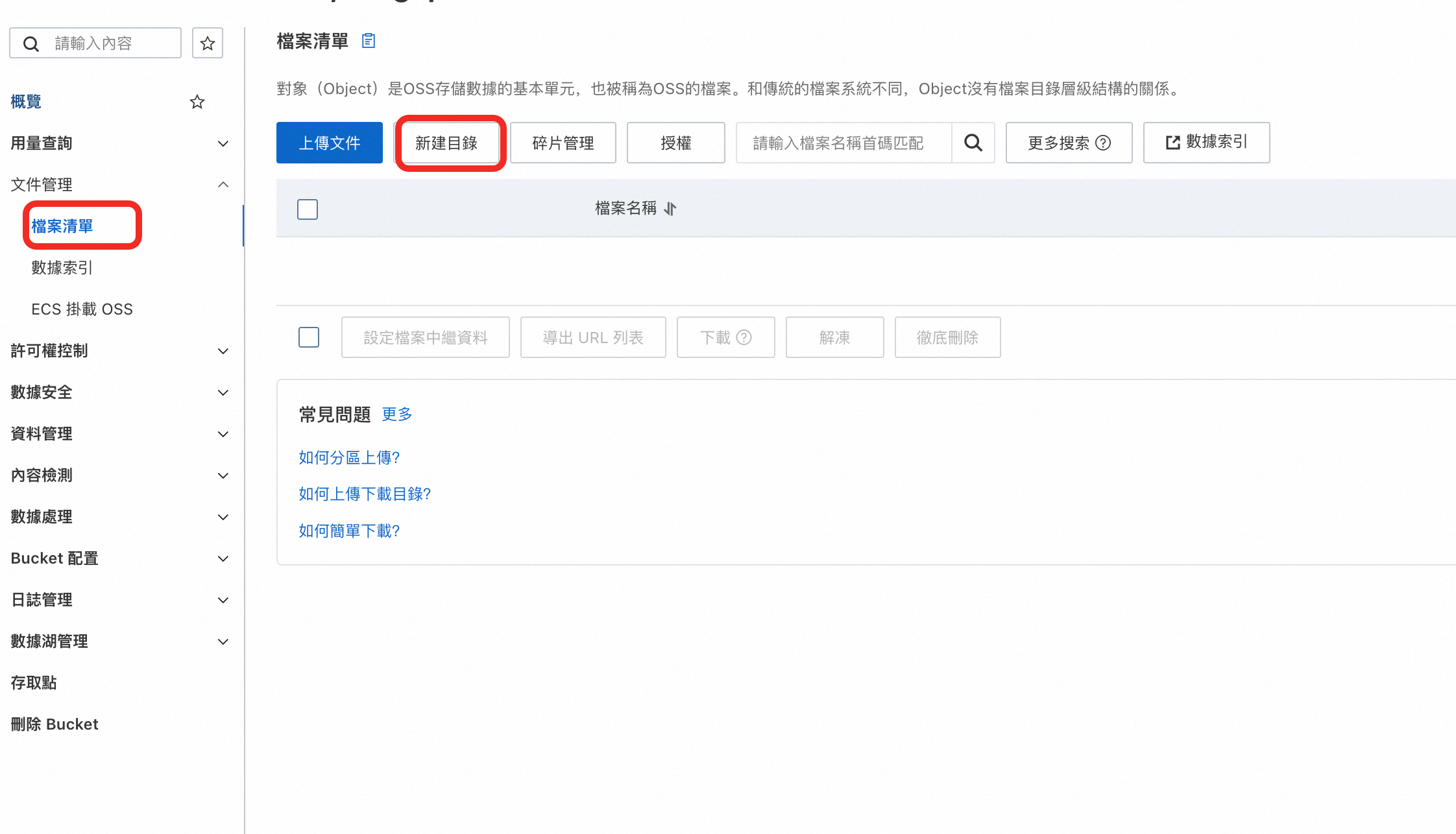

在Function Compute中建立任務函數的時候，需要填寫儲存日誌的Object Storage Service資訊，因此，需要提前準備好Bucket儲存空間名稱、外網訪問的Endpoint值、存放記錄檔的目錄名稱資訊。請參考以下步驟擷取相應的資訊：

2. 建立Function Compute任務

本自動化轉存方案的核心是利用Function Compute作為“調度器”和“搬運工”，因此需要在Function Compute中配置對應觸發器和任務函數。

1. 進入Function Compute3.0控制台，在左側導覽列選擇函數。

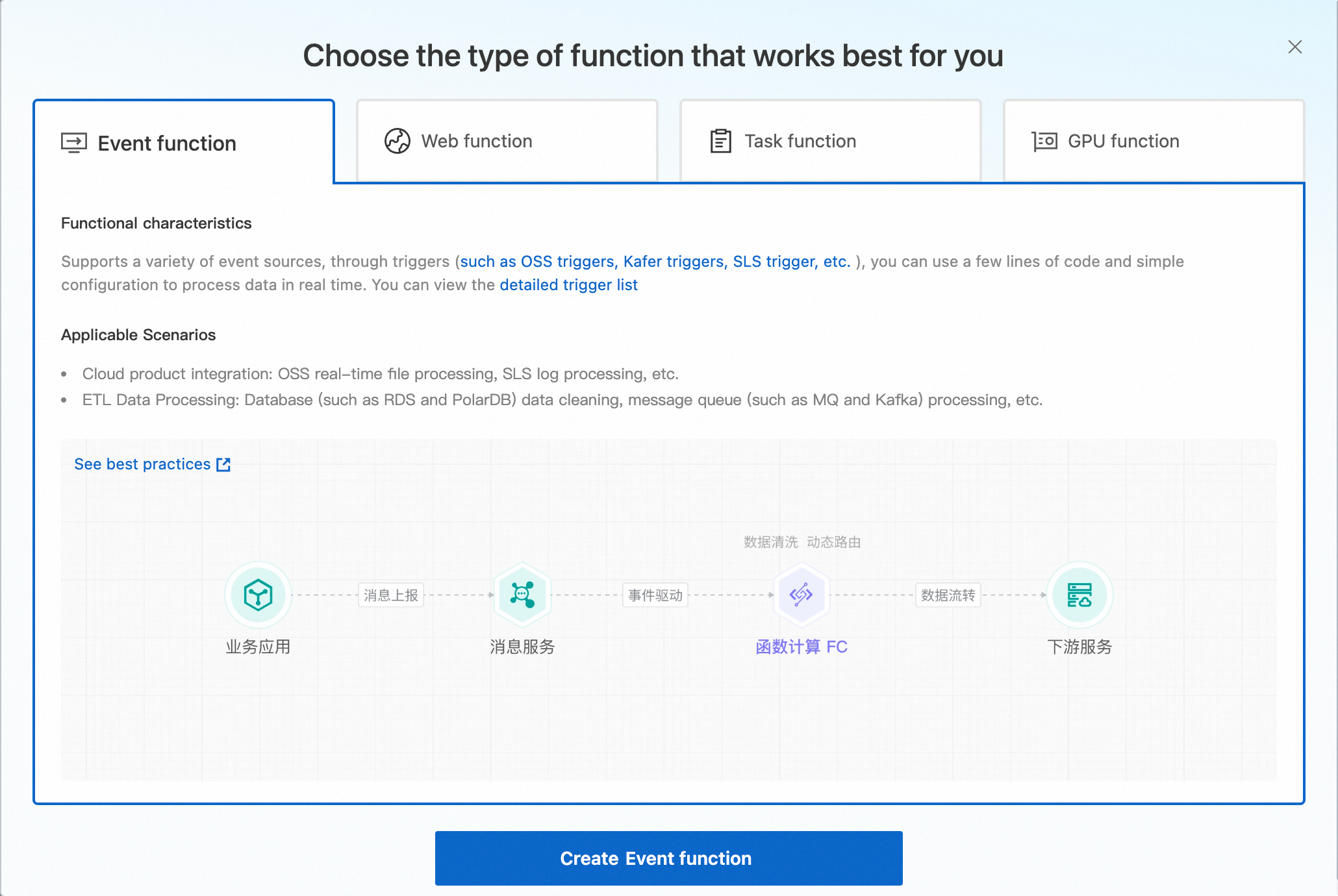

2. 在函數頁簽中，點擊建立函數，選擇事件函數，點擊建立事件函數。

3. 建立事件函數時 只需配置 影響函數正常執行的關鍵參數。

   • 基礎配置-函数名称：後續操作需要使用該函數名（推薦使用cdn-log-dump）。

   • 函數代碼-運行環境：任務函數是Python代碼，所以此處選擇內建運行時、Python、Python 3.10。

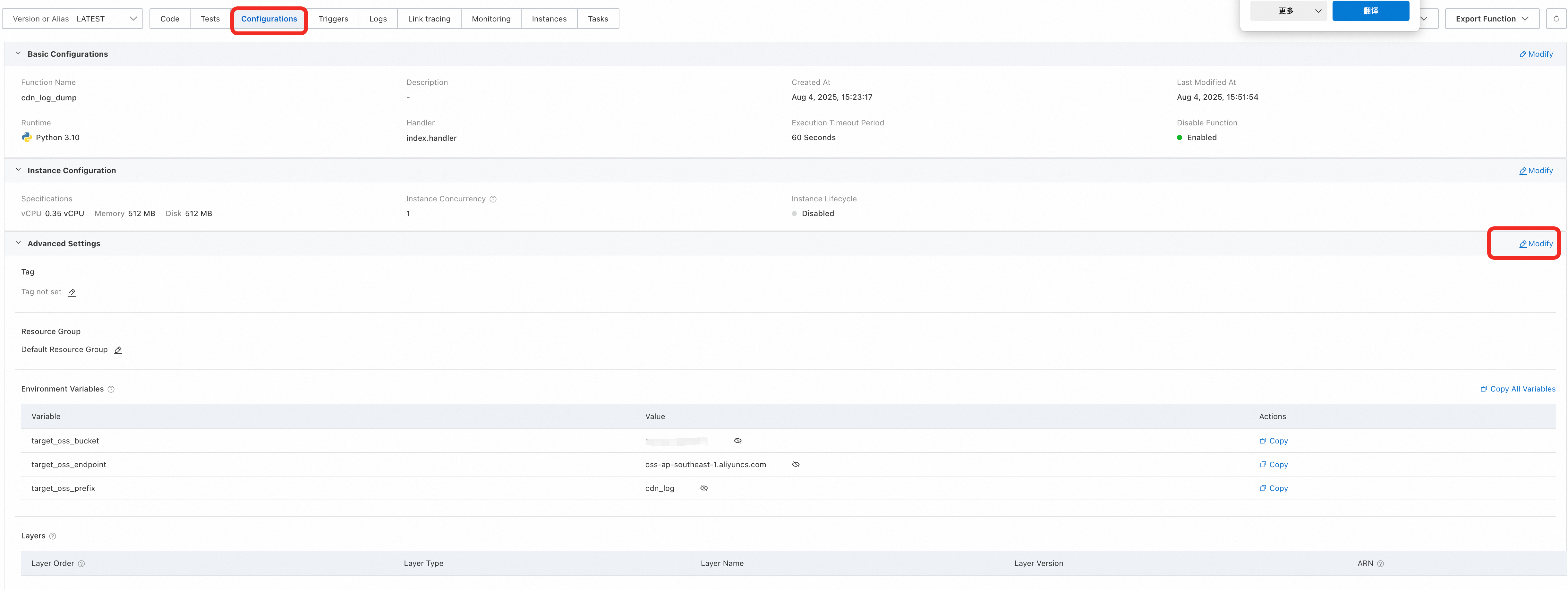

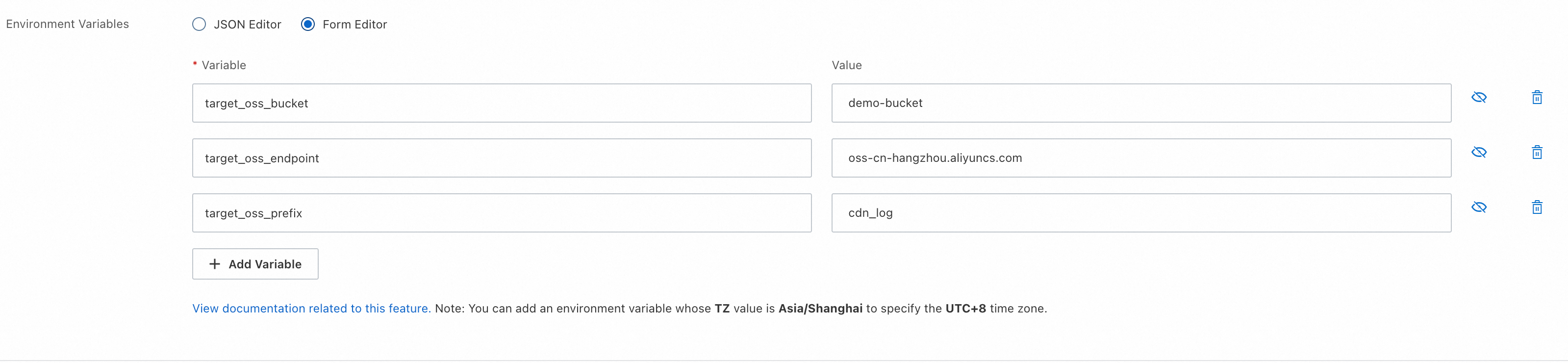

   • 更多配置-環境變數：任務函數中需要擷取儲存的Bucket資訊，因此需要在環境變數中傳入Bucket的配置資訊。建立三個環境變數並填入對應參數：

     • target_oss_bucket ：Bucket儲存空間名稱

     • target_oss_endpoint ：外網訪問的Endpoint值

     • target_oss_prefix ：存放記錄檔的目錄名稱

     樣本值：target_oss_bucket 填寫 demo-bucket，target_oss_endpoint 填寫 oss-cn-hangzhou.aliyuncs.com，target_oss_prefix 填寫 cdn_log。

4. 參數配置完成之後，點擊创建即可完成函數的建立。

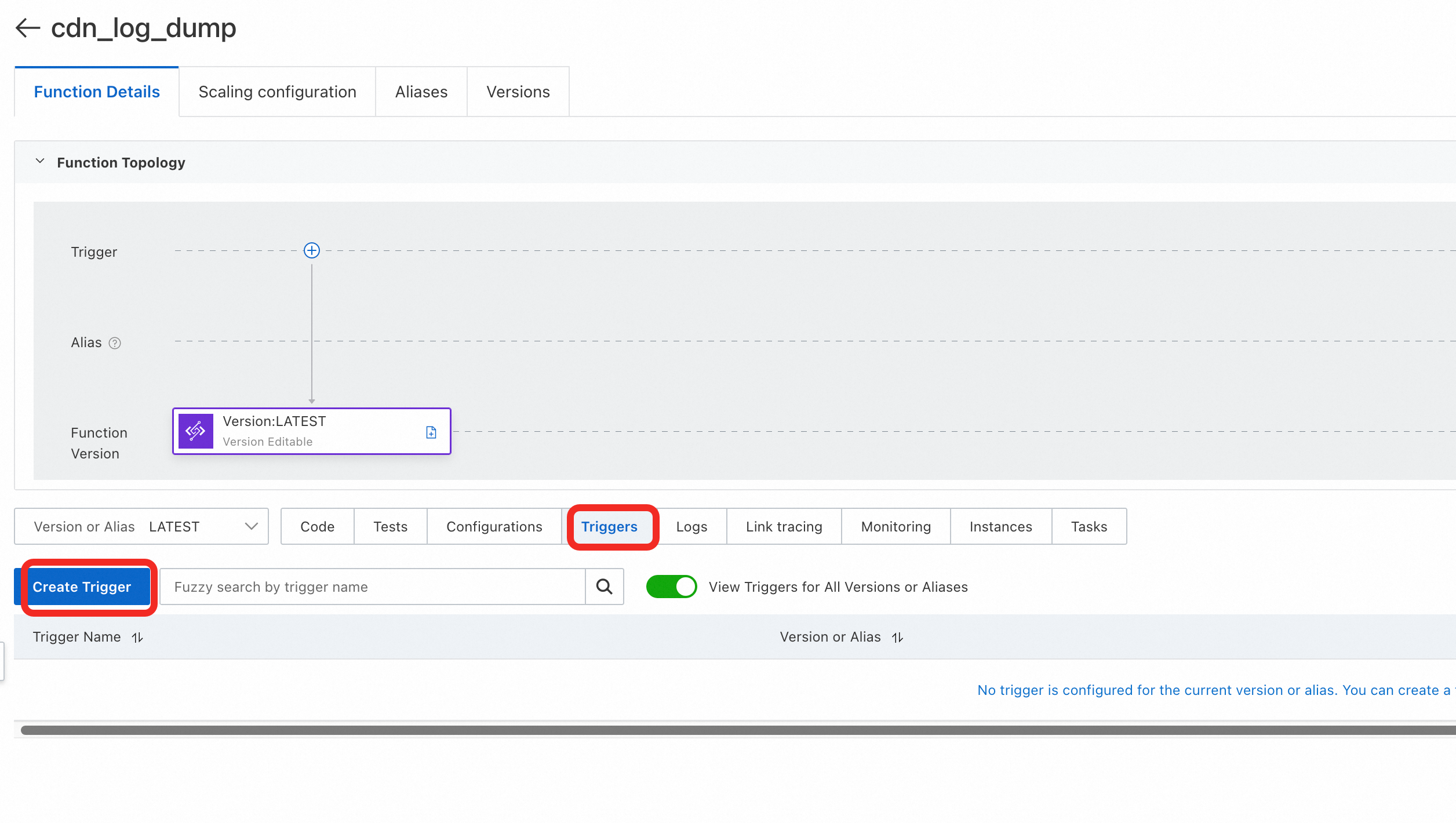

5. 在函數詳情中，點擊進入觸發器頁簽，點擊建立觸發器。

6. 按照以下指引，完成對觸發器關鍵參數的配置。點擊確定

   • 觸發器類型：選擇CDN 同步調用。

   • 名稱：填寫觸發器名稱（推薦使用cdn-logs-triggers）。

   • 觸發事件：選擇LogFileCreated。

   • 域名：此處必須填寫同一個阿里雲帳號下並且正常啟動並執行阿里雲CDN加速網域名稱。

   • 描述：填寫該觸發器的描述資訊（推薦使用：CDN離線記錄檔產生觸發器）。

   • 角色名稱：選擇AliyunCDNEventNotificationRole。

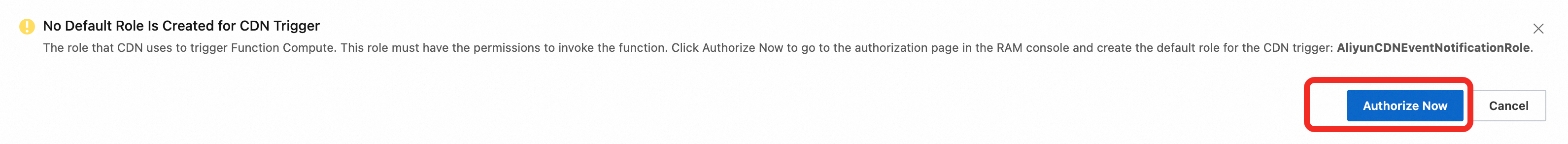

7. 在完成觸發器參數的配置之後，點擊确定。如果此時出現尚未建立 CDN 觸發器使用的預設角色的提示，點擊立即授權，根據指引完成預設角色的建立；如果沒有出現該提示，則直接完成觸發器的建立。

8. 在函數詳情中，點擊進入代碼頁簽，在線上編譯器中，輸入下方的代碼（從阿里雲CDN拉取離線日誌，並且存入Object Storage Service中）。

   轉存任務代碼

   # coding=utf-8

   import os, time, json, requests, traceback, oss2, fc2
   from requests.exceptions import *
   from fc2.fc_exceptions import *
   from oss2.models import PartInfo
   from oss2.exceptions import *
   from multiprocessing import Pool
   from contextlib import closing

   MAX_PROCCESSES = 20 # The number of worker processes in each subtask
   BLOCK_SIZE = 6 * 1024 * 1024 # The size of each part
   BLOCK_NUM_INTERNAL = 18 # The default number of blocks in each subtask in case of internal url
   BLOCK_NUM = 10 # The default number of blocks in each subtask
   MAX_SUBTASKS = 49 # The number of worker processes to do subtasks
   CHUNK_SIZE = 8 * 1024 # The size of each chunk
   SLEEP_TIME = 0.1 # The initial seconds to wait for retrying
   MAX_RETRY_TIME = 10 # The maximum retry times

   def retry(func):
       """
       Return the result of the lambda function func with retry.
       :param func: (required, lambda) the function.
       :return: The result of func.
       """
       wait_time = SLEEP_TIME
       retry_cnt = 1
       while True:
           if retry_cnt > MAX_RETRY_TIME:
               return func()
           try:
               return func()
           except (ConnectionError, SSLError, ConnectTimeout, Timeout) as e:
               print(traceback.format_exc())
           except (OssError) as e:
               if 500 <= e.status < 600:
                   print(traceback.format_exc())
               else:
                   raise Exception(e)
           except (FcError) as e:
               if (500 <= e.status_code < 600) or (e.status_code == 429):
                   print(traceback.format_exc())
               else:
                   raise Exception(e)
           print('Retry %d times...' % retry_cnt)
           time.sleep(wait_time)
           wait_time *= 2
           retry_cnt += 1

   def get_info(url):
       """
       Get the CRC64 and total length of the file.
       :param url: (required, string) the url address of the file.
       :return: CRC64, length
       """
       with retry(lambda : requests.get(url, {}, stream = True)) as r:
           return r.headers['x-oss-hash-crc64ecma'], int(r.headers['content-length'])

   class Response(object):
       """
       The response class to support reading by chunks.
       """
       def __init__(self, response):
           self.response = response
           self.status = response.status_code
           self.headers = response.headers

       def read(self, amt = None):
           if amt is None:
               content = b''
               for chunk in self.response.iter_content(CHUNK_SIZE):
                   content += chunk
               return content
           else:
               try:
                   return next(self.response.iter_content(amt))
               except StopIteration:
                   return b''

       def __iter__(self):
           return self.response.iter_content(CHUNK_SIZE)

   def migrate_part(args):
       """
       Download a part from url and then upload it to OSS.
       :param args: (bucket, object_name, upload_id, part_number, url, st, en)
       :bucket: (required, Bucket) the goal OSS bucket.
       :object_name: (required, string) the goal object_name.
       :upload_id: (required, integer) the upload_id of this upload task.
       :part_number: (integer) the part_number of this part.
       :url: (required, string) the url address of the file.
       :st, en: (required, integer) the byte range of this part, denoting [st, en].
       :return: (part_number, etag)
       :part_number: (integer) the part_number of this part.
       :etag: (string) the etag of the upload_part result.
       """
       bucket = args[0]
       object_name = args[1]
       upload_id = args[2]
       part_number = args[3]
       url = args[4]
       st = args[5]
       en = args[6]
       try:
           headers = {'Range' : 'bytes=%d-%d' % (st, en)}
           resp = Response(retry(lambda : requests.get(url, headers = headers, stream = True)))
           result = retry(lambda : bucket.upload_part(object_name, upload_id, part_number, resp))
           return (part_number, result.etag)
       except Exception as e:
           print(traceback.format_exc())
           raise Exception(e)

   def do_subtask(event, context):
       """
       Download a range of the file from url and then upload it to OSS.
       :param event: (required, json) the json format of event.
       :param context: (required, FCContext) the context of handler.
       :return: parts
       :parts: ([(integer, string)]) the part_number and etag of each process.
       """
       oss_endpoint = os.environ.get('target_oss_endpoint')
       oss_bucket_name = os.environ.get('target_oss_bucket')
       access_key_id = context.credentials.access_key_id
       access_key_secret = context.credentials.access_key_secret
       security_token = context.credentials.security_token
       auth = oss2.StsAuth(access_key_id, access_key_secret, security_token)
       bucket = oss2.Bucket(auth, oss_endpoint, oss_bucket_name)
       object_name = event['object_name']
       upload_id = event['upload_id']
       part_number = event['part_number']
       url = event['url']
       st = event['st']
       en = event['en']
       if part_number == 1:
           return [migrate_part((bucket, object_name, upload_id, part_number, url, st, en))]
       pool = Pool(MAX_PROCCESSES)
       tasks = []
       while st <= en:
           nxt = min(en, st + BLOCK_SIZE - 1)
           tasks.append((bucket, object_name, upload_id, part_number, url, st, nxt))
           part_number += 1
           st = nxt + 1
       parts = pool.map(migrate_part, tasks)
       pool.close()
       pool.join()
       return parts

   def invoke_subtask(args):
       """
       Invoke the same function synchronously to start a subtask.
       :param args: (object_name, upload_id, part_number, url, st, en, context)
       :object_name: (required, string) the goal object_name.
       :upload_id: (required, integer) the upload_id of this upload task.
       :part_number: (integer) the part_number of the first part in this subtask.
       :url: (required, string) the url address of the file.
       :st, en: (required, integer) the byte range of this subtask, denoting [st, en].
       :context: (required, FCContext) the context of handler.
       :return: the return of the invoked function.
       """
       object_name = args[0]
       upload_id = args[1]
       part_number = args[2]
       url = args[3]
       st = args[4]
       en = args[5]
       context = args[6]
       account_id = context.account_id
       access_key_id = context.credentials.access_key_id
       access_key_secret = context.credentials.access_key_secret
       security_token = context.credentials.security_token
       region = context.region
       service_name = context.service.name
       function_name = context.function.name
       endpoint = 'http://%s.%s-internal.fc.aliyuncs.com' % (account_id, region)
       client = fc2.Client(
           endpoint = endpoint,
           accessKeyID = access_key_id,
           accessKeySecret = access_key_secret,
           securityToken = security_token
       )
       payload = {
           'object_name' : object_name,
           'upload_id' : upload_id,
           'part_number' : part_number,
           'url' : url,
           'st' : st,
           'en' : en,
           'is_children' : True
       }
       if part_number == 1:
           return json.dumps(do_subtask(payload, context))
       ret = retry(lambda : client.invoke_function(service_name, function_name, payload = json.dumps(payload)))
       return ret.data

   def divide(n, m):
       """
       Calculate ceil(n / m) without floating point arithmetic.
       :param n, m: (integer)
       :return: (integer) ceil(n / m).
       """
       ret = n // m
       if n % m > 0:
           ret += 1
       return ret

   def migrate_file(url, oss_object_name, context):
       """
       Download the file from url and then upload it to OSS.
       :param url: (required, string) the url address of the file.
       :param oss_object_name: (required, string) the goal object_name.
       :param context: (required, FCContext) the context of handler.
       :return: actual_crc64, expect_crc64
       :actual_crc64: (string) the CRC64 of upload.
       :expect_crc64: (string) the CRC64 of source file.
       """
       crc64, total_size = get_info(url)
       oss_endpoint = os.environ.get('target_oss_endpoint')
       oss_bucket_name = os.environ.get('target_oss_bucket')
       access_key_id = context.credentials.access_key_id
       access_key_secret = context.credentials.access_key_secret
       security_token = context.credentials.security_token
       auth = oss2.StsAuth(access_key_id, access_key_secret, security_token)
       bucket = oss2.Bucket(auth, oss_endpoint, oss_bucket_name)
       upload_id = retry(lambda : bucket.init_multipart_upload(oss_object_name)).upload_id
       pool = Pool(MAX_SUBTASKS)
       st = 0
       part_number = 1
       tasks = []
       block_num = BLOCK_NUM_INTERNAL if '-internal.aliyuncs.com' in oss_endpoint else BLOCK_NUM
       block_num = min(block_num, divide(divide(total_size, BLOCK_SIZE), MAX_SUBTASKS + 1))
       while st < total_size:
           en = min(total_size - 1, st + block_num * BLOCK_SIZE - 1)
           tasks.append((oss_object_name, upload_id, part_number, url, st, en, context))
           size = en - st + 1
           cnt = divide(size, BLOCK_SIZE)
           part_number += cnt
           st = en + 1
       subtasks = pool.map(invoke_subtask, tasks)
       pool.close()
       pool.join()
       parts = []
       for it in subtasks:
           for part in json.loads(it):
               parts.append(PartInfo(part[0], part[1]))
       res = retry(lambda : bucket.complete_multipart_upload(oss_object_name, upload_id, parts))
       return str(res.crc), str(crc64)

   def get_oss_object_name(url):
       """
       Get the OSS object name.
       :param url: (required, string) the url address of the file.
       :return: (string) the OSS object name.
       """
       prefix = os.environ.get('target_oss_prefix')
       tmps = url.split('?')
       if len(tmps) != 2:
           raise Exception('Invalid url : %s' % url)
       urlObject = tmps[0]
       if urlObject.count('/') < 3:
           raise Exception('Invalid url : %s' % url)
       objectParts = urlObject.split('/')
       objectParts = [prefix] + objectParts[len(objectParts) - 3 : len(objectParts)]
       return '/'.join(objectParts)

   def handler(event, context):
       evt = json.loads(event)
       if list(evt.keys()).count('is_children'):
           return json.dumps(do_subtask(evt, context))
       url = evt['events'][0]['eventParameter']['filePath']
       if not (url.startswith('http://') or url.startswith('https://')):
           url = 'https://' + url
       oss_object_name = get_oss_object_name(url)
       st_time = int(time.time())
       wait_time = SLEEP_TIME
       retry_cnt = 1
       while True:
           actual_crc64, expect_crc64 = migrate_file(url, oss_object_name, context)
           if actual_crc64 == expect_crc64:
               break
           print('Migration object CRC64 not matched, expected: %s, actual: %s' % (expect_crc64, actual_crc64))
           if retry_cnt > MAX_RETRY_TIME:
               raise Exception('Maximum retry time exceeded.')
           print('Retry %d times...' % retry_cnt)
           time.sleep(wait_time)
           wait_time *= 2
           retry_cnt += 1
       print('Success! Total time: %d s.' % (int(time.time()) - st_time))

9. 點擊部署代碼，即可完成整個函數的配置。

3. 建立專屬角色和權限原則

Function Compute使用Object Storage Service的時候，需要具有訪問Object Storage Service的許可權。為了簡化授權流程，Function Compute支援關聯角色。按照以下步驟，給這個離線日誌轉存函數配置一個可以使用Object Storage Service的角色。

1. 開啟RAM 存取控制控制台，選擇許可權管理的權限原則頁簽。

2. 點擊建立權限原則，選擇指令碼編輯。

3. 將下邊策略中的BucketName改為自己的Bucket儲存空間名稱，將三處FC-NAME都替換成配置步驟2中的函數名稱（推薦使用cdn-log-dump）。

   {
     "Version": "1",
     "Statement": [
       {
         "Effect": "Allow",
         "Action": "oss:PutObject",
         "Resource": "acs:oss:*:*:BucketName/*"
       },
       {
         "Effect": "Allow",
         "Action": "fc:InvokeFunction",
         "Resource": [
           "acs:fc:*:*:services/FC-NAME/functions/FC-NAME",
           "acs:fc:*:*:services/FC-NAME.*/functions/*"
         ]
       }
     ]
   }

4. 點擊确定，填寫策略名稱稱和備忘。然後再次點擊确定，完成建立權限原則（策略名稱稱推薦使用：AliyunCDNLogDumpAccess；備忘推薦使用：管理CDN離線日誌轉存的許可權）。

5. 點擊身份管理中的角色頁簽，點擊建立角色。

6. 信任主體類型選擇雲帳號，信任主體名稱選擇當前雲帳號xxxxxxx，然後點擊确定。

7. 在建立角色彈出框中輸入角色名稱（推薦使用AliyunCDNLogDumpRole）然後點擊確定，完成角色的建立。

8. 在建立角色的基本資料中，選擇許可權管理頁簽，點擊精確授權。策略類型選擇自訂策略，策略名稱稱填寫第四步建立的權限原則名稱（推薦使用AliyunCDNLogDumpAccess）。然後點擊确定。

9. 在信任策略頁簽中，點擊編輯信任策略。在指令碼編輯中，輸入下方的信任策略，然後點擊确定。

   {
     "Statement": [
       {
         "Action": "sts:AssumeRole",
         "Effect": "Allow",
         "Principal": {
           "Service": [
             "fc.aliyuncs.com"
           ]
         }
       }
     ],
     "Version": "1"
   }

至此，已經完成了整個角色和許可權的配置，接下來需要把這個角色綁定到Function Compute任務上。

4. Function Compute任務綁定角色

1. 在Function Compute控制台的函數頁簽，選擇步驟2建立的函數，點擊配置。

2. 在配置頁簽中，選擇高級配置，點擊對應的配置按鈕。

3. 在進階配置中，找到許可權-函數角色選項，選擇步驟3建立的角色（推薦使用AliyunCDNLogDumpRole）。然後點擊部署，完成Function Compute任務綁定角色的操作。

5. 測試Function Compute任務（可選）

在完成前四個步驟之後，整個阿里雲CDN離線日誌轉存到Object Storage Service的操作已經全部完成。但是由於離線日誌的產生存在24小時左右的延遲，因此無法及時看到配置的Function Compute任務是否能夠正常執行。您可以按照以下步驟測試組態的Function Compute任務。

1. 在Function Compute控制台的函數頁簽，選擇步驟2建立的函數，點擊配置。

2. 在測試頁簽中，測試請求操作選擇建立新測試事件，事件模板選擇CDN(LogFileCreated)，事件名稱填寫測試cdn_log_dump。

   JSON 編輯器中自動填滿 CDN LogFileCreated 事件模板，包含 eventName、eventSource、region、eventTime、traceId、userIdentity（aliUid）、resource（domain 樣本為 example.com）及 eventParameter 等欄位。

3. 用下方擷取的參數，替換修改事件模板中的filePath參數。

   如何擷取測試的filePath參數

   1. 進入阿里雲CDN離線日誌下載控制台。

   2. 選擇觸發器配置的加速網域名稱，日期選擇當前日期前一天，點擊查詢。

   3. 選擇其中一個檔案，複製檔案的下載連結（滑鼠放置在下載按鈕上，右鍵選擇複製連結）。

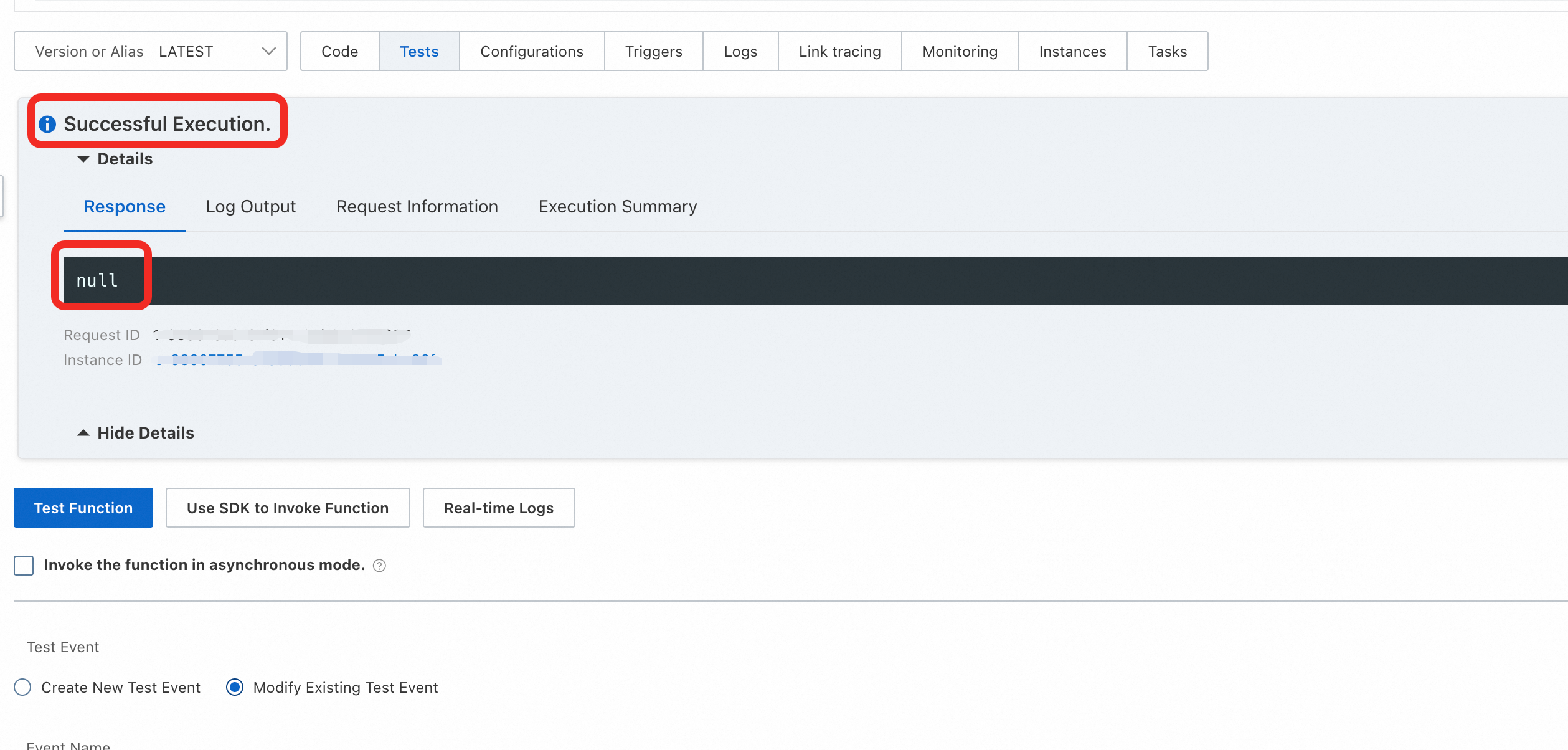

4. 點擊測試函數，待執行完成之後，可以看到返回結果為null，並且執行成功的狀態。

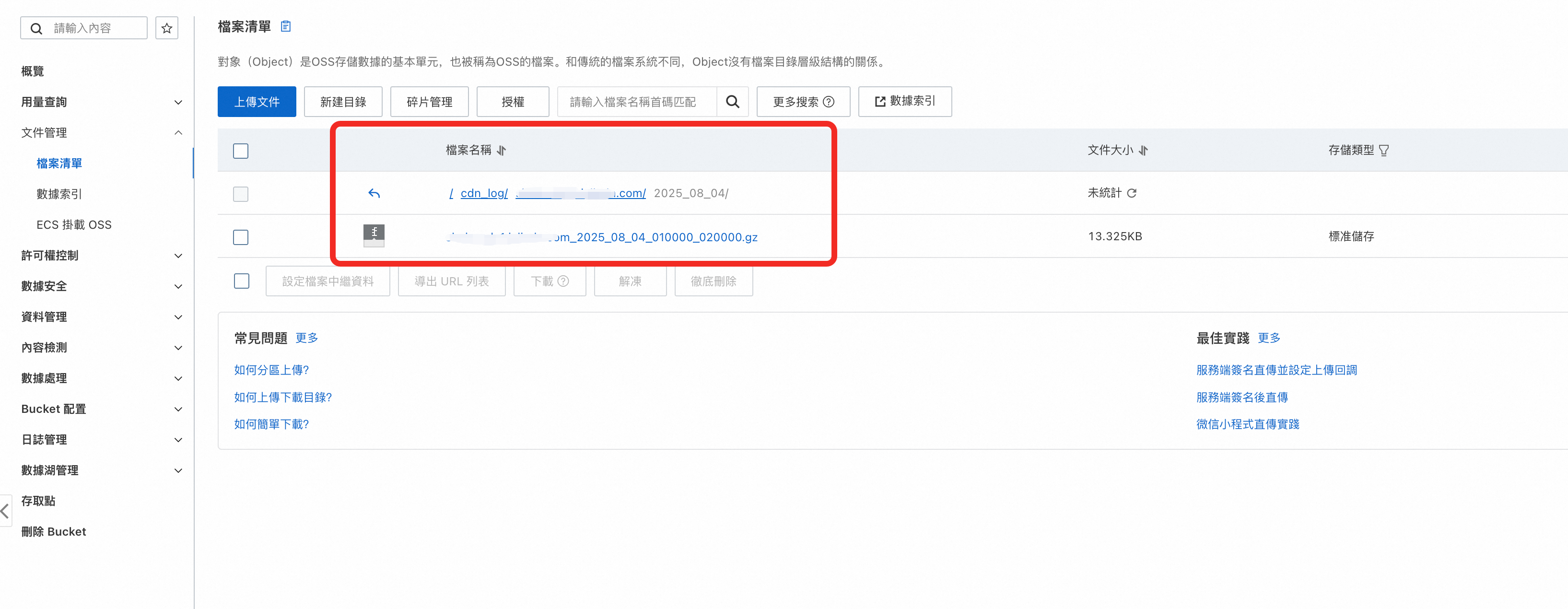

5. 在Object Storage ServiceBucket控制台，選擇用作儲存阿里雲CDN日誌的Bucket。

6. 選擇檔案清單，進入到配置的儲存阿里雲CDN日誌的目錄中，可以看到以加速網域名稱命名的檔案夾，檔案夾內有以日期命名的子檔案夾，裡麵包含了 5.3 步驟中配置的檔案。說明Function Compute任務已成功處理阿里雲CDN離線日誌轉存。
