Alibaba Cloud DevOps:Manage Kubernetes clusters

Custom Kubernetes cluster

1. Obtain the cluster config file

   Generate admin config file

   To configure fine-grained access control, manually generate the config file:

   curl -k https://<YOUR_API_SERVER_PUBLIC_IP>:6443

   Create a ~/.kube/config file and add the following content:

   apiVersion: v1
   clusters:
   - cluster:
       # needed if you get error "Unable to connect to the server: x509: certificate signed by unknown authority"
       insecure-skip-tls-verify: true
       server: https://YOUR_API_SERVER_PUBLIC_IP:6443
     name: kubernetes
   contexts:
   - context:
       cluster: kubernetes
       user: kubernetes-admin
     name: kubernetes-admin@kubernetes
   current-context: kubernetes-admin@kubernetes
   kind: Config
   preferences: {}
   users:
   - name: kubernetes-admin
     user:
       client-certificate-data: LS0tLS1CRUdJTi... (base64 /etc/kubernetes/ssl/node-node1.pem)
       client-key-data: LS0tLS1CRUdJTiBS.. (base64 /etc/kubernetes/ssl/node-node1-key.pem)

   Generate client-certificate-data:

   cat /etc/kubernetes/ssl/node-node1.pem | base64 -w 0

   Generate client-key-data:

   cat /etc/kubernetes/ssl/node-node1-key.pem | base64 -w 0

   Verify the certificate:

   $ kubectl get nodes
   NAME      STATUS    AGE       VERSION
   my-kube   Ready     2h        v1.6.7+coreos.0

   From the ACK console

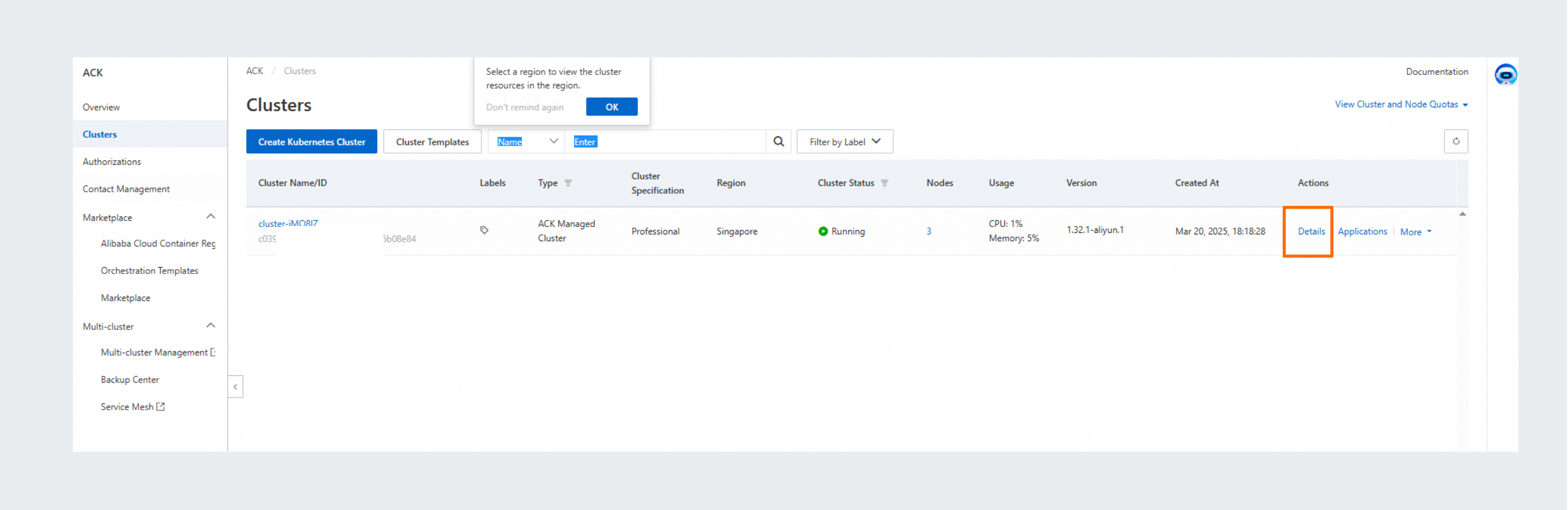

   In the Alibaba Cloud console, go to . Click Details for the target cluster in the Clusters list and obtain the config file from the Connection Information section.

   Important

   To connect using a certificate file, the cluster's API server must be publicly accessible.

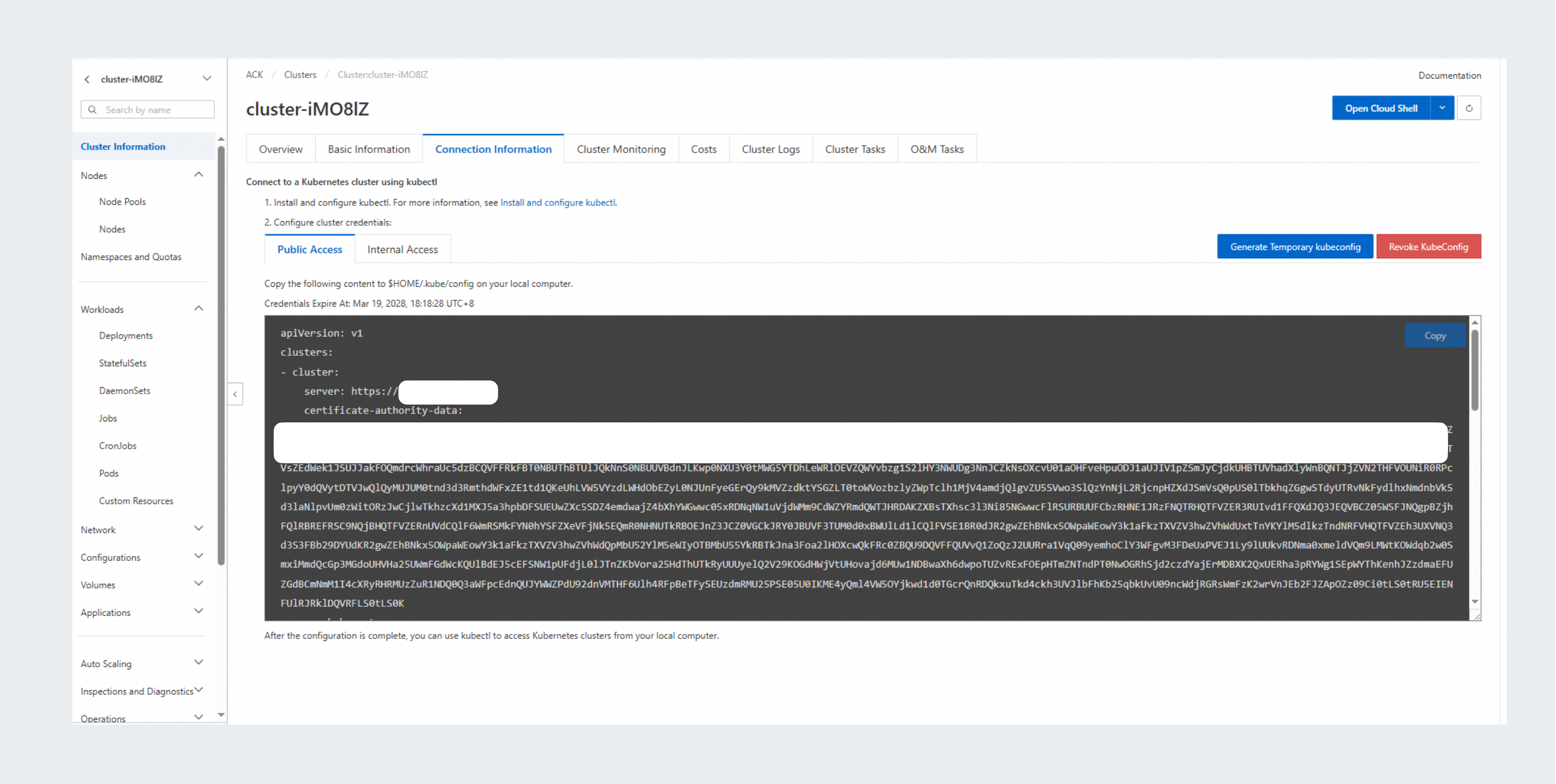

   On the Connection Information page, select the public access or internal access tab and click Copy to obtain the kubeconfig.

2. Create the custom cluster connection

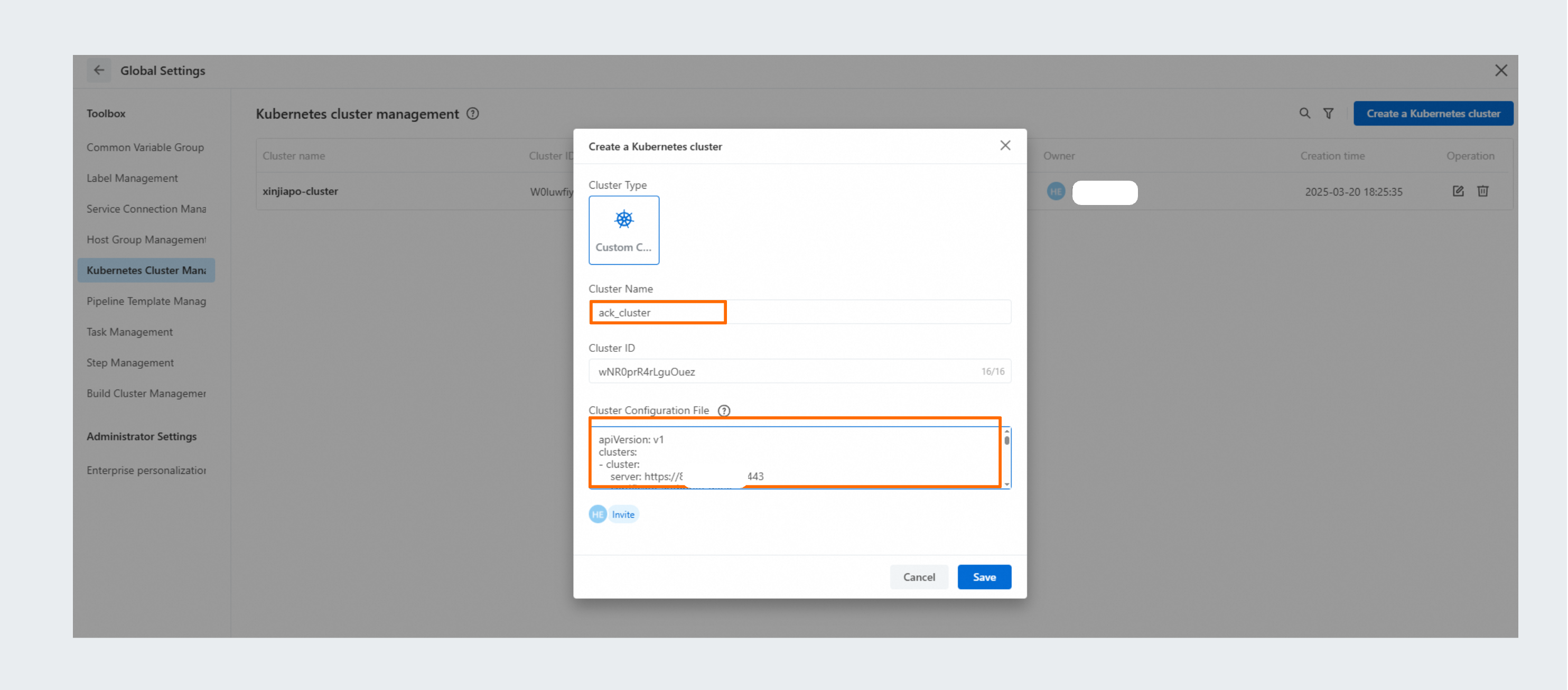

   Select Custom Cluster, enter a cluster name, add the kubeconfig file, and click Save. Flow uses this file to deploy applications to the cluster.

   The dialog box contains a Cluster Name field, an auto-generated Cluster ID field, and a Cluster Configuration File text area (placeholder: ~/.kube/config).

3. Manage cluster permissions

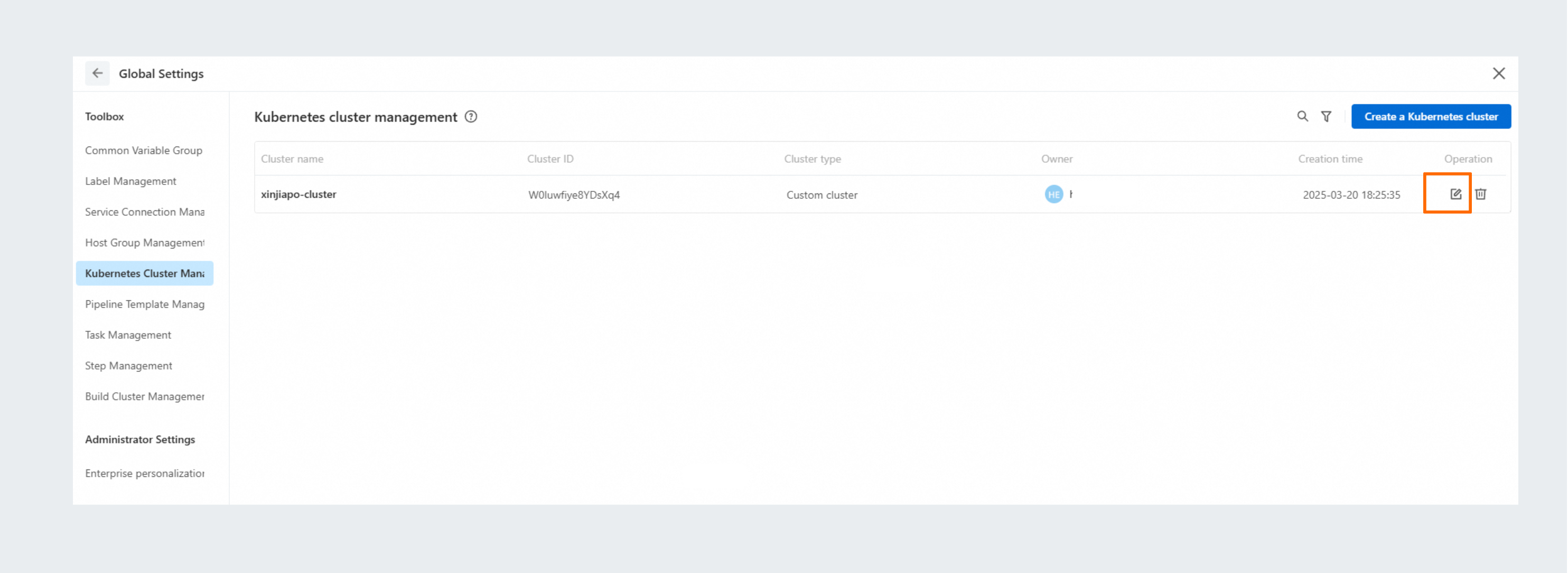

   Click Modify for the target cluster and select Member Permissions to manage access.
