Simple Log Service:Getting started

1.1 Create a project and a Logstore

1. Log on to the Simple Log Service console.

2. Create a project.

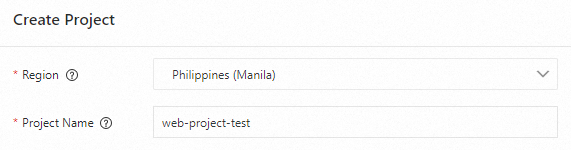

   In the Projects section, click Create Project. For this example, create a project named web-project-test in the Philippines (Manila) region. For more information, see Manage a project.



3. Create a Logstore.

   After the project is created, you are prompted to create a Logstore. For this example, create a Logstore named website_log. For more information, see Manage a Logstore.

1.2 Collect NGINX access logs

The NGINX access logs of a website are stored in the /var/log/nginx/access.log file on the ECS instance, and the logs are formatted in single-line mode by default. The following sample code provides a sample log in the /var/log/nginx/access.log file:

192.168.1.75 - David [2024-07-31T14:27:24+08:00] "PUT /request/path-0/file-8 HTTP/1.1" 819 21577 403 73895 www.test5.com www.test2.com "Mozilla/5.0 (Windows NT 5.2; WOW64) AppleWebKit/535.1 (KHTML, like Gecko) Chrome/13.0.782.41 Safari/535.1"

For more information about how to use Logtail to collect NGINX access logs from an ECS instance, see Collect text logs from servers. After logs are collected from the /var/log/nginx/access.log file to the website_log Logstore, you can query and analyze the collected logs.

You can also use Simple Log Service SDK to collect logs. For more information, see Get started with Simple Log Service SDK for Java. For more information, see Data collection overview.

2.1 Go to the Data Processor page

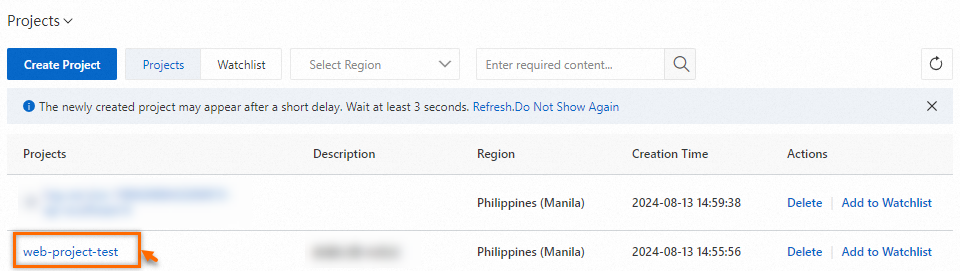

1. In the Projects section, click the web-project-test project.



2. In the left-side navigation pane, choose Resources > Data Processor.



2.2 Create an ingest processor

1. On the Data Processor > Ingest Processor tab, click Create.

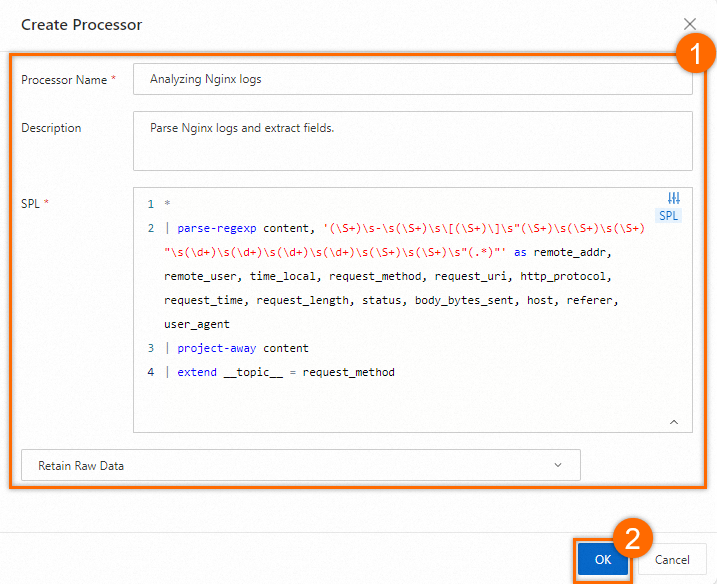

2. In the Create Processor panel, configure the parameters based on the following figure and click OK.



   The following code shows an example of SPL settings. The ingest processor processes data based on the SPL settings. For more information, see SPL overview.

   *
   | parse-regexp content, '(\S+)\s-\s(\S+)\s\[(\S+)\]\s"(\S+)\s(\S+)\s(\S+)"\s(\d+)\s(\d+)\s(\d+)\s(\d+)\s(\S+)\s(\S+)\s"(.*)"' as remote_addr, remote_user, time_local, request_method, request_uri, http_protocol, request_time, request_length, status, body_bytes_sent, host, referer, user_agent
   | project-away content
   | extend __topic__ = request_method

3.1 Associate the ingest processor with the Logstore

1. In the left-side navigation pane, click Log Storage, move the pointer over the website_log Logstore, and then choose Modify.



2. On the Logstore Attributes page of the website_log Logstore, click Modify in the upper-right corner. In edit mode, select the ingest processor that you create to parse the NGINX access logs with the Logstore from the Ingest Processor drop-down list and click Save.



3.2 Query and analyze logs

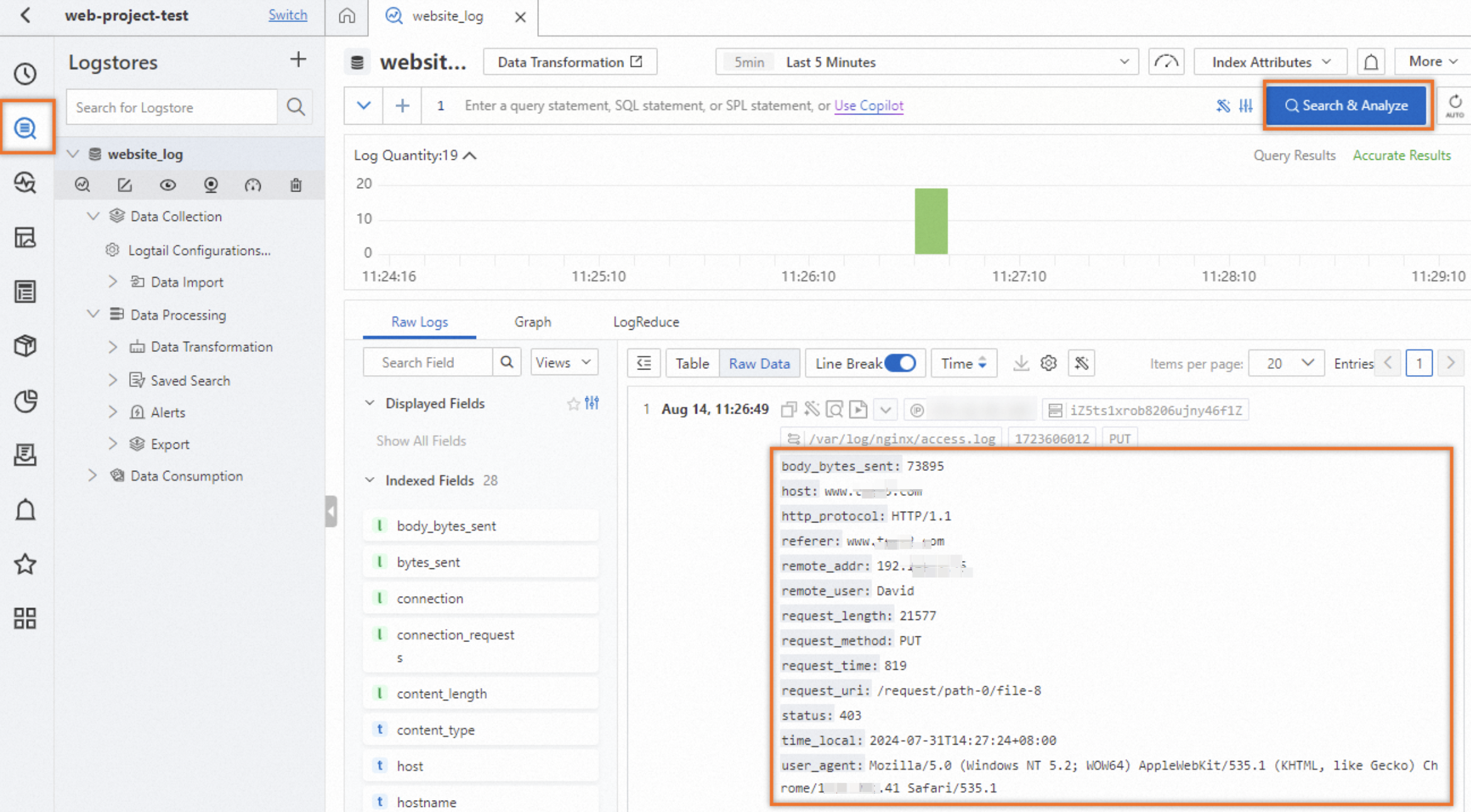

In the left-side navigation pane, click Log Storage and the website_log Logstore. On the query and analysis page of the website_log Logstore, view the parsed logs.
