This topic provides answers to some frequently asked questions about fully managed Flink, including answers to questions about console operations, network connectivity, and JAR packages.
- Console operations
- How do I upload a JAR package in the Object Storage Service (OSS) console?
- How do I configure the parameters that are related to checkpoints and state backends?
- How do I find the job that triggers an alert?
- How do I view information about a workspace, such as the workspace ID?
- How do I query the engine version of Flink that is used by a job?
- Can I directly deactivate Prometheus Service that is automatically activated with fully managed Flink?
- Network connectivity
- JAR packages
How do I upload a JAR package in the Object Storage Service (OSS) console?
- In the console of fully managed Flink, view the OSS bucket of the current cluster.
The following figure shows information about the OSS bucket.
- Log on to the OSS console and upload the JAR package to the /artifacts/namespaces directory of the OSS bucket.
- In the left-side navigation pane of the console of fully managed Flink, click Artifacts to view the JAR package that you uploaded in the OSS console.

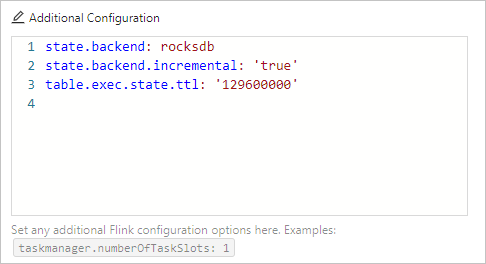

How do I configure the parameters that are related to checkpoints and state backends?
state.backend: rocksdb
state.backend.incremental: true
table.exec.state.ttl: 129600000

Parameter | Description | Remarks |
---|---|---|
state.backend | The stream state storage system. | Valid values:
|
table.exec.state.ttl | The time-to-live (TTL) of state data in SQL jobs. | Unit: milliseconds. For example, if you set this parameter to 129600000, the TTL of
the state data is 1.5 days. The default value of this parameter varies based on the
Ververica Runtime (VVR) version of Flink:
|
state.backend.gemini.savepoint.external-sort.local-storage.enabled | Specifies whether the temporary data generated during the savepoint operation is stored on a local disk. | Valid values:
Note Only VVR 4.0 and later support this parameter.
|
How do I find the job that triggers an alert?

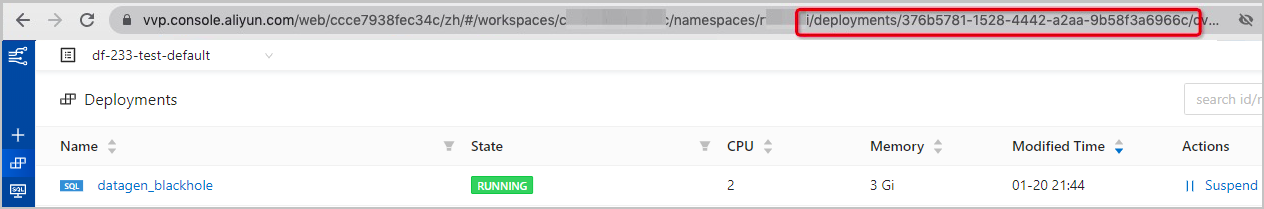

How do I view information about a workspace, such as the workspace ID?

How do I query the engine version of Flink that is used by a job?
- On the right side of the Draft Editor page, click the Advanced tab. On the Advanced tab, choose to view the engine version of Flink that is used by a job.
- On the Deployments page, click the name of the job whose Flink engine version you
want to query. On the Overview tab, click Detail in the right corner of the Current Job section. On the Job Configuration page, view
the engine version of Flink on the Deployment tab.
Can I directly deactivate Prometheus Service that is automatically activated with fully managed Flink?
No, you cannot directly deactivate Prometheus Service. However, you can uninstall the Prometheus Service plug-in. For more information, see Uninstall the Prometheus agent. If you have questions about how to uninstall the Prometheus Service plug-in, submit a ticket.
How do I configure a whitelist?
- Log on to the Realtime Compute for Apache Flink console.
- On the Fully Managed Flink tab, find the workspace that you want to manage, and choose in the Actions column.
- In the Workspace Details dialog box, view the CIDR block about the vSwitch of fully managed Flink.
- Add the CIDR block of the vSwitch of fully managed Flink to the whitelist of the storage system that fully managed Flink needs to access.
For example, you must configure a whitelist for an ApsaraDB RDS for MySQL database. For more information, see Configure an IP address whitelist for an ApsaraDB RDS for MySQL instance.Note
- If you add a vSwitch later, you must also add the CIDR block of the new vSwitch to the whitelist of the storage system that fully managed Flink needs to access.
- If your vSwitch is not in the same zone as the upstream and downstream storage, the network can be connected after you add the CIDR block of the vSwitch to the whitelist.
How does a fully managed Flink cluster access the Internet?
- Background information
By default, fully managed Flink clusters cannot access the Internet. Therefore, Alibaba Cloud provides NAT gateways to enable communications between virtual private clouds (VPCs) and the Internet. This way, users of fully managed Flink clusters can access the Internet by using user-defined functions (UDFs) or DataStream code.
- Solution
Create a NAT gateway in the VPC. Then, create a source network address translation (SNAT) entry to bind the vSwitch that is associated with the fully managed Flink cluster to an elastic IP address (EIP). This way, the cluster can access the Internet by using the EIP. To access the Internet by using the EIP, perform the following steps:
- Create a NAT gateway. For more information, see Create a NAT gateway.
- Create an SNAT entry. For more information, see Create an SNAT entry.
- Bind the vSwitch that is associated with the fully managed Flink cluster to an EIP. For more information, see Associate an EIP with an Internet NAT gateway.
How does Realtime Compute for Apache Flink access storage resources across VPCs?
- Submit a ticket. Select VPC as the product name. Express Connect or other products are required to establish connections between VPCs. You are charged when you use this method.
- Use VPN gateways to establish VPN connections between VPCs. For more information, see Establish IPsec-VPN connections between two VPCs.
- Unsubscribe to the storage service that resides in a different VPC from fully managed Flink. Then, purchase a storage service that resides in the same VPC as fully managed Flink.
- Release the fully managed Flink cluster and then purchase another fully managed Flink cluster that is in the same VPC as the storage service.
- Enable Internet access for fully managed Flink. This way, fully managed Flink can
access storage services over the Internet. By default, fully managed Flink clusters
cannot access the Internet. For more information about how to access the Internet,
see How does a fully managed Flink cluster access the Internet?.
Note The Internet has a longer latency than internal networks. If you have high performance requirements, we recommend that you do not enable Internet access for fully managed Flink.
How do I troubleshoot dependency conflicts of Flink?
- Problem description
- An error caused by an issue in Flink or Hadoop is reported.
java.lang.AbstractMethodError java.lang.ClassNotFoundException java.lang.IllegalAccessError java.lang.IllegalAccessException java.lang.InstantiationError java.lang.InstantiationException java.lang.InvocationTargetException java.lang.NoClassDefFoundError java.lang.NoSuchFieldError java.lang.NoSuchFieldException java.lang.NoSuchMethodError java.lang.NoSuchMethodException
- No error is reported, but one of the following issues occur:
- Logs are not generated or the Log4j configuration does not take effect.
In most cases, this issue occurs because the dependency contains the Log4j configuration. To resolve this issue, you must check whether the dependency in the JAR file of your job contains the Log4j configuration. If the dependency contains the Log4j configuration, you can configure exclusions in the dependency to remove the Log4j configuration.Note If you use different versions of Log4j, you must use maven-shade-plugin to relocate Log4j-related classes.
- The remote procedure call (RPC) fails.
By default, errors caused by dependency conflicts during Akka RPCs of Flink are not recorded in logs. To check these errors, you must enable debug logging.
For example, a debug log records
Cannot allocate the requested resources. Trying to allocate ResourceProfile{xxx}
. However, the JobManager log stops at the messageRegistering TaskManager with ResourceID xxx
and does not display any information until a resource request times out and displays the messageNoResourceAvailableException
. In addition, TaskManagers continuously report the error messageCannot allocate the requested resources. Trying to allocate ResourceProfile{xxx}
.Cause: After you enable debug logging, the RPC error message
InvocationTargetException
appears. In this case, slots fail to be allocated for TaskManagers and the status of the TaskManagers becomes inconsistent. As a result, slots cannot be allocated and the error cannot be fixed.
- Logs are not generated or the Log4j configuration does not take effect.
- An error caused by an issue in Flink or Hadoop is reported.
- Cause
- The JAR package of your job contains unnecessary dependencies, such as the dependencies for basic configurations, Flink, Hadoop, and Log4j. As a result, dependency conflicts occur and cause some issues.
- The dependency that corresponds to the connector that is required for your job is not included in the JAR package.
- Troubleshooting
- Check whether the pom.xml file of your job contains unnecessary dependencies.
- Run the
jar tf foo.jar
command to view the content of the JAR package and determine whether the package contains the content that causes dependency conflicts. - Run the
mvn dependency:tree
command to check the dependency relationship of your job and determine whether dependency conflicts exist.
- Solution
- We recommend that you set scope to provided for the dependencies for basic configurations.
This way, the dependencies for basic configurations are not included in the JAR package
of your job.
- DataStream Java
<dependency> <groupId>org.apache.flink</groupId> <artifactId>flink-streaming-java_2.11</artifactId> <version>${flink.version}</version> <scope>provided</scope> </dependency>
- DataStream Scala
<dependency> <groupId>org.apache.flink</groupId> <artifactId>flink-streaming-scala_2.11</artifactId> <version>${flink.version}</version> <scope>provided</scope> </dependency>
- DataSet Java
<dependency> <groupId>org.apache.flink</groupId> <artifactId>flink-java</artifactId> <version>${flink.version}</version> <scope>provided</scope> </dependency>
- DataSet Scala
<dependency> <groupId>org.apache.flink</groupId> <artifactId>flink-scala_2.11</artifactId> <version>${flink.version}</version> <scope>provided</scope> </dependency>
- DataStream Java
- Add the dependencies that correspond to the connectors required for the job, and set
scope to compile. This way, the dependencies that correspond to the required connectors
are included in the JAR package. The default value of scope is compile. In the following
code, the Kafka connector is used as an example.
<dependency> <groupId>org.apache.flink</groupId> <artifactId>flink-connector-kafka_2.11</artifactId> <version>${flink.version}</version> </dependency>
- We recommend that you do not add the dependencies for Flink, Hadoop, or Log4j. Take
note of the following exceptions:
- If the job has direct dependencies for basic configurations or connectors, we recommend
that you set scope to provided. Sample code:
<dependency> <groupId>org.apache.hadoop</groupId> <artifactId>hadoop-common</artifactId> <scope>provided</scope> </dependency>
- If the job has indirect dependencies for basic configurations or connectors, we recommend
that you configure exclusions to remove the dependencies. Sample code:
<dependency> <groupId>foo</groupId> <artifactId>bar</artifactId> <exclusions> <exclusion> <groupId>org.apache.hadoop</groupId> <artifactId>hadoop-common</artifactId> </exclusion> </exclusions> </dependency>
- If the job has direct dependencies for basic configurations or connectors, we recommend
that you set scope to provided. Sample code:
- We recommend that you set scope to provided for the dependencies for basic configurations.
This way, the dependencies for basic configurations are not included in the JAR package
of your job.
How do I resolve the domain name of the service on which a Flink job depends?
- You have a self-managed DNS. Flink can connect to the self-managed DNS service over
a VPC, and the self-managed DNS can normally resolve domain names.
In this case, you can perform DNS resolution by using the job template of fully managed Flink. For example, the IP address of your self-managed DNS is 192.168.0.1. Perform the following steps:
- Log on to the Realtime Compute for Apache Flink console.
- On the Fully Managed Flink tab, find the workspace that you want to manage and click Console in the Actions column.
- In the left-side navigation pane, choose .
- In the Additional Configuration section, add the following code:
env.java.opts: >- -Dsun.net.spi.nameservice.provider.1=default -Dsun.net.spi.nameservice.provider.2=dns,sun -Dsun.net.spi.nameservice.nameservers=192.168.0.1
Note If your self-managed DNS has multiple IP addresses, we recommend that you separate the IP addresses with commas (,). - Create and run a job in the console of fully managed Flink.
If the error message "UnknownHostException" persists, domain names cannot be resolved. In this case, submit a ticket.
- You do not have a self-managed DNS or fully managed Flink cannot connect to the self-managed
DNS over a VPC.
In this case, you must use Alibaba Cloud DNS PrivateZone to resolve domain names. For example, the VPC in which fully managed Flink resides is named vpc-flinkxxxxxxx, and the domain names that your Flink job needs to access are aaa.test.com 127.0.0.1, bbb.test.com 127.0.0.2, and ccc.test.com 127.0.0.3. To resolve the domain names, perform the following steps:
- Activate Alibaba Cloud DNS PrivateZone. For more information, see Activate Alibaba Cloud DNS PrivateZone.
- Add a zone and use the common suffix of the service that your Flink job needs to access as the zone name. For more information, see Add a zone.
- Associate the zone with the VPC in which fully managed Flink resides. For more information, see Associate a zone with a VPC or disassociate a zone from a VPC.
- Add DNS records to the zone. For more information, see Add DNS records.
- In the console of fully managed Flink, create and run a job or stop and rerun an existing
job.
If the error message "UnknownHost" persists, domain names cannot be resolved. In this case, submit a ticket.
