Object Storage Service:Best practices for optimizing Hadoop OSS Connector with the OSS accelerator

Scenarios

• Large-scale TPC-DS and TPC-H benchmark tests

• Interactive business intelligence (BI) queries (Tableau or Superset connected to a Spark Thrift Server)

• Unified storage layer in a data lakehouse architecture

• Multitenant data analytics platforms

1. Introduction to Hadoop OSS Connector V2

Hadoop OSS Connector V2 is a new-generation, high-performance Object Storage Service (OSS) access component built by Alibaba Cloud for the Hadoop ecosystem. It seamlessly integrates Alibaba Cloud OSS as a native file system into major big data compute engines such as Spark, Hive, and Presto.

Compared to earlier versions, V2 offers significant improvements in performance, stability, and features. It is deeply optimized for large-scale data lake scenarios and can meet the demands of high-concurrency, low-latency data analytics workloads.

2. Overall architecture and solution overview

This solution uses a typical data lake architecture that decouples storage and compute. This design enables scalability and cost optimization.

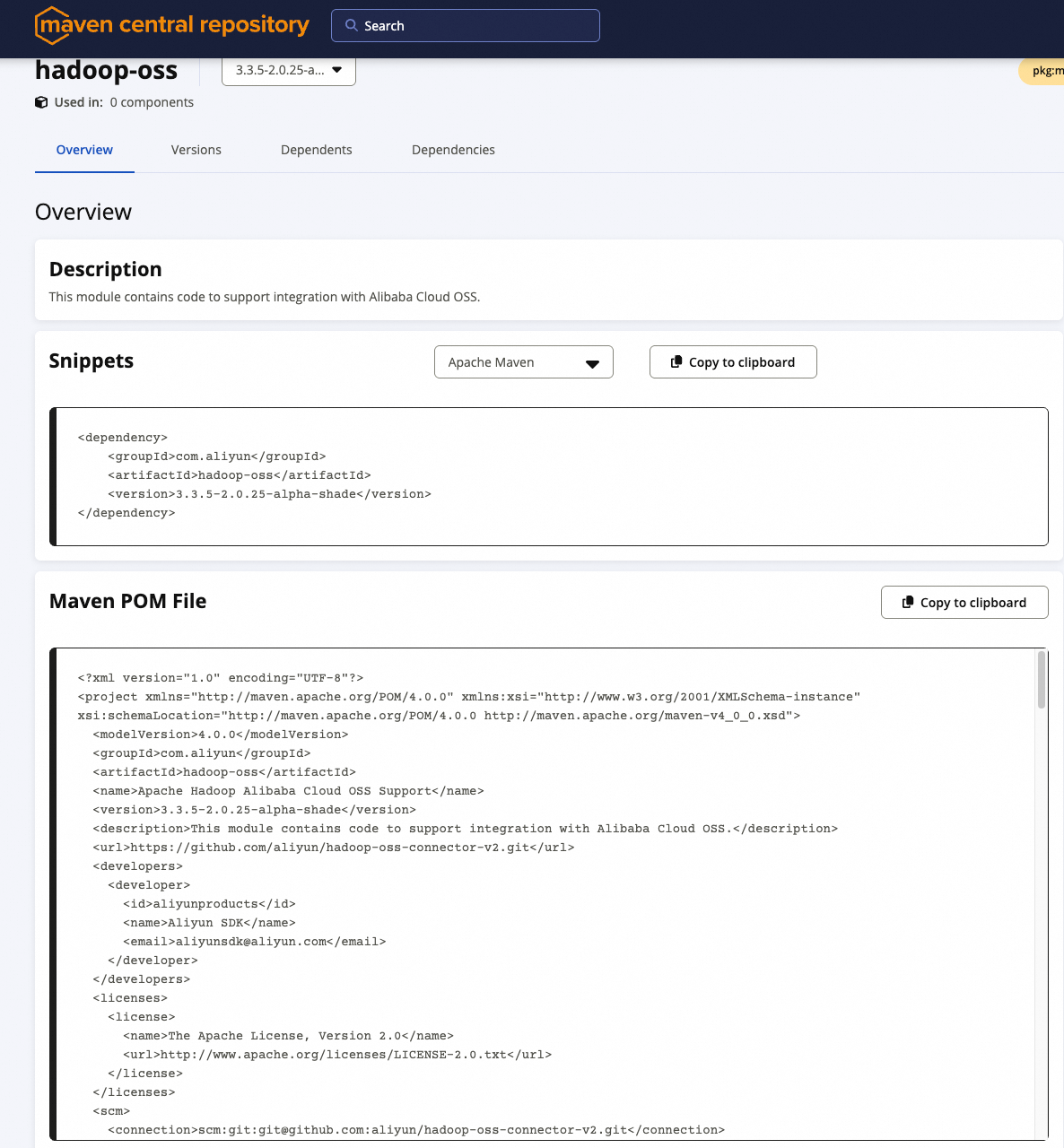

3. Installation and configuration

<dependency>
    <groupId>com.aliyun</groupId>
    <artifactId>hadoop-oss</artifactId>
    <version>3.3.5-2.0.25-alpha-shade</version>
</dependency>

<configuration>
    <!-- OSS access credentials -->
    <property>
        <name>fs.oss.accessKeyId</name>
        <value>YourAccessKeyId</value>
    </property>
    <property>
        <name>fs.oss.accessKeySecret</name>
        <value>YourAccessKeySecret</value>
    </property>

    <!-- OSS internal endpoint (strongly recommended to reduce latency and data transfer costs) -->
    <property>
        <name>fs.oss.endpoint</name>
        <value>oss-cn-hangzhou-internal.aliyuncs.com</value>
    </property>

    <!-- Connection parameter optimization -->
    <property>
        <name>fs.oss.connection.maximum</name>
        <value>64</value>
    </property>
    <property>
        <name>fs.oss.connection.timeout</name>
        <value>200000</value>
    </property>
    <property>
        <name>fs.oss.attempts.maximum</name>
        <value>10</value>
    </property>

    <!-- Multipart upload settings (enable for files larger than 20 MB) -->
    <property>
        <name>fs.oss.multipart.upload.threshold</name>
        <value>20971520</value> <!-- 20 MB -->
    </property>
    <property>
        <name>fs.oss.multipart.upload.size</name>
        <value>104857600</value> <!-- 100 MB per part -->
    </property>

    <!-- Prefetch to accelerate sequential reads of large files -->
    <property>
        <name>fs.oss.prefetch.version</name>
        <value>v2</value>
    </property>
    <property>
        <name>fs.oss.prefetch.block.size</name>
        <value>131072</value> <!-- 128 KB -->
    </property>
    <property>
        <name>fs.oss.prefetch.block.count</name>
        <value>8</value>
    </property>
    <property>
        <name>fs.oss.prefetch.io.threshold</name>
        <value>2097152</value> <!-- 2 MB -->
    </property>

    <!-- Buffer directory (use an SSD) -->
    <property>
        <name>fs.oss.buffer.dir</name>
        <value>/data/oss-buffer,/mnt/disk2/oss-buffer</value>
    </property>
</configuration>

4. Verify the installation

4.1 Test basic file operations

Use basic Hadoop commands to verify that read and write operations work correctly:

# List the contents of an OSS folder
hadoop fs -ls oss://my-data-lake-bucket/test/

# Upload a small file
hadoop fs -copyFromLocal /tmp/test.txt oss://my-data-lake-bucket/test/

# Delete a file
hadoop fs -rm oss://my-data-lake-bucket/test/test.txt

If the commands run as expected, the basic features are available.

4.2 Test large file upload and download performance

Test the I/O performance for a 20 GB file:

# Generate a test file
dd if=/dev/zero of=/tmp/large-file-20G bs=1M count=20480

# Upload to OSS (supports oss:// or s3a://)
hadoop fs -D io.file.buffer.size=4194304 -copyFromLocal -f /tmp/large-file-20G oss://your-bucket/path/20GB-file.img

# Test download
hadoop fs -D io.file.buffer.size=4194304 -copyToLocal -f oss://your-bucket/path/20GB-file.img /dev/null

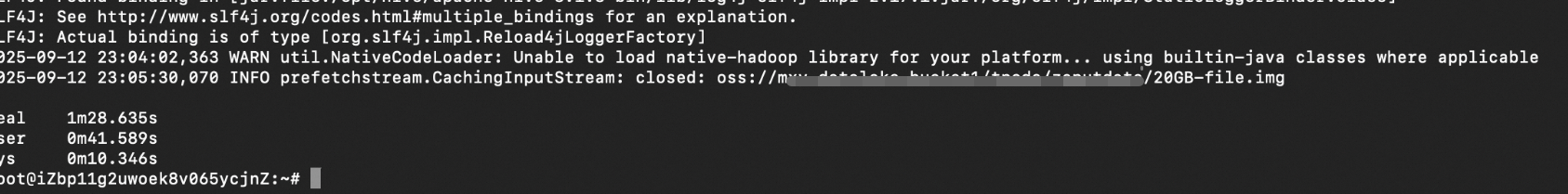

Execution result:

4.3 TPC-DS benchmark test (end-to-end capability verification)

Step 1: Load 5 TB of TPC-DS data

• Use the dsdgen tool to generate data and upload it to OSS.

• Create tables in Hive Metastore that point to s3a:// or oss:// paths.

Step 2: Run a standard query

$SPARK_HOME/bin/beeline -u jdbc:hive2://localhost:10001/tpcds_bin_partitioned_orc_5000 -f q9.sql

5. Advanced Configuration

5.1 Use the accelerator to improve query performance

5.1.1 Fine-grained I/O acceleration

The OSS Data Accelerator is an SSD-based acceleration service provided by Alibaba Cloud. It can cache and accelerate data for specific access patterns based on rules. Hadoop OSS Connector V2 supports deep integration with the accelerator to provide on-demand acceleration.

Core acceleration advantages

• Significantly reduces access latency for small files, metadata files, and random I/O.

• Uses an edge node caching mechanism to reduce origin fetches and improve overall throughput.

• Especially suitable for I/O-intensive scenarios such as interactive queries, BI reports, and metadata scans.

<keyPrefixes>
    <keyPrefix>tpcds/q9/</keyPrefix>
    <keyPrefix>tmp/report_</keyPrefix>
</keyPrefixes>

<keySuffixes>
    <keySuffix>.parquet</keySuffix>
    <keySuffix>.orc</keySuffix>
    <keySuffix>.csv</keySuffix>
</keySuffixes>

<IOSizeRanges>
                        <!-- Cache small I/O requests (0 to 50 MB) to cover common scan operations -->
                        <ioSizeRange>
                            <ioType>SIZE</ioType>
                            <minIOSize>0</minIOSize>
                            <maxIOSize>52428800</maxIOSize>
                        </ioSizeRange>
                    </IOSizeRanges>

<operations>
    <operation>getObject</operation>
</operations>

<IOSizeRanges>
                        <!-- Cache the first 2 MB for file header metadata -->
                        <ioSizeRange>
                            <ioType>HEAD</ioType>
                            <ioSize>2097152</ioSize>
                        </ioSizeRange>

                        <!-- Cache the last 2 MB for Parquet/ORC footers -->
                        <ioSizeRange>
                            <ioType>TAIL</ioType>
                            <ioSize>2097152</ioSize>
                        </ioSizeRange>
                    </IOSizeRanges>

Note that only the getObject operation is currently accelerated.

Configure accelerator parameters

Add the following to core-site.xml:

<!-- Accelerator Endpoint (internal network only) -->
<property>
    <name>fs.oss.acc.endpoint</name>
    <value>https://cn-hangzhou-j-internal.oss-data-acc.aliyuncs.com</value>
</property>

<!-- Acceleration rules: Enable acceleration for small files and hot data -->
<property>
    <name>fs.oss.acc.rules</name>
    <value><![CDATA[
        <rules>
            <rule>
                <keyPrefixes>
                    <keyPrefix>tpcds/q9/</keyPrefix>
                </keyPrefixes>
                 <ioSizeRanges>
                      <!-- Cache the first 2 MB for file header metadata -->
                      <ioSizeRange>
                          <ioType>HEAD</ioType>
                          <ioSize>2097152</ioSize>
                      </ioSizeRange>

                      <!-- Cache the last 2 MB for Parquet/ORC footers -->
                      <ioSizeRange>
                          <ioType>TAIL</ioType>
                          <ioSize>2097152</ioSize>
                      </ioSizeRange>

                      <!-- Cache small I/O requests (0 to 50 MB) -->
                      <ioSizeRange>
                          <ioType>SIZE</ioType>
                          <minIOSize>0</minIOSize>
                          <maxIOSize>52428800</maxIOSize>
                      </ioSizeRange>
                  </ioSizeRanges>
                <operations><operation>getObject</operation></operations>
            </rule>
        </rules>
    ]]></value>
</property>

1. Case sensitivity of tags: The <ioSizeRanges> and <ioSizeRange> tags are case-sensitive. You must use them exactly as shown. Child tags must be nested within <IOSizeRanges> and cannot be placed directly under <rule>.

2. ioType value descriptions

   ioType	Meaning	Associated fields
   HEAD	Reads data from the beginning of a file.	ioSize
   TAIL	Reads data backward from the end of a file.	ioSize
   SIZE	Reads from any position, but the size of the request falls within the [minIOSize, maxIOSize] range.	minIOSize, maxIOSize

   Note

   SIZE does not refer to the total file size. It refers to the data size of a single I/O request.

5.2 Local download cache

Local download cache mechanism: Persist prefetched data to disk

To further improve repeated read performance, Hadoop OSS Connector V2 can cache unused data blocks that were downloaded during prefetch to a local disk. This allows subsequent access to reuse the cached data.

How it works

• When prefetch is enabled (fs.oss.prefetch.version=v2), the system downloads subsequent data blocks from OSS in advance.

• Data blocks can be temporarily cached in memory or written to a local disk specified by fs.oss.buffer.prefetch.dir.

• If a seek operation occurs or the same region is read again, data is loaded from the local disk first. This avoids repeated network requests.

Key configuration parameters

Example scenario: When you run a TPC-DS query, if a Parquet file is scanned multiple times, the second read can be fully served from the local disk cache. This reduces I/O latency by more than 60%.

Usage notes:

• Enable this feature only in environments with local SSD storage.

• Ensure the disk specified by fs.oss.buffer.prefetch.dir has sufficient space. We recommend reserving at least 128 GB.

5.3 Cross-cloud compatibility: Seamless integration with the S3 protocol

To help enterprises smoothly migrate from AWS S3 or other S3-compatible storage platforms to Alibaba Cloud OSS, Hadoop OSS Connector V2 provides full S3 protocol compatibility. By configuring access to OSS resources with the s3a:// protocol, you can migrate to the cloud with zero changes to your metadata, scripts, or job code.

This feature is particularly useful for existing data lake environments built on S3. In these environments, the LOCATION of many tables in the Hive Metastore is already set to s3a://bucket/path. This lets you directly read data from Alibaba Cloud OSS without performing a batch update of your metadata.

Core advantages

• Enables access to OSS storage using the s3a:// URI.

• Requires no changes to Hive metadata, which enables an application-agnostic switch of the storage layer.

• Provides a unified call model to reduce O&M complexity and migration costs.

Configuration method

Add the following configuration to $HADOOP_HOME/etc/hadoop/core-site.xml to enable mapping from S3A to OSS:

<configuration>
    <!-- Enable the OSS implementation for S3A compatibility mode -->
    <property>
        <name>fs.AbstractFileSystem.s3a.impl</name>
        <value>org.apache.hadoop.fs.aliyun.oss.v2.OSSWithS3A</value>
    </property>

    <!-- Specify the s3a file system implementation class -->
    <property>
        <name>fs.s3a.impl</name>
        <value>org.apache.hadoop.fs.aliyun.oss.v2.AliyunOSSPerformanceFileSystem</value>
    </property>

    <!-- S3A access key (use your Alibaba Cloud AccessKey) -->
    <property>
        <name>fs.s3a.access.key</name>
        <value>YourAccessKeyId</value>
    </property>
    <property>
        <name>fs.s3a.secret.key</name>
        <value>YourAccessKeySecret</value>
    </property>

    <!-- OSS Endpoint (use an internal endpoint to improve performance) -->
    <property>
        <name>fs.s3a.endpoint</name>
        <value>oss-cn-hangzhou-internal.aliyuncs.com</value>
    </property>

    <!-- Optional: Disable SSL to avoid certificate issues -->
    <property>
        <name>fs.s3a.connection.ssl.enabled</name>
        <value>false</value>
    </property>
</configuration>

The fs.AbstractFileSystem.s3a.impl configuration option:

OSSWithS3A: Enables access to data in OSS using s3a://.

OSS: You can access data in OSS using oss://.

Usage example

In a typical S3 scenario, assume you have created the following external table in Hive Metastore:

CREATE EXTERNAL TABLE ods_user (
    id BIGINT,
    name STRING,
    dt STRING
)
PARTITIONED BY (dt STRING)
STORED AS PARQUET
LOCATION 's3a://my-data-lake-bucket/dw/ods/user_info/';

After you complete the preceding configuration, Spark or Hive queries automatically read OSS data from the corresponding path using Hadoop OSS Connector V2. You do not need to modify any table definitions or SQL scripts.

Run a query:

SELECT count(*) FROM ods_user WHERE dt = '20250405';

→ Data is automatically loaded from oss://my-data-lake-bucket/dw/ods/user_info/.

Compatibility limitations

Summary: The s3a:// protocol compatibility feature in Hadoop OSS Connector V2 significantly simplifies cross-cloud migration. Whether you are building a new data lake or migrating an existing system, this feature provides flexible, secure, and efficient unified storage access.

6. Performance test comparison and optimization recommendations

6.1 Throughput comparison for a 20 GB file download

Conclusion: Prefetch and connection optimizations significantly improve throughput. Performance is further improved with the OSS accelerator enabled, especially in scenarios with large sequential data reads.

6.2 TPC-DS query performance comparison (total time for SQL 99)

Conclusion: The OSS Connector V2 and OSS accelerator combination improves performance by 37.6% compared to V1 and by 12.8% compared to V2 alone. This significantly optimizes query response time, especially for high-frequency OLAP scenarios.

6.3 Summary of optimization recommendations

To maximize the performance of Hadoop OSS Connector V2 in cloud data lake scenarios, consider the following optimization recommendations derived from real-world production experience.

Core configuration optimizations

Acceleration and cache policies

Scenario-specific configuration recommendations for I/O acceleration rules

Comprehensive optimization checklist

You can perform stress testing and tuning with TPC-DS or real business workloads and continuously iterate on the configuration to achieve optimal results.
