Function Compute:Best practices for accessing Redis

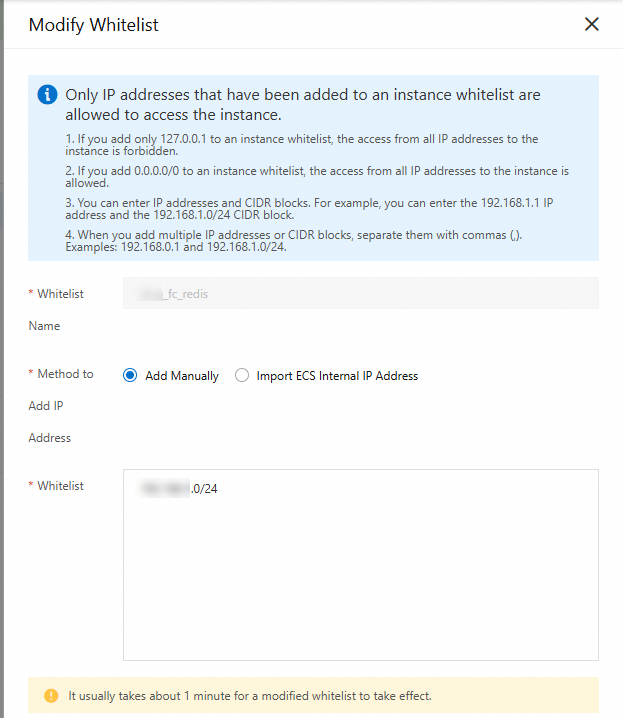

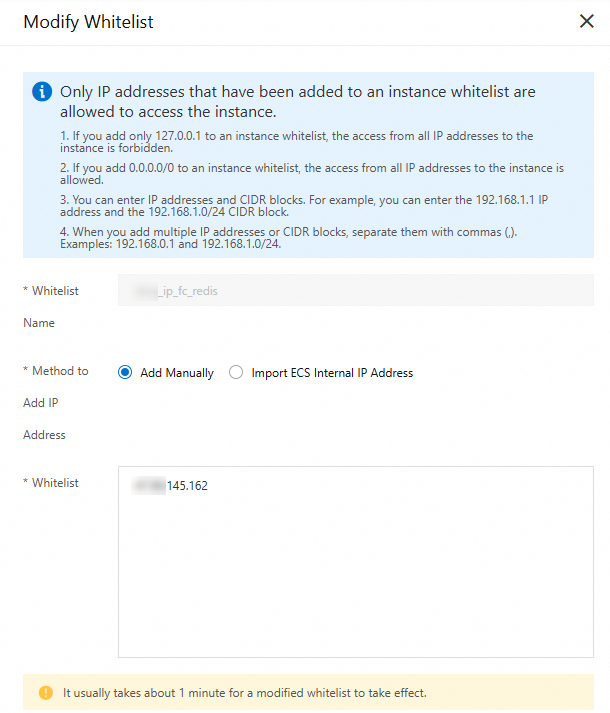

Step 1: Configure the database whitelist

Step 2: Access Redis in a function

1. Log on to the Function Compute console, find the target function in the function list, click the Code tab on the function details page, and write the following sample code in the code editor.

   from flask import Flask,jsonify
   import os
   import redis

   app = Flask(__name__)

   # Global variable for storing Redis singleton connection
   _redis_connection = None

   # Create database connection (singleton pattern)
   def getConnection():
       global _redis_connection
       try:
           # If the connection already exists and is not disconnected, return it directly
           if _redis_connection is not None:
               try:
                   # Test if the connection is valid (simple ping command)
                   if _redis_connection.ping():
                       return _redis_connection
               except redis.ConnectionError:
                   # If the connection is disconnected, reset it
                   _redis_connection = None

           # If the connection does not exist or is disconnected, recreate it
           _redis_connection = redis.Redis(
               host=os.environ['REDIS_HOST'],
               password=os.environ['REDIS_PASSWORD'],
               port=os.environ['REDIS_PORT'],
               db=1,
               decode_responses=True
           )
           # Test if the new connection is successful
           if not _redis_connection.ping():
               raise Exception("Redis connection failed after creation.")
           return _redis_connection
       except Exception as e:
           print(f"Failed to initialize Redis connection: {e}")
           raise

   @app.route('/', defaults={'path': ''})
   @app.route('/<path:path>', methods=['GET', 'POST', 'PUT', 'DELETE'])
   def hello_world(path):
       try:
           r = getConnection()
           counter = r.get('counter')
           if counter is None:
               counter = 0
           else:
               counter = int(counter)
           print('counter: ' + str(counter))
           r.set('counter', str(counter + 1))
           return str(counter)
       except Exception as e:
           print(f"An error occurred: {e}")
           return jsonify({"error": str(e)}), 500


   if __name__ == '__main__':
           app.run(host='0.0.0.0',port=9000)


2. On the Function Details page, choose Configuration > Environment Variables, click Edit, and configure the following environment variables in the Environment Variables panel.

   Environment variable name	Environment variable value	Description

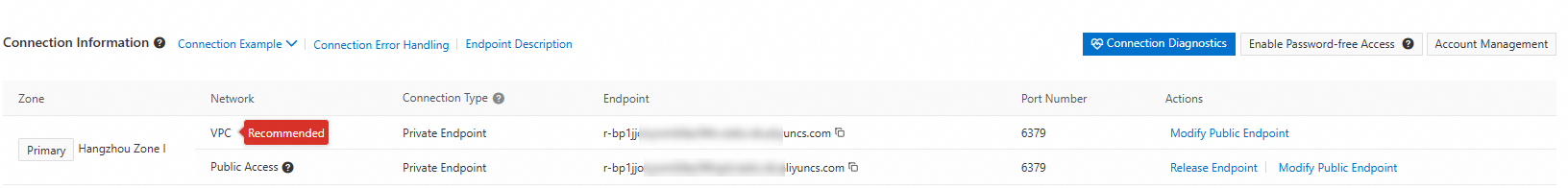

   REDIS_HOST	r-bp*****.redis.rds.aliyuncs.com	The endpoint of the database instance. If you select the Redis database within the same VPC scenario, set this environment variable to the VPC endpoint of the database. If you select the Redis database across VPCs or regions scenario, set this environment variable to the public endpoint of the database. Visit the Instance List, select a region in the top navigation bar, and then click the target instance ID. In the left-side navigation pane, click Instance Information. In the Connection Information section, obtain the connection address information for connecting to the database.
   REDIS_PASSWORD	*****	The password of the database.
   REDIS_PORT	6379	The port number of the database

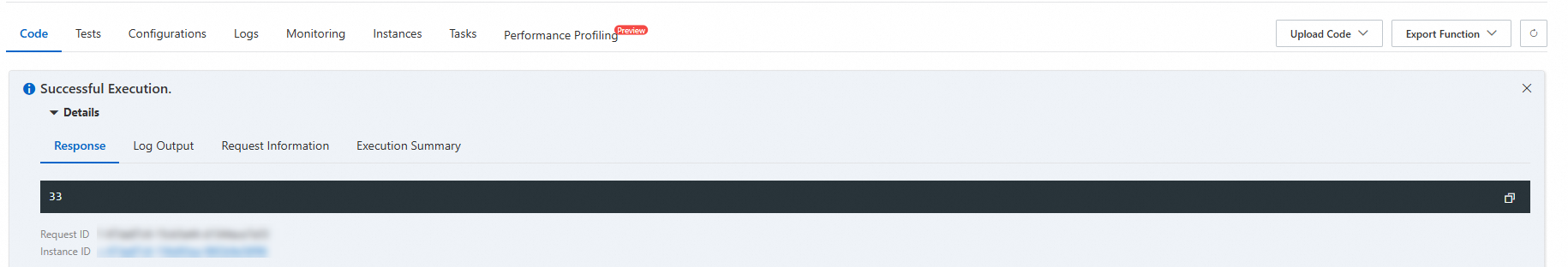

3. Set the initial value in the Redis database. On the function details page, click the Code tab, click Test Function, and check the returned result after successful execution.



• For more examples of accessing Tair (Redis OSS-compatible), see Function Compute Python accessing Tair (Redis OSS-compatible).

• For more exception cases about accessing Tair (Redis OSS-compatible), see Common errors.

• If the exception problem you encounter has not been resolved, you need to troubleshoot based on the problem symptoms. For more information, see Common causes of database access failures.

• If you want to use the Serverless Devs command-line tool to create functions and access the Tair (Redis OSS-compatible) database, see the following steps.

  Click here to view the Serverless Devs operation steps

  1. Install Serverless Devs and Docker, and add key information. For more information, see Quick Start.

  2. Create the code directory mycode, and prepare the s.yaml file and the code file app.py. For the sample code of app.py, see the sample code provided in Step 2: Access Redis in a function. The following is a sample s.yaml file.

     The following s.yaml example applies to the scenario of accessing a Redis database within the same VPC. If you need to access a database across VPCs or regions, see Scenario 2: Access a Redis database across VPCs or regions.

     # ------------------------------------
     #   Official manual: https://manual.serverless-devs.com/user-guide/aliyun/#fc3
     #   Tips: https://manual.serverless-devs.com/user-guide/tips/
     #   If you have any questions, join the DingTalk group 33947367
     # ------------------------------------
     edition: 3.0.0
     name: hello-world-app
     access: "default"

     vars: # Global variables
       region: "cn-hangzhou"  # If you choose to access the RDS database within the same VPC, make sure that the function is deployed in the same region as the RDS database

     resources:
       hello_world:
         component: fc3
         actions:
           pre-${regex('deploy|local')}:
             - component: fc3 build
         props:
           region: ${vars.region}
           functionName: "start-python-redis"
           runtime: custom.debian10
           description: 'hello world by serverless devs'
           timeout: 10
           memorySize: 512
           cpu: 0.5
           diskSize: 512
           code: ./code
           customRuntimeConfig:
             port: 9000
             command:
               - python3
               - app.py
           internetAccess: true
           vpcConfig:
            vpcId: vpc-bp1dxqii29fpkc8pw**** # The VPC ID of the database instance
            securityGroupId: sg-bp12ly2ie92ixrfc**** # The security group ID
            vSwitchIds:
             - vsw-bp1ty76ijntee9z83**** # Make sure that the CIDR block of this vSwitch is configured in the database instance access whitelist
           environmentVariables:
             PYTHONPATH: /code/python
             PATH: /code/python/bin:/var/fc/lang/python3.10/bin:/usr/local/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/opt/bin
             REDIS_HOST: r-bp*****.redis.rds.aliyuncs.com  # The database endpoint
             REDIS_PASSWORD: *****     # The database password
             REDIS_PORT: "6379"         # The database port


     The directory structure of the code is as follows.

     ├── code
     │ ├── app.py
     │ └── requirements.txt
     └── s.yaml

     The dependencies specified in the requirements.txt file are as follows.

     flask==2.2.5

  3. Run the following command to build the project.

     sudo s build --use-docker

  4. Run the following command to deploy the project.

     sudo s deploy -y

  5. Run the following command to invoke the function.

     Note

     Make sure that the CIDR block of the vSwitch configured for the function has been added to the database instance access whitelist. For more information, see Step 4.

     sudo s invoke -e "{}"
