E-MapReduce:Use the Flink service in a Dataflow cluster to synchronize data from MySQL to StarRocks by using the CTAS statement

Prerequisites

• A Dataflow cluster is created in the new console, and the Flink service is selected. For more information, see Create a cluster.

• An EMR Serverless StarRocks instance is created. For more information, see Create an instance.

• An ApsaraDB RDS for MySQL instance is created. For more information, see Step 1: Create an ApsaraDB RDS for MySQL instance and configure a database.

Limits

• The Dataflow cluster, StarRocks instance, and ApsaraDB RDS for MySQL instance must be deployed in the same virtual private cloud (VPC).

• The Dataflow cluster and StarRocks instance must be accessible over the Internet.

• The engine version of the ApsaraDB RDS for MySQL instance must be 5.7 or later.

• The Dataflow cluster must be of EMR-3.42.0 or later or EMR-5.8.0 or later.

Step 1: Prepare test data

1. Create a test database and a test account. For more information, see Step 1: Create an ApsaraDB RDS for MySQL instance and configure a database.

   After you create the test database and account, grant the read and write permissions to the account.

   Note

   In this topic, the database name is test_cdc and the account name is emr_test.

2. Connect to the ApsaraDB RDS for MySQL instance by using the test account. For more information, see Step 2: Connect to the ApsaraDB RDS for MySQL instance.

3. Run the following command to create a table:

   use test_cdc;

   CREATE TABLE IF NOT EXISTS `runoob_tbl`(
      `runoob_id` INT UNSIGNED AUTO_INCREMENT,
      `runoob_title` VARCHAR(100) NOT NULL,
      `runoob_author` VARCHAR(40) NOT NULL,
      `submission_date` DATE,
      `add_col` int DEFAULT NULL,
      PRIMARY KEY ( `runoob_id` )
   )ENGINE=InnoDB DEFAULT CHARSET=utf8;


   INSERT INTO test_cdc.`runoob_tbl` (`runoob_id`,`runoob_title`,`runoob_author`,`submission_date`,`add_col`) values (18,'first','tom','2022-06-22 17:13:44',3)

4. Log on to and connect to the EMR Serverless StarRocks instance. For more information, see Connect to a StarRocks instance by using a MySQL client.

5. Run the following command to create the test_cdc database, create a super administrator user named test (with the example password 1qaz!QAZ), or create a regular user named test and grant permissions on the database to the user. For more information, see Manage users.

   CREATE DATABASE test_cdc;
   CREATE USER 'test' IDENTIFIED by '1qaz!QAZ';
   GRANT ALL on test_cdc to test;

Step 2: Upload custom connectors

Upload custom connectors for Flink, StarRocks, and ApsaraDB RDS for MySQL connections.

1. Log on to the Dataflow cluster by using SSH. For more information, see Log on to a cluster.

2. Download flink-connector-starrocks-1.2.2_flink-1.13_2.11.jar and ververica-connector-mysql-1.13-vvr-4.0.12-1-20220330.065158-3-jar-with-dependencies.jar, and upload them to the /opt/apps/FLINK/flink-current/lib directory of the Dataflow cluster.

Step 3: Execute the CTAS statement

1. Submit a job in session mode.

   1. Log on to the Dataflow cluster by using SSH. For more information, see Log on to a cluster.

   2. Run the following command to go to the /opt/apps/FLINK/flink-current directory:

      cd /opt/apps/FLINK/flink-current

   3. Run the following command to start a YARN session:

      ./bin/yarn-session.sh --detached

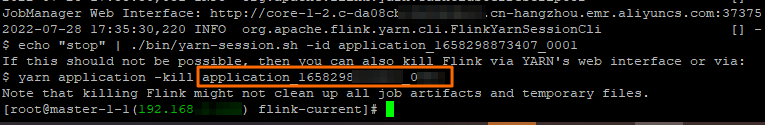

      If the command is successfully executed, application_XXXX_YY is returned in the output. This is the sessionId that you need to use to log on to the SQL client.

   4. Run the following command to open the SQL client:

      ./bin/sql-client.sh -s <application_XXXX_YY>

      Note

      Replace <application_XXXX_YY> with the sessionId that you obtained in the previous step.

2. Create catalogs for MySQL and StarRocks.

   CREATE CATALOG sr WITH (
     'type' = 'starrocks',
     'endpoint' = 'fe-c-9b354c83e891****-internal.starrocks.aliyuncs.com:9030',
     'username' = 'test',
     'password' = '1qaz!QAZ',
     'dbname' = 'test_cdc'
   );

   CREATE CATALOG mysql WITH (
     'type' = 'mysql',
     'hostname' = 'rm-2zepd6e20u3od****.mysql.rds.aliyuncs.com',
     'port' = '3306',
     'username' = 'emr_test',
     'password' = '123456',
     'default-database' = 'test_cdc'
   );

   The following table describes the parameters. You can modify the parameters based on your business requirements.

   Table 1. StarRocks catalog parameters

   Parameter	Description
   type	The type of the catalog. Set the value to starrocks.
   endpoint	The internal endpoint and query port of the FE node. The format is Internal endpoint of the FE node of the EMR Serverless StarRocks instance:9030. Example: fe-c-9b354c83e891****-internal.starrocks.aliyuncs.com:9030. Note For information about how to obtain the internal endpoint of the FE node of an EMR Serverless StarRocks instance, see View the instance list and details.
   username	The username that is used to access the StarRocks database. Enter the username that you created in Step 1: Prepare test data. In this example, test is used.
   password	The password that is used to access the StarRocks database. Enter the password that you set for the account in Step 1: Prepare test data. In this example, 1qaz!QAZ is used.
   dbname	The name of the StarRocks database. Enter the database name that you created in Step 1: Prepare test data. In this example, test_cdc is used.

   Table 2. MySQL catalog parameters

   Parameter	Description
   type	The type of the catalog. Set the value to mysql.
   hostname	The internal endpoint of the ApsaraDB RDS for MySQL instance. You can copy the internal endpoint on the Database Connection page of the ApsaraDB RDS for MySQL instance in the ApsaraDB RDS console. Example: rm-bp1nu0c46fn9k****.mysql.rds.aliyuncs.com.
   port	The port number of the MySQL database. Default value: 3306.
   username	The username that is used to access the MySQL database. Enter the username of the account that you created in Step 1: Prepare test data. In this example, emr_test is used.
   password	The password that is used to access the MySQL database. Enter the password of the account that you created in Step 1: Prepare test data. In this example, 123456 is used.
   default-database	The name of the default MySQL database. Enter the database name that you created in Step 1: Prepare test data. In this example, test_cdc is used.

3. Execute the CTAS statement in the StarRocks catalog.

   You can use one of the following three methods to execute the CTAS statement:

   • At-least-once semantics: You can use the sink.buffer-flush.interval-ms parameter to configure the interval at which data is written to StarRocks. The advantage is that the write interval is short and less memory is used.

     use CATALOG sr;

     CREATE TABLE IF NOT EXISTS runoob_tbl1 with (
     'starrocks.create.table.properties'=' engine = olap primary key(runoob_id) distributed by hash(runoob_id ) buckets 8',
     'database-name'='test_cdc',
     'jdbc-url'='jdbc:mysql://fe-c-9b354c83e891****-internal.starrocks.aliyuncs.com:9030',
     'load-url'='fe-c-9b354c83e891****-internal.starrocks.aliyuncs.com:8030',
     'table-name'='runoob_tbl_sr',
     'username'='test',
     'password' = '1qaz!QAZ',
     'sink.buffer-flush.interval-ms' = '5000',
     'sink.properties.row_delimiter' = '\x02',
     'sink.properties.column_separator' = '\x01'
     )
      as table mysql.test_cdc.runoob_tbl  /*+ OPTIONS (   'connector' = 'mysql-cdc',
       'hostname' = 'rm-2zepd6e20u3od****.mysql.rds.aliyuncs.com',
       'port' = '3306',
       'username' = 'test',
       'password' = '123456',
       'database-name' = 'test_cdc',
       'table-name' = 'runoob_tbl'  )*/;

   • Exactly-once semantics: You must specify the interval at which checkpoints are periodically scheduled. The advantage is that data is not lost or duplicated when errors occur. The disadvantage is that the checkpoint interval determines when the data is visible. For more information, see Checkpointing.

     set 'execution.checkpointing.interval' = '1 min';
     set 'execution.checkpointing.mode' = 'EXACTLY_ONCE';
     set 'execution.checkpointing.timeout' = '10 min';

     use CATALOG sr;

     CREATE TABLE IF NOT EXISTS runoob_tbl1 with (
     'starrocks.create.table.properties'=' engine = olap primary key(runoob_id) distributed by hash(runoob_id ) buckets 8',
     'database-name'='test_cdc',
     'jdbc-url'='jdbc:mysql://fe-c-9b354c83e891****-internal.starrocks.aliyuncs.com:9030',
     'load-url'='fe-c-9b354c83e891****-internal.starrocks.aliyuncs.com:8030',
     'table-name'='runoob_tbl',
     'username'='test',
     'password' = '1qaz!QAZ',
     'sink.semantic' = 'exactly-once',
     'sink.properties.row_delimiter' = '\x02',
     'sink.properties.column_separator' = '\x01'
     )
      as table mysql.test_cdc.runoob_tbl  /*+ OPTIONS ( 'connector' = 'mysql-cdc',
       'hostname' = 'rm-2zepd6e20u3od****.mysql.rds.aliyuncs.com',
       'port' = '3306',
       'username' = 'test',
       'password' = '123456',
       'database-name' = 'test_cdc',
       'table-name' = 'runoob_tbl'  )*/;


   • Simple mode: The advantage is that you do not need to take note of the fields in the table in the MySQL database when you create a table. The schema of the table that you want to create is the same as the schema of the table in the MySQL database. This mode is easy to use for developers. The disadvantage is that you cannot create partitions. For tables that need to be partitioned, you must create partitions in normal mode.

     use CATALOG sr;

     CREATE TABLE IF NOT EXISTS runoob_tbl1 with (
     'starrocks.create.table.properties'='buckets 8',
     'starrocks.create.table.mode'='simple',
      'database-name'='test_cdc',
     'jdbc-url'='jdbc:mysql://fe-c-9b354c83e891****-internal.starrocks.aliyuncs.com:9030',
     'load-url'='fe-c-9b354c83e891****-internal.starrocks.aliyuncs.com:8030',
     'table-name'='runoob_tbl_sr',
     'username'='test',
     'password' = '1qaz!QAZ',
     'sink.buffer-flush.interval-ms' = '5000',
     'sink.properties.row_delimiter' = '\x02',
     'sink.properties.column_separator' = '\x01'
     )
      as table mysql.test_cdc.runoob_tbl  /*+ OPTIONS (   'connector' = 'mysql-cdc',
       'hostname' = 'rm-2zepd6e20u3od****.mysql.rds.aliyuncs.com',
       'port' = '3306',
       'username' = 'emr_test',
       'password' = '123456',
       'database-name' = 'test_cdc',
       'table-name' = 'runoob_tbl'  )*/;


     Table 3. WITH parameters

     Parameter	Required	Description
     starrocks.create.table.properties	Yes	Other suffix definitions except for field definitions in the statement that is used to create a table in the StarRocks database, such as engine, key, and buckets in the sample code.
     database-name	Yes	The name of the StarRocks database. In this example, test_cdc is used.
     jdbc-url	Yes	The JDBC URL that is used to connect to StarRocks and perform queries in StarRocks. Example: jdbc:mysql://fe-c-9b354c83e891****-internal.starrocks.aliyuncs.com:9030. fe-c-9b354c83e891****-internal.starrocks.aliyuncs.com is the internal endpoint of the FE node of the EMR Serverless StarRocks instance. Note For information about how to obtain the internal endpoint of the FE node of an EMR Serverless StarRocks instance, see View the instance list and details.
     load-url	Yes	The internal endpoint and query port of the FE node. The format is Internal endpoint of the FE node of the EMR Serverless StarRocks instance:8030. Example: fe-c-9b354c83e891****-internal.starrocks.aliyuncs.com:8030. Note For information about how to obtain the internal endpoint of the FE node of an EMR Serverless StarRocks instance, see View the instance list and details.
     sink.semantic	No	The semantics that is used to execute the statement. Set this parameter to exactly-once to ensure data consistency. Default value: at-least-once.
     starrocks.create.table.mode	No	Valid values: normal (default): You must specify complete configurations such as engine, key, and buckets in the starrocks.create.table.properties parameter, as shown in the example. simple: By default, the engine parameter is set to olap, the key parameter is set to primary key. The primary key is the same as the primary key in the MySQL table. The distributed by hash parameter is configured for all primary keys, and no partition exists. You must specify buckets in the starrocks.create.table.properties parameter. You can also specify optional parameters such as properties.
     sink.properties.row_delimiter	No	The custom row delimiter.
     sink.properties.column_separator	No	The custom column delimiter.

     Note

     • If you use a version earlier than Flink of vvr-6.0.5-flink-1.15, you must add 'sink.use.new-apiapi'='false', to the WITH clause.

     • For more information about other configurations, see Continuously load data from Apache Flink.

     Table 4. OPTIONS parameters

     Parameter	Description
     connector	The type of the connector. Set the value to mysql-cdc.
     hostname	The internal endpoint of the ApsaraDB RDS for MySQL instance. You can copy the internal endpoint on the Database Connection page of the ApsaraDB RDS for MySQL instance in the ApsaraDB RDS console. Example: rm-bp1nu0c46fn9k****.mysql.rds.aliyuncs.com.
     port	The port number of the MySQL database. Default value: 3306.
     username	The username that is used to access the MySQL database. Enter the username of the account that you created in Step 1: Prepare test data. In this example, emr_test is used.
     password	The password that is used to access the MySQL database. Enter the password of the account that you created in Step 1: Prepare test data.
     table-name	The name of the table in the StarRocks database. Enter the table name that you created in Step 1: Prepare test data. In this example, runoob_tbl is used.
     database-name	The name of the default MySQL database. Enter the database name that you created in Step 1: Prepare test data. In this example, test_cdc is used.

Step 4: View the data synchronization result

Query data

1. Log on to and connect to the EMR Serverless StarRocks instance. For more information, see Connect to a StarRocks instance by using a MySQL client.

2. Run the following command in the StarRocks connection window to view the table data:

   use test_cdc;
   select * from runoob_tbl1;

   The following output is returned. This indicates that data is synchronized from the ApsaraDB RDS for MySQL instance to the StarRocks cluster.

   +-----------+--------------+---------------+-----------------+---------+
   | runoob_id | runoob_title | runoob_author | submission_date | add_col |
   +-----------+--------------+---------------+-----------------+---------+
   |        18 | first        | tom           | 2022-06-22      |       3 |
   +-----------+--------------+---------------+-----------------+---------+

Query inserted data

1. Run the following command in the ApsaraDB RDS for MySQL database window to insert data:

   INSERT INTO runoob_tbl(`runoob_id`,`runoob_title`,`runoob_author`,`submission_date`,`add_col`)  values(1,'second','tom2','2022-06-23',1);

2. Run the following command in the StarRocks connection window to view the table data:

   select * from runoob_tbl1;

   The following output is returned. This indicates that the data is inserted.

   +-----------+--------------+---------------+-----------------+---------+
   | runoob_id | runoob_title | runoob_author | submission_date | add_col |
   +-----------+--------------+---------------+-----------------+---------+
   |         1 | second       | tom2          | 2022-06-23      |       1 |
   |        18 | first        | tom           | 2022-06-22      |       3 |
   +-----------+--------------+---------------+-----------------+---------+

Synchronize updated data

1. Run the following command in the ApsaraDB RDS for MySQL database window to update the specified data:

   update runoob_tbl set runoob_title= 'new' where runoob_id = 18;

2. Run the following command in the StarRocks connection window to view the table data:

   select * from runoob_tbl1;

   The following output is returned. This indicates that the updated data is synchronized.

   +-----------+--------------+---------------+-----------------+---------+
   | runoob_id | runoob_title | runoob_author | submission_date | add_col |
   +-----------+--------------+---------------+-----------------+---------+
   |         1 | second       | tom2          | 2022-06-23      |       1 |
   |        18 | new          | tom           | 2022-06-22      |       3 |
   +-----------+--------------+---------------+-----------------+---------+

Synchronize deleted data

1. Run the following command in the ApsaraDB RDS for MySQL database window to delete the specified data:

   DELETE FROM runoob_tbl WHERE runoob_id = 1;

2. Run the following command in the StarRocks connection window to view the table data:

   select * from runoob_tbl1;

   The following output is returned. This indicates that the deleted data is synchronized.

   +-----------+--------------+---------------+-----------------+---------+
   | runoob_id | runoob_title | runoob_author | submission_date | add_col |
   +-----------+--------------+---------------+-----------------+---------+
   |        18 | new          | tom           | 2022-06-22      |       3 |
   +-----------+--------------+---------------+-----------------+---------+

Add nullable columns

1. Run the following command in the ApsaraDB RDS for MySQL database window to add a nullable column:

   alter table `runoob_tbl` add COLUMN `add_col2` INT;

2. Run the following command to insert data:

   INSERT INTO runoob_tbl(`runoob_id`,`runoob_title`,`runoob_author`,`submission_date`,`add_col`,`add_col2`)  values(1,'second','tom2','2022-06-23',1,2)

3. Run the following command in the StarRocks connection window to view the table data:

   select * from runoob_tbl1;

   The following output is returned. This indicates that the schema is changed and the nullable column is added.

   +-----------+--------------+---------------+-----------------+---------+---------+
   | runoob_id | runoob_title | runoob_author | submission_date | add_col | add_co2 |
   +-----------+--------------+---------------+-----------------+---------+---------+
   |         1 | second       | tom2          | 2022-06-23      |       1 |       2 |
   |        18 | new          | tom           | 2022-06-22      |       3 |    NULL |
   +-----------+--------------+---------------+-----------------+---------+---------+

CDAS introduction

The CREATE DATABASE AS (CDAS) statement is a syntactic sugar of the CTAS statement. By using the CDAS statement, you can synchronize an entire database from MySQL, which means that a Flink job is generated. The source table is a database in MySQL, and the destination tables are multiple tables in StarRocks. You can also use the including table syntax to select only some tables in a database for the CDAS operation.

CREATE DATABASE IF NOT EXISTS sr_db with (
'starrocks.create.table.properties'=' buckets 8',
'starrocks.create.table.mode'='simple',
'jdbc-url'='jdbc:mysql://fe-c-9b354c83e891****-internal.starrocks.aliyuncs.com:9030',
'load-url'='fe-c-9b354c83e891****-internal.starrocks.aliyuncs.com:8030',
'username'='test',
'password' = '1qaz!QAZ',
'sink.buffer-flush.interval-ms' = '5000',
'sink.properties.row_delimiter' = '\x02',
'sink.properties.column_separator' = '\x01'
)
 as DATABASEmysql.test_cdc including table
 'tabl1','tbl2','tbl3'   /*+ OPTIONS (   'connector' = 'mysql-cdc',
  'hostname' = 'rm-2zepd6e20u3od****.mysql.rds.aliyuncs.com',
  'port' = '3306',
  'username' = 'test',
  'password' = '123456',
  'database-name' = 'test_cdc' )*/;
