E-MapReduce:Manage Kyuubi Gateways

Prerequisites

Before you begin, make sure you have:

• An EMR Serverless Spark workspace

• A queue configured in the workspace

• (Optional) A virtual private cloud (VPC) network connection, if the gateway needs to reach data sources or external services in another VPC. See Network connectivity between EMR Serverless Spark and other VPCs.

Steps

1. Go to the Gateway page.

   1. Log on to the EMR console.

   2. In the left navigation pane, choose EMR Serverless > Spark.

   3. Click the name of the workspace you want to manage.

   4. In the left navigation pane of the workspace page, click O&M Center > Gateway.

2. On the Kyuubi Gateway page, click Create Kyuubi Gateway.

3. Configure the following parameters, then click Create

   A large number of Spark configuration items reduces instantaneous concurrency for Spark job submission.

   Parameter	Description
   Name	The gateway name. Use only lowercase letters, digits, and hyphens (-). The name must start and end with a letter or digit.
   Kyuubi Gateway Resource	The compute resource allocated to the gateway. Default: 2 CPU, 8 GB. See the table below for specs and recommended maximum concurrent connections.
   Kyuubi Version	The Kyuubi version for the gateway. If you use DLF (formerly DLF 2.5) as the Data Catalog, set this to 1.9.2-0.0.1 or later.
   Engine Version	The Spark engine version. For details, see Engine versions.
   Associated Queue	The queue where the gateway is deployed. Spark jobs submitted through the gateway run under the gateway creator's identity.
   Authentication Method	Token-based authentication only. After creating the gateway, generate a token for it. See Manage tokens.
   Service High Availability	When enabled, deploys three or more Kyuubi servers for high availability. Configure Number Of Kyuubi Servers and Zookeeper cluster address (comma-separated endpoints, for example, zk1:2181,zk2:2181,zk3:2181). Make sure the network is reachable.
   Network Connection	The VPC network connection for accessing data sources or external services. See Network connectivity between EMR Serverless Spark and other VPCs.
   Endpoint(Public)	Disabled by default. When enabled, the gateway is accessible via a public endpoint. Otherwise, access is through an internal endpoint.
   Kyuubi Configuration	Kyuubi configuration key-value pairs, space-separated (for example, kyuubi.engine.pool.size 1). See the supported configurations below.
   Spark Configuration	Spark configuration key-value pairs, space-separated (for example, spark.sql.catalog.paimon.metastore dlf). All parameters are supported except spark.kubernetes.*.

   Resource specs and recommended concurrent connections

   Spec	Recommended max concurrent connections
   1 CPU, 4 GB	10
   2 CPU, 8 GB (default)	20
   4 CPU, 16 GB	30
   8 CPU, 32 GB	45
   16 CPU, 64 GB	85
   32 CPU, 128 GB	135

   Supported Kyuubi configurations

   kyuubi.engine.pool.size
   kyuubi.engine.pool.size.threshold
   kyuubi.engine.share.level
   kyuubi.engine.single.spark.session
   kyuubi.session.engine.idle.timeout
   kyuubi.session.engine.initialize.timeout
   kyuubi.engine.security.token.max.lifetime
   kyuubi.session.engine.check.interval
   kyuubi.session.idle.timeout
   kyuubi.session.engine.request.timeout
   kyuubi.session.engine.login.timeout
   kyuubi.backend.engine.exec.pool.shutdown.timeout
   kyuubi.backend.server.exec.pool.shutdown.timeout
   kyuubi.backend.server.exec.pool.keepalive.time
   kyuubi.frontend.thrift.login.timeout
   kyuubi.operation.status.polling.timeout
   kyuubi.engine.pool.selectPolicy
   kyuubi.authentication
   kyuubi.kinit.principal
   kyuubi.kinit.keytab
   kyuubi.authentication.ldap.*
   kyuubi.hadoop.proxyuser.hive.hosts
   kyuubi.hadoop.proxyuser.hive.groups
   kyuubi.hadoop.proxyuser.kyuubi.hosts
   kyuubi.hadoop.proxyuser.kyuubi.groups
   kyuubi.ha.*

4. On the Kyuubi Gateway page, find the gateway and click Start in the Actions column.

Connect using Beeline

Before connecting, make sure your Beeline version is compatible with the Kyuubi server version. If Beeline is not installed, see Getting Started - Apache Kyuubi.

The JDBC URL format is:

jdbc:hive2://<endpoint>:<port>/;transportMode=http;httpPath=cliservice/token/<token>

If you use DLF, add user=<UserName/RoleName> after transportMode=http;:

beeline -u "jdbc:hive2://<endpoint>:<port>/;transportMode=http;user=<UserName/RoleName>;httpPath=cliservice/token/<token>"

For other catalogs:

beeline -u "jdbc:hive2://<endpoint>:<port>/;transportMode=http;httpPath=cliservice/token/<token>"

To set session parameters, append them after #:

beeline -u "jdbc:hive2://<endpoint>:<port>/;transportMode=http;httpPath=cliservice/token/<token>;#spark.sql.shuffle.partitions=100;spark.executor.instances=2;"

Connect using Java

1. Add the following dependencies to your pom.xml file. Replace version numbers as needed.

   <dependencies>
       <dependency>
           <groupId>org.apache.hadoop</groupId>
           <artifactId>hadoop-common</artifactId>
           <version>3.0.0</version>
       </dependency>
       <dependency>
           <groupId>org.apache.hive</groupId>
           <artifactId>hive-jdbc</artifactId>
           <version>2.3.9</version>
       </dependency>
   </dependencies>

2. Connect to the gateway with the following code. The JDBC URL format is: jdbc:hive2://<endpoint>:<port>/;transportMode=http;httpPath=cliservice/token/<token> If you use DLF, append ;user=<UserName/RoleName> to the URL.

   import org.apache.hive.jdbc.HiveStatement;
   import java.sql.Connection;
   import java.sql.DriverManager;
   import java.sql.ResultSet;
   import java.sql.ResultSetMetaData;

   public class Main {
       public static void main(String[] args) throws Exception {
           // For DLF: append ;user=<UserName/RoleName> to the URL
           String url = "jdbc:hive2://<endpoint>:<port>/;transportMode=http;httpPath=cliservice/token/<token>";
           Class.forName("org.apache.hive.jdbc.HiveDriver");
           Connection conn = DriverManager.getConnection(url);
           HiveStatement stmt = (HiveStatement) conn.createStatement();

           String sql = "select * from students;";
           System.out.println("Running " + sql);
           ResultSet res = stmt.executeQuery(sql);

           ResultSetMetaData md = res.getMetaData();
           String[] columns = new String[md.getColumnCount()];
           for (int i = 0; i < columns.length; i++) {
               columns[i] = md.getColumnName(i + 1);
           }
           while (res.next()) {
               System.out.print("Row " + res.getRow() + "=[");
               for (int i = 0; i < columns.length; i++) {
                   if (i != 0) {
                       System.out.print(", ");
                   }
                   System.out.print(columns[i] + "='" + res.getObject(i + 1) + "'");
               }
               System.out.println(")]");
           }

           conn.close();
       }
   }

Connect using Python

1. Install the required packages.

   pip3 install pyhive thrift

2. Connect to the gateway. Store sensitive values in environment variables rather than hardcoding them in your script. Set the following environment variables before running:

   • KYUUBI_ENDPOINT — the gateway endpoint

   • KYUUBI_PORT — the port number

   • KYUUBI_TOKEN — the token value

   • KYUUBI_USERNAME — the RAM user or role name (required when using DLF; for other catalogs, set this to the token name)

   import os
   from pyhive import hive

   if __name__ == '__main__':
       cursor = hive.connect(
           os.environ['KYUUBI_ENDPOINT'],
           port=os.environ['KYUUBI_PORT'],
           scheme='http',
           username=os.environ['KYUUBI_USERNAME'],
           password=os.environ['KYUUBI_TOKEN']
       ).cursor()
       cursor.execute('show databases')
       print(cursor.fetchall())
       cursor.close()

   When using DLF, set KYUUBI_USERNAME to the RAM user or role name (<UserName/RoleName>). For other catalogs, set KYUUBI_USERNAME to the token name (<tokenname>).

Connect using the REST API

Kyuubi Gateway supports open-source-compatible Representational State Transfer (REST) APIs over HTTP. The following API paths are supported:

• /api/v1/sessions/*

• /api/v1/operations/*

• /api/v1/batches/*

Example 1: Run an SQL query

All four steps use token-based authentication in the URL path (/token/<token>). If you use DLF, add -u '<UserName/RoleName>:<password>' to the curl command in each step, where <password> is a placeholder and can be any value.

1. Create a session and specify Spark configurations. Replace <dev_queue> with the actual queue name. If you use DLF:

   curl -X 'POST' \
     'http://<endpoint>:<port>/api/v1/sessions/token/<token>' \
     -H 'accept: application/json' \
     -H 'Content-Type: application/json' \
     -u '<UserName/RoleName>:<password>' \
     -d '{
     "configs": {
       "set:hivevar:spark.emr.serverless.kyuubi.engine.queue": "<dev_queue>"
     }
   }'

   If you use another catalog:

   curl -X 'POST' \
     'http://<endpoint>:<port>/api/v1/sessions/token/<token>' \
     -H 'accept: application/json' \
     -H 'Content-Type: application/json' \
     -d '{
     "configs": {
       "set:hivevar:spark.emr.serverless.kyuubi.engine.queue": "<dev_queue>"
     }
   }'

   The response returns a session handle (identifier) that identifies this session:

   {"identifier":"619e6ded-xxxx-xxxx-xxxx-c2a43f6fac46","kyuubiInstance":"0.0.0.0:10099"}

   Use the identifier value as <sessionHandle> in subsequent requests.

2. Submit a SQL statement. If you use DLF:

   curl -X 'POST' \
     'http://<endpoint>:<port>/api/v1/sessions/<sessionHandle>/operations/statement/token/<token>' \
     -H 'accept: application/json' \
     -H 'Content-Type: application/json' \
     -u '<UserName/RoleName>:<password>' \
     -d '{
     "statement": "select * from test;",
     "runAsync": true,
     "queryTimeout": 0,
     "confOverlay": {
       "additionalProp1": "string",
       "additionalProp2": "string"
     }
   }'

   If you use another catalog:

   curl -X 'POST' \
     'http://<endpoint>:<port>/api/v1/sessions/<sessionHandle>/operations/statement/token/<token>' \
     -H 'accept: application/json' \
     -H 'Content-Type: application/json' \
     -d '{
     "statement": "select * from test;",
     "runAsync": true,
     "queryTimeout": 0,
     "confOverlay": {
       "additionalProp1": "string",
       "additionalProp2": "string"
     }
   }'

   The response returns an operation handle:

   {"identifier":"a743e8ff-xxxx-xxxx-xxxx-a66fec66cfa4"}

   Use the identifier value as <operationHandle> in subsequent requests.

3. Check the statement status. If you use DLF:

   curl --location -X 'GET' \
     'http://<endpoint>:<port>/api/v1/operations/<operationHandle>/event/token/<token>' \
     -H 'accept: application/json' \
     -u '<UserName/RoleName>:<password>'

   If you use another catalog:

   curl --location -X 'GET' \
     'http://<endpoint>:<port>/api/v1/operations/<operationHandle>/event/token/<token>' \
     -H 'accept: application/json'

4. Retrieve the results. If you use DLF:

   curl --location -X 'GET' \
     'http://<endpoint>:<port>/api/v1/operations/<operationHandle>/rowset/token/<token>/?maxrows=100&fetchorientation=FETCH_NEXT' \
     -H 'accept: application/json' \
     -u '<UserName/RoleName>:<password>'

   If you use another catalog:

   curl --location -X 'GET' \
     'http://<endpoint>:<port>/api/v1/operations/<operationHandle>/rowset/token/<token>/?maxrows=100&fetchorientation=FETCH_NEXT' \
     -H 'accept: application/json'

Example 2: Submit a batch job

Use the batches API to submit a Spark batch job. The gateway starts a Spark application and runs the specified task.

Download the test JAR package: spark-examples_2.12-3.3.1.jar. This is the SparkPi example that comes with Spark and calculates the value of Pi (π).

If you use DLF:

curl --location \
  --request POST 'http://<endpoint>:<port>/api/v1/batches/token/<token>' \
  --user '<UserName/RoleName>:<password>' \
  --form 'batchRequest="{
    \"batchType\": \"SPARK\",
    \"className\": \"org.apache.spark.examples.SparkPi\",
    \"name\": \"kyuubi-spark-pi\",
    \"resource\": \"oss://bucket/path/to/spark-examples_2.12-3.3.1.jar\"
  }";type=application/json'

If you use another catalog:

curl --location \
  --request POST 'http://<endpoint>:<port>/api/v1/batches/token/<token>' \
  --form 'batchRequest="{
    \"batchType\": \"SPARK\",
    \"className\": \"org.apache.spark.examples.SparkPi\",
    \"name\": \"kyuubi-spark-pi\",
    \"resource\": \"oss://bucket/path/to/spark-examples_2.12-3.3.1.jar\"
  }";type=application/json'

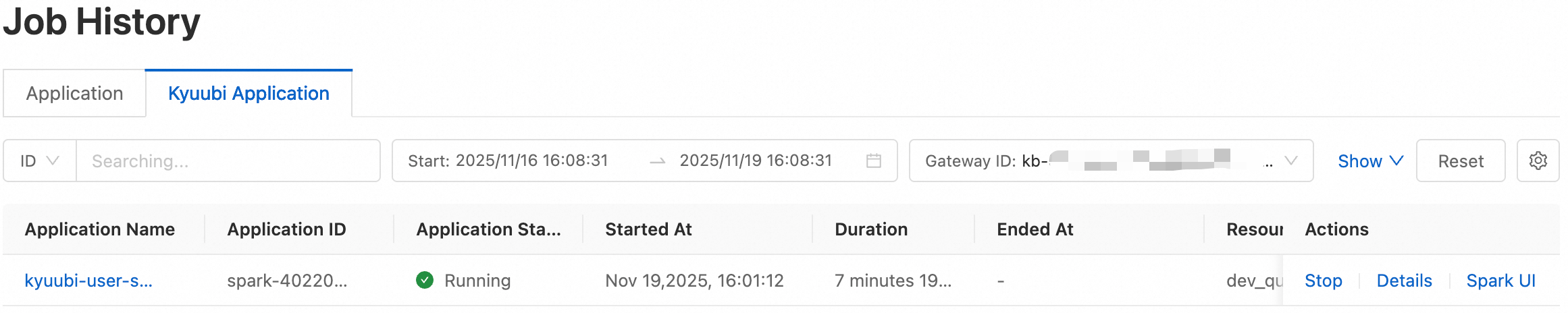

Prerequisites

• A ZooKeeper cluster accessible from your client (for example, Alibaba Cloud MSE or the ZooKeeper component on EMR on ECS)

• Network connectivity between your client and the ZooKeeper cluster's VPC. See Network connectivity between EMR Serverless Spark and other VPCs.

Enable high availability

When creating or editing a Kyuubi Gateway, enable Service High Availability, set the number of Kyuubi servers and the ZooKeeper cluster address, and select a network connection for Network Connection.

Connect to the HA gateway

After enabling HA, the gateway coordinates through ZooKeeper. Use the same placeholders described in Connect to a Kyuubi Gateway.
