Register Paimon Catalog in Flink SQL for DLF Access - Data Lake Formation

Prerequisites

Before you begin, make sure you have:

A fully managed Flink workspace. See Activate Realtime Compute for Apache Flink.
The Flink workspace and DLF in the same region.
The Virtual Private Cloud (VPC) where the Flink workspace resides added to the DLF whitelist. See Configure a VPC whitelist.

Version requirement

Ververica Runtime (VVR) 11.1.0 or later is required to connect to DLF catalogs.

Create a DLF catalog

Register the catalog in Flink

Registering a catalog in Flink creates a mapping to the DLF catalog. Creating or deleting this mapping does not affect the underlying data in DLF.

Choose either the console UI or a SQL statement to register the catalog.

Register using the console

Log on to the Realtime Compute for Apache Flink console.
Click the name of the target workspace.
In the left navigation pane, click Catalogs.
On the Catalogs page, click Create Catalog.
Select Apache Paimon and click Next.
Set metastore to DLF, select the DLF catalog in the catalog name field, and click OK.

The catalog is now registered in Flink.

Register using SQL

In Development > Scripts, run the following statement in the SQL editor:

CREATE CATALOG `flink_catalog_name`
WITH (
  'type' = 'paimon',
  'metastore' = 'rest',
  'token.provider' = 'dlf',
  'uri' = 'http://cn-hangzhou-vpc.dlf.aliyuncs.com',
  'warehouse' = 'dlf_test'
);

Connection parameters

Parameter	Description	Required	Example
`type`	Catalog type. Set to `paimon`.	Yes	`paimon`
`metastore`	Metastore type. Set to `rest`.	Yes	`rest`
`uri`	The URI used to access the DLF REST Catalog Server. The format is `http://<region-id>-vpc.dlf.aliyuncs.com`. For region IDs, see Endpoints.	Yes	`http://cn-hangzhou-vpc.dlf.aliyuncs.com`
`warehouse`	Name of the DLF catalog.	Yes	`dlf_test`

Authentication parameters

Parameter	Description	Required	Example
`token.provider`	Token provider for authentication. Set to `dlf`.	Yes	`dlf`

Troubleshooting

NullPointerException when connecting

Symptom

Caused by: java.lang.NullPointerException
at org.apache.paimon.rest.HttpClient.getRequestUrl(HttpClient.java:180)
at org.apache.paimon.rest.HttpClient.get(HttpClient.java:108)
at org.apache.paimon.rest.RESTCatalog.<init>(RESTCatalog.java:159)
at org.apache.paimon.rest.RESTCatalog.<init>(RESTCatalog.java:141)
at org.apache.paimon.rest.RESTCatalogFactory.create(RESTCatalogFactory.java:36)
at org.apache.paimon.catalog.CatalogFactory.createUnwrappedCatalog(CatalogFactory.java:84)
at org.apache.paimon.catalog.CatalogFactory.createCatalog(CatalogFactory.java:71)
at org.apache.paimon.flink.VvrCatalogFactory.createCatalog(VvrCatalogFactory.java:67)
at org.apache.paimon.flink.VvrCatalogFactory.createCatalog(VvrCatalogFactory.java:37)
at org.apache.flink.table.gateway.vvr.module.delegation.CatalogFactoryWrapper.createCatalog(CatalogFactoryWrapper.java:91)
at org.apache.flink.table.factories.FactoryUtil.createCatalog(FactoryUtil.java:572)

Cause: The uri parameter value does not start with http://.

Fix: Set uri to a value that starts with http://, for example, http://cn-hangzhou-vpc.dlf.aliyuncs.com.

ForbiddenException: not authorized to perform this operation

Symptom

Caused by: org.apache.paimon.rest.exceptions.ForbiddenException: Forbidden: You are not authorized to do this operation. Action: dlf:GetConfig. AccessDeniedDetail : {"AuthAction":"dlf:GetConfig","AuthPrincipalType":"AssumedRoleUser","AuthPrincipalOwnerId":"xxxxx","AuthPrincipalDisplayName":"aliyunstreamasidefaultrole:xxxxx","PolicyType":"AccountLevelIdentityBasedPolicy","NoPermissionType":"ImplicitDeny"} requestId:xxxxx
at org.apache.paimon.rest.DefaultErrorHandler.accept(DefaultErrorHandler.java:59)
at org.apache.paimon.rest.DefaultErrorHandler.accept(DefaultErrorHandler.java:35)
at org.apache.paimon.rest.HttpClient.exec(HttpClient.java:205)
at org.apache.paimon.rest.HttpClient.get(HttpClient.java:112)
at org.apache.paimon.rest.RESTCatalog.<init>(RESTCatalog.java:159)
at org.apache.paimon.rest.RESTCatalog.<init>(RESTCatalog.java:141)
at org.apache.paimon.rest.RESTCatalogFactory.create(RESTCatalogFactory.java:36)

Cause: The AliyunStreamAsiDefaultRole role lacks the AliyunDLFFullAccess permission.

This step is not required after Flink is integrated as a product.

Fix: Grant AliyunDLFFullAccess to the AliyunStreamAsiDefaultRole role.

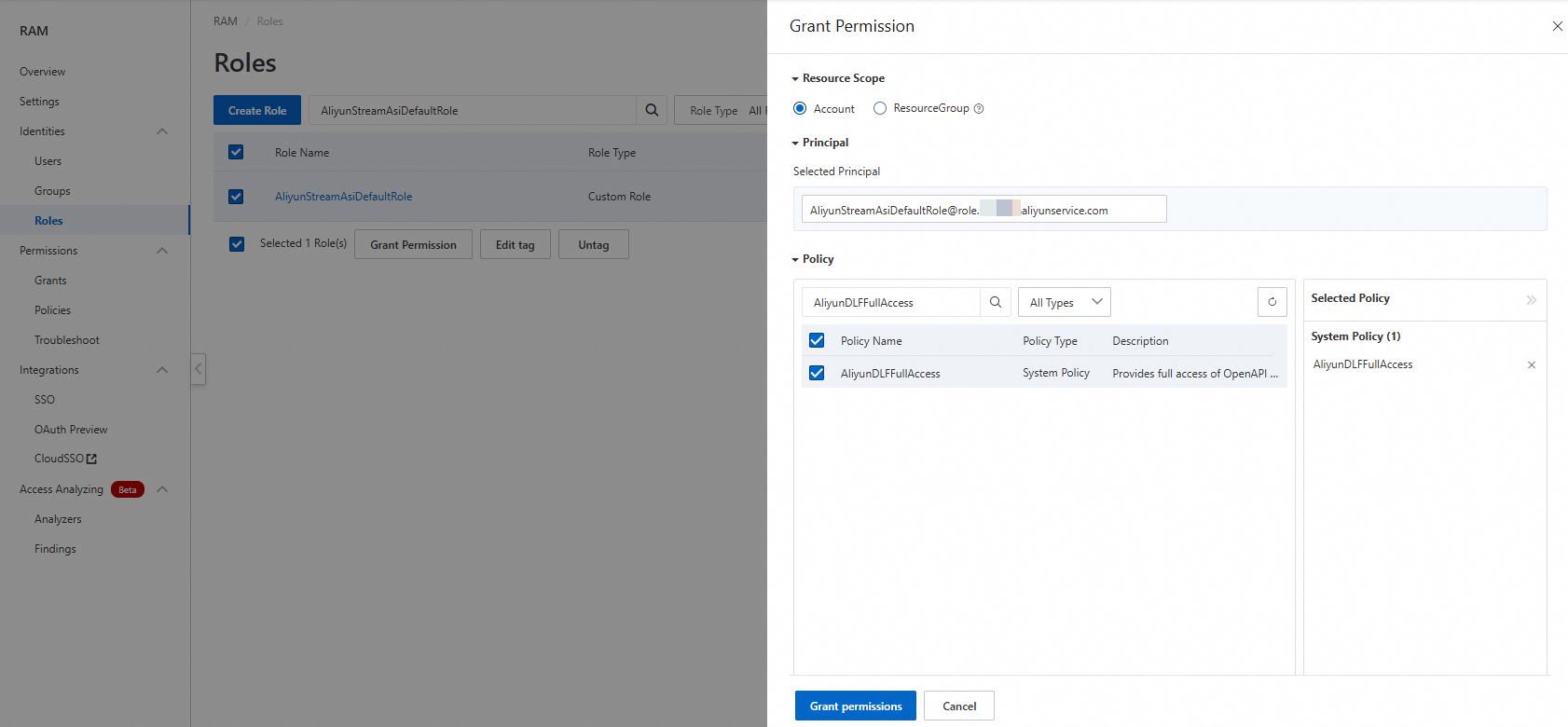

Log on to the Resource Access Management (RAM) console using your Alibaba Cloud account or as a RAM administrator.
In the left navigation pane, choose Identities > Roles, then find AliyunStreamAsiDefaultRole.
In the Actions column, click Add Permissions.
In the Access Policies section, select AliyunDLFFullAccess and click OK.
