The HBase Data Source supports both reading from and writing to HBase. This Topic describes the Data Synchronization Capabilities for HBase data sources in DataWorks.

Supported versions

HBase plugins are divided into two types: HBase and HBase{xx}xsql. The HBase{xx}xsql plugins require both HBase and Phoenix.

HBase Plugins:
HBase Plugins support HBase 0.94.x, HBase 1.1.x, and HBase 2.x and work with both the codeless UI and the code editor. You can use the hbaseVersion parameter to specify the version.
- If you use HBase 0.94.x, set the hbaseVersion parameter to 094x for the reader and writer.
```
"reader": {
        "hbaseVersion": "094x"
    }
```
```
"writer": {
        "hbaseVersion": "094x"
    }
```
- If you use HBase 1.1.x or HBase 2.x, set the hbaseVersion parameter to 11x for the reader and writer.
```
"reader": {
        "hbaseVersion": "11x"
    }
```
```
"writer": {
        "hbaseVersion": "11x"
    }
```
  The HBase 1.1.x Plugin is compatible with HBase 2.0.
HBase{xx}xsql Plugins
1. The HBase20xsql Plugin supports HBase 2.x and Phoenix 5.x. Only the code editor is supported.
  The HBase11xsql Plugin supports HBase 1.1.x and Phoenix 5.x. Only the code editor is supported.
2. The HBase{xx}xsql Writer Plugin lets you import data in batches to SQL tables (Phoenix) in HBase. Phoenix encodes the rowkey. Writing data directly using the HBase API requires manual data conversion, which is a complex and error-prone process.
  Note
  The Plugin uses the Phoenix Java Database Connectivity (JDBC) driver to execute UPSERT statements and write data to the table in batches. Because the Plugin uses a high-level API, it also synchronously updates any associated index tables.

Limitations

HBase Reader	HBase20xsql Reader	HBase11xsql Writer
HBase Reader cannot read data from Phoenix tables due to Phoenix's unique data handling. HBase Reader supports only serverless resource groups for Data Integration (recommended) and exclusive resource groups for Data Integration and does not support default resource groups or custom resource groups.	A table can only be sharded on a single primary key column. For even sharding based on job concurrency, the shard column must be an integer or string. Table, schema, and column names are case-sensitive and must match the casing used in the Phoenix table. HBase20xsql Reader reads data only through Phoenix QueryServer. You must start the QueryServer service in Phoenix before using this plugin.	The plugin supports only serverless resource groups for Data Integration (recommended). The plugin does not support importing data with timestamps. The plugin writes data only to tables created with Phoenix and does not support native HBase tables. The reader's column order defines the output row structure, while the writer's column order defines the expected input sequence. For example: The column order in the reader is c1, c2, c3, and c4. The column order in the writer is x1, x2, x3, and x4. In this case, the value from the reader's column c1 is written to the writer's column x1. If the writer's column order is x1, x2, x4, and x3, the value from c3 is written to x4, and the value from c4 is written to x3. The plugin supports importing data into indexed tables and synchronously updates all associated index tables.

Features

HBase Reader

The normal and multiVersionFixedColumn modes are supported. For configuration instructions, see HBase Field Mapping Configuration Guide.

normal mode: Reads an HBase table as a regular two-dimensional table (wide table) to retrieve the latest version of the data.

hbase:007:0> scan 'student'
ROW                                   COLUMN+CELL
s001                                 column=basic:age, timestamp=2026-03-09T14:41:40.240, value=20
s001                                 column=basic:name, timestamp=2026-03-09T14:41:40.214, value=Tom
s001                                 column=score:english, timestamp=2026-03-09T14:41:40.333, value=90
s001                                 column=score:math, timestamp=2026-03-09T14:41:40.277, value=85
1 row(s) in 0.0580 seconds

The following table shows an example of the read data.

Rowkey	basic:age	basic:name	score:english	score:math
s001	20	Tom	90	85

The multiVersionFixedColumn mode reads an HBase table as a narrow table. Each returned record consists of four columns: rowKey, family:qualifier, timestamp, and value. You must explicitly specify the columns to read. The value of each cell is returned as a separate record. If a cell has multiple versions, multiple records are returned.

hbase:007:0> scan 'student',{VERSIONS=>5}
ROW                                   COLUMN+CELL
s001                                 column=basic:age, timestamp=2026-03-09T14:41:40.240, value=20
s001                                 column=basic:age, timestamp=2026-03-09T14:30:00.100, value=19
s001                                 column=basic:name, timestamp=2026-03-09T14:41:40.214, value=Tom
s001                                 column=score:english, timestamp=2026-03-09T14:41:40.333, value=90
s001                                 column=score:math, timestamp=2026-03-09T14:41:40.277, value=85
1 row(s) in 0.0260 seconds }

The following table shows an example of the resulting four-column data.

Rowkey	column:qualifier	Timestamp	Value
s001	basic:age	2026-03-09T14:41:40.240	20
s001	basic:age	2026-03-09T14:30:00.100	19
s001	basic:name	2026-03-09T14:41:40.214	Tom
s001	score:english	2026-03-09T14:41:40.333	90
s001	score:math	2026-03-09T14:41:40.277	85

HBase Writer

rowkey generation rule: Currently, HBase Writer supports concatenating multiple fields from the source to generate the HBase table's rowkey.
The following timestamp (version) options are available for writing data to HBase:
- Use the current time as the version.
- Use a value from a source column as the version.
- Specify a fixed time as the version.

Supported data types

Batch read

The following table lists the data type mappings for HBase Reader.

Category	Data integration column type	Database type
Integer	long	short, int, and long
Floating-point	double	float and double
String	string	binary_string and string
Date and Time	date	date
Byte	bytes	bytes
Boolean	boolean	boolean

HBase20xsql Reader supports most, but not all, Phoenix data types. Verify that your data types are supported.
The following table lists the data type mappings for HBase20xsql Reader.
DataX internal type
Phoenix data type
long
INTEGER, TINYINT, SMALLINT, BIGINT
double
FLOAT, DECIMAL, DOUBLE
string
CHAR, VARCHAR
date
DATE, TIME, TIMESTAMP
bytes
BINARY, VARBINARY
boolean
BOOLEAN

Batch write

The following table lists the data type mappings for HBase Writer.

Note

The column configuration must match the column types in the HBase table.
Only the data types listed in the following table are supported.

Category	Database type
Integer	INT, LONG, and SHORT
Floating-point	FLOAT and DOUBLE
Boolean	BOOLEAN
String	STRING

Precautions

If you encounter the "tried to access method com.google.common.base.Stopwatch" error message when testing connectivity, add the hbaseVersion parameter to the data source configuration.

Add a data source

Before you develop a synchronization task in DataWorks, you must add the required data source to DataWorks by following the instructions in Data source management. You can view parameter descriptions in the DataWorks console to understand the meanings of the parameters when you add a data source.

Data synchronization task

For information about the entry point for and the procedure of configuring a synchronization task, see the following configuration guides.

Single-table batch synchronization

For instructions, see Use the codeless UI and Use the code editor.
When you use the Codeless UI, Field Mapping is not displayed by default because HBase has a flexible schema. You must manually configure the mapping.
When using HBase as a source, you must first select an Output Mode: Wide table (normal mode) or Narrow table (multiVersionFixedColumn mode).
The field mapping configuration differs between the two modes:

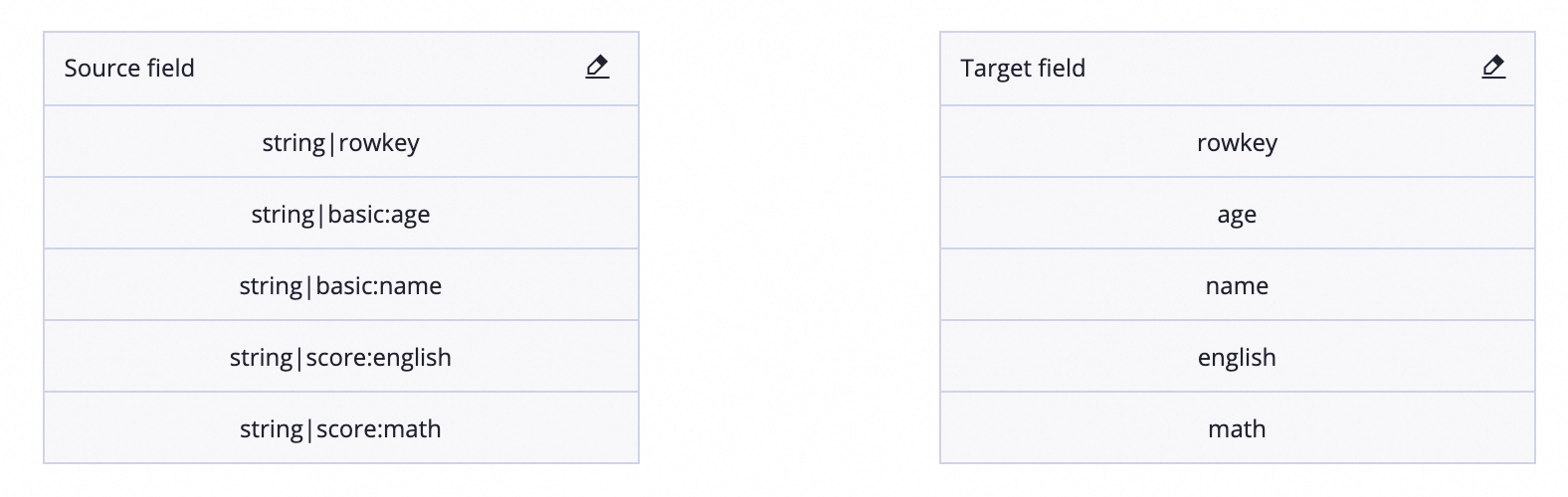

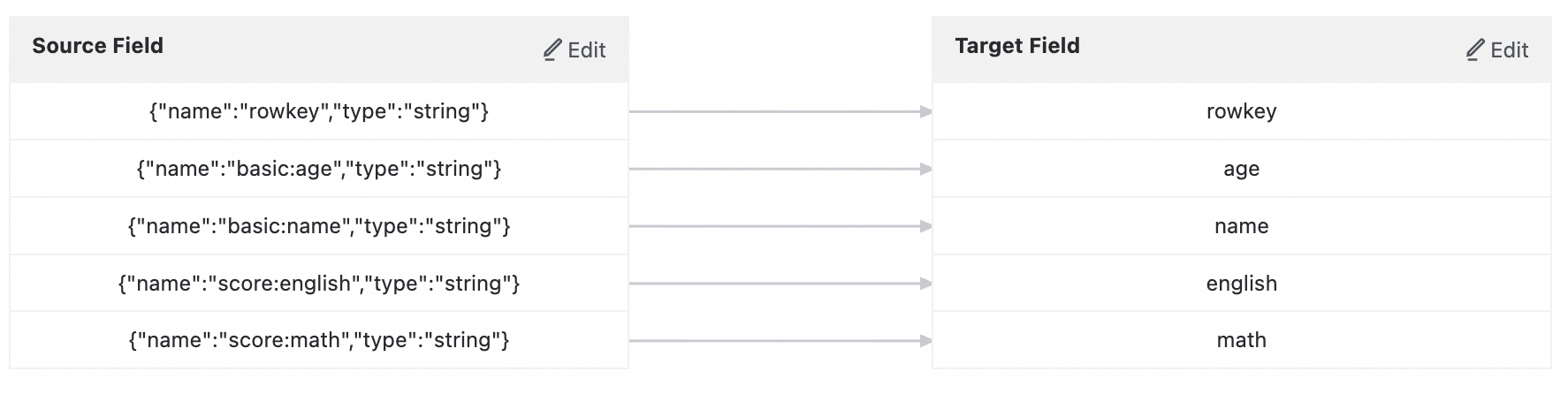

- Wide table (normal mode): This is the default mode. It reads an HBase table as a standard two-dimensional table and retrieves the latest version of the data. When HBase is the source, you must configure the mapping between Source Fields and Target Fields. As shown in the figure, there is a one-to-one mapping between source and target fields. Because the source table has no fixed fields, fields are mapped by row by default. To change this mapping, you must manually edit the field order.
  New data development
  Old data development
  Results in the target table:

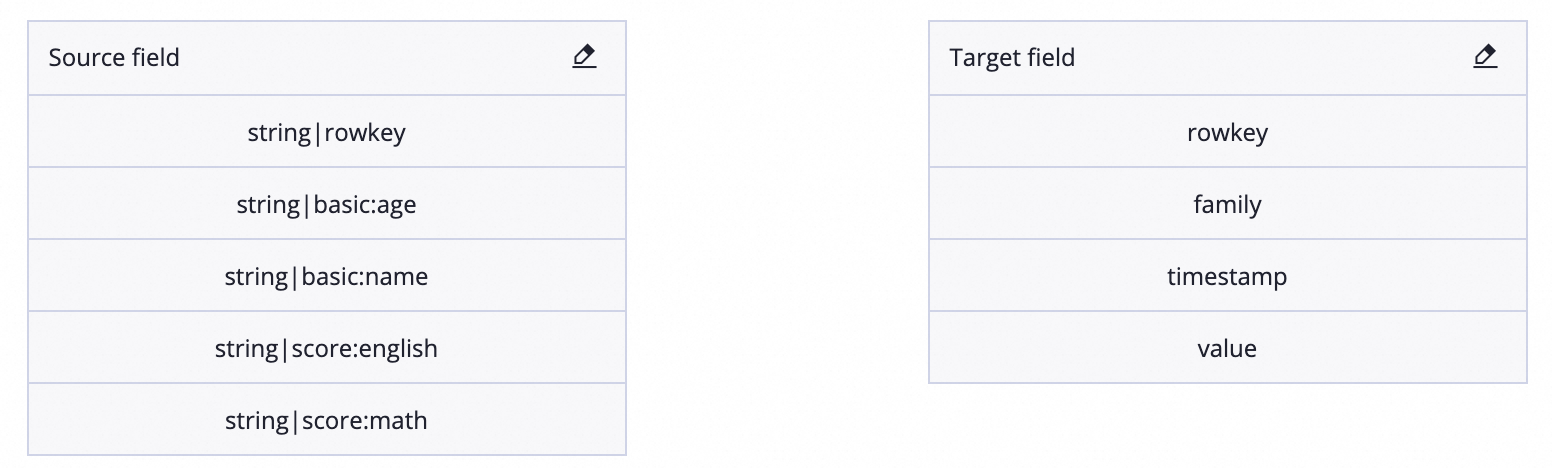

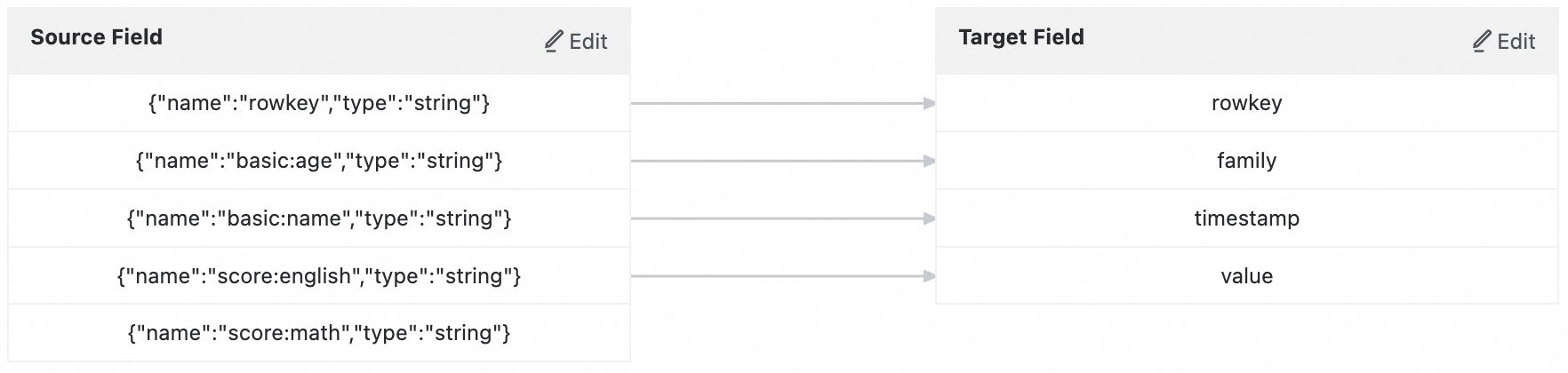

- Narrow table (multiVersionFixedColumn mode): Each output record consists of four columns (rowKey, family:qualifier, timestamp, and value), which allows you to read multiple data versions. Configure the Source Field with the format ColumnFamily:Qualifier (for example, basic:age). The target is a fixed table with four columns (row_key, cf, timestamp_col, and value). No field mapping is required for this mode.
  New data development
  Old data development

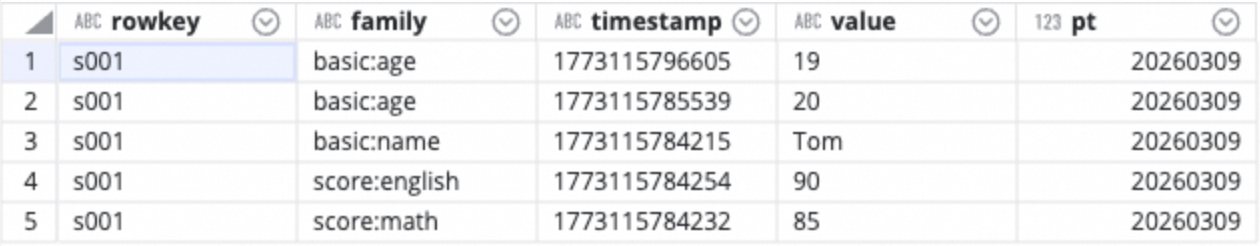

  Results in the target table:
- When HBase is used as the data destination (only normal mode is supported), you need to configure the Target Fields and the rowkey separately. The rowkey field can be a concatenation of multiple source fields.
For a complete list of parameters and a sample script for the Code Editor, see Appendix: Script Demo and Parameter Description.

FAQ

Q: What is a recommended Concurrency setting? Does increasing concurrency help with slow import speeds?
A: The default heap size for a data import process in the Java Virtual Machine (JVM) is 2 GB. Concurrency is implemented using multi-threading. Using too many threads may not increase the import speed and can degrade performance due to frequent garbage collection (GC). We recommend a Concurrency setting of 5 to 10.
Q: batchSize—what is a suitable value?
A: The default value is 256, but the optimal batchSize should be calculated based on the size of each row. A single operation typically processes 2 MB to 4 MB of data. You can calculate the batchSize by dividing this amount by the row size.
Q: When I use the multiVersionFixedColumn mode to read data from HBase, I encounter the java.lang.StringIndexOutOfBoundsException: String index out of range: -1 error. How can I resolve this issue?
A: This error usually occurs because the name field in the column configuration does not use the Column Family:Column Qualifier (columnFamily:qualifier) format. For example, you specified only the column qualifier age instead of basic:age. Make sure that the name of every column except rowkey includes a column family prefix in the columnFamily:qualifier format.

Appendix: Script examples and parameters

Configure a batch synchronization task by using the code editor

If you want to configure a batch synchronization task by using the code editor, you must configure the related parameters in the script based on the unified script format requirements. For more information, see Use the code editor. The following information describes the parameters that you must configure for data sources when you configure a batch synchronization task by using the code editor.

HBase Reader script example

{
    "type":"job",
    "version":"2.0",// The version number.
    "steps":[
        {
            "stepType":"hbase",// The plugin name.
            "parameter":{
                "mode":"normal",// The mode for reading data from HBase. Valid values: normal and multiVersionFixedColumn.
                "scanCacheSize":"256",// The number of rows that the HBase client reads from the server in each remote procedure call (RPC).
                "scanBatchSize":"100",// The number of columns that the HBase client reads from the server in each RPC.
                "hbaseVersion":"094x/11x",// The HBase version.
                "column":[// The columns to read.
                    {
                        "name":"rowkey",// The column name.
                        "type":"string"// The data type.
                    },
                    {
                        "name":"basic:age",
                        "type":"string"
                    },
                    {
                        "name":"basic:name",
                        "type":"string"
                    },
                    {
                        "name":"score:english",
                        "type":"string"
                    },
                    {
                        "name":"score:math",
                        "type":"string"
                    }
                ],
                "range":{// The rowkey range for the HBase Reader.
                    "endRowkey":"",// The end rowkey.
                    "isBinaryRowkey":true,// Specifies how to convert the configured startRowkey and endRowkey to byte arrays. Default value: false.
                    "startRowkey":""// The start rowkey.
                },
                "maxVersion":"",// The number of versions to read in multiVersionFixedColumn mode.
                "encoding":"UTF-8",// The encoding format.
                "table":"student",// The table name.
                "hbaseConfig":{// Connection configuration for the HBase cluster, in JSON format.
                    "hbase.zookeeper.quorum":"hostname",
                    "hbase.rootdir":"hdfs://ip:port/database",
                    "hbase.cluster.distributed":"true"
                }
            },
            "name":"Reader",
            "category":"reader"
        },
        {
            "stepType":"odps",// The name of the destination plugin. This example uses MaxCompute, but you can replace it with another writer plugin.
            "parameter":{
                "partition":"",// The partition information of the destination table. You do not need to configure this parameter for non-partitioned tables.
                "truncate":true,// Specifies whether to clear the existing data in the destination table or partition before the write operation. A value of true indicates that the data is cleared.
                "datasource":"odps_datasource",// The name of the MaxCompute data source.
                "column":[// The list of destination columns.
                    "rowkey",
                    "basic_age",
                    "basic_name",
                    "score_english",
                    "score_math"
                ],
                "table":"student_target"// The name of the destination MaxCompute table.
            },
            "name":"Writer",
            "category":"writer"
        }
    ],
    "setting":{
        "errorLimit":{
            "record":"0"// The maximum number of error records allowed.
        },
        "speed":{
            "throttle":true,// Specifies whether to enable throttling. If you set this to true, data is transferred at the rate specified by `mbps`. If you set this to false, the `mbps` parameter is ignored and no rate limit is applied.
            "concurrent":1,// The maximum number of concurrent threads.
            "mbps":"12"// The maximum transfer rate. Unit: MB/s.
        }
    },
    "order":{
        "hops":[
            {
                "from":"Reader",
                "to":"Writer"
            }
        ]
    }
}

HBase Reader script example (multiVersionFixedColumn mode)

The following example shows a complete script configuration that reads data from HBase by using the multiVersionFixedColumn mode and writes the data to MaxCompute. In this mode, the value of each cell in HBase is converted into a separate record. Each record consists of four columns: rowkey, family:qualifier, timestamp, and value.

{
    "type":"job",
    "version":"2.0",
    "steps":[
        {
            "stepType":"hbase",// The plugin name.
            "parameter":{
                "mode":"multiVersionFixedColumn",// The mode for reading data from HBase. This example uses multiVersionFixedColumn mode.
                "scanCacheSize":"256",// The number of rows that the HBase client reads from the server in each RPC.
                "scanBatchSize":"100",// The number of columns that the HBase client reads from the server in each RPC.
                "hbaseVersion":"20x",// The HBase version.
                "datasource":"hbase_datasource",// The name of the HBase data source.
                "column":[// The columns to read. The first column must be rowkey. The name for all other columns must be in the "ColumnFamily:Qualifier" format.
                    {
                        "name":"rowkey",// The rowkey column.
                        "type":"string"
                    },
                    {
                        "name":"basic:age",// The age column in the basic column family.
                        "type":"string"
                    },
                    {
                        "name":"basic:name",// The name column in the basic column family.
                        "type":"string"
                    },
                    {
                        "name":"score:english",// The english column in the score column family.
                        "type":"string"
                    },
                    {
                        "name":"score:math",// The math column in the score column family.
                        "type":"string"
                    }
                ],
                "range":{
                    "isBinaryRowkey":false
                },
                "maxVersion":"-1",// Reads all versions of the data. This parameter is required in multiVersionFixedColumn mode. A value of -1 indicates that all versions are read.
                "encoding":"UTF-8",// The encoding format.
                "table":"student"// The name of the HBase table.
            },
            "name":"Reader",
            "category":"reader"
        },
        {
            "stepType":"odps",// The name of the destination plugin. This example uses MaxCompute.
            "parameter":{
                "partition":"",// The partition information of the destination table. You do not need to configure this parameter for non-partitioned tables.
                "truncate":true,// Specifies whether to clear the existing data in the destination table or partition before the write operation. A value of true indicates that the data is cleared.
                "datasource":"odps_datasource",// The name of the MaxCompute data source.
                "column":[// The four destination columns correspond to the rowkey, family:qualifier, timestamp, and value.
                    "rowkey",
                    "cf",
                    "timestamp_col",
                    "value"
                ],
                "table":"hbase_multiversion_target"// The name of the destination MaxCompute table.
            },
            "name":"Writer",
            "category":"writer"
        }
    ],
    "setting":{
        "errorLimit":{
            "record":"0"// The maximum number of error records allowed.
        },
        "speed":{
            "throttle":false,// Disables throttling.
            "concurrent":2// The maximum number of concurrent threads.
        }
    },
    "order":{
        "hops":[
            {
                "from":"Reader",
                "to":"Writer"
            }
        ]
    }
}
