This topic describes the meaning of each configuration items when you select the full value of an iframe.

Chart style

The iframe allows you to customize the content of the iframe link and the style of the page close button. You can embed a web page in a visual application for display. image.png

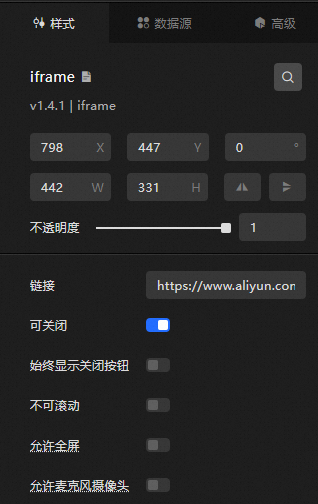

Style Panel image.png

  • Search Configuration: Click the Search configuration items icon imagein the upper-right corner of the Style panel. In the Search Configuration panel, enter the name of the configuration items that you want to search for and locate the configuration items. Fuzzy match is supported. For more information, see Search configuration items.

    • Size: the width and height of the widget. Unit: pixels.

    • Positioning: the x-axis and y-axis of the component. Unit: pixels. X-coordinate indicates the pixel distance between the upper-left corner of the widget and the left border of the canvas. Y-coordinate indicates the pixel distance between the upper-left corner of the widget and the upper border of the canvas.

    • Rotate: The widget is rotated around the center of the widget. Unit: degrees.

      • Directly enter the degrees in the Rotation Angle spin box or click the plus sign (+) or minus sign (-) to increase or decrease the value in the Rotation Angle spin box.

      • Click the imageicon to flip the widget style.

      • Click the imageicon to flip the widget style.

    • Opacity: Valid values: 0 to 1. If this parameter is set to 0, the widget is hidden. If this parameter is set to 1, the widget is completely displayed. Default value: 1.

  • URL: the URL of the iframe page.

    Note

    If the project uses HTTPS but the iframe page uses HTTP, the iframe page is inaccessible. The linked page needs to support spanning.

  • Show Close Button: specifies whether to show the close button on the upper-right corner of the iframe page. On the preview or publish page, you can click the button to close the iframe page.

  • Always Show the Close Button: specifies whether to always show the close button. If you turn on the switch, the close button always shows. If you turn off the switch, the close button shows only when you move the pointer over the iframe page. This parameter appears only when you enable Show Close Button.

  • No Scrollable: specifies whether the iframe page can be scrolled.

  • Allow Full Screen: If you turn on the switch, the full screen of the browser is triggered within the iframe.

  • Allow Microphone Camera: Turn on the switch to allow access to the microphone and camera.

Data Sources panel image.png

url: Configure the link to the page displayed by the widget. This function is the same as that configuration items Style> Link. If you specify both, the url fields in the data source are used.

Configure data items

Notes

DataSource

You can use the code editor or visual editor to view the data fields contained in the widget. You can also modify the Data Type parameter to flexibly configure the component data.

Data Mapping

If you need to customize chart field configurations, you can set different field mapping content in the Data Mapping module and field mapping these content to the corresponding fields of the widget. This allows you to match data without modifying the fields in the data source. You can also click the imageicon to configure the field style.

Configure a filter

Turn on Filter, select an existing data filter or create a data filter, and configure a data filter script to filter data. For more information, see Manage data filters.

Data Response Result

The Data Response Result section displays widget data in real time. If the data source of the widget changes, this section displays the latest data. If the system response is delayed, you can click the imageicon on the right to view the data response result. You can also click the imageicon on the right to obtain the latest data of the widget. You can also click View Example to view an example of the response result of the current component.

Forbid Loading

If you select the check box, you will not see the loaded content during component initialization when you update the component and preview the data kanban. If you select the check box, the opposite is true. By default, the status is deselected.

Controlled Mode

If you select the check box, the component does not request data in the initialized state, and only requests data by using global variables or the method configured in Blueprint Editor. If you clear the check box, you can use automatic update to request data. By default, the status is deselected.

Auto Data Request

Select the check box to manually enter the time frequency of polling to set dynamic polling. If you clear the page, the page is not automatically updated. You need to manually refresh the page or use Blueprint Editor and global variable events to trigger a request to update data.

Advanced Panel

Turn on the switch to enable the associated global variable feature. If the URL of the iframe page changes, the event is triggered to pass the callback IDs you specify. For more information, see Component interaction configuration.

Blueprint Interaction

  1. Click the imageicon in the upper-left corner to go to the Blueprint page.

  2. On the Layer Nodes tab, add the widget to the main canvas.

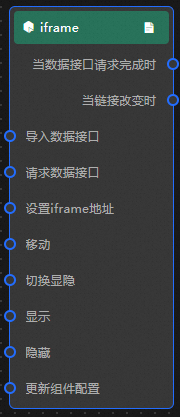

  3. View blueprint configuration parameters. image.png

    • Event

      Event

      Notes

      When the data interface request is completed

      The event is triggered with the processed JSON data after a data interface request is responded and processed by a filter. For more information about specific data examples, see the Data Response Result section of the Data Source tab in the right-side configuration panel of the canvas editor.

      When the link changes

      Event that is raised when the link address in the component data changes. No parameters are required.

    • Action

      Action

      Notes

      Import data

      After data of a widget is processed in accordance with its drawing format, the widget is imported for redrawing. You do not need to request server data again. For more information, see the data example.

      [
  {
    "url": "https://www.aliyun.com"
  }
]

      Request Data Interface

      This action is performed to request the server data again. The data sent by an upstream data processing node or layer node is used as a parameter. For example, if the iframe is configured with the API data source as https://api.test and the data passed to the request data interface as { id: '1'}, the final request interface is https://api.test?id=1.

      Set the iframe address

      Set the URL of the iframe displayed in the widget. For more information, see the sample data.

      [
  {
    "url": "https://www.aliyun.com"
  }
]

      Move

      Move a widget to a specified location. For more information, see the data example.

          {
      // The positioning type. to indicates absolute positioning, whereas by indicates relative positioning. The default value is to.
        "positionType": "to",
      // The location, which is indicated by the x and y coordinates.
      "attr": {
        "x": 0,
        "y": 0
      },
      // The animation type.
      "animation": {
        "enable": false,
        // The animation delay. Unit: milliseconds.
        "animationDuration": 1000,
        // The animation curve, which can be set to linear|easeInOutQuad|easeInOutExpo.
        "animationEasing": "linear"
      }
    }

      Switch Display /Display

      Toggles whether the widget is displayed or hidden. No parameters are required.

      Display

      Display the widget. For more information, see Data example.

      {
  "animationType": "",// The animation method. Valid value: fade. If you do not set this parameter, no animation is available.
  "animationDuration": 1000,// The animation delay. Unit: ms.
  "animationEasing": ""// animation curve
}

      Hide

      Hide the component. For more information, see Data example.

      {
  "animationType": "",// The animation method. Valid value: fade. If you do not set this parameter, no animation is available.
  "animationDuration": 1000,// The animation delay. Unit: ms.
  "animationEasing": ""// animation curve
}

      Update component configurations

      Style configurations of widgets are dynamically updated. In the Style panel, click Copy Configuration to Clipboard to obtain the configuration data of the widget. After that, change the style field for the data processing node in Blueprint Editor.
