    DataV:The ECharts Kagi Chart

    Document Center

    DataV:The ECharts Kagi Chart

    Last Updated:Jul 10, 2024

    This topic describes the chart style and configuration panel of an Echarts ladder line chart.

    Chart style

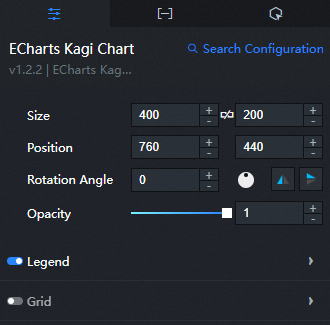

    Configuration Panel image

    • Search Configuration: Click Search Configuration in the upper-right corner of the Configuration panel. In the Search Configuration panel, enter the name of the configuration items that you want to search for to quickly locate the configuration items. Fuzzy match is supported. For more information, see Search for asset configurations.

    • Size: indicates the size of a widget, including its pixel width and height. You can click the 锁定长宽比按键icon to lock the aspect ratio of the widget and modify the width and height of the widget in equal proportion. After you click this icon again, you can adjust the width and height as needed.

    • Position: the position of a widget, which is indicated by pixel X and Y coordinates. X-coordinate indicates the pixel distance between the upper-left corner of the widget and the left border of the canvas. Y-coordinate indicates the pixel distance between the upper-left corner of the widget and the upper border of the canvas.

    • Rotation Angle: the angle of a rotation that uses the center point of a widget as the rotation point. The unit is degrees (°). You can use one of the following methods to control the rotation angle of a widget:

      • Directly enter the degrees in the Rotation Angle spin box or click the plus sign (+) or minus sign (-) to increase or decrease the value in the Rotation Angle spin box.

      • Drag the 圆圈旋转控制图标black dot in the icon to control the rotation angle of the widget.

      • Click the 左右翻转图标icon to flip the widget style.

      • Click the 上下翻转图标icon to flip the widget style.

    • Opacity: Valid values: 0 to 1. If this parameter is set to 0, the widget is hidden. If this parameter is set to 1, the widget is completely displayed. Default value: 1.

    • Render Engine: the rendering engine of the line chart. Including canvas and svg.

    • Legend: Click the Eye icon on the right to display the legend style. 图例

      • Horizontal Position: Click the drop-down list and select an alignment method for the legend and text.

        • Auto: By default, Auto is determined based on the position and orientation of the widget.

        • Left Align: If the graphic is on the left side of the text, it is left-aligned.

        • Align to Center: Align to Center if the legend graphic overlaps the text.

        • Right Align: If the graphic is on the right side of the text, it is right-aligned.

      • Vertical Position: Click the drop-down list and select an alignment method for the legend and text.

        • Auto: By default, Auto is determined based on the position and orientation of the widget.

        • Top Align: Top Align when the graphic is above the window.

        • Center: Center when the graphic is in the middle of the window.

        • Bottom Alignment: Bottom alignment when the graphic is below the window.

      • Orientation: Select the orientation of the legend from the drop-down list.

        • Horizontal: the horizontal distribution of the legend.

        • Vertical: The legend is distributed vertically.

      • Pin: Click the + or-sign or enter a number to adjust the inner margin of the legend. Unit: pixels. The default inner margin is 5.

      • Element Spacing: Click the + or-sign or enter a number to adjust the distance between each item in the legend. Horizontal spacing for horizontal layout, vertical spacing for vertical layout.

      • Text Style

        • Color: Modify the color of the legend text. For more information, see color picker description.

        • Font Style: the font style of the legend text.

        • Font weight: the font weight of the legend text.

        • Font: the font family of the legend text.

        • Font Size: Click + or-, or enter a value to change the font size of the legend.

    • Grid

      • Left Margin: Click the + or-sign or enter a value to adjust the left margin of the grid. Unit: pixels.

      • Upper Margin: Click + or-, or enter a number manually to adjust the upper margin of the grid. Unit: pixels.

      • Right Margin: Click the + or-sign or enter a value to adjust the right margin of the grid. Unit: pixels.

      • Lower Margin: Click + or-, or enter a value to adjust the lower margin of the grid. Unit: pixels.

      • Adaptive Layout: If you select this check box, the line chart displays adaptive layout. If you clear this check box, the line chart displays adaptive layout based on the style that you have configured.

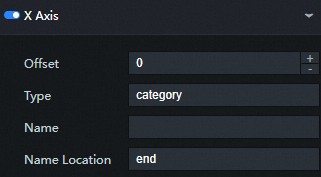

    • X Axis: Click the Eye icon to display the X axis. x轴

      • Position: the position of the window on the x-axis.

        • Bottom: The position of the x-axis at the bottom of the window.

        • Top: The position of the x-axis on the top of the window.

      • Name: the name of the x-axis.

      • Position: the position of the name on the x-axis. You can select Start, End, or Center. Default value: End.

      • Name Style

        • Color: Modify the color of the name text on the x-axis. For more information, see color picker description.

        • Font Style: the font style of the name on the x-axis.

        • Font weight: the font weight of the name on the x-axis.

        • Font: the font family of the name on the x-axis.

        • Font Size: Click + or-, or enter a value to modify the font size of the name on the x-axis.

      • Name Interval: Click the + or-sign or enter a value to change the distance between the axis and the axis.

      • Rotate Name: Click the + or-sign or enter a value to change the rotation angle of the axis name.

      • Reverse: If you select this check box, the axes are displayed in the reverse direction. If you clear this check box, the axes are displayed in the forward direction.

      • Leave blank: If you select this option, the system will leave a blank on the left and right sides of the x-axis.

      • Static: If you select this option, you cannot interact with the axes if they are static.

      • Axis: Click the eye icon on the right to display the x-axis.

        • On Zero: indicates whether the axis of the x-axis or y-axis is on the zero scale of the other axis. This parameter is valid only when the other axis is a value axis and contains the zero scale.

        • Line Style

          • Color: Click the drop-down list and select a fill style for the axis color, including Color Fill and Gradient Fill. Modify the color of the x-axis by referring to the color picker description.

          • Width: Click + or-, or enter a value to modify the width of the x-axis.

          • Type: the type of the axis. Optional. The value can be Solid Line, Dashed Line, or Dotted Line.

          • Opacity: Click the + or-sign or enter a value to modify the transparency of the x-axis. The range is [0,1].

      • Tick mark: Click the eye icon on the right to display the scale on the x-axis.

        • Internal: If you select this check box, the axis scale faces inward. If you clear this check box, the axis scale faces outward.

        • Length: Click the + or-sign or enter a number to modify the length of the scale.

        • Line Style

          • Color: Select a color fill style from the drop-down list, including Color Fill and Gradient Fill. Modify the color of tick marks by referring to the color picker description.

          • Width: Click the + or-sign or enter a value to modify the width of the tick mark.

          • Type: the type of the axis. Optional. Valid values: Solid, Dashed, and Dotted.

          • Transparency: Click the + or-sign or enter a value to modify the transparency of the tick marks. The range is [0,1].

      • Scale Labels: Click the Eye icon on the right to display the scale labels on the x-axis.

        • Internal: If you select this check box, the axis labels face inward. If you clear this check box, the axis labels face outward.

        • Rotate: the rotation angle of the scale labels. If the category labels on the category axis cannot be displayed, you can rotate the scale labels to prevent them from overlapping. The angle of rotation ranges from -90 degrees to 90 degrees.

        • Outer Spacing: the distance between the scale label and the axis.

        • Formatter: the format of the scale labels. Valid values: Integer, 1 decimal place, and 2 decimal places. Default value: Integer.

        • Show Minimum Label: If you select this option, the smallest scale label is displayed. By default, it is automatically determined that if the labels overlap, the smallest scale label will not be displayed.

        • Show Max Labels: If you select this option, the largest scale label is displayed. By default, the maximum scale label is not displayed if the labels overlap.

        • Color: Modify the color of the scale labels for the axes. For more information, see color picker description.

        • Font Style: the font style of the axis labels.

        • Font weight: the font weight of the axis label text.

        • Font: the font family of the axis label text.

        • Font Size: the font size of the axis scale label text.

      • line separator: Click the eye icon on the right to display the line separator.

        • Line Style

          • Color: Modify the color of the x-axis line separator by referring to the color picker description.

          • Width: Click the + or-sign or enter a value to modify the width of the line in the x-axis line separator.

          • Type: the type of the x-axis line separator. Optional. The value can be Solid Line, Dashed Line, or Dotted Line.

          • Transparency: Click the + or-sign or enter a value to modify the transparency of the line separator on the x-axis. The value ranges from 0 to 1.

    • Y Axis: For more information, see X Axis.

    • dialog box: Click the eye icon on the right to display the dialog box. 提示框

      • Trigger Type: the type of the trigger. This parameter is optional. Default value: Axes.

        • Data Item: the data item graph trigger. It is used in charts that do not have a category axis, such as scatter charts and pie charts.

        • Axis: the axis trigger, which is used in column charts, line charts, and other charts that use category axes.

        • Do Not Trigger: Nothing is triggered.

      • Axis Indicator: Click the Eye icon to display the axis indicator.

        • Type: the type of the indicator. Valid values: Line Indicator, Shadow Indicator, and Cross Indicator.

        • Automatic Adsorption: If you select this check box, the axis indicator is automatically adsorbed to the point. This function is more meaningful on the numerical axis and the time axis, and can automatically find small numerical points.

        • Line Style

          • Color: Modify the color of the indicator line by referring to the color picker description.

          • Width: Click the + or-sign or enter a value to modify the line width.

          • Type: indicates the type of the line. Optional. The value can be Solid Line, Dashed Line, or Dotted Line.

          • Opacity: Click the + or-sign or enter a value to modify the opacity of the indicator line. Valid values: 0 to 1.

        • Indicates the shadow style

          • Color: Modify the color of the shadow by referring to the color picker description.

          • Transparency: Click the + or-sign or enter a value to modify the transparency of the shadow. Valid values: 0 to 1.

        • Indicates the cross style

          • Color: Modify the cross color by referring to the color picker description.

          • Width: Click the + or-sign or enter a value to modify the width of the line that indicates the intersection.

          • Type: indicates the type of intersection. Optional. The value can be Solid Line, Dashed Line, or Dotted Line.

          • Transparency: Click the + or-sign or enter a value to modify the transparency of the intersection. The value ranges from 0 to 1.

        • Background Color: dialog box the background color of the text label.

        • Text Style

          • Color: Modify the color of the dialog box label text. For more information, see color picker description.

          • Font Style: dialog box the font style of the text.

          • Font weight: dialog box the font weight of the label text.

          • Font: dialog box the font family of the label text.

          • Font Size: dialog box the font size of the label text.

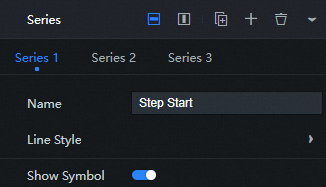

    • Series: Click the 加号图标or 垃圾桶图标icon to add or delete a conditional style. Click the 横排列图标or 竖排列图标icon to configure the arrangement style of multiple conditional styles. Click the 复制图标icon to copy the selected conditional style configuration and add a conditional style with the same configuration. 系列

      • Name: the name of the custom series. It must be used together with the s field value in the data.

      • Marker Graphic: the custom graphic. Default value: Circle. The tag types include None, Circle, Rectangle, Rectangle, Triangle, Diamond, Pushpin, and Arrow.

      • Marker Size: Click the + or-sign or enter a value to modify the size of the marker. Unit: pixels.

      • Rotation Angle: Click + or-, or enter a number manually to change the rotation angle of the marker. Unit: degrees.

      • Show Icon: Click the Eye icon to show the icon style.

      • Hover Animation: If you select this option, the animation effect is displayed when the hover switch is enabled.

      • Legend Interaction Highlight: If you select this check box, the interaction is highlighted when the legend hover is started.

      • Step Line Chart: Set the step style of the line chart, including Close, Turn at Current Point, Turn at Middle Point, and Turn at Next Point.

      • Label: Click the Eye icon to display the label style.

        • Position: Set the position of the label corresponding to the bar chart, including but not limited to top, left, and inside.

        • Positioning Distance: Set the distance between the labels and the border of the bar chart.

        • Rotate: the angle by which the labels are rotated. If the category labels on the category axis cannot be displayed, you can rotate the labels to prevent them from overlapping. The angle of rotation ranges from -90 degrees to 90 degrees.

        • Color: Modify the color of the label text. For more information, see color picker description.

        • Font Style: the font style of the label text.

        • Font weight: the font weight of the label text.

        • Font: the font family of the label text.

        • Font Size: the font size of the label text.

      • Element Style

        • Color: Modify the color of the element style by referring to the color picker description.

        • Bar Chart Fillet: Click the + or-sign or enter a value to modify the fillet.

        • Transparency: Click the + or-sign or enter a value to modify the transparency of the intersection. The value ranges from 0 to 1.

      • Line Style

        • Color: Modify the color of the line. For more information, see color picker description.

        • Width: Click the + or-sign or enter a value to modify the width of the line.

        • Type: the type of the line. Optional. The value can be Solid Line, Dashed Line, or Dotted Line.

        • Transparency: Click the + or-sign or enter a value to modify the transparency of the line. The value ranges from 0 to 1.

      • Area Style

        • Color: Modify the color of the area style. For more information, see color picker description.

        • Transparency: Click the + or-sign or enter a value to modify the transparency of the area intersection. The value ranges from 0 to 1.

      • Smooth Curve: Click the + or-sign or enter a value to modify the smoothness of the line. Unit: %. The range is [0,1].

    • Animation: Select the check box to enable animation.

    • Animation Duration: Click the + or-sign or enter a value to modify the duration of the initial animation. Unit: milliseconds.

    • Ease Effect: Select an easing effect for the data update animation from the drop-down list. The default value is cubicOut.

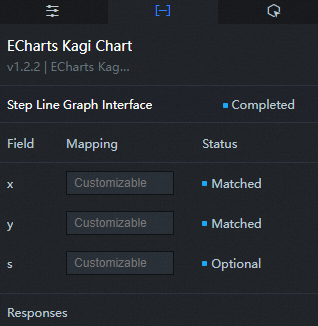

    Data tab


    Configuration field description

    Column

    Description

    x

    Used to configure the category of each x-axis in a line chart, that is, the value of the x-axis.

    y

    Used to configure the value of each point in the line chart.

    s

    (Optional) The series value, used in conjunction with the series configuration items in the Style panel.

    Interaction tab

    No interaction event is configured for this widget.

    Configure interactions in Blueprint Editor

    1. In Canvas Editor, right-click a widget in the Layer panel and select Add to Blueprint Editor.

    2. Click the 蓝图图标icon in the upper-left corner.

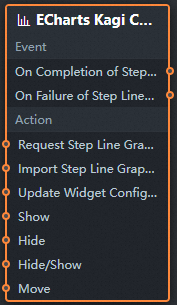

    3. In Blueprint Editor, click the Ladder Line Chart widget in the Import Nodes pane. On the canvas, you can configure the parameters for the ladder line chart, as shown in the following figure. 蓝图

      • Events

        Events

        Description

        When the data interface request is completed

        The event is triggered with the processed JSON data after a data interface request is responded and processed by a filter. For more information about specific data examples, see the Data Response Result section of the Data tab in the right-side configuration panel of the canvas editor.

        When a data interface request fails

        The event that is returned when a data interface request fails (such as network problems or interface errors) and is processed by the filter. The event also throws the processed JSON data. For more information about specific data examples, see the Data Response Result section of the Data tab in the right-side configuration panel of the canvas editor.

        When a data item is clicked

        The event that is raised when a column of the ladder line chart is clicked, and the data item corresponding to the column is also raised.

        When the legend is clicked

        The event that is raised when the legend of the ladder line chart is clicked, and the data item corresponding to the column is also raised.

      • action

        Action

        Description

        Request Data Interface

        This action is performed to request the server data again. The data sent by an upstream data processing node or layer node is used as a parameter. For example, if the API data source is https://api.test and the data passed to the request data interface is { id: '1'}, the final request interface is https://api.test?id=1.

        Import data

        After data of a widget is processed in accordance with its drawing format, the widget is imported for redrawing. You do not need to request server data again. For more information about specific data examples, see the Data Response Result section of the Data tab in the right-side configuration panel of the canvas editor.

        Highlight

        The input data of the action is of the object type. The parameters include seriesName (series name), seriesIndex (series index), dataIndex (data index), and name (data name). Sample data:

        {
    "seriesName": "",
    "seriesIndex": 1,
    "dataIndex": 1,
    "name": ""
}

        Unhighlight

        The input data of the action is of the object type. The parameters include seriesName (series name), seriesIndex (series index), dataIndex (data index), and name (data name). Sample data:

        {
    "seriesName": "",
    "seriesIndex": 1,
    "dataIndex": 1,
    "name": ""
}

        Display dialog box

        The input data of the action is of the object type. The parameters include dataindex (data index), name (data name), x (x-axis position), and y (y-axis position). Sample data:

        {
    "dataIndex": 1,
    "name": "",
    "x": 1,
    "y": 1
}

        Hide dialog box

        Hide dialog box, no parameters required.

        Legend control

        The input data of the action is of the object type. The parameters include type (legend action type) and name (legend name). Sample data:

        {
    "type": "legendToggleSelect",
    "name": ""
}

        Update component configurations

        Style configurations of widgets are dynamically updated. Before this action is executed, you must click the widget in Canvas Editor, click the Settings tab in the right-side panel, and click Copy Configurations to... to obtain widget configurations. After that, change the style field for the data processing node in Blueprint Editor.

        Display

        Displays the widget. The following example shows the reference data.

        return{
  "animationType": "",
  "animationDuration": 1000,
  "animationEasing": "linear"
}

        Hide

        The following example shows how to hide a widget.

        return{
  "animationType": "",
  "animationDuration": 1000,
  "animationEasing": "linear"
}

        Switch to the implicit state

        Specifies whether to show or hide a widget. The following example shows the reference data.

        return {
  "animationIn": {
    "animationType": "",
    "animationDuration": 1000,
    "animationEasing": "linear"
  },
  "animationOut": {
    "animationType": "",
    "animationDuration": 1000,
    "animationEasing": "linear"
  }
}

        China Mobile

        A widget is moved to a specified location. Examples of reference data are as follows.

            return{
      // The positioning type. to indicates absolute positioning, whereas by indicates relative positioning. The default value is to.
        "positionType": "to",
      // The location, which is indicated by the x and y coordinates.
      "attr": {
        "x": 0,
        "y": 0
      },
      // The animation type.
      "animation": {
        "enable": false,
        // The duration in which animation is displayed.
        "animationDuration": 1000,
        // The animation curve, which can be set to linear|easeInOutQuad|easeInOutExpo.
        "animationEasing": "linear"
      }
    }
