DataV:3D-line-charts

Chart style

A three-dimensional line chart is a type of line chart. Compared with traditional two-dimensional line charts, a three-dimensional line chart displays the changes of different data in the same category in 3D. It intelligently displays the data change trend in three-dimensional effect.

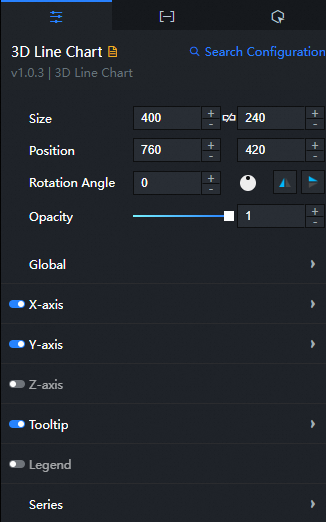

Configuration Panel

• Search Configuration: Click Search Configuration in the upper-right corner of the Configuration panel. In the Search Configuration panel, enter the name of the configuration items that you want to search for to quickly locate the configuration items. Fuzzy match is supported. For more information, see Search for asset configurations.

• Size: indicates the size of a widget, including its pixel width and height. You can click the icon to lock the aspect ratio of the widget and modify the width and height of the widget in equal proportion. After you click this icon again, you can adjust the width and height as needed.
• Position: the position of a widget, which is indicated by pixel X and Y coordinates. X-coordinate indicates the pixel distance between the upper-left corner of the widget and the left border of the canvas. Y-coordinate indicates the pixel distance between the upper-left corner of the widget and the upper border of the canvas.
• Rotation Angle: the angle of a rotation that uses the center point of a widget as the rotation point. The unit is degrees (°). You can use one of the following methods to control the rotation angle of a widget:
  • Directly enter the degrees in the Rotation Angle spin box or click the plus sign (+) or minus sign (-) to increase or decrease the value in the Rotation Angle spin box.
  • Drag the black dot in the icon to control the rotation angle of the widget.
  • Click the icon to flip the widget style.
  • Click the icon to flip the widget style.
• Opacity: Valid values: 0 to 1. If this parameter is set to 0, the widget is hidden. If this parameter is set to 1, the widget is completely displayed. Default value: 1.

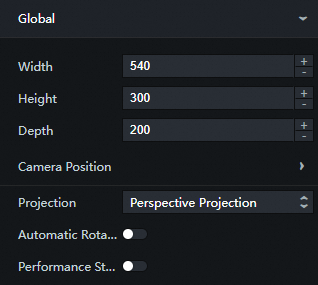

• Global

  Parameter	Description
  Scene Width	The width value under the 3D stereoscopic effect of the component.
  Scene Height	The height value under the 3D stereoscopic effect of the component.
  Scene Depth	The depth value under the 3D stereo effect of the component.
  Camera Position	The camera position contains three parameters: Vertical Direction, Horizontal Direction, and Distance. You can adjust these parameters based on the camera principle to display the 3D line chart in the desired size and orientation. Vertical: the rotation angle of the camera in the vertical direction. Valid values: -90 to 90. Horizontal: the rotation angle of the camera in the horizontal direction. Valid values: -180 to 180. Distance: the distance between the camera and the 3D line chart. The greater the distance, the smaller the line chart displays.
  Projection mode	The projection mode of the 3D scene, including perspective projection and orthographic projection.
  Automatic rotation	If you turn on the switch, the component enables the auto-rotation style. If you turn off the switch, the component disables auto-rotation.
  Rotation speed	The speed at which the widget automatically rotates. This setting takes effect only after the Auto Rotate feature is enabled.
  Performance monitoring	If you turn on the switch, the performance monitoring feature is enabled in the upper-right corner of the widget. If you turn off the switch, the performance monitoring feature is disabled.

• X Axis: Click the icon to display the x-axis.

  • Text: the style of the text along the x-axis.

    Parameter	Description
    Font size	The font size of the text on the x-axis.
    Color	The color of the text on the x-axis.
    Font weight	The font weight of the text on the x-axis.

  • Axis Label: the style of the x-axis label. Click the icon to control the x-axis label style.

    Note

    If the data format and setting formats are not uniform, the widget will be displayed abnormally.

    Parameter	Description
    Data Format	Please refer to %m/%d%Y%H:%M:%S for time-based data format.
    Display Format	Expected data format to be displayed, please refer to %m/%d/%Y%H:%M:%S time, integer reference d, floating point reference .1f.
    Quantity	The number of x-axis labels.
    Label Offset	The up-down displacement distance of the x-axis labels. Unit: px.

  • Axis: the style of the x-axis. You can click the icon to display the x-axis.

    Parameter	Description
    Color	The color of the x axis.
    Transparency	The transparency of the x-axis.
    Width	The width of the x-axis.

  • Tick mark: the style of the tick mark on the x-axis. You can click the icon to show or hide the tick mark on the x-axis.

    Parameter	Description
    Length	The length value of the x-axis tick mark.
    Color	The color of the x-axis tick marks.
    Transparency	The transparency of the x-axis tick marks.
    Width	The width of the x-axis tick mark.

  • Gridlines: the style of the x-axis gridlines. You can click the icon to display or hide the x-axis gridlines.

    Parameter	Description
    Color	The color of the x-axis grid lines.
    Transparency	The transparency of the x-axis scale grid lines.
    Width	The width of the x-axis grid lines.

  • Y-axis: The configuration is similar to that of the x-axis. For more information, see the X-axis section.

  • z-axis: The configuration is similar to that of the x-axis. For more information, see the x-axis section.

• dialog box: The style of the dialog box that appears when you mouse over or click a polyline on a preview or publish page. You can click the icon to control the display of the dialog box.

  • Background Box Style

    Parameter	Description
    Width	The width of the dialog box.
    Height	The height of the dialog box.
    Background color	The background color of the dialog box.
    Interior Margin	The inner margin of the dialog box. Unit: px.
    Horizontal Offset	The horizontal offset of the dialog box relative to the position of the mouse arrow. Unit: px.
    Vertical Offset	The vertical offset of the dialog box relative to the position of the mouse arrow. Unit: px.
    Border Color	The border color of the dialog box.
    Border thickness	The border thickness of the dialog box. Unit: pixels.

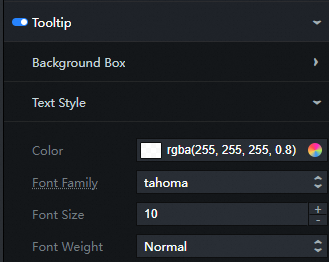

  • Text Style: the style of the text in the dialog box, including the font style, weight, font size, and color.

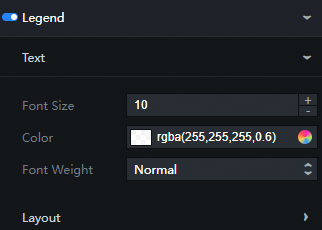

• Legend: the legend style of the chart. You can click the icon to display or hide the legend.

  • Text: Set the font size, font color, and font weight of the legend text. For more information, see color picker description.

  • Layout

    Parameter	Description
    Left Spacing	The distance between the legend and the left side of the widget.
    Top Spacing	The distance between the legend and the top of the component.
    Inner Spacing	The distance between the left and right sides of adjacent legends. This configuration items is only valid when there are multiple series.

• Series

  Click the or icon on the right to add or remove a data series. Click the or icon to configure the arrangement style of multiple data series. Click the icon to copy the selected data series configuration and add a data series with the same configuration.

  Parameter	Description
  Series Name	The name of the data series, which can be customized. If this parameter is empty, the system displays s field values in the component data as series names. If this parameter is not empty, you must ensure the order in which data is returned.
  Color	The color of this data series.
  Transparency	The transparency of this data series.
  Approximate curve	Turn on the switch to turn on the style of this series of lower polylines as approximate curves. Turn off the switch to turn off the style of approximate curves.
  Interpolation factor	The interpolation in this data series is quantity, the more interpolation, the smoother the polyline. This parameter takes effect only after Approximate Curve is enabled.
  Width	The line width of this data series polyline.

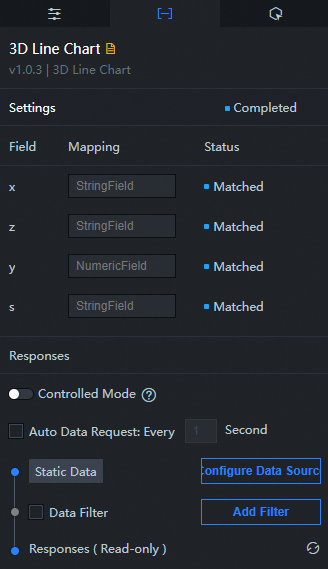

Data tab

Configuration field description

Interaction tab

This widget does not support interaction events.

Configure interactions in Blueprint Editor

1. In Canvas Editor, right-click a widget in the Layer panel and select Add to Blueprint Editor.
2. Click the icon in the upper-left corner.

3. In Blueprint Editor, click the 3D Line Chart widget in the Import Nodes pane. On the canvas, you can configure the parameters for the 3D line chart, as shown in the following figure.

   • Event

     Event	Description
     When the interface description request is completed	The event is triggered with the processed JSON data after a data interface request is responded and processed by a filter. For more information about specific data examples, see the Data Response Result section of the Data tab in the right-side configuration panel of the canvas editor.
     When the interface description request fails	The event that is returned when a data interface request fails (such as network problems or interface errors) and is processed by the filter. The event also throws the processed JSON data. For more information about specific data examples, see the Data Response Result section of the Data tab in the right-side configuration panel of the canvas editor.

   • Action

     Action	Description
     Request API Description	This action is performed to request the server data again. The data sent by an upstream data processing node or layer node is used as a parameter. For example, for a 3D line chart, the API data source is https://api.test, and the data that is transferred to the request interface to describe the action is { id: '1'}. Then, the final request interface is https://api.test?id=1.
     Import Interface Description	After data of a widget is processed in accordance with its drawing format, the widget is imported for redrawing. You do not need to request server data again. For more information about specific data examples, see the Data Response Result section of the Data tab in the right-side configuration panel of the canvas editor.
     Update component configurations	Style configurations of widgets are dynamically updated. Before this action is executed, you must click the widget in Canvas Editor, click the Settings tab in the right-side panel, and click Copy Configurations to... to obtain widget configurations. After that, change the style field for the data processing node in Blueprint Editor.
     Display	Displays the widget. The following example shows the reference data. return{ "animationType": "", "animationDuration": 1000, "animationEasing": "linear" }
     Hide	The following example shows how to hide a widget. return{ "animationType": "", "animationDuration": 1000, "animationEasing": "linear" }
     Switch to the implicit state	Specifies whether to show or hide a widget. The following example shows the reference data. return { "animationIn": { "animationType": "", "animationDuration": 1000, "animationEasing": "linear" }, "animationOut": { "animationType": "", "animationDuration": 1000, "animationEasing": "linear" } }
     China Mobile	A widget is moved to a specified location. Examples of reference data are as follows. return{ // The positioning type. to indicates absolute positioning, whereas by indicates relative positioning. The default value is to. "positionType": "to", // The location, which is indicated by the x and y coordinates. "attr": { "x": 0, "y": 0 }, // The animation type. "animation": { "enable": false, // The duration in which animation is displayed. "animationDuration": 1000, // The animation curve, which can be set to linear|easeInOutQuad|easeInOutExpo. "animationEasing": "linear" } }
