Container Compute Service:Use RRSA to authorize different pods to access different cloud services

How it works

When an application in a pod needs to call a cloud service API, the following sequence occurs:

1. ACS mounts an OpenID Connect (OIDC) token file into the pod using service account token volume projection. ACS clusters have this feature enabled by default.

2. The application uses the OIDC token to call the STS AssumeRoleWithOIDC API operation and get a temporary Security Token Service (STS) token for the associated RAM role.

3. The application uses the STS token to call the target cloud service API.

For this to work, the RAM role's trust policy must authorize the specific service account to assume it. The service account is identified by the oidc:sub condition in the trust policy, using the format system:serviceaccount:<namespace>:<serviceAccountName>.

Prerequisites

Before you begin, ensure that you have:

• An ACS cluster

• Access to the RAM console with permissions to create and modify RAM roles

Enable RRSA

1. Log on to the ACS console. In the left navigation pane, click Clusters.

2. Click the name of the target cluster. In the left navigation pane, choose Cluster Information.

3. On the Basic Information tab, find the Security and Auditing section and click Enable next to RRSA OIDC.

4. In the confirmation dialog, click Confirm.

   Enabling RRSA takes 2 to 3 minutes. If Cluster Status stays on Updating, click the refresh icon in the upper-right corner to reload the page. When the status changes to Running, RRSA is enabled. Hover over Enabled next to RRSA OIDC to view the OIDC provider URL and ARN — you will need these in the next steps.

After RRSA is enabled, ACS automatically creates a dedicated OIDC issuer for the cluster and registers an identity provider named ack-rrsa-<cluster_id> in your Alibaba Cloud account. The identity provider uses the OIDC issuer for single sign-on (SSO).

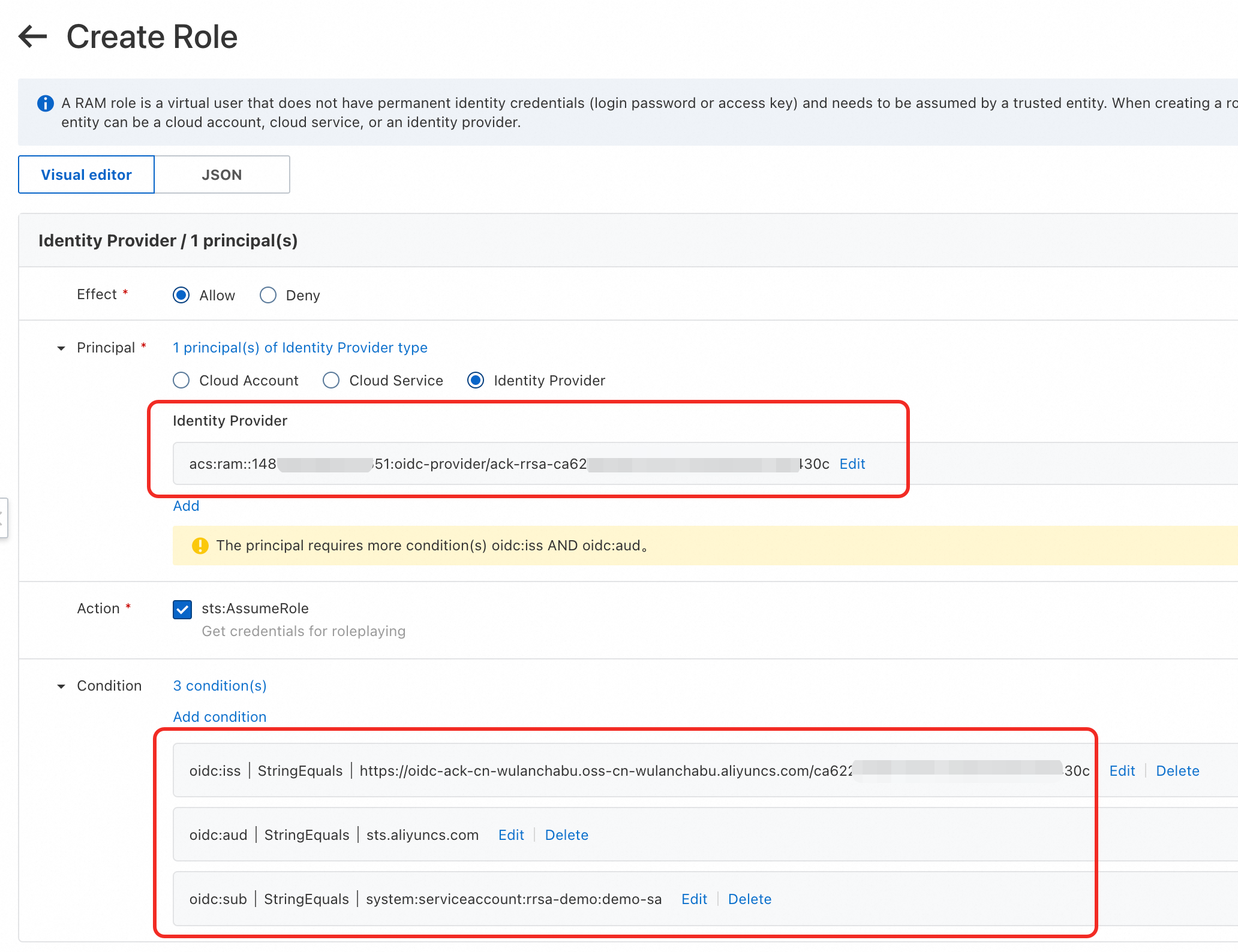

Configure a RAM role

Each unique permission set requires one RAM role. Choose one of the following options based on whether you are creating a new role or updating an existing one.

{
  "Action": "sts:AssumeRole",
  "Condition": {
    "StringEquals": {
      "oidc:aud": "sts.aliyuncs.com",
      "oidc:iss": "<oidc_issuer_url>",
      "oidc:sub": "system:serviceaccount:<namespace>:<service_account>"
    }
  },
  "Effect": "Allow",
  "Principal": {
    "Federated": [
      "<oidc_provider_arn>"
    ]
  }
}

Deploy the application

1. Create a file named demo.yaml with the following content. Replace the placeholders before applying:

   • <role_arn>: the ARN of the RAM role. Find it on the Basic Information tab in the RAM console.

   • <oid_provider_arn>: the OIDC provider ARN. Hover over Enabled next to RRSA OIDC on the Basic Information tab of the Cluster Information page.

   ---
   apiVersion: v1
   kind: Namespace
   metadata:
     name: rrsa-demo
   ---
   apiVersion: v1
   kind: ServiceAccount
   metadata:
     name: demo-sa
     namespace: rrsa-demo
   ---
   apiVersion: v1
   kind: Pod
   metadata:
     name: demo
     namespace: rrsa-demo
   spec:
     containers:
     - args:
       - rrsa
       - demo
       env:
       - name: ALIBABA_CLOUD_ROLE_ARN
         value: <role_arn>
       - name: ALIBABA_CLOUD_OIDC_PROVIDER_ARN
         value: <oid_provider_arn>
       - name: ALIBABA_CLOUD_OIDC_TOKEN_FILE
         value: /var/run/secrets/ack.alibabacloud.com/rrsa-tokens/token
       image: registry.cn-hangzhou.aliyuncs.com/acs/ack-ram-tool:1.0.0
       imagePullPolicy: Always
       name: demo
       volumeMounts:
       - mountPath: /var/run/secrets/ack.alibabacloud.com/rrsa-tokens
         name: rrsa-oidc-token
         readOnly: true
     restartPolicy: OnFailure
     serviceAccount: demo-sa
     serviceAccountName: demo-sa
     volumes:
     - name: rrsa-oidc-token
       projected:
         defaultMode: 420
         sources:
         - serviceAccountToken:
             audience: sts.aliyuncs.com
             expirationSeconds: 3600  # Unit: seconds. Valid values: 600 (10 minutes) to 43200 (12 hours).
             path: token

   The three environment variables configure authentication for the application:

   Environment variable	Description
   ALIBABA_CLOUD_ROLE_ARN	ARN of the RAM role to assume
   ALIBABA_CLOUD_OIDC_PROVIDER_ARN	ARN of the OIDC identity provider registered by ACS
   ALIBABA_CLOUD_OIDC_TOKEN_FILE	Path to the OIDC token file mounted by ACS

2. Apply the manifest:

   kubectl apply -f demo.yaml

   The application uses the OIDC token and the two ARNs to call the STS AssumeRoleWithOIDC API operation, get a temporary STS token for the RAM role, and then call cloud service APIs with that token. For details, see AssumeRoleWithOIDC.

Verify

Print the application log to confirm it can list clusters:

kubectl -n rrsa-demo logs demo

Expected output:

20**/**/** 08:35:23 ======= [begin] list ACK clusters with RRSA =======
clusters:
cluster id: cf***, cluster name: foo*
cluster id: c8***, cluster name: bar*
cluster id: c4***, cluster name: foob*
20**/**/** 08:35:24 ======= [end]   list ACK clusters with RRSA =======

Optional: test permission revocation

To verify that RRSA enforces access control, detach the AliyunCSReadOnlyAccess policy from the role. For details, see Remove permissions from a RAM role.

Wait 30 seconds, then print the log again:

kubectl -n rrsa-demo logs demo

The 403 error confirms that the permission change took effect:

20**/**/** 10:09:33 ======= [begin] list ACK clusters with RRSA =======
20**/**/** 10:09:33 SDKError:
   StatusCode: 403
   Code: StatusForbidden
   Message: code: 403, STSToken policy Forbidden for action cs:DescribeClusters request id: XXXX
   Data: {"accessDeniedDetail":{"AuthAction":"cs:DescribeClusters","AuthPrincipalDisplayName":"demo-role-for-rrsa:ack-ram-tool","AuthPrincipalOwnerId":"XXXX","AuthPrincipalType":"AssumedRoleUser","EncodedDiagnosticMessage":"XXXX","NoPermissionType":"ImplicitDeny","PolicyType":"ResourceGroupLevelIdentityBasedPolicy"},"code":"StatusForbidden","message":"STSToken policy Forbidden for action cs:DescribeClusters","requestId":"XXXX","status":403,"statusCode":403}

What's next

Some Alibaba Cloud SDKs support OIDC-based authentication natively, so your application can call cloud service APIs without manually managing STS tokens. The following SDK versions support RRSA:

For the STS API reference, see AssumeRoleWithOIDC.
