Use an AliyunLogConfig to collect application logs - Container Compute Service

Container Compute Service (ACS) is integrated with Simple Log Service (SLS). When you create an ACS cluster, you can enable SLS. SLS can collect log data from containers in the ACS cluster. The log data includes stdout and text files. This topic describes how to collect application logs from an ACS cluster by using a type of custom resource named AliyunLogConfig, which can be defined by using a CustomResourceDefinition (CRD).

Step 1: Install the alibaba-log-controller component

When you create an ACS cluster, you can select Enable Log Service to install the alibaba-log-controller component. If this check box is not selected during creation, you can also perform the following steps to install the alibaba-log-controller component after the cluster is created.

Log on to the ACS console. In the left-side navigation pane, click Clusters.
On the Clusters page, find the cluster that you want to manage and click its ID. In the left-side navigation pane of the cluster details page, choose Operations > Add-ons.
Find alibaba-log-controller in the Logs and Monitoring section. Click Install. In the Install alibaba-log-controller dialog box, click OK.

Important

If an earlier version of the alibaba-log-controller component is installed, you can update it. After the alibaba-log-controller component is updated, the component parameters are reset. The settings and environment variables of alibaba-log-controller will be overwritten. If you have customized the settings and environment variables, you need to reconfigure them.

Step 2: Create an AliyunLogConfig CRD to configure log collection

You can use an AliyunLogConfig to collect stdout and text logs from an application. In the left-side navigation pane of the cluster details page, choose Custom Resources > CRDs > Create from YAML to create an AliyunLogConfig. Configure the parameters of the AliyunLogConfig. The following table describes the parameters.

Parameter	Description	Example
`.metadata.name`	The name of the AliyunLogConfig. The name must be unique in the ACS cluster.	test-stdout
`.spec.project`	The name of the SLS project that you want to use. This parameter is optional. You can specify a custom name. We recommend that you specify the project name in the `k8s-log-<ACS cluster ID>` format.	k8s-log-c326bc86****
`.spec.logstore`	The name of the Logstore that you want to use. This parameter is required. If the Logstore that you specify does not exist, SLS automatically creates a Logstore with the specified name.	test-stdout
`.spec.logtailConfig.inputType`	The type of the source data that you want to collect. A value of `file` indicates text logs. A value of `plugin` indicates stdout.	plugin
`.spec.logtailConfig.configName`	The name of the Logtail configuration. The name must be the same as the value of `metadata.name`.	test-stdout
`.spec.logtailConfig.inputDetail`	The details of the Logtail configuration. The Logtail configuration specifies how to collect stdout and text logs.	`plugin: inputs: - type: service_docker_stdout detail: Stdout: true Stderr: true` The sample settings indicate that `stdout` and `stderr` are collected.
`.spec.logtailConfig.inputDetail.advanced`	The extended settings for Logtail. The following `K8s`-related extended settings are included: `K8sNamespaceRegex`: filters pods by namespace. You can specify a regular expression. `K8sContainerRegex`: filters containers by container name. You can specify a regular expression. `K8sPodRegex`: filters pods by pod name. You can specify a regular expression. `IncludeK8sLabel`: filters pods by label.	`k8s: K8sNamespaceRegex: ^(default)$ K8sContainerRegex: ^(busybox)$ K8sPodRegex: ^backend.+$ IncludeK8sLabel: app: backend application: prod` The sample settings indicate that container logs that match the following conditions are collected: The pod belongs to the `default` namespace. The pod name is prefixed with `backend`. The container name is prefixed with `busybox`. The pod has the `app: backend` and `application: prod` labels.

For more information about Logtail parameters, see Logtail configurations.

Scenario 1: Collect stdout from specific applications

To collect stdout and stderr from specific pods or containers, add filtering conditions to the detail field of the logtailConfig section in the AliyunLogConfig configurations. After you deploy the AliyunLogConfig in your cluster, you can collect stdout and stderr from the pods or containers that match the filtering conditions.

apiVersion: log.alibabacloud.com/v1alpha1
kind: AliyunLogConfig
metadata:
  name: test-stdout
spec:
  project: k8s-log-c326bc86****    # Replace the value with the actual project name.
  logstore: test-stdout
  shardCount: 2
  lifeCycle: 90
  logtailConfig:
    inputType: plugin
    configName: test-stdout
    inputDetail:
      plugin:
        inputs:
          - type: service_docker_stdout
            detail:
              Stdout: true
              Stderr: true
              K8sNamespaceRegex: ^(default)$
              K8sContainerRegex: ^(busybox)$
              K8sPodRegex: ^backend.+$
              IncludeK8sLabel:
                app: backend
                application: prod

Scenario 2: Collect text logs from specific applications

To collect text logs from specific pods or containers, add filtering conditions to the advanced field of the logtailConfig section in the AliyunLogConfig configurations. After you deploy the AliyunLogConfig in your cluster, you can collect text logs from the pods or containers that match the filtering conditions.

apiVersion: log.alibabacloud.com/v1alpha1
kind: AliyunLogConfig
metadata:
  name: test-file
spec:
  project: k8s-log-c326bc86****    # Replace the value with the actual project name.
  logstore: test-file
  logtailConfig:
    inputType: file
    configName: test-file
    inputDetail:
      logType: common_reg_log
      logPath: /log/
      filePattern: "*.log"
      dockerFile: true
      advanced:
        k8s:
          K8sNamespaceRegex: ^(default)$
          K8sContainerRegex: ^(busybox)$
          K8sPodRegex: ^backend.+$
          IncludeK8sLabel:
            app: backend
            application: prod

Note

The files for the AliyunLogConfigs in the preceding scenarios are named test-stdout and test-file. After you create the files, you can perform Step 4: View logs in the SLS console to check whether the specified Logstore is created. If the specified Logstore is not created, review the Logtail configurations and modify the relevant parameters.

Step 3: Create an application

After you create the AliyunLogConfig CRD, Simple Log Service automatically collects logs of pods that are created later. You can create the following application to test log collection.

In this example, a Deployment is created. The following YAML file provides an example. The system runs relevant commands after the container is started. stdout and text logs of the container are continuously printed.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: backend-busybox
  labels:
    app: backend
    application: prod
spec:
  replicas: 1
  selector:
    matchLabels:
      app: backend
      application: prod
  template:
    metadata:
      name: backend-busybox
      labels:
        app: backend
        application: prod
    spec:
      containers:
      - args:
        - -c
        - mkdir -p /log; while true; do echo hello world; date; echo hello sls >> /log/busybox.log; sleep 1; done
        command:
        - /bin/sh
        image: registry-cn-hangzhou.ack.aliyuncs.com/ack-demo/busybox:1.28
        imagePullPolicy: Always
        name: busybox

Step 4: View logs by using the SLS console

The logs of the test application are stored in SLS. You can log on to the SLS console to view logs collected from the containers of the application.

Log on to the Simple Log Service console.
In the Projects section, find the project corresponding to the ACS cluster (default: k8s-log-{ACS cluster ID}), and click the project name to go to the Logstore tab.

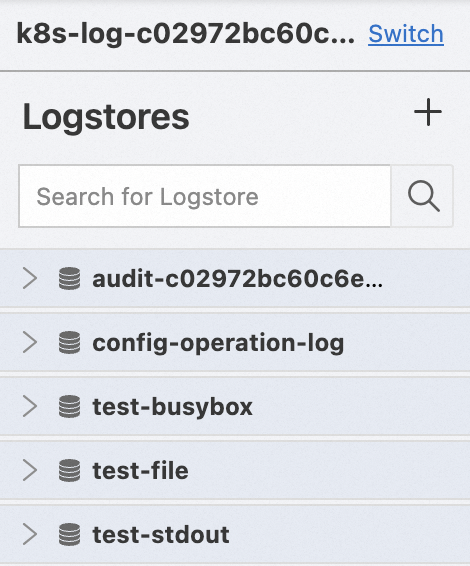

In the Logstores list, click the name of the Logstore that you specified in the log collection configuration. On the page that appears, view the logs.

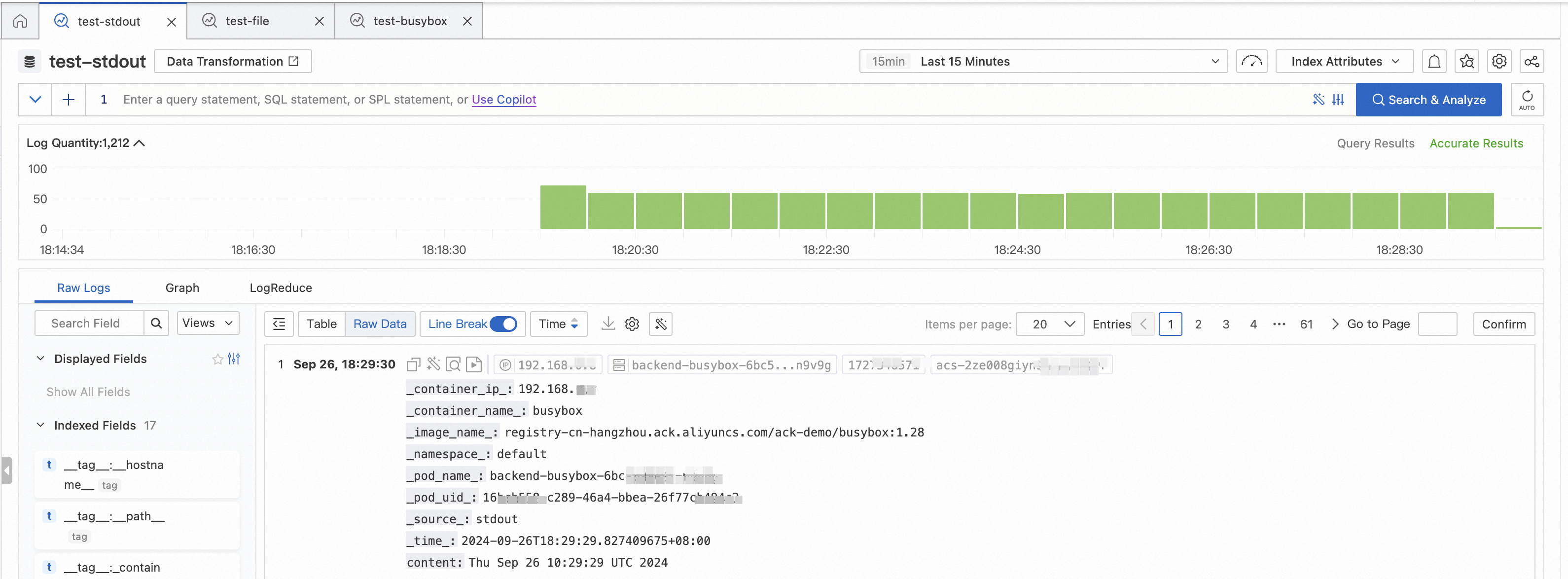

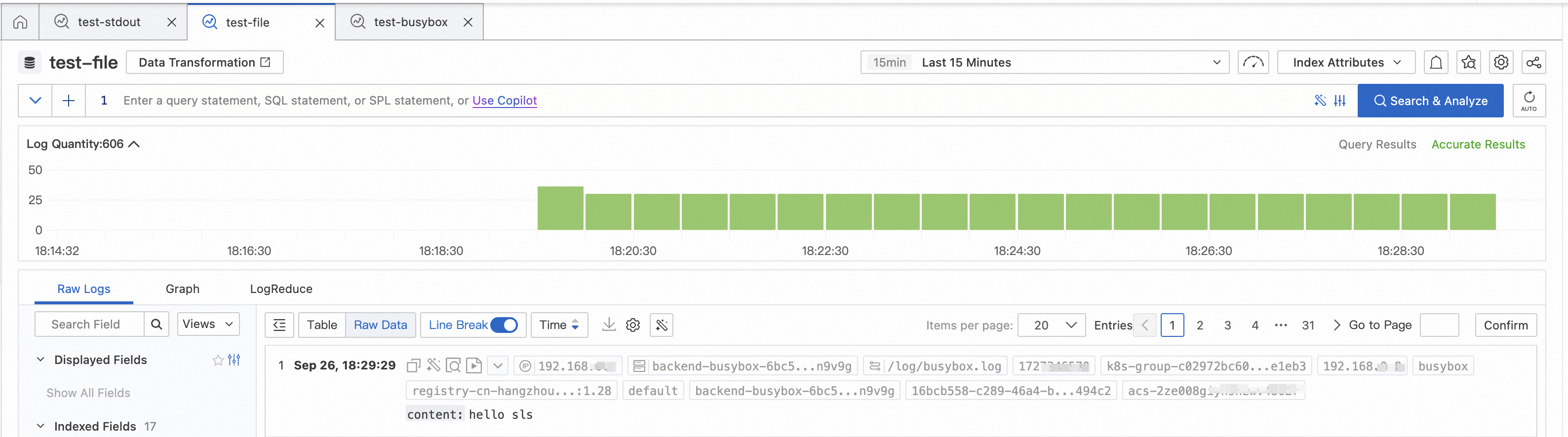

In this example, you can view the stdout (test-stdout) and text logs (test-file) inside the container of the application on the log query page.

References

For more information about how to troubleshoot log collection errors, see What do I do if errors occur when I use Logtail to collect logs?
