This topic describes how to use the ARMS agent for Go and Service Mesh (ASM) to implement end-to-end canary release and real-time monitoring for Go applications.

Sample applications

Architecture

YAML files of the sample applications:

Note

All the sample applications are deployed in the go-gray namespace.

Entry application

apiVersion: apps/v1
kind: Deployment
metadata:
  name: requestsender
  namespace: go-gray
spec:
  replicas: 1
  selector:
    matchLabels:
      app: requestsender
  template:
    metadata:
      labels:
        app: requestsender
        ASM_TRAFFIC_TAG: v1
        version: v1
        armsPilotCreateAppName: requestsender
        armsPilotAutoEnable: 'on'
        aliyun.com/app-language: golang
    spec:
      containers:
        - name: requestsender
          image: registry.cn-hangzhou.aliyuncs.com/private-mesh/hellob:requestsender-demo
          imagePullPolicy: Always
          ports:
            - containerPort: 8080

---
apiVersion: v1
kind: Service
metadata:
  name: requestsender
  namespace: go-gray
spec:
  selector:
    app: requestsender
  ports:
    - protocol: TCP
      port: 80
      targetPort: 8080
  type: ClusterIP

Application A

apiVersion: apps/v1
kind: Deployment
metadata:
  name: go-demo-a-base
  namespace: go-gray
spec:
  replicas: 1
  selector:
    matchLabels:
      app: go-demo-a
  template:
    metadata:
      labels:
        app: go-demo-a
        armsPilotAutoEnable: "on"
        ASM_TRAFFIC_TAG: v1
        version: v1
        armsPilotCreateAppName: "go-demo-a"
        aliyun.com/app-language: golang
    spec:
      containers:
        - name: go-demo-a
          image: registry.cn-hangzhou.aliyuncs.com/private-mesh/hellob:a-demo
          imagePullPolicy: Always
          ports:
            - containerPort: 8080
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: go-demo-a-gray
  namespace: go-gray
spec:
  replicas: 1
  selector:
    matchLabels:
      app: go-demo-a
  template:
    metadata:
      labels:
        app: go-demo-a
        ASM_TRAFFIC_TAG: v2
        version: v2
        armsPilotCreateAppName: go-demo-a
        armsPilotAutoEnable: 'on'
        aliyun.com/app-language: golang
    spec:
      containers:
        - name: go-demo-a-base
          image: registry.cn-hangzhou.aliyuncs.com/private-mesh/hellob:a-demo-gray
          imagePullPolicy: Always
          ports:
            - containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
  name: go-demo-a
  namespace: go-gray
spec:
  selector:
    app: go-demo-a
  ports:
    - protocol: TCP
      port: 80
      targetPort: 8080
  type: ClusterIP

Application B

apiVersion: apps/v1
kind: Deployment
metadata:
  name: go-demo-b-base
  namespace: go-gray
spec:
  replicas: 1
  selector:
    matchLabels:
      app: go-demo-b
  template:
    metadata:
      labels:
        app: go-demo-b
        ASM_TRAFFIC_TAG: v1
        version: v1
        armsPilotCreateAppName: go-demo-b
        armsPilotAutoEnable: 'on'
        aliyun.com/app-language: golang
    spec:
      containers:
        - name: go-demo-b
          image: registry.cn-hangzhou.aliyuncs.com/private-mesh/hellob:b-demo
          imagePullPolicy: Always
          ports:
            - containerPort: 8080
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: go-demo-b-gray
  namespace: go-gray
spec:
  replicas: 1
  selector:
    matchLabels:
      app: go-demo-b
  template:
    metadata:
      labels:
        app: go-demo-b
        ASM_TRAFFIC_TAG: v2
        version: v2
        armsPilotCreateAppName: go-demo-b
        armsPilotAutoEnable: 'on'
        aliyun.com/app-language: golang
    spec:
      containers:
        - name: go-demo-b
          image: registry.cn-hangzhou.aliyuncs.com/private-mesh/hellob:b-demo-gray
          imagePullPolicy: Always
          ports:
            - containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
  name: go-demo-b
  namespace: go-gray
spec:
  selector:
    app: go-demo-b
  ports:
    - protocol: TCP
      port: 80
      targetPort: 8080
  type: ClusterIP

Application C

apiVersion: apps/v1
kind: Deployment
metadata:
  name: go-demo-c-base
  namespace: go-gray
spec:
  replicas: 1
  selector:
    matchLabels:
      app: go-demo-c
  template:
    metadata:
      labels:
        app: go-demo-c
        ASM_TRAFFIC_TAG: v1
        version: v1
        armsPilotCreateAppName: go-demo-c
        armsPilotAutoEnable: 'on'
        aliyun.com/app-language: golang
    spec:
      containers:
        - name: go-demo-c
          image: registry.cn-hangzhou.aliyuncs.com/private-mesh/hellob:c-demo
          imagePullPolicy: Always
          ports:
            - containerPort: 8080
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: go-demo-c-gray
  namespace: go-gray
spec:
  replicas: 1
  selector:
    matchLabels:
      app: go-demo-c
  template:
    metadata:
      labels:
        app: go-demo-c
        ASM_TRAFFIC_TAG: v2
        version: v2
        armsPilotCreateAppName: go-demo-c
        armsPilotAutoEnable: 'on'
        aliyun.com/app-language: golang
    spec:
      containers:
        - name: go-demo-c
          image: registry.cn-hangzhou.aliyuncs.com/private-mesh/hellob:c-demo-gray
          imagePullPolicy: Always
          ports:
            - containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
  name: go-demo-c
  namespace: go-gray
spec:
  selector:
    app: go-demo-c
  ports:
    - protocol: TCP
      port: 80
      targetPort: 8080
  type: ClusterIP

Use the ARMS agent to monitor the applications

You can use the ARMS agent for Go to integrate the applications into Application Monitoring so that you can view the application topology, interface calls, and database analysis in ARMS.

ACK cluster: Install an ARMS agent for a Go application deployed in ACK or ACS
Self-managed cluster: Automatically install an ARMS agent for Go in a Kubernetes cluster

Use ASM for end-to-end canary release

Create an ASM instance and add a cluster to it.
Create an ingress gateway.

Use the following YAML file to create an Istio gateway named ingressgateway in the istio-system namespace. For more information, see Manage Istio gateways.

View the YAML file

apiVersion: networking.istio.io/v1beta1
kind: Gateway
metadata:
  name: ingressgateway
  namespace: istio-system
spec:
  selector:
    istio: ingressgateway
  servers:
    - port:
        number: 80
        name: http
        protocol: HTTP
      hosts:
        - '*'

Inject sidecar proxies into the applications and restart the applications. For more information, see Install a sidecar proxy.
Enable tracing.
1. Create a namespace named opentelemetry-operator-system.
```
kubectl create namespace opentelemetry-operator-system
```
2. Create a tracing service.
```
apiVersion: v1
kind: Service
metadata:
  name: default-collector
  namespace: opentelemetry-operator-system
spec:
  ports:
    - port: 4317
      protocol: TCP
      targetPort: 4317
  selector:
    app: default-collector
  sessionAffinity: None
  type: ClusterIP
```

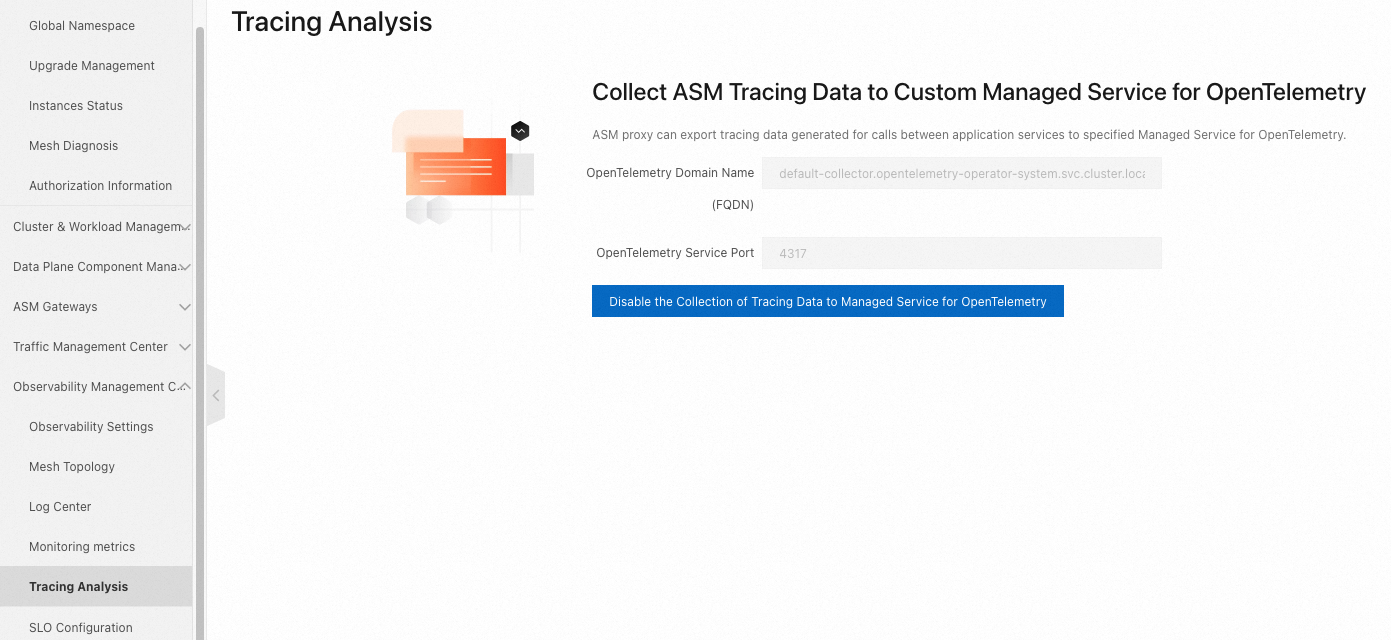

3. Enable tracing in the ASM console.
  - OpenTelemetry FQDN: default-collector.opentelemetry-operator-system.svc.cluster.local
  - OpenTelemetry port: 4317

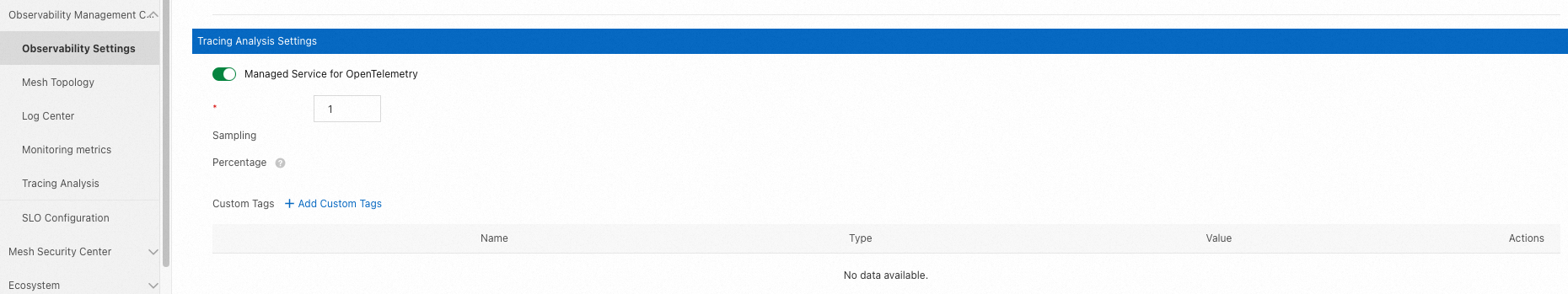

4. In the Tracing Analysis Settings section of the Observability Settings page, enable tracing and configure the sample rate based on your needs.

Create lanes.

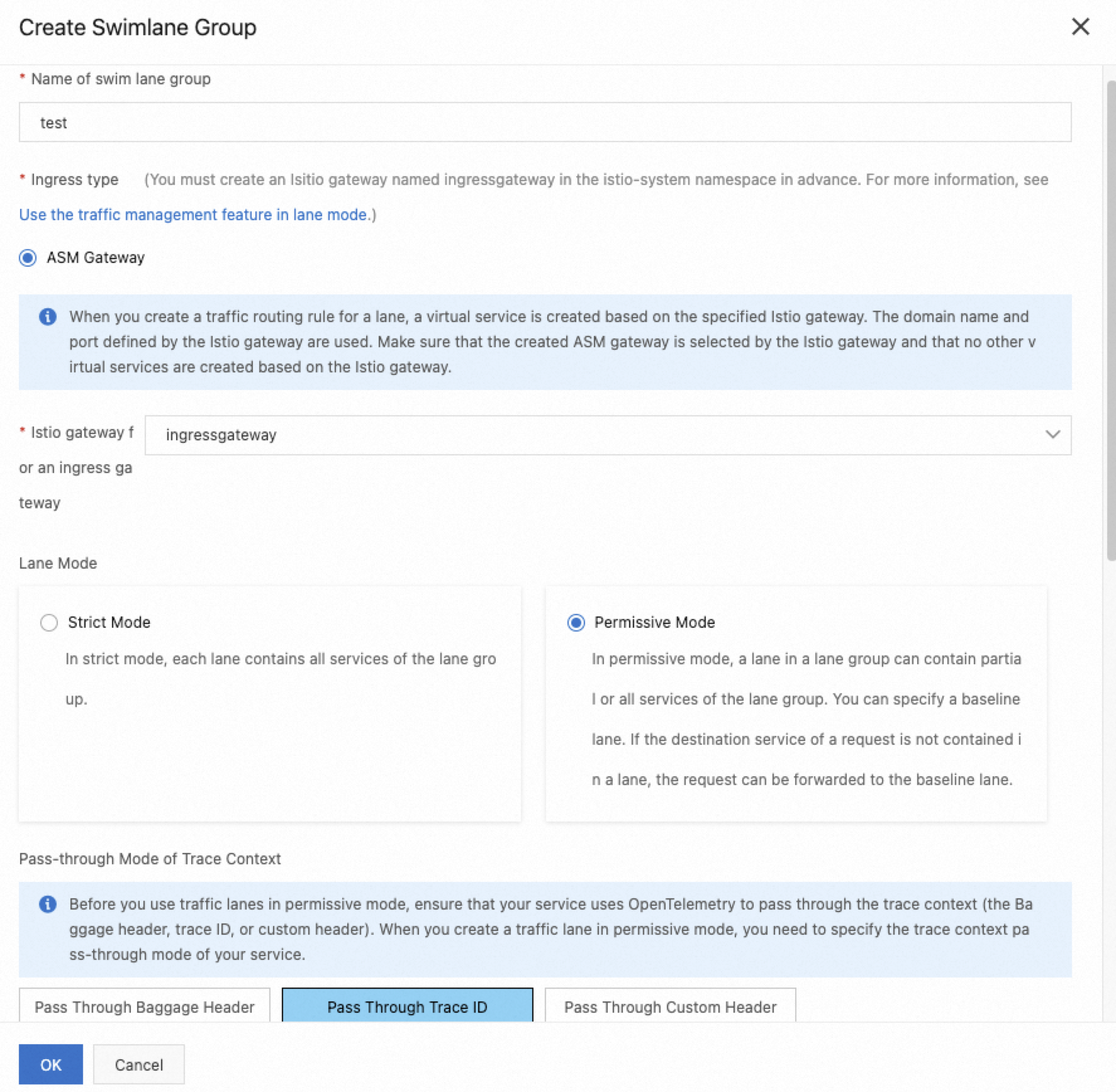

Create a lane group named test.
Parameter
Sample value
Trace ID Request Header
traceparent
Routing Request Header
x-asm-prefer-tag
Swimlane Services
requestsender, go-demo-a, go-demo-b, and go-demo-c

Create two lanes named v1 and v2.

Parameter	Sample value
Swimlane Name	v1 and v2
Configure Service Tag	Label Key: ASM_TRAFFIC_TAG Label Value: v1 and v2
Add Service	v1: requestsender, go-demo-a, go-demo-b, and go-demo-c v2: go-demo-a and go-demo-c

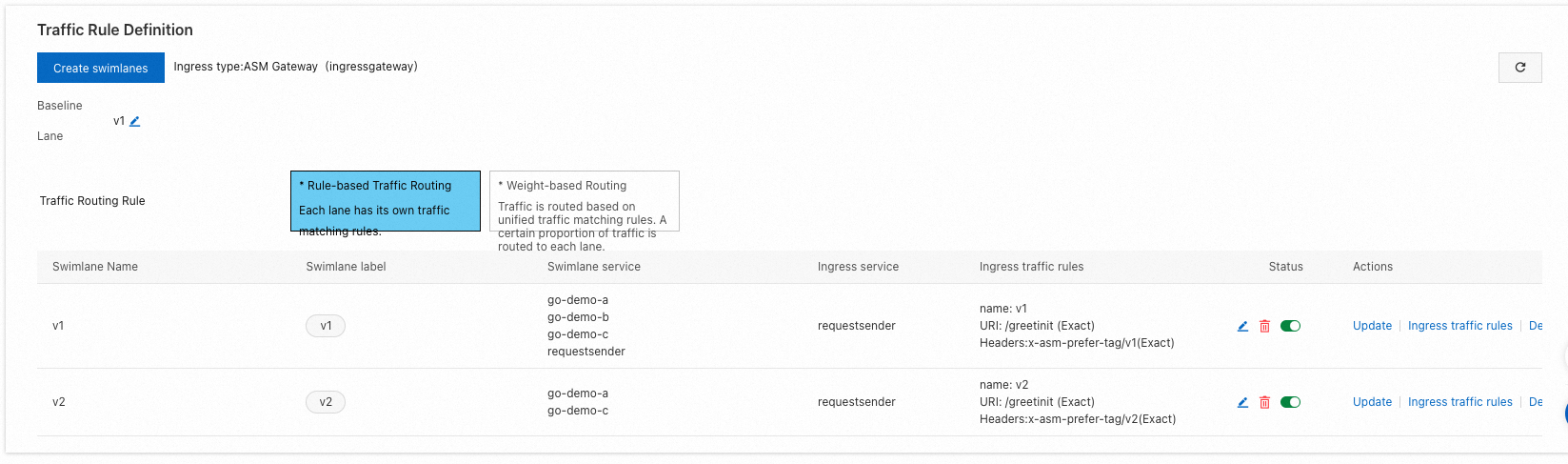

Configure request routing rules for v1 and v2.
Parameter
Sample value
Ingress service
requestsender.go-gray.svc.cluster.local
Ingress traffic rules
Name: v1 and v2
Domain Name: *
Matching Method: Exact
Content: /greetinit
Result

Verify the result

In the left-side navigation pane of the ARMS console, choose ASM Gateway > Ingress Gateway and obtain the public IP address of the ingress gateway.
Run the following command to configure an environment variable.
xxx.xxx.xxx.xxx is the IP address obtained in the preceding step.
```
export ASM_GATEWAY_IP=xxx.xxx.xxx.xxx
```

Check whether the end-to-end canary release takes effect.

Baseline:

for i in {1..100};  do curl   -H 'x-asm-prefer-tag: v1' http://${ASM_GATEWAY_IP}/greetinit;  echo ''; sleep 1; done;

Expected output:

{"code":0,"data":{"greeting":"Hello ","callChain":"Init:base:172.30.208.29 - A:base:172.30.208.114 - B:base:172.30.208.116 - C:base:172.30.208.120"},"message":"success"}
{"code":0,"data":{"greeting":"Hello ","callChain":"Init:base:172.30.208.29 - A:base:172.30.208.114 - B:base:172.30.208.116 - C:base:172.30.208.120"},"message":"success"}

Canary release:

for i in {1..100};  do curl   -H 'x-asm-prefer-tag: v2' http://${ASM_GATEWAY_IP}/greetinit;  echo ''; sleep 1; done;

Expected output:

{"code":0,"data":{"greeting":"Hello ","callChain":"Init:base:172.30.208.29 - A:gray:172.30.208.115 - B:base:172.30.208.116 - C:gray:172.30.208.122"},"message":"success"}
{"code":0,"data":{"greeting":"Hello ","callChain":"Init:base:172.30.208.29 - A:gray:172.30.208.115 - B:base:172.30.208.116 - C:gray:172.30.208.122"},"message":"success"}

View the monitoring data

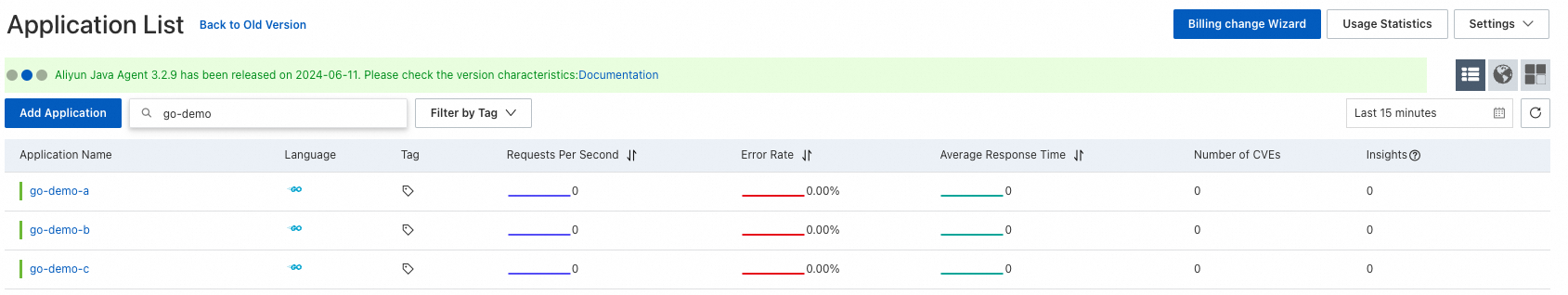

Log on to the ARMS console. In the left-side navigation pane, choose Application Monitoring > Applications. On the Applications page, view the applications.

Parameter	Sample value
Trace ID Request Header	traceparent
Routing Request Header	x-asm-prefer-tag
Swimlane Services	requestsender, go-demo-a, go-demo-b, and go-demo-c
