Cloud Firewall:Create a VPC firewall for CEN (Enterprise Edition) using Terraform

Terraform environment options

Choose one of the following methods to set up your Terraform environment:

• Terraform Explorer (recommended for quick testing): An online runtime environment provided by Alibaba Cloud. No local installation required. For more information, see Use Terraform in Terraform Explorer.

• Cloud Shell: Terraform is preinstalled with identity credentials already configured. For more information, see Use Terraform in Cloud Shell.

• Local installation: Install Terraform on your on-premises machine. For more information, see Install and configure Terraform in the local PC.

Required RAM policy

The following custom policy grants the minimum Cloud Firewall permissions. Attach this policy alongside AliyunBSSFullAccess to your RAM user. The AliyunBSSFullAccess policy grants full permissions on the Alibaba Cloud Transactions and Bills Management OpenAPI (BSS OpenAPI).

{
    "Version": "1",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "yundun-cloudfirewall:CreateVpcFirewallCenConfigure",
                "yundun-cloudfirewall:CreateVpcFirewallCenManualConfigure",
                "yundun-cloudfirewall:ModifyVpcFirewallCenConfigure",
                "yundun-cloudfirewall:ModifyVpcFirewallCenSwitchStatus",
                "yundun-cloudfirewall:DeleteVpcFirewallCenConfigure",
                "yundun-cloudfirewall:DescribeVpcFirewallCenDetail",
                "yundun-cloudfirewall:DescribeVpcFirewallCenList"
            ],
            "Resource": "*"
        }
    ]
}

Variables reference

The following table lists the configurable variables used in the configuration. Adjust these values for your environment.

Configuration

Create a working directory and add a file named main.tf with the following content:

# -------------------------------------------
# Provider and version constraints
# -------------------------------------------
terraform {
  required_providers {
    alicloud = {
      source  = "aliyun/alicloud"
      version = "~> 1.238"
    }
    time = {
      source  = "hashicorp/time"
      version = "~> 0.12"
    }
  }
}

# -------------------------------------------
# Variables
# -------------------------------------------
variable "name" {
  type        = string
  default     = "terraform-example"
  description = "Name used for CEN, transit router, VPC, vSwitches, and route table"
}

variable "description" {
  type        = string
  default     = "Created by Terraform"
  description = "General description for resources"
}

variable "firewall_name" {
  type        = string
  default     = "tf-example"
  description = "Name for the VPC firewall"
}

variable "firewall_name_update" {
  type        = string
  default     = "tf-example-1"
  description = "Updated name for the VPC firewall (used when modifying)"
}

variable "region" {
  type        = string
  default     = "cn-hangzhou"
  description = "Region for the VPC firewall"
}

variable "firewall_vpc_cidr" {
  type        = string
  default     = "192.168.3.0/24"
  description = "CIDR block for the firewall VPC"
}

variable "firewall_subnet_cidr" {
  type        = string
  default     = "192.168.3.0/25"
  description = "Subnet CIDR block within the firewall VPC"
}

variable "tr_attachment_master_cidr" {
  type        = string
  default     = "192.168.3.192/26"
  description = "CIDR block for the transit router attachment in the primary zone"
}

variable "tr_attachment_slave_cidr" {
  type        = string
  default     = "192.168.3.128/26"
  description = "CIDR block for the transit router attachment in the secondary zone"
}

variable "zone1" {
  type        = string
  default     = "cn-hangzhou-h"
  description = "Primary availability zone"
}

variable "zone2" {
  type        = string
  default     = "cn-hangzhou-i"
  description = "Secondary availability zone"
}

# -------------------------------------------
# Provider
# -------------------------------------------
provider "alicloud" {
  region = "cn-hangzhou"
}

# -------------------------------------------
# Data sources
# -------------------------------------------
data "alicloud_cen_transit_router_available_resources" "default" {
}

data "alicloud_zones" "default" {
  available_resource_creation = "VSwitch"
}

# -------------------------------------------
# CEN and transit router
# -------------------------------------------
resource "alicloud_cen_instance" "cen" {
  description       = "terraform example"
  cen_instance_name = var.name
}

resource "alicloud_cen_transit_router" "tr" {
  transit_router_name        = var.name
  transit_router_description = "tr-created-by-terraform"
  cen_id                     = alicloud_cen_instance.cen.id
}

# -------------------------------------------
# VPC, vSwitches, and route table
# -------------------------------------------
resource "alicloud_vpc" "vpc1" {
  description = "created by terraform"
  cidr_block  = "192.168.1.0/24"
  vpc_name    = var.name
}

resource "alicloud_vswitch" "vpc1vsw1" {
  cidr_block   = "192.168.1.0/25"
  vswitch_name = var.name
  vpc_id       = alicloud_vpc.vpc1.id
  zone_id      = data.alicloud_cen_transit_router_available_resources.default.resources[0].master_zones[1]
}

resource "alicloud_vswitch" "vpc1vsw2" {
  vpc_id       = alicloud_vpc.vpc1.id
  cidr_block   = "192.168.1.128/26"
  vswitch_name = var.name
  zone_id      = data.alicloud_cen_transit_router_available_resources.default.resources[0].master_zones[2]
}

resource "alicloud_route_table" "foo" {
  vpc_id           = alicloud_vpc.vpc1.id
  route_table_name = var.name
  description      = var.name
}

# -------------------------------------------
# Transit router VPC attachment
# -------------------------------------------
resource "alicloud_cen_transit_router_vpc_attachment" "tr-vpc1" {
  zone_mappings {
    vswitch_id = alicloud_vswitch.vpc1vsw1.id
    zone_id    = data.alicloud_cen_transit_router_available_resources.default.resources[0].master_zones[1]
  }
  zone_mappings {
    zone_id    = data.alicloud_cen_transit_router_available_resources.default.resources[0].master_zones[2]
    vswitch_id = alicloud_vswitch.vpc1vsw2.id
  }
  vpc_id            = alicloud_vpc.vpc1.id
  cen_id            = alicloud_cen_instance.cen.id
  transit_router_id = alicloud_cen_transit_router.tr.transit_router_id
  depends_on        = [alicloud_route_table.foo]
}

# -------------------------------------------
# Wait for VPC attachment to initialize
# -------------------------------------------
# The transit router VPC attachment requires approximately 10 minutes
# to fully initialize before a VPC firewall can be created on it.
resource "time_sleep" "wait_10_minutes" {
  depends_on = [alicloud_cen_transit_router_vpc_attachment.tr-vpc1]

  create_duration = "10m"
}

# -------------------------------------------
# VPC firewall
# -------------------------------------------
resource "alicloud_cloud_firewall_vpc_cen_tr_firewall" "default" {
  cen_id                    = alicloud_cen_transit_router_vpc_attachment.tr-vpc1.cen_id
  firewall_name             = var.name
  firewall_subnet_cidr      = var.firewall_subnet_cidr
  tr_attachment_slave_cidr  = var.tr_attachment_slave_cidr
  firewall_description      = "VpcCenTrFirewall created by terraform"
  region_no                 = var.region
  tr_attachment_master_cidr = var.tr_attachment_master_cidr
  firewall_vpc_cidr         = var.firewall_vpc_cidr
  transit_router_id         = alicloud_cen_transit_router.tr.transit_router_id
  route_mode                = "managed"

  depends_on = [time_sleep.wait_10_minutes]
}

# -------------------------------------------
# Outputs
# -------------------------------------------
output "firewall_id" {
  description = "The ID of the VPC firewall"
  value       = alicloud_cloud_firewall_vpc_cen_tr_firewall.default.id
}

output "cen_id" {
  description = "The CEN instance ID"
  value       = alicloud_cen_instance.cen.id
}

output "transit_router_id" {
  description = "The transit router ID"
  value       = alicloud_cen_transit_router.tr.transit_router_id
}

Deploy

1. Initialize Terraform to download the required providers: If initialization succeeds, the output includes:

      terraform init

      Terraform has been successfully initialized!

2. Preview the changes:

      terraform plan

3. Apply the configuration. Enter yes when prompted: The deployment includes a 10-minute wait after the transit router VPC attachment is created, plus several minutes for the VPC firewall itself. When the deployment succeeds, the output ends with:

   Note

   If no VPC firewall exists for the specified transit router, Terraform creates a new one. If a VPC firewall already exists, Terraform modifies its configuration. The resource counts in the plan and apply output vary based on existing resources in your account.

      terraform apply

      Apply complete! Resources: 9 added, 0 changed, 0 destroyed.

Verify the result

Run terraform show to view the details of the created VPC firewall:

terraform show

In the output, find the alicloud_cloud_firewall_vpc_cen_tr_firewall.default block and verify the key attributes:

# alicloud_cloud_firewall_vpc_cen_tr_firewall.default:
resource "alicloud_cloud_firewall_vpc_cen_tr_firewall" "default" {
    cen_id                    = "cen-74686vyua3r13lv0nc"
    firewall_description      = "VpcCenTrFirewall created by terraform"
    firewall_name             = "terraform-example"
    firewall_subnet_cidr      = "192.168.3.0/25"
    firewall_vpc_cidr         = "192.168.3.0/24"
    id                        = "vfw-tr-beec8a3d978e470a84cf"
    region_no                 = "cn-hangzhou"
    route_mode                = "managed"
    status                    = "Ready"
    tr_attachment_master_cidr = "192.168.3.192/26"
    tr_attachment_slave_cidr  = "192.168.3.128/26"
    transit_router_id         = "tr-bp1sxqrc3lh4lyd3ya6oh"
}

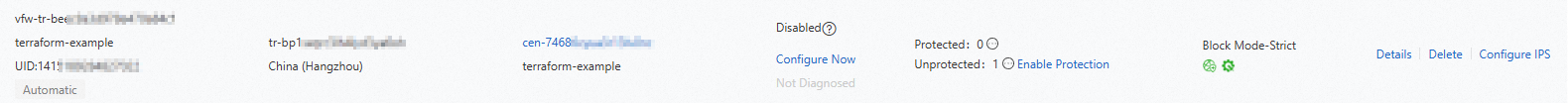

A status of "Ready" confirms the VPC firewall was created successfully. You can also verify the result in the Cloud Firewall console.
