Announcement on default installation of ack-ram-authenticator for ACK managed clusters v1.33 and later - Container Service for Kubernetes

Starting with Kubernetes v1.33, new ACK managed clusters have the latest version of ack-ram-authenticator pre-installed as a system add-on by default, without consuming additional node resources.

Scope

This change only affects new ACK managed clusters running Kubernetes v1.33 or later, including ACK managed Pro clusters and ACK managed Basic clusters.

Change details

Note

For details about ack-ram-authenticator and its usage instructions, see ack-ram-authenticator and Use ack-ram-authenticator for API server webhook authentication in an ACK managed cluster.

For all new ACK managed clusters created with Kubernetes v1.33 or later:

The latest version of ack-ram-authenticator is pre-installed as a non-removable system add-on.
Node pool scaling operations (both manual and auto scaling) require the ack-ram-authenticator add-on. This dependency will generate a few OpenAPI access traces within the cluster virtual private cloud (VPC) network during scaling events, specifically recording worker Resource Access Management (RAM) roles verifying identity through the STS GetCallerIdentity API.

ack-ram-authenticator configuration

Custom parameter description

Expand to view custom parameter supported by ack-ram-authenticator

Parameter

Type

Description

EnableNonBootstrapMapping

boolean

Specifies whether to enable the identity mappings configured in Step 5: Map RAM identities to RBAC permissions.

true: enables custom identity mappings configured in the cluster.
false: allows only the identity mappings required for node initialization.

Configure the custom parameter

Method 1: Terraform

When creating clusters through Terraform, you can use the addons attribute in the alicloud_cs_managed_kubernetes resource to install the ack-ram-authenticator add-on with custom configuration. For more information, see Use Terraform to manage add-ons.

resource "alicloud_cs_managed_kubernetes" "default" {
  # Other parameters
  # ...

  addons {
    name = "ack-ram-authenticator"
    config = jsonencode(
      {
         "EnableNonBootstrapMapping": false
      }
    )
  }
}

Method 2: OpenAPI

When creating clusters through API, you can use the addons parameter in the CreateCluster interface to specify the installation of ack-ram-authenticator and configure the custom parameter.

"addons": [
  // Other add-on configurations
  {
    "name": "ack-ram-authenticator",
    "config": "{\"EnableNonBootstrapMapping\": false}"
  }
],

Method 3: Console

The ack-ram-authenticator add-on installed by default when you create clusters through the console disables RAM identity mapping for non-node initialization scenarios. To modify this configuration, follow these steps:

Expand to view how to modify add-on in the console

Log on to the ACK console. In the left-side navigation pane, click Clusters.
On the Clusters page, find the one you want to manage and click its name. In the left-side navigation pane, choose Operations > Add-ons.

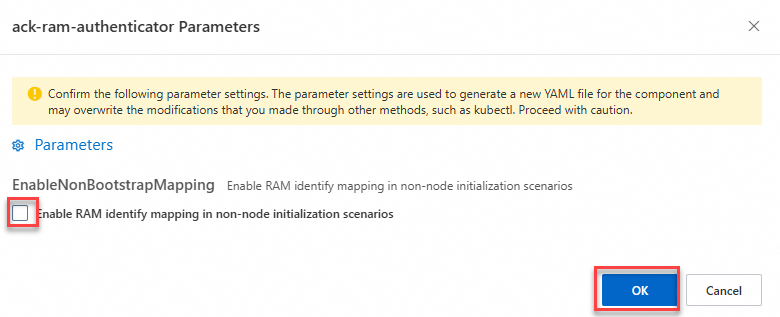

On the Add-ons page, click the Security tab, find the ack-ram-authenticator card, and click Configuration in the lower right corner. In the ack-ram-authenticator Parameters dialog box, select Enable RAM identity mapping in non-node initialization scenarios, and click OK.
