This topic uses two enterprises (Enterprise A and Enterprise B) as examples to describe how to use a Resource Access Management (RAM) role to grant permissions across Alibaba Cloud accounts. To authorize Enterprise B to access specified resources of Enterprise A, Enterprise A can create and assign a RAM role to Enterprise B. Enterprise B can then access the specified resources after assuming the RAM role.

Prerequisites

Background information

Enterprise A has purchased multiple Alibaba Cloud resources, such as Elastic Compute Service (ECS) instances, ApsaraDB for RDS instances, Server Load Balancer (SLB) instances, and Object Storage Service (OSS) buckets. Enterprise A needs to authorize Enterprise B to access specified resources of Enterprise A.

Enterprise A has the following requirements:

  • Enterprise A only serves as a cloud resource owner. Enterprise A can authorize Enterprise B to maintain, monitor, and manage specified cloud resources of Enterprise A.
  • If an employee joins or leaves Enterprise B, no permission change is required. Enterprise B can grant fine-grained permissions on cloud resources of Enterprise A to its RAM users (employees or applications).
  • If the agreement between Enterprise A and Enterprise B ends, Enterprise A can revoke the permissions from Enterprise B.

Solution

In this example, Enterprise A needs to authorize employees of Enterprise B to manage ECS resources of Enterprise A. Enterprise A has an Alibaba Cloud account named Account A and Enterprise B has an Alibaba Cloud account named Account B.

  • The ID of Account A is 123456789012**** and the account alias is company-a.
  • The ID of Account B is 134567890123**** and the account alias is company-b.

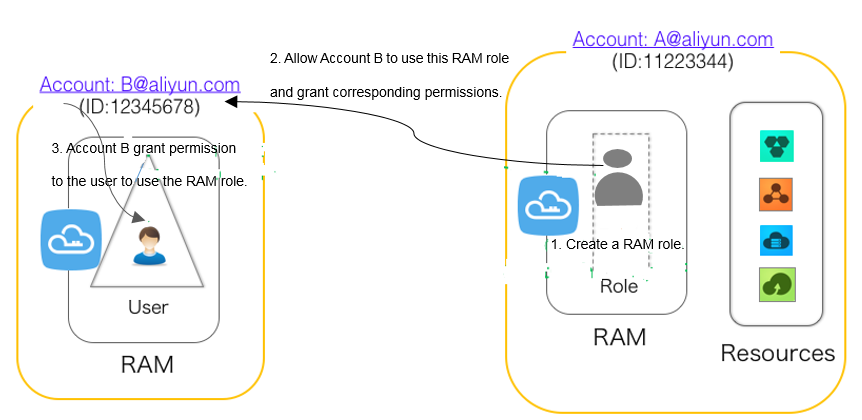

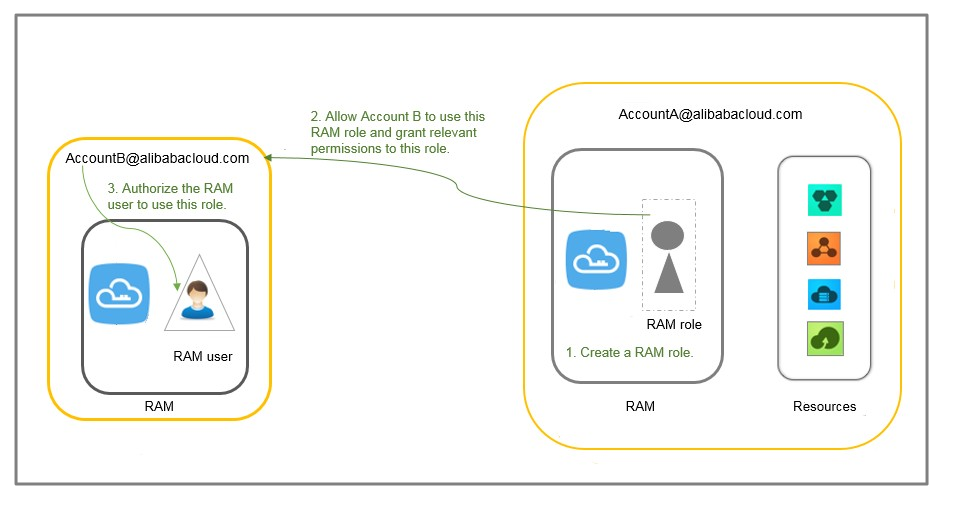

  1. Enterprise A uses Account A to create a RAM role, grant the required permissions to the RAM role, and then authorize Account B to assume this role.

    For more information, see Grant permissions across Alibaba Cloud accounts.

  2. If an employee (a RAM user) in Account B needs to assume this role, Account B can grant the required permissions to the RAM user. Then, the RAM user assumes the RAM role to access the resources of Account A.

    For more information, see Access resources across Alibaba Cloud accounts.

  3. If the agreement between Enterprise A and Enterprise B ends, Enterprise A only needs to revoke the permissions from Account B. Then, all RAM users in Account B no longer have the permissions of the RAM role.

    For more information, see Revoke permissions across Alibaba Cloud accounts.

Grant permissions across Alibaba Cloud accounts

Grant permissions across Alibaba Cloud accounts
  1. Enterprise A uses Account A to create a RAM role named ecs-admin. Alibaba Cloud Account is selected as the trusted entity type.
    Note When the RAM role is created, Other Alibaba Cloud Account is selected and 134567890123**** is specified as the trusted Alibaba Cloud account. This ensures that RAM users in Account B can assume the RAM role.

    For more information, see Create a RAM role for a trusted Alibaba Cloud account.

    After the RAM role is created, Enterprise A can view the information of the role on the basic information page.

    • In this example, the Alibaba Cloud Resource Name (ARN) of the RAM role is acs:ram::123456789012****:role/ecs-admin.
    • The following policy is attached to the RAM role:
      Note This policy indicates that RAM users under Account B can assume the RAM role.
      {
      "Statement": [
      {
       "Action": "sts:AssumeRole",
       "Effect": "Allow",
       "Principal": {
         "RAM": [
           "acs:ram::134567890123****:root"
         ]
       }
      }
      ],
      "Version": "1"
      }
  2. Enterprise A uses Account A to attach the AliyunECSFullAccess policy to the RAM role ecs-admin.

    For more information, see Grant permissions to a RAM role.

  3. Enterprise B uses Account B to create a RAM user named Alice.

    For more information, see Create a RAM user.

  4. Enterprise B uses Account B to set the logon password of the RAM user to 123456**** and attach the AliyunSTSAssumeRoleAccess system policy to the RAM user. This allows the RAM user to assume the RAM role.

    For more information, see Grant permissions to a RAM user.

Access resources across Alibaba Cloud accounts

After Enterprise A uses Account A to grant to required permissions to Account B, the RAM user Alice under Account B can access ECS resources of Account A by assuming the RAM role. An employee of Enterprise B can perform the following steps to assume the RAM role as the RAM user:

  1. Log on to the RAM console as the RAM user named Alice.
    Note On the logon page, you must enter the account alias company-b, username Alice, and password 123456****.

    For more information, see Log on to the console as a RAM user.

  2. Move the pointer over the profile picture and click Switch Role.
    Note On the page that appears, you must enter the account alias company-a and role name ecs-admin.

    For more information, see Assume a RAM role.

Revoke permissions across Alibaba Cloud accounts

Enterprise A can use Account A to revoke the permission to assume the RAM role ecs-admin from Account B. Enterprise A can perform the following steps to revoke the permission to assume the RAM role:

  1. Log on to the RAM console by using Account A.
  2. In the left-side navigation pane, click RAM Roles.
  3. In the RAM Role Name column, click the RAM role ecs-admin.
  4. On the Trust Policy Management tab, click Edit Trust Policy. In the pane that appears, delete "acs:ram::134567890123****:root".
    Note Enterprise A can also use Account A to delete the RAM role to revoke the permission to assume the RAM role ecs-admin from Account B. Before the RAM role is deleted, the policies attached to the RAM role must be detached. For more information, see Remove permissions from a RAM role.
