This topic describes the types and parameters of all ApsaraDB for Redis editions and the method of testing queries per second (QPS). To call the APIs related to a type of instance, use the InstanceClass parameter for the corresponding type described in this topic.

Note The maximum internal network bandwidth in below tables includes the maximum upstream bandwidth and the maximum downstream bandwidth. If network resources are sufficient, the bandwidth is unlimited for ApsaraDB for Redis instances. However, if network resources are insufficient, the maximum bandwidth takes effect for the instances.

Standard dual-replica edition

Type InstanceClass (used in API operations) Maximum concorrent connections Maximum internal network bandwidth (MB) CPU processing capacity QPS reference value Description
1 GB master-replica redis.master.small.default 10,000 10 Single-core 80,000 Master-replica instance
2 GB master-replica redis.master.mid.default 10,000 16 Single-core 80,000 Master-replica instance
4 GB master-replica redis.master.stand.default 10,000 24 Single-core 80,000 Master-replica instance
8 GB master-replica redis.master.large.default 10,000 24 Single-core 80,000 Master-replica instance
16 GB master-replica redis.master. 2xlarge.default 10,000 32 Single-core 80,000 Master-replica instance
32 GB master-replica redis.master. 4xlarge.default 10,000 32 Single-core 80,000 Master-replica instance
64 GB master-replica redis.master. 8xlarge.default 10,000 48 Single-core 80,000 Master-replica instance

Standard zone-disaster recovery edition

Note To create a zone-disaster recovery instance, you have to select the region and zone that support zone-disaster recovery, such as China (Hangzhou) Zone (G+H).
Type InstanceClass (used in API operations) Maximum concorrent connections Maximum internal network bandwidth (MB) CPU processing capacity QPS reference value Description
Zone-disaster recovery 1 GB redis.logic.sharding.drredissdb1g. 1db. 0rodb. 4proxy.default 40,000 10 Single-core 80,000 Master-replica zone-disaster recovery instance
Zone-disaster recovery 2 GB redis.logic.sharding.drredissdb2g. 1db. 0rodb. 4proxy.default 40,000 16 Single-core 80,000 Master-replica zone-disaster recovery instance
Zone-disaster recovery 4 GB redis.logic.sharding.drredissdb4g. 1db. 0rodb. 4proxy.default 40,000 24 Single-core 80,000 Master-replica zone-disaster recovery instance
Zone-disaster recovery 8 GB redis.logic.sharding.drredissdb8g. 1db. 0rodb. 4proxy.default 40,000 24 Single-core 80,000 Master-replica zone-disaster recovery instance
Zone-disaster recovery 16 GB redis.logic.sharding.drredissdb16g. 1db. 0rodb. 4proxy.default 40,000 32 Single-core 80,000 Master-replica zone-disaster recovery instance
Zone-disaster recovery 32 GB redis.logic.sharding.drredissdb32g. 1db. 0rodb. 4proxy.default 40,000 32 Single-core 80,000 Master-replica zone-disaster recovery instance
Zone-disaster recovery 64 GB redis.logic.sharding.drredissdb64g. 1db. 0rodb. 4proxy.default 40,000 48 Single-core 80,000 Master-replica zone-disaster recovery instance

Dual-replica cluster edition

Type InstanceClass (used in API operations) Number of nodes Maximum concorrent connections Maximum internal network bandwidth (MB) CPU processing capacity QPS reference value Description
16 GB cluster redis.logic.sharding. 2g. 8db. 0rodb. 8proxy.default 8 80,000 768 8-core 640,000 High-performance cluster instance
32 GB cluster redis.logic.sharding. 4g. 8db. 0rodb. 8proxy.default 8 80,000 768 8-core 640,000 High-performance cluster instance
64 GB cluster redis.logic.sharding. 8g. 8db. 0rodb. 8proxy.default 8 80,000 768 8-core 640,000 High-performance cluster instance
128 GB cluster redis.logic.sharding. 8g. 16db. 0rodb. 16proxy.default 16 160,000 1,536 16-core 1,280,000 High-performance cluster instance
256 GB cluster redis.logic.sharding. 16g. 16db. 0rodb. 16proxy.default 16 160,000 1,536 16-core 1,280,000 High-performance cluster instance
512 GB cluster redis.logic.sharding. 16g. 32db. 0rodb. 32proxy.default 32 320,000 3,072 32-core 2,560,000 High-performance cluster instance
Note The number of nodes in the dual-replica cluster instance is the number of master nodes.

Zone-disaster recovery cluster edition

Note To create a zone-disaster recovery instance, you have to select the region and zone that support zone-disaster recovery, such as China (Hangzhou) Zone (G+H).
Type InstanceClass (used in API operations) Number of nodes Maximum concorrent connections Maximum internal network bandwidth (MB) CPU processing capacity QPS reference value Description
Zone-disaster recovery 16 GB cluster redis.logic.sharding.drredismdb16g. 8db. 0rodb. 8proxy.default 8 80,000 768 8-core 800,000 Zone-disaster recovery cluster instance
Zone-disaster recovery 32 GB cluster redis.logic.sharding.drredismdb32g. 8db. 0rodb. 8proxy.default 8 80,000 768 8-core 800,000 Zone-disaster recovery cluster instance
Zone-disaster recovery 64 GB cluster redis.logic.sharding.drredismdb64g. 8db. 0rodb. 8proxy.default 8 80,000 768 8-core 800,000 Zone-disaster recovery cluster instance
Zone-disaster recovery 128 GB cluster redis.logic.sharding.drredismdb128g. 16db. 0rodb. 16proxy.default 16 160,000 1,536 16-core 1,600,000 Zone-disaster recovery cluster instance
Zone-disaster recovery 256 GB cluster redis.logic.sharding.drredismdb256g. 16db. 0rodb. 16proxy.default 16 160,000 1,536 16-core 1,600,000 Zone-disaster recovery cluster instance
Zone-disaster recovery 512 GB cluster redis.logic.sharding.drredismdb512g. 32db. 0rodb. 32proxy.default 32 320,000 3,072 32-core 3,200,000 Zone-disaster recovery cluster instance

QPS performance reference

QPS performance

Type Maximum concorrent connections Maximum internal network bandwidth (MB) CPU processing capacity QPS reference value
8 GB 10,000 24 Single-core 80,000
Note

QPS reference values of non-cluster instances range from 80,000 to 100,000. QPS reference values of cluster instances are the number of nodes multiplied by the value from 80,000 to 100,000.

QPS testing method

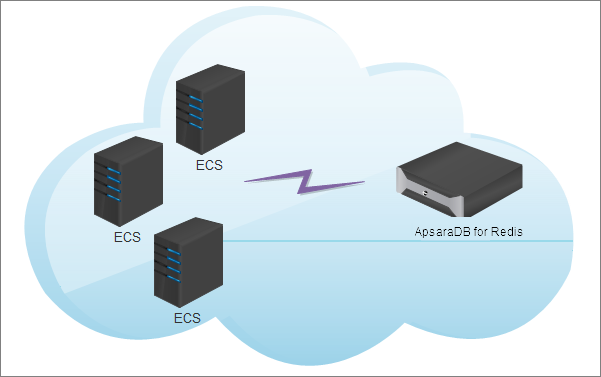

Figure 1. Network topology

ECS instance type

Operating system CPU Memory Region Quantity
Ubuntu 14.04 64-bit 1 2,048 MB China (Shenzhen) 3

Procedure

  1. Download the source code package for redis-2.8.19 to three ECS instances.
     $ wget http://download.redis.io/releases/redis-2.8.19.tar.gz
     $ tar xzf redis-2.8.19.tar.gz
     $ cd redis-2.8.19
     $ make
     $ make install
  2. Run the following command on these ECS instances at the same time.
     redis-benchmark -h ***********.m.cnsza.kvstore.aliyuncs.com -p 6379 -a password -t set -c 50 -d 128 -n 25000000 -r 5000000
  3. Summarize the testing data on these ECS instances. The total QPS is the sum of the QPS on each ECS instance.
