Function Compute (2.0):Request-level metric logs

Last Updated:Feb 23, 2024

Request-level metrics help you track function invocations and executions. You can use the request-level metrics feature to detect and troubleshoot issues at the earliest opportunity and analyze application bottlenecks. After you enable the request-level metrics feature, you can manage and optimize function applications in an efficient manner.

Overview

Request-level metrics refer to metrics that are obtained when a function executes requests. After you enable the request-level metrics feature, the system collects metrics, such as performance metrics, exceptions, and tracing metrics, each time the function is executed. The metrics are delivered to the Logstore that you specify.

  • Performance metrics include the following information: memory usage, function execution time, initialization time, and cold starts.

  • Exceptions include execution failures and error details.

  • Tracing metrics include the following information: time required to execute system key links, sampling of the integrated tracing analysis, path of an HTTP function, status code, and client IP address.

After you enable the request-level metrics feature, Function Compute delivers the execution metrics of each request to the Logstore. The following figure shows the log of a request.


Scenarios

  • View details of function executions, performance metrics, and error messages

    Requests of a function are displayed in the Function Compute console. You can go to the console to view information about each request, including the execution status, instance ID that corresponds to a request, time required for execution, memory usage, and the request log. The following figure shows an example of request-level metrics.


    Note

    You can also view requests even if the request-level metrics feature is disabled. However, exceptions may occur in requests in the following scenarios:

    • If an ID of a request appears multiple times, you cannot locate the log of the request. This scenario occurs during retries of asynchronous invocation.

    • If FC Invoke Start RequestId: xxx and FC Invoke End RequestId: xxx are printed in a custom runtime and Custom Container runtime, a request may appear twice when a function invokes the request only once.

  • Search for statistics and create a dashboard

    Request-level metrics are delivered to a Logstore in the key:val format. You can create a dashboard based on your business requirements. For more information, see Create a dashboard.

Usage notes

  • Effective scope

    When you configure the logs of a function, you can configure the Request-level Metrics parameter in the Function Compute console to configure the feature. If you enable this parameter, a log entry is generated each time the function executes a request.

  • Billing

    You are charged for storing logs in Simple Log Service. For more information about the pricing of Simple Log Service, see Pricing.

Enable the request-level metrics feature

Use the Function Compute console

Prerequisites

Procedure

  1. Log on to the Function Compute console. In the left-side navigation pane, click Services & Functions.

  2. In the top navigation bar, select a region. On the Services page, find the desired service and click Configure in the Actions column.

  3. In the Log Settings section of the Modify Service page, configure the parameters based on your business requirements and click Save.

    The following table describes the parameters that are required. Retain the default values for other parameters.

    Parameter

    Description

    Example

    Logging

    Specifies whether to enable the logging feature and use Simple Log Service to store function execution logs. For more information, see Configure the logging feature.

    Enable

    Log Service Project

    Select a log project that you configured.

    aliyun-fc-hangzhou-2238f0df-a742-524f-9f90-976ba*******

    Logstore

    Select a Logstore that you configured.

    function-log

    Request-level Metrics

    Specifies whether to view request-level metrics. After you enable this feature, invocation metrics for the function are collected and delivered to the specified Logstore.

    Enable

Use Serverless Devs

Prerequisites

Procedure

  1. Create a code directory. The following sample code provides an example of the directory structure:

    .
    ├── code
    │   └── index.js
    └── s.yaml

    Create a code directory. The following sample code provides an example of the directory structure:

    In the example, the enableRequestMetrics field is used to configure the request-level metrics feature. Before you enable the request-level metrics feature, you must enable the logging feature and set the logstore and project fields to an existing Logstore and log project within your account.

    edition: 1.0.0
    name: hello-world-app
    access: "default"

    vars:
      region: "cn-hangzhou"
      service:
        name: "hello-world-service"
        description: 'hello world by serverless devs'
        logConfig: # Specify the actually used project and Logstore. Alternatively, set this field to auto to allow the system to create a project and a Logstore for you.
          project: 'your-project'
          logstore: 'your-logstore'
          enableRequestMetrics: true # Enable the request-level metrics feature. After you enable the feature, the system collects the metrics each time the function executes a request.
          enableInstanceMetrics: true
        role: 'acs:ram::<accountID>:role/aliyunfcdefaultrole' # Replace <accountID> with the ID of your Alibaba Cloud account.

    services:
      helloworld:
        component: fc
        props:
          region: ${vars.region}
          service: ${vars.service}
          function:
            name: "hello-world"
            description: 'hello world by serverless devs'
            runtime: nodejs14
            codeUri: ./code
            handler: index.handler
            memorySize: 128
            timeout: 60
  2. Run the following command to deploy the application:

    sudo s deploy -y

    If the execution is successful, you can log on to the Function Compute console to check whether the request-level metrics feature of the deployed function is enabled.

Query logs

Log format

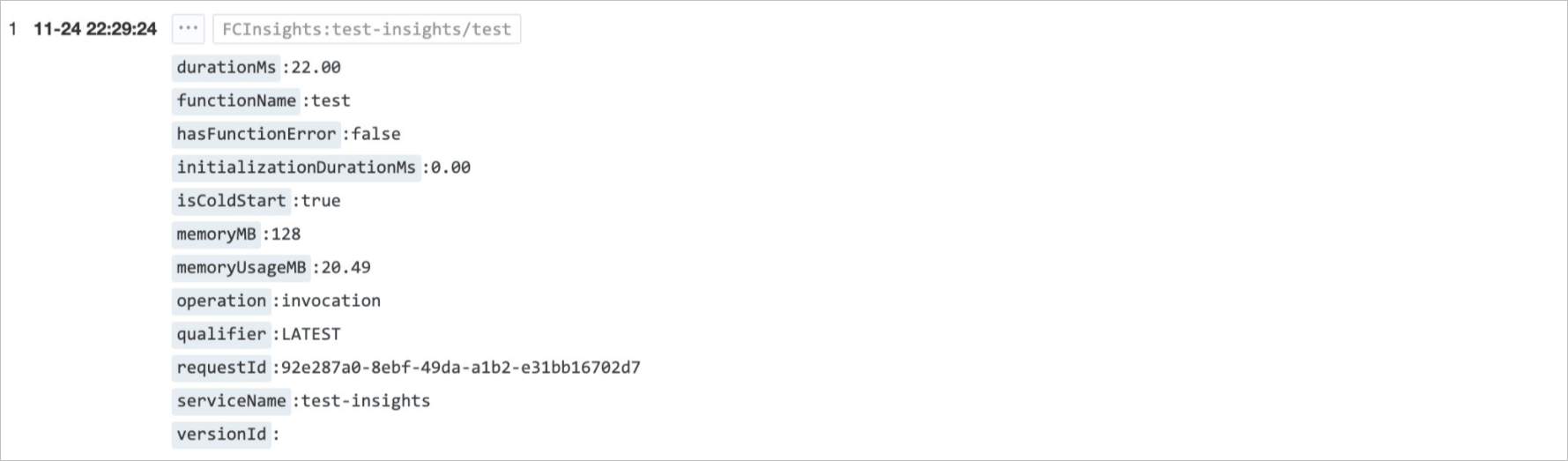

The topics of request-level metric logs must be in the following format: FCRequestMetrics:serviceName/functionName. You can use the statement __topic__: "FCRequestMetrics:serviceName/functionName" to filter all request-level metric logs in Simple Log Service. For more information, see Query and analyze logs.

Metrics

The following table describes the metrics on a request.

Metric

Description

Example

Whether to record each invocation

serviceName

The service name.

my-service

Yes

functionName

The function name.

my-function

Yes

versionId

The version name.

12

Yes

qualifier

The service alias. Default value: LATEST.

prod

Yes

requestId

The request ID.

db72ce53-ccbe-4216-af55-642622e01494

Yes

operation

The operation name.

InvokeFunction

Yes

invocationType

The invocation type. Valid values:

Sync: synchronous invocation

Async: asynchronous invocation

Sync

Yes

memoryMB

The upper limit of memory.

512

Yes

memoryUsageMB

The memory consumed by a function execution.

410

Yes

durationMs

The memory consumed by a function execution.

20.20

Yes

isColdStart

Specifies whether a cold start is performed.

Note

When a request is sent to Function Compute, the Function Compute system does not have started instances to execute the request. In this case, you must create new instances, download code, and start the execution environment.

A request in this situation is a cold start request.

The Function Compute team has implemented strategies to optimize cold starts. To prevent cold starts, Function Compute creates instances in advance to process in-coming requests. A request in this situation is not a cold start request.

false

Yes

instanceEvent

The instance event. Valid value: ColdStart. This metric is required only when a cold start request occurs.

ColdStart

No

hasFunctionError

Specifies whether a function error occurs during a function execution.

false

Yes

errorType

The function error type. Valid values:

  • FunctionOOMError: The function is out of memory (OOM).

  • FunctionTimeoutError: The execution times out.

  • FunctionUnhandledError: Other exceptions that are not captured.

FunctionUnhandledError

No. This metric is recorded only when a function execution error occurs, that is, the value of the hasFunctionError is true.

invokeFunctionLatencyMs

The duration for the execution of the initializer function.

99.00

No. This metric is recorded only when cold starts occur and you configure the initializer function.

traceContext

The context of tracing analysis.

371d3ff242fcee9:371d3ff242fcee9:0:1

No. This metric is recorded only when Managed Service for OpenTelemetry is configured.

isSampled

Specifies whether the request is sampled by Managed Service for OpenTelemetry.

true

No. This metric is recorded only when Managed Service for OpenTelemetry is configured.

resourceMode

The type of the instance that executes the request. Valid values:

  • OnDemand: on-demand instance

  • Provision: provisioned instance

OnDemand

Yes

instanceID

The instance ID.

c-65603d8c-37e1bf7123054a77****

Yes

hostname

The instance host.

c-65603d8c-37e1bf7123054a77****

Yes

ipAddress

The IP address of the instance.

Note: This IP address is intended for internal use to distinguish between instances.

21.0.XX.XX

Yes

activeInstances

The number of active instances.

1

Yes

activeInstancesPerFunction

The number of active instances of the function.

1

Yes

scheduleLatencyMs

The scheduling latency. When a cold start occurs in the request, the latency in scheduling an instance for execution increases.

10.07

Yes

coldStartStartTimestamp

The timestamp when a cold start begins.

1700806029167

No. This metric is recorded only when cold starts occur.

coldStartLatencyMs

The cold start latency.

487.65

No. This metric is recorded only when cold starts occur.

prepareCodeStartTimestamp

The timestamp when code begins to be downloaded. The value is a 13-digit timestamp in milliseconds.

1700806029167

No. This metric is recorded only when cold starts occur.

prepareCodeLatencyMs

The time consumed to download code.

0.18

No. This metric is recorded only when cold starts occur.

runtimeInitializationStartTimestamp

The timestamp when the runtime begins to be initialized.

1700806029168

No. This metric is recorded only when cold starts occur.

runtimeInitializationMs

The time consumed to initialize the runtime.

487.37

No. This metric is recorded only when cold starts occur.

asyncAttemptStartTimestamp

By default, you can retry up to three times when an asynchronous invocation of a function fails.

This metric is the timestamp when you perform the ${retryCount} retry.

1700806028084

No. This metric is recorded only when an asynchronous invocation is performed.

asyncAttemptLatencyMs

By default, you can retry up to three times when an asynchronous invocation of a function fails.

This metric is the timestamp when you perform the ${retryCount} retry.

1688.74

No. This metric is recorded only when an asynchronous invocation is performed.

asyncMode

The asynchronous invocation mode. Valid values:

  • Stateless

  • Stateful

Stateful

No. This metric is recorded only when an asynchronous invocation is performed.

retryCount

The number of retries.

0

No. This metric is recorded only when an asynchronous invocation is performed.

Query logs

Indexes are required to query logs. Indexes are automatically configured in the Function Compute console. After indexes are configured, you can go to the Simple Log Service console, find the desired Logstore, and then use SQL statements to retrieve and filter requests in logs. You can specify topics to retrieve request-level metric logs in an efficient manner.

For example, you can use the following SQL statement to query the list of requests whose execution duration exceeds 10s.

__topic__: "FCRequestMetrics:s1/f1" AND qualifier: q1 and operation: InvokeFunction and durationMs>1000

For more information about complex query syntax, see Query and analyze logs.

Create a custom dashboard

If you want to create a chart whose X coordinate is t and Y coordinate is a metric value, refer to the following SQL statement:

__topic__: "FCRequestMetrics:s1/f1" AND qualifier: q1 and operation: InvokeFunction | select __time__ - __time__ % 60 as t, count(*) as invocations, avg(durationMs) as avgDurationMs group by t order by t

For more information about how to create a custom dashboard, see Create a dashboard.
