Tablestore：基於Tablestore的多模態圖片檢索系統

1. 安裝 SDK

1. 確保已安裝 Python 3.12 及以上版本。

2. 執行以下命令安裝 Tablestore Python SDK 和阿里雲百鍊 SDK。

   pip install tablestore
   pip install dashscope
   pip install Pillow

2. 配置環境變數

將訪問憑證配置為環境變數，確保代碼安全性與跨環境可移植性。

配置前請先擷取百鍊平台的API Key、AccessKey，前往Table Store控制台建立執行個體並擷取執行個體名稱和訪問地址。

export DASHSCOPE_API_KEY=<百鍊平台的API KEY>
export tablestore_end_point=<Tablestore執行個體訪問地址>
export tablestore_instance_name=<Tablestore執行個體名稱>
export tablestore_access_key_id=<AccessKey ID>
export tablestore_access_key_secret=<AccessKey Secret>

3. 準備圖片資料

支援使用自訂圖片資料或教程提供的示範資料集。

git clone https://github.com/aliyun/alibabacloud-tablestore-ai-demo.git

也可直接下載示範專案檔：alibabacloud-tablestore-ai-demo-main

1. 建立資料表

# -*- coding: utf-8 -*-
"""
建立 Tablestore 資料表
"""

import os

import tablestore


def main():
    # 初始化 Tablestore 用戶端
    client = tablestore.OTSClient(
        os.getenv("tablestore_end_point"),
        os.getenv("tablestore_access_key_id"),
        os.getenv("tablestore_access_key_secret"),
        os.getenv("tablestore_instance_name"),
        retry_policy=tablestore.WriteRetryPolicy(),
    )

    # 建立資料表，定義主鍵
    table_name = "multi_modal_retrieval"
    table_meta = tablestore.TableMeta(table_name, [("image_id", "STRING")])
    table_options = tablestore.TableOptions()
    reserved_throughput = tablestore.ReservedThroughput(tablestore.CapacityUnit(0, 0))

    try:
        client.create_table(table_meta, table_options, reserved_throughput)
        print(f"資料表 '{table_name}' 建立成功")
    except tablestore.OTSServiceError as e:
        if "OTSObjectAlreadyExist" in str(e):
            print(f"資料表 '{table_name}' 已存在")
        else:
            raise


if __name__ == "__main__":
    main()

2. 建立多元索引

向量資料在 Tablestore 資料表中以字串格式儲存。要啟用向量檢索功能，必須建立多元索引並配置向量欄位類型，以支援高維向量的相似性計算和快速檢索。

# -*- coding: utf-8 -*-
"""
建立 Tablestore 多元索引（含向量欄位）
"""

import os

import tablestore


def main():
    # 初始化 Tablestore 用戶端
    client = tablestore.OTSClient(
        os.getenv("tablestore_end_point"),
        os.getenv("tablestore_access_key_id"),
        os.getenv("tablestore_access_key_secret"),
        os.getenv("tablestore_instance_name"),
        retry_policy=tablestore.WriteRetryPolicy(),
    )

    table_name = "multi_modal_retrieval"
    index_name = "index"

    # 定義索引欄位
    field_schemas = [
        tablestore.FieldSchema("image_id", tablestore.FieldType.KEYWORD, index=True, enable_sort_and_agg=True),
        tablestore.FieldSchema("city", tablestore.FieldType.KEYWORD, index=True, enable_sort_and_agg=True),
        tablestore.FieldSchema("height", tablestore.FieldType.LONG, index=True, enable_sort_and_agg=True),
        tablestore.FieldSchema("width", tablestore.FieldType.LONG, index=True, enable_sort_and_agg=True),
        tablestore.FieldSchema(
            "vector",
            tablestore.FieldType.VECTOR,
            vector_options=tablestore.VectorOptions(
                data_type=tablestore.VectorDataType.VD_FLOAT_32,
                dimension=1024,
                metric_type=tablestore.VectorMetricType.VM_COSINE,
            ),
        ),
    ]

    try:
        index_meta = tablestore.SearchIndexMeta(field_schemas)
        client.create_search_index(table_name, index_name, index_meta)
        print(f"多元索引 '{index_name}' 建立成功")
    except tablestore.OTSServiceError as e:
        if "OTSObjectAlreadyExist" in str(e):
            print(f"多元索引 '{index_name}' 已存在")
        else:
            raise


if __name__ == "__main__":
    main()

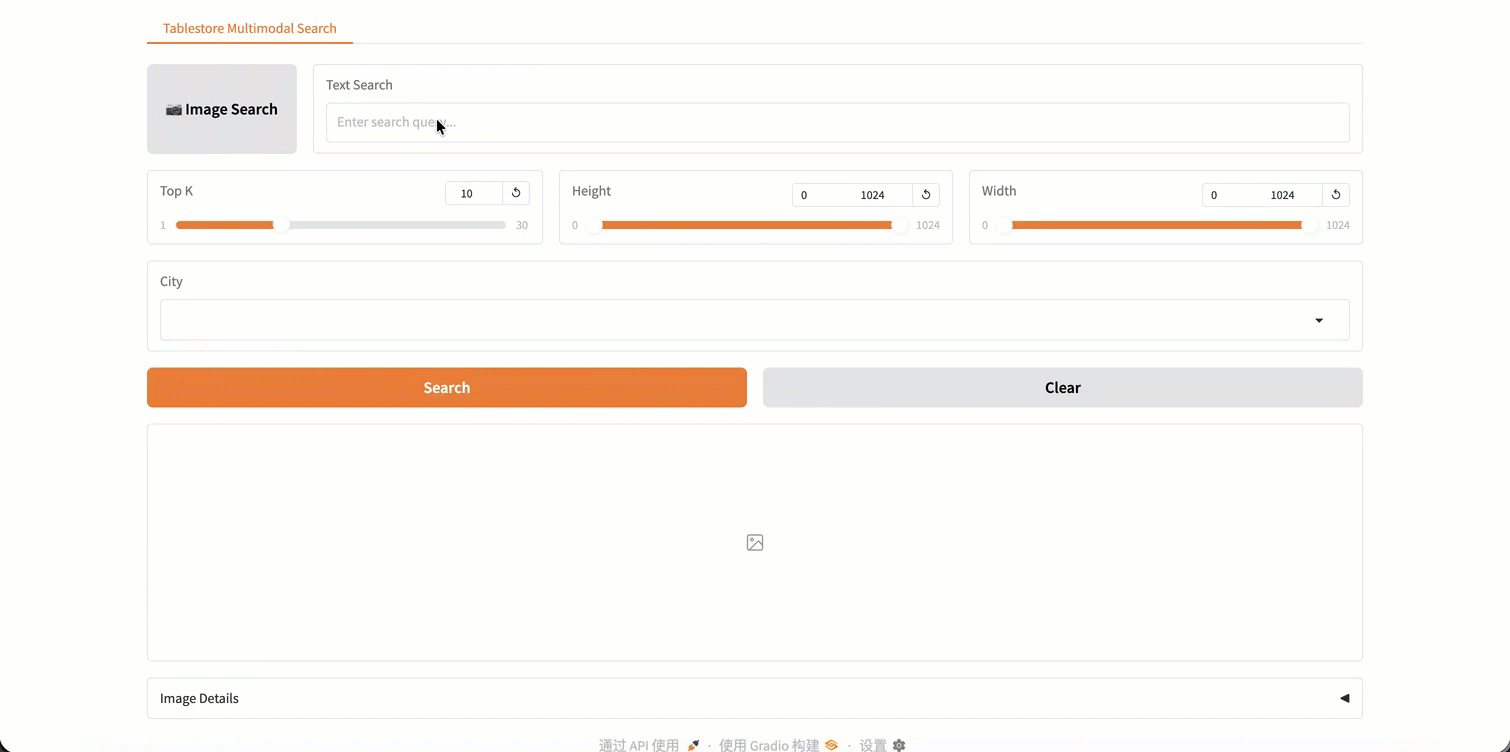

自然語言檢索

# -*- coding: utf-8 -*-
"""
語義檢索樣本
包含多種查詢情境：
1. 僅使用查詢文本進行語義檢索
2. 使用查詢文本 + 過濾條件（城市、高度、寬度）
"""

import os

import dashscope
import tablestore
from dashscope import MultiModalEmbeddingItemText


def get_client():
    """建立 Tablestore 用戶端"""
    endpoint = os.getenv("tablestore_end_point")
    instance_name = os.getenv("tablestore_instance_name")
    access_key_id = os.getenv("tablestore_access_key_id")
    access_key_secret = os.getenv("tablestore_access_key_secret")

    client = tablestore.OTSClient(
        endpoint,
        access_key_id,
        access_key_secret,
        instance_name,
        retry_policy=tablestore.WriteRetryPolicy(),
    )
    return client


def text_to_embedding(text: str) -> list[float]:
    """將文本轉換為向量"""
    resp = dashscope.MultiModalEmbedding.call(
        model="multimodal-embedding-v1",
        input=[MultiModalEmbeddingItemText(text=text, factor=1.0)]
    )
    if resp.status_code == 200:
        return resp.output["embeddings"][0]["embedding"]
    else:
        raise Exception(f"文本向量化失敗: {resp.code} - {resp.message}")


def search_by_text_only(client, table_name, index_name, query_text: str, top_k: int = 10):
    """
    情境1: 僅使用查詢文本進行語義檢索
    """
    print(f"\n{'='*60}")
    print(f"情境1: 僅使用查詢文本檢索")
    print(f"查詢文本: '{query_text}'")
    print(f"返回數量: {top_k}")
    print("="*60)

    # 文本向量化
    query_vector = text_to_embedding(query_text)

    # 構建向量查詢
    query = tablestore.KnnVectorQuery(
        field_name='vector',
        top_k=top_k,
        float32_query_vector=query_vector,
    )

    # 按分數排序
    sort = tablestore.Sort(sorters=[tablestore.ScoreSort(sort_order=tablestore.SortOrder.DESC)])
    search_query = tablestore.SearchQuery(
        query,
        limit=top_k,
        get_total_count=False,
        sort=sort
    )

    # 執行搜尋
    search_response = client.search(
        table_name=table_name,
        index_name=index_name,
        search_query=search_query,
        columns_to_get=tablestore.ColumnsToGet(
            column_names=["image_id", "city", "height", "width"],
            return_type=tablestore.ColumnReturnType.SPECIFIED
        )
    )

    print(f"\nRequest ID: {search_response.request_id}")
    print(f"\n檢索結果:")
    print("-" * 60)

    for idx, hit in enumerate(search_response.search_hits):
        row_item = parse_search_hit(hit)
        print(f"{idx + 1}. 得分: {hit.score:.4f} | {row_item}")

    return search_response.search_hits


def search_with_city_filter(client, table_name, index_name, query_text: str, city: str, top_k: int = 10):
    """
    情境2: 使用查詢文本 + 城市過濾條件
    """
    print(f"\n{'='*60}")
    print(f"情境2: 查詢文本 + 城市過濾")
    print(f"查詢文本: '{query_text}'")
    print(f"城市過濾: {city}")
    print(f"返回數量: {top_k}")
    print("="*60)

    query_vector = text_to_embedding(query_text)

    # 構建帶城市過濾的向量查詢
    query = tablestore.KnnVectorQuery(
        field_name='vector',
        top_k=top_k,
        float32_query_vector=query_vector,
        filter=tablestore.TermQuery(field_name='city', column_value=city)
    )

    sort = tablestore.Sort(sorters=[tablestore.ScoreSort(sort_order=tablestore.SortOrder.DESC)])
    search_query = tablestore.SearchQuery(query, limit=top_k, get_total_count=False, sort=sort)

    search_response = client.search(
        table_name=table_name,
        index_name=index_name,
        search_query=search_query,
        columns_to_get=tablestore.ColumnsToGet(
            column_names=["image_id", "city", "height", "width"],
            return_type=tablestore.ColumnReturnType.SPECIFIED
        )
    )

    print(f"\nRequest ID: {search_response.request_id}")
    print(f"\n檢索結果:")
    print("-" * 60)

    for idx, hit in enumerate(search_response.search_hits):
        row_item = parse_search_hit(hit)
        print(f"{idx + 1}. 得分: {hit.score:.4f} | {row_item}")

    return search_response.search_hits


def search_with_size_filter(client, table_name, index_name, query_text: str,
                             height_range: tuple = None, width_range: tuple = None, top_k: int = 10):
    """
    情境3: 使用查詢文本 + 尺寸過濾條件（高度、寬度）
    """
    print(f"\n{'='*60}")
    print(f"情境3: 查詢文本 + 尺寸過濾")
    print(f"查詢文本: '{query_text}'")
    print(f"高度範圍: {height_range}")
    print(f"寬度範圍: {width_range}")
    print(f"返回數量: {top_k}")
    print("="*60)

    query_vector = text_to_embedding(query_text)

    # 構建過濾條件
    must_queries = []
    if height_range:
        must_queries.append(tablestore.RangeQuery(
            field_name='height',
            range_from=height_range[0],
            range_to=height_range[1],
            include_lower=True,
            include_upper=True
        ))
    if width_range:
        must_queries.append(tablestore.RangeQuery(
            field_name='width',
            range_from=width_range[0],
            range_to=width_range[1],
            include_lower=True,
            include_upper=True
        ))

    vector_filter = tablestore.BoolQuery(must_queries=must_queries) if must_queries else None

    query = tablestore.KnnVectorQuery(
        field_name='vector',
        top_k=top_k,
        float32_query_vector=query_vector,
        filter=vector_filter
    )

    sort = tablestore.Sort(sorters=[tablestore.ScoreSort(sort_order=tablestore.SortOrder.DESC)])
    search_query = tablestore.SearchQuery(query, limit=top_k, get_total_count=False, sort=sort)

    search_response = client.search(
        table_name=table_name,
        index_name=index_name,
        search_query=search_query,
        columns_to_get=tablestore.ColumnsToGet(
            column_names=["image_id", "city", "height", "width"],
            return_type=tablestore.ColumnReturnType.SPECIFIED
        )
    )

    print(f"\nRequest ID: {search_response.request_id}")
    print(f"\n檢索結果:")
    print("-" * 60)

    for idx, hit in enumerate(search_response.search_hits):
        row_item = parse_search_hit(hit)
        print(f"{idx + 1}. 得分: {hit.score:.4f} | {row_item}")

    return search_response.search_hits


def search_with_combined_filters(client, table_name, index_name, query_text: str,
                                  cities: list = None, height_range: tuple = None,
                                  width_range: tuple = None, top_k: int = 10):
    """
    情境4: 使用查詢文本 + 組合過濾條件（城市列表、高度、寬度）
    """
    print(f"\n{'='*60}")
    print(f"情境4: 查詢文本 + 組合過濾條件")
    print(f"查詢文本: '{query_text}'")
    print(f"城市列表: {cities}")
    print(f"高度範圍: {height_range}")
    print(f"寬度範圍: {width_range}")
    print(f"返回數量: {top_k}")
    print("="*60)

    query_vector = text_to_embedding(query_text)

    # 構建組合過濾條件
    must_queries = []

    if cities and len(cities) > 0:
        must_queries.append(tablestore.TermsQuery(field_name='city', column_values=cities))

    if height_range:
        must_queries.append(tablestore.RangeQuery(
            field_name='height',
            range_from=height_range[0],
            range_to=height_range[1],
            include_lower=True,
            include_upper=True
        ))

    if width_range:
        must_queries.append(tablestore.RangeQuery(
            field_name='width',
            range_from=width_range[0],
            range_to=width_range[1],
            include_lower=True,
            include_upper=True
        ))

    vector_filter = tablestore.BoolQuery(must_queries=must_queries) if must_queries else None

    query = tablestore.KnnVectorQuery(
        field_name='vector',
        top_k=top_k,
        float32_query_vector=query_vector,
        filter=vector_filter
    )

    sort = tablestore.Sort(sorters=[tablestore.ScoreSort(sort_order=tablestore.SortOrder.DESC)])
    search_query = tablestore.SearchQuery(query, limit=top_k, get_total_count=False, sort=sort)

    search_response = client.search(
        table_name=table_name,
        index_name=index_name,
        search_query=search_query,
        columns_to_get=tablestore.ColumnsToGet(
            column_names=["image_id", "city", "height", "width"],
            return_type=tablestore.ColumnReturnType.SPECIFIED
        )
    )

    print(f"\nRequest ID: {search_response.request_id}")
    print(f"\n檢索結果:")
    print("-" * 60)

    for idx, hit in enumerate(search_response.search_hits):
        row_item = parse_search_hit(hit)
        print(f"{idx + 1}. 得分: {hit.score:.4f} | {row_item}")

    return search_response.search_hits


def parse_search_hit(hit):
    """解析搜尋結果"""
    row_item = {}
    primary_key = hit.row[0]
    row_item["image_id"] = primary_key[0][1]
    attribute_columns = hit.row[1]
    for col in attribute_columns:
        key = col[0]
        val = col[1]
        row_item[key] = val
    return row_item


def main():
    # 配置參數
    table_name = "multi_modal_retrieval"
    index_name = "index"

    print("=" * 60)
    print("Tablestore 多模態語義檢索樣本")
    print("=" * 60)

    # 建立用戶端
    client = get_client()
    print("Tablestore 用戶端建立成功")

    # 情境1: 僅使用自然語言描述進行語義檢索
    # 使用完整的自然語言句子，而不是簡單的關鍵詞
    search_by_text_only(
        client, table_name, index_name,
        "一隻毛茸茸的小狗在草地上奔跑",
        top_k=5
    )

    # 情境2: 自然語言描述 + 城市過濾
    search_with_city_filter(
        client, table_name, index_name,
        "湖邊有一棵柳樹，遠處是連綿的山脈",
        city="hangzhou",
        top_k=5
    )

    # 情境3: 自然語言描述 + 尺寸過濾
    # 尋找高解析度的橫向圖片
    search_with_size_filter(
        client, table_name, index_name,
        "夜晚燈火通明的現代化城市天際線",
        height_range=(500, 1024),
        width_range=(800, 1024),
        top_k=5
    )

    # 情境4: 自然語言描述 + 組合過濾條件
    search_with_combined_filters(
        client, table_name, index_name,
        "遠處是白雪覆蓋的山峰，陽光灑在雪地上閃閃發光",
        cities=["hangzhou", "shanghai", "beijing"],
        height_range=(0, 1024),
        width_range=(0, 1024),
        top_k=5
    )

    print("\n" + "=" * 60)
    print("所有檢索情境示範完成!")
    print("=" * 60)


if __name__ == "__main__":
    main()

以圖搜圖

# -*- coding: utf-8 -*-
"""
以圖搜圖樣本
使用本地圖片進行向量化，然後在 Tablestore 中檢索相似圖片
"""

import base64
import os
from pathlib import Path

import dashscope
import tablestore


def get_client():
    """建立 Tablestore 用戶端"""
    endpoint = os.getenv("tablestore_end_point")
    instance_name = os.getenv("tablestore_instance_name")
    access_key_id = os.getenv("tablestore_access_key_id")
    access_key_secret = os.getenv("tablestore_access_key_secret")

    client = tablestore.OTSClient(
        endpoint,
        access_key_id,
        access_key_secret,
        instance_name,
        retry_policy=tablestore.WriteRetryPolicy(),
    )
    return client


def image_to_embedding(image_path: str) -> list[float]:
    """
    將本地圖片轉換為向量
    """
    # 讀取圖片並轉換為 base64
    with open(image_path, "rb") as f:
        image_data = f.read()
    base64_image = base64.b64encode(image_data).decode("utf-8")

    # 根據檔案尾碼確定 MIME 類型
    suffix = Path(image_path).suffix.lower()
    if suffix in [".jpg", ".jpeg"]:
        mime_type = "image/jpeg"
    elif suffix == ".png":
        mime_type = "image/png"
    elif suffix == ".gif":
        mime_type = "image/gif"
    elif suffix == ".webp":
        mime_type = "image/webp"
    else:
        mime_type = "image/jpeg"  # 預設使用 jpeg

    # 構造 data URI
    data_uri = f"data:{mime_type};base64,{base64_image}"

    # 調用多模態向量化 API
    resp = dashscope.MultiModalEmbedding.call(
        model="multimodal-embedding-v1",
        input=[{"image": data_uri, "factor": 1.0}]
    )

    if resp.status_code == 200:
        return resp.output["embeddings"][0]["embedding"]
    else:
        raise Exception(f"圖片向量化失敗: {resp.code} - {resp.message}")


def search_by_image(client, table_name, index_name, image_path: str, top_k: int = 10):
    """
    以圖搜圖: 使用本地圖片進行語義檢索
    """
    print(f"\n{'='*60}")
    print(f"以圖搜圖")
    print(f"查詢圖片: {image_path}")
    print(f"返回數量: {top_k}")
    print("="*60)

    # 圖片向量化
    print("正在對查詢圖片進行向量化...")
    query_vector = image_to_embedding(image_path)
    print(f"向量化完成，維度: {len(query_vector)}")

    # 構建向量查詢
    query = tablestore.KnnVectorQuery(
        field_name='vector',
        top_k=top_k,
        float32_query_vector=query_vector,
    )

    # 按分數排序
    sort = tablestore.Sort(sorters=[tablestore.ScoreSort(sort_order=tablestore.SortOrder.DESC)])
    search_query = tablestore.SearchQuery(
        query,
        limit=top_k,
        get_total_count=False,
        sort=sort
    )

    # 執行搜尋
    search_response = client.search(
        table_name=table_name,
        index_name=index_name,
        search_query=search_query,
        columns_to_get=tablestore.ColumnsToGet(
            column_names=["image_id", "city", "height", "width"],
            return_type=tablestore.ColumnReturnType.SPECIFIED
        )
    )

    print(f"\nRequest ID: {search_response.request_id}")
    print(f"\n檢索結果:")
    print("-" * 60)

    for idx, hit in enumerate(search_response.search_hits):
        row_item = parse_search_hit(hit)
        print(f"{idx + 1}. 得分: {hit.score:.4f} | {row_item}")

    return search_response.search_hits


def search_by_image_with_filter(client, table_name, index_name, image_path: str,
                                 cities: list = None, height_range: tuple = None,
                                 width_range: tuple = None, top_k: int = 10):
    """
    以圖搜圖 + 過濾條件: 使用本地圖片進行語義檢索，同時應用過濾條件
    """
    print(f"\n{'='*60}")
    print(f"以圖搜圖 + 過濾條件")
    print(f"查詢圖片: {image_path}")
    print(f"城市列表: {cities}")
    print(f"高度範圍: {height_range}")
    print(f"寬度範圍: {width_range}")
    print(f"返回數量: {top_k}")
    print("="*60)

    # 圖片向量化
    print("正在對查詢圖片進行向量化...")
    query_vector = image_to_embedding(image_path)
    print(f"向量化完成，維度: {len(query_vector)}")

    # 構建過濾條件
    must_queries = []

    if cities and len(cities) > 0:
        must_queries.append(tablestore.TermsQuery(field_name='city', column_values=cities))

    if height_range:
        must_queries.append(tablestore.RangeQuery(
            field_name='height',
            range_from=height_range[0],
            range_to=height_range[1],
            include_lower=True,
            include_upper=True
        ))

    if width_range:
        must_queries.append(tablestore.RangeQuery(
            field_name='width',
            range_from=width_range[0],
            range_to=width_range[1],
            include_lower=True,
            include_upper=True
        ))

    vector_filter = tablestore.BoolQuery(must_queries=must_queries) if must_queries else None

    # 構建向量查詢
    query = tablestore.KnnVectorQuery(
        field_name='vector',
        top_k=top_k,
        float32_query_vector=query_vector,
        filter=vector_filter
    )

    # 按分數排序
    sort = tablestore.Sort(sorters=[tablestore.ScoreSort(sort_order=tablestore.SortOrder.DESC)])
    search_query = tablestore.SearchQuery(query, limit=top_k, get_total_count=False, sort=sort)

    # 執行搜尋
    search_response = client.search(
        table_name=table_name,
        index_name=index_name,
        search_query=search_query,
        columns_to_get=tablestore.ColumnsToGet(
            column_names=["image_id", "city", "height", "width"],
            return_type=tablestore.ColumnReturnType.SPECIFIED
        )
    )

    print(f"\nRequest ID: {search_response.request_id}")
    print(f"\n檢索結果:")
    print("-" * 60)

    for idx, hit in enumerate(search_response.search_hits):
        row_item = parse_search_hit(hit)
        print(f"{idx + 1}. 得分: {hit.score:.4f} | {row_item}")

    return search_response.search_hits


def parse_search_hit(hit):
    """解析搜尋結果"""
    row_item = {}
    primary_key = hit.row[0]
    row_item["image_id"] = primary_key[0][1]
    attribute_columns = hit.row[1]
    for col in attribute_columns:
        key = col[0]
        val = col[1]
        row_item[key] = val
    return row_item


def main():
    # 配置參數
    table_name = "multi_modal_retrieval"
    index_name = "index"

    print("=" * 60)
    print("Tablestore 以圖搜圖樣本")
    print("=" * 60)

    # 建立用戶端
    client = get_client()
    print("Tablestore 用戶端建立成功")

    # 擷取專案根目錄
    current_dir = Path(__file__).parent
    data_dir = current_dir / "data" / "photograph"

    # 擷取一張樣本圖片作為查詢圖片
    sample_images = list(data_dir.glob("*.jpg"))
    if not sample_images:
        print("錯誤: 未找到樣本圖片，請確保 data/photograph 目錄下有 jpg 圖片")
        return

    # 使用第一張圖片作為查詢樣本
    query_image_path = str(sample_images[0])
    print(f"\n使用樣本圖片: {query_image_path}")

    # 情境1: 僅使用圖片進行以圖搜圖
    search_by_image(client, table_name, index_name, query_image_path, top_k=5)

    # 情境2: 以圖搜圖 + 過濾條件
    # 只搜尋特定城市的相似圖片
    search_by_image_with_filter(
        client, table_name, index_name,
        query_image_path,
        cities=["hangzhou", "shanghai"],
        top_k=5
    )

    # 情境3: 以圖搜圖 + 尺寸過濾
    # 只搜尋橫向的相似圖片（寬度大於高度）
    search_by_image_with_filter(
        client, table_name, index_name,
        query_image_path,
        width_range=(800, 1024),
        top_k=5
    )

    print("\n" + "=" * 60)
    print("以圖搜圖示範完成!")
    print("=" * 60)


if __name__ == "__main__":
    main()
