使用Argo Workflows在OSS上實現批量資料處理-Container Service Kubernetes 版 ACK-阿里雲

本文介紹如何使用Argo Workflows將OSS上的檔案進行逐級合并以展示如何進行批量資料處理。這種處理方法常見於高精度地圖處理、動畫渲染等情境，使用Argo Workflows進行任務編排可以有效提升資料處理的並發度和處理速度。

前提條件

已參見啟用批量任務編排能力完成組件的安裝和阿里雲Argo CLI的安裝。
已參見使用儲存卷建立OSS儲存卷。

步驟一：準備資料

使用以下樣本內容，建立prepare-data.yaml。

apiVersion: argoproj.io/v1alpha1
kind: Workflow
metadata:
  generateName: aggregation-prepare-data-
  namespace: argo
spec:
  entrypoint: main
  volumes:
    - name: workdir
      persistentVolumeClaim:
        claimName: pvc-oss
  templates:
    - name: main
      dag:
        tasks:
          - name: prepare-data
            template: create-file

    - name: create-file
      script:
        image: mirrors-ssl.aliyuncs.com/python:alpine
        command:
          - python
        source: |
          import os
          import sys
          import random
          os.makedirs("/mnt/vol/aggregation-demo/l1/", exist_ok=True)
          for i in range(32):
            with open('/mnt/vol/aggregation-demo/l1/' + str(i) + '.txt', 'w') as conbine_file:
              combined_content = random.choice('ABCDEFGHIJKLMNOPQRSTUVWXYZ')
              conbine_file.write(combined_content)
        volumeMounts:
        - name: workdir
          mountPath: /mnt/vol

執行以下命令，提交工作流程。
```
argo submit prepare-data.yaml
```

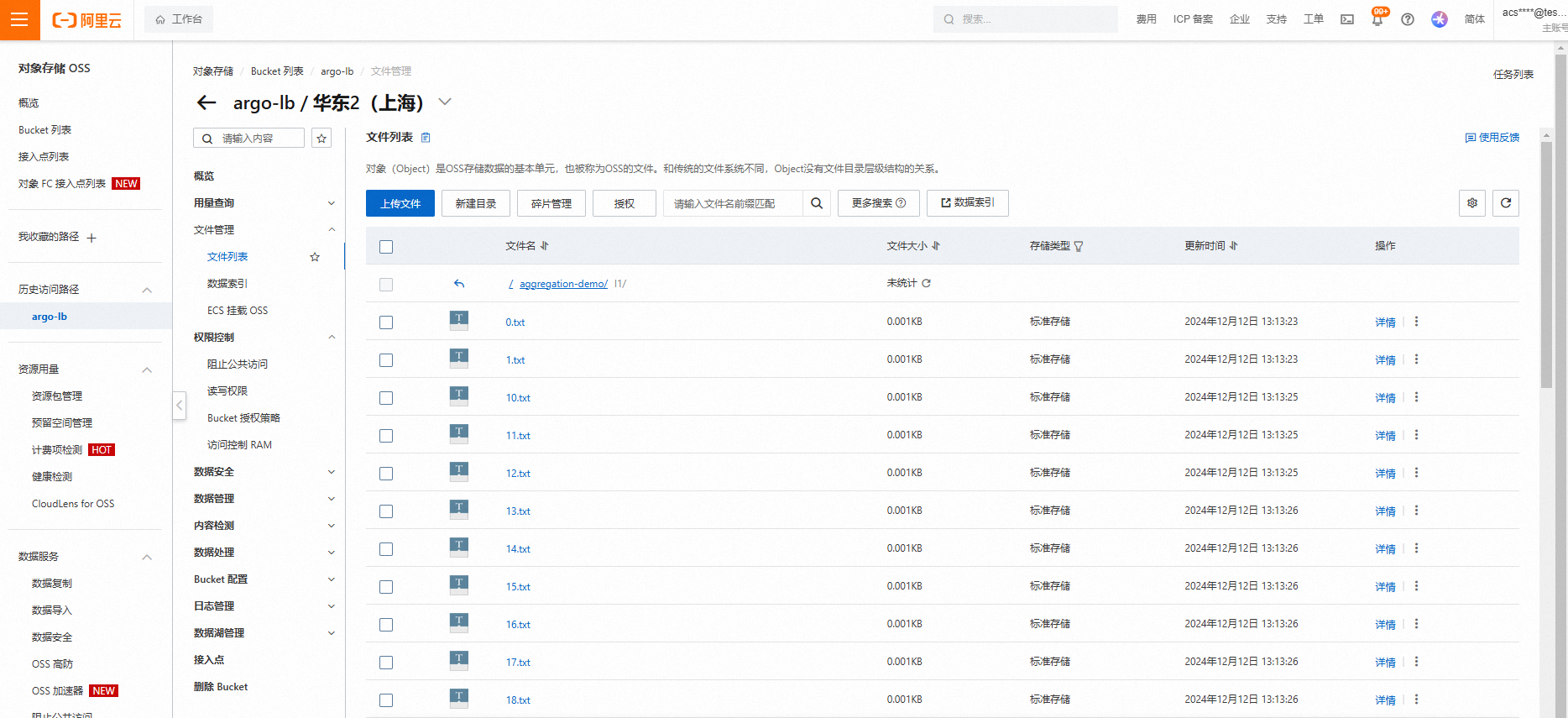

任務運行完成後會在OSS上建立出aggregation-demo/l1目錄，並產生32個檔案，每個檔案內有單個隨機字元。

步驟二：處理批量資料

使用以下樣本內容，通過YAML方式編輯資料處理作業，建立process-data.yaml。

apiVersion: argoproj.io/v1alpha1
kind: Workflow
metadata:
  generateName: process-data- # 資料處理工作流程。
  namespace: argo
spec:
  entrypoint: main
  volumes: # Object Storage Service掛載。
    - name: workdir
      persistentVolumeClaim:
        claimName: pvc-oss
  arguments:
    parameters:
      - name: numbers
        value: "16"
  templates:
    - name: main
      steps:
        - - name: process-data-l1 # 第一級處理，啟動16個Pods，Merge 32 個files。
            template: process-data
            arguments:
              parameters:
                - name: file_number
                  value: "{{item}}"
                - name: level
                  value: "1"
            withSequence:
              count: "{{workflow.parameters.numbers}}"
        - - name: process-data-l2 # 第二級處理，啟動 8個Pods，Merge 16 個files， 上一步處理完後啟動。
            template: process-data
            arguments:
              parameters:
                - name: file_number
                  value: "{{item}}"
                - name: level
                  value: "2"
            withSequence:
              count: "{{=asInt(workflow.parameters.numbers)/2}}"
        - - name: merge-data # 最後一級處理，啟動一個Pod，Merge 8 files， 上一步處理完後啟動。
            template: merge-data
            arguments:
              parameters:
                - name: number
                  value: "{{=asInt(workflow.parameters.numbers)/2}}"

    - name: process-data # process-data 任務定義。
      inputs:
        parameters:
          - name: file_number
          - name: level
      container:
        image: serverlessargo-registry.cn-hangzhou.cr.aliyuncs.com/argo-workflow-examples/python:3.11-amd # 注意開通vpc訪問公網能力以便於拉取鏡像
        imagePullPolicy: Always
        command: [python3] # command
        args: ["process.py", "{{inputs.parameters.file_number}}", "{{inputs.parameters.level}}"]# 接收輸入的參數，pod處理哪個file
        volumeMounts:
        - name: workdir
          mountPath: /mnt/vol

    - name: merge-data # merge-data 任務定義。
      inputs:
        parameters:
          - name: number
      container:
        image: serverlessargo-registry.cn-hangzhou.cr.aliyuncs.com/argo-workflow-examples/python:3.11-amd
        imagePullPolicy: Always
        command: [python3]
        args: ["merge.py", "{{inputs.parameters.number}}"] # 接收輸入的參數，處理多少個檔案。
        volumeMounts:
        - name: workdir
          mountPath: /mnt/vol

執行以下命令，提交工作流程。
```
argo submit process-data.yaml -n argo
```

執行以下命令查看結果。

argo get @latest -n argo

預期輸出：

argo get @latest -n argo
Name:                process-data-8sn2q
Namespace:           argo
ServiceAccount:      unset (will run with the default ServiceAccount)
Status:              Succeeded
Conditions:
 PodRunning          False
 Completed           True
Created:             Thu Dec 12 13:15:39 +0800 (4 minutes ago)
Started:             Thu Dec 12 13:15:39 +0800 (4 minutes ago)
Finished:            Thu Dec 12 13:16:40 +0800 (3 minutes ago)
Duration:            1 minute 1 seconds
Progress:            25/25
ResourcesDuration:   4s*(1 cpu),2m51s*(100Mi memory)
Parameters:
  numbers:           16

STEP                           TEMPLATE      PODNAME                                     DURATION  MESSAGE
 ✔ process-data-8sn2q          main
 ├─┬─✔ process-data-l1(0:0)    process-data  process-data-8sn2q-process-data-3064646785  17s
 │ ├─✔ process-data-l1(1:1)    process-data  process-data-8sn2q-process-data-140728989   20s
 │ ├─✔ process-data-l1(2:2)    process-data  process-data-8sn2q-process-data-499182361   18s
 │ ├─✔ process-data-l1(3:3)    process-data  process-data-8sn2q-process-data-3152865965  20s
 │ ├─✔ process-data-l1(4:4)    process-data  process-data-8sn2q-process-data-1363784105  16s
 │ ├─✔ process-data-l1(5:5)    process-data  process-data-8sn2q-process-data-3270437485  20s
 │ ├─✔ process-data-l1(6:6)    process-data  process-data-8sn2q-process-data-1788045361  16s
 │ ├─✔ process-data-l1(7:7)    process-data  process-data-8sn2q-process-data-913839549   20s
 │ ├─✔ process-data-l1(8:8)    process-data  process-data-8sn2q-process-data-1562179905  16s
 │ ├─✔ process-data-l1(9:9)    process-data  process-data-8sn2q-process-data-573517021   20s
 │ ├─✔ process-data-l1(10:10)  process-data  process-data-8sn2q-process-data-3769586203  16s
 │ ├─✔ process-data-l1(11:11)  process-data  process-data-8sn2q-process-data-3700909073  20s
 │ ├─✔ process-data-l1(12:12)  process-data  process-data-8sn2q-process-data-2818003295  19s
 │ ├─✔ process-data-l1(13:13)  process-data  process-data-8sn2q-process-data-278901825   20s
 │ ├─✔ process-data-l1(14:14)  process-data  process-data-8sn2q-process-data-3986961347  16s
 │ └─✔ process-data-l1(15:15)  process-data  process-data-8sn2q-process-data-2905592609  19s
 ├─┬─✔ process-data-l2(0:0)    process-data  process-data-8sn2q-process-data-2056515729  9s
 │ ├─✔ process-data-l2(1:1)    process-data  process-data-8sn2q-process-data-2141620461  4s
 │ ├─✔ process-data-l2(2:2)    process-data  process-data-8sn2q-process-data-352538601   9s
 │ ├─✔ process-data-l2(3:3)    process-data  process-data-8sn2q-process-data-2144734909  6s
 │ ├─✔ process-data-l2(4:4)    process-data  process-data-8sn2q-process-data-2290907961  8s
 │ ├─✔ process-data-l2(5:5)    process-data  process-data-8sn2q-process-data-4197561341  5s
 │ ├─✔ process-data-l2(6:6)    process-data  process-data-8sn2q-process-data-1620613249  9s
 │ └─✔ process-data-l2(7:7)    process-data  process-data-8sn2q-process-data-3126908173  10s
 └───✔ merge-data              merge-data    process-data-8sn2q-merge-data-1171626309    7s

在控制台查看結果。

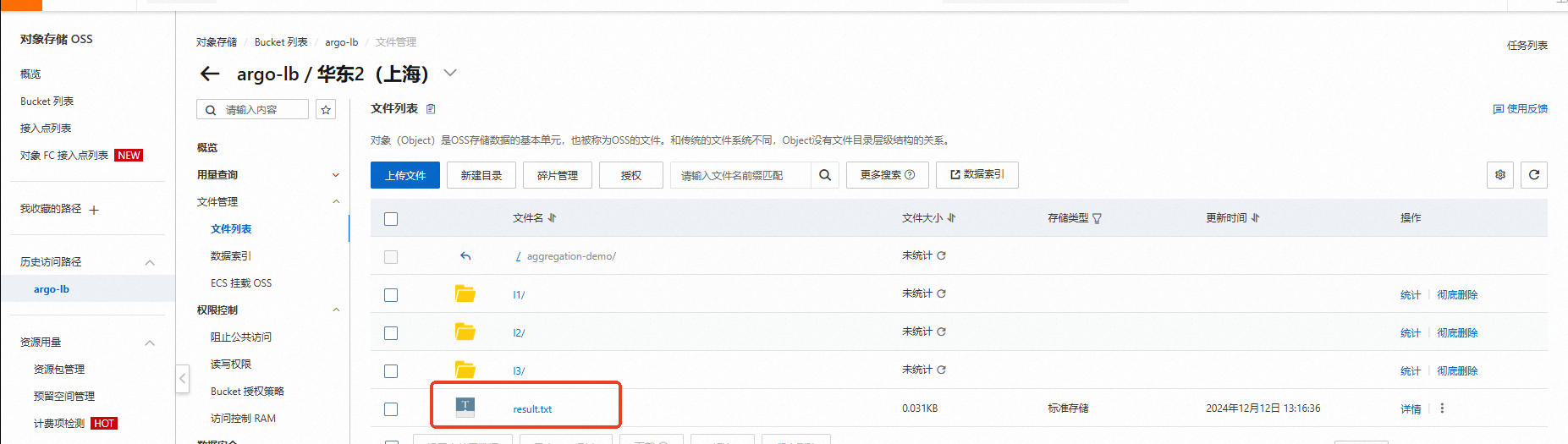

可以看到任務均已經執行成功。查看OSS，可以發現最終結果result.txt已經產生。
