Alibaba Cloud DevOps:Use the needs syntax to control job dependencies

The YAML file of an Alibaba Cloud DevOps pipeline supports job dependency definition based on the stages.<stage_id>.jobs.<job_id>.needs syntax.

Typical scenario: app1 and app2 must be built and deployed together. The app1 build job depends on the completion of app1 unit testing and app1 code scanning jobs. The app2 build job depends on the completion of app2 unit testing and app2 code scanning jobs. To improve efficiency, app1 and app2 build jobs can be run concurrently. The deployment of app2 depends on the completion of app1 deployment.

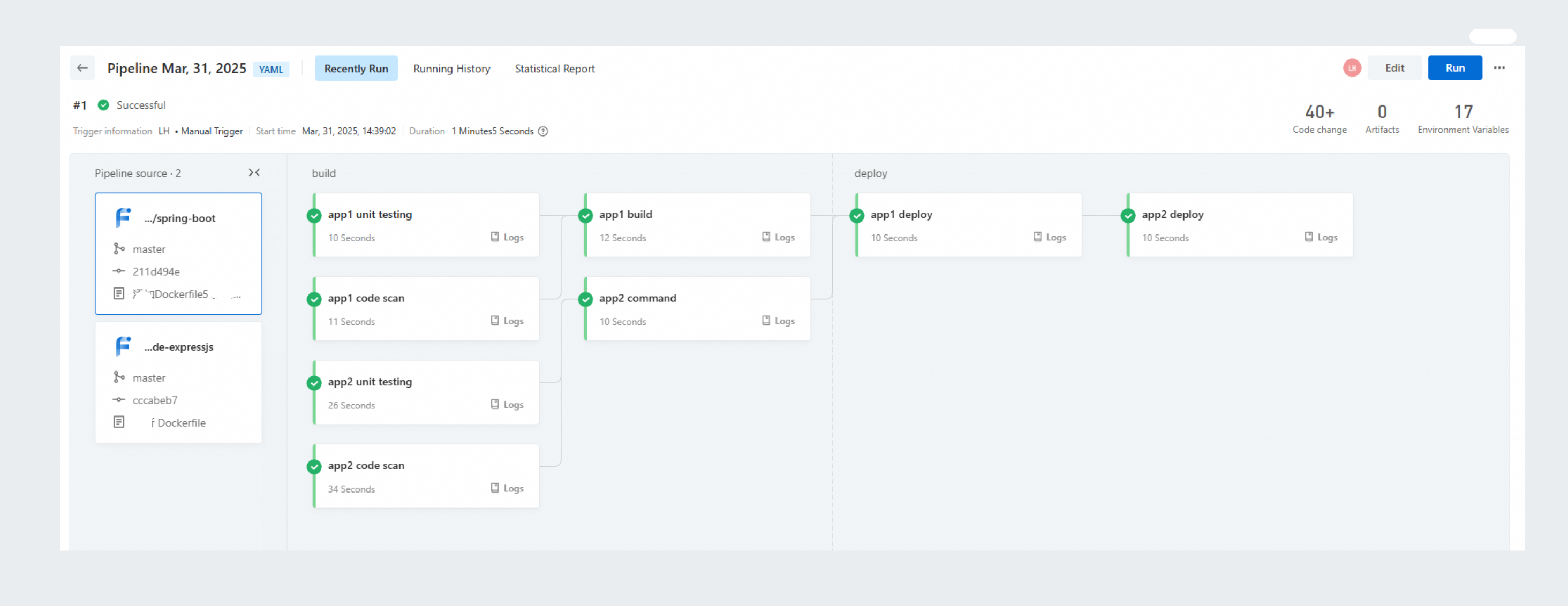

The following figure provides an example of using YAML to build and deploy app1 and app2.

sources:
  my_repo1:
    type: gitSample
    name: app1 code source
    endpoint: https://atomgit.com/flow-example/spring-boot.git
    branch: master
  my_repo2:
    type: gitSample
    name: app2 code source
    endpoint: https://atomgit.com/flow-example/node-expressjs.git
    branch: master
defaultWorkspace: my_repo1
stages:
  build_stage:
    name: Build
    jobs:
      test_job1:
        name: app1 unit testing
        steps:
          command_step:
            name: Execute the command
            step: Command
            with:
              run: |
                echo This is build job...
      scan_job1:
        name: app1 code scanning
        steps:
          command_step:
            name: Execute the command
            step: Command
            with:
              run: |
                echo This is build job...
      test_job2:
        name: app2 unit testing
        steps:
          command_step:
            name: Execute the command
            step: Command
            with:
              run: |
                echo This is build job...
      scan_job2:
        name: app2 code scanning
        steps:
          command_step:
            name: Execute the command
            step: Command
            with:
              run: |
                echo This is build job...
      build_job1:
        name: app1 build
        # Declares dependent jobs. app1 build depends on the completion of both the app1 unit testing and code scanning jobs.
        needs:
          - test_job1
          - scan_job1
        steps:
          command_step:
            name: Execute the command
            step: Command
            with:
              run: |
                echo This is build job...
      build_job2:
        name: app2 build
        # Declare dependent jobs. app2 build depends on the completion of both the app2 unit testing and code scanning jobs.
        needs:
          - test_job2
          - scan_job2
        steps:
          command_step:
            name: Execute the command
            step: Command
            with:
              run: |
                echo This is build job...
  deploy_stage:
    name: Deployment
    jobs:
      deploy_job1:
        name: app1 deployment
        steps:
          command_step:
            name: Execute the command
            step: Command
            with:
              run: echo This is deploy env 1...
      deploy_job2:
        name: app2 deployment
        # Declare dependent jobs. app2 deployment depends on the completion of the app1 deployment job.
        needs: deploy_job1
        steps:
          command_step:
            name: Execute the command
            step: Command
            with:
              run: echo This is deploy env 2...
