Alibaba Cloud DevOps:Code source trigger

Alibaba Cloud DevOps Codeup

1. In Alibaba Cloud DevOps, go to your pipeline, click Edit Pipeline, and then click Edit Code Source.

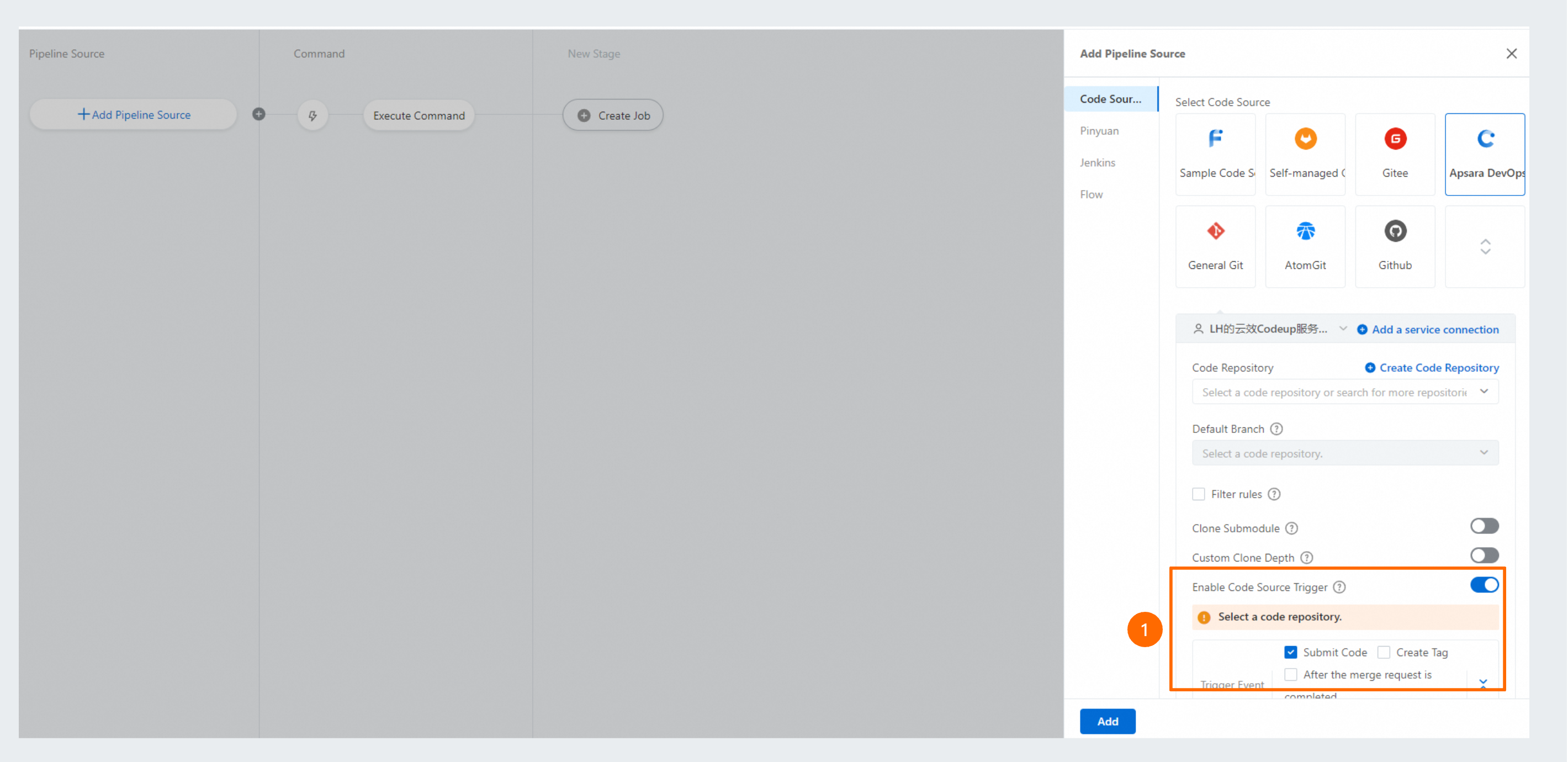

2. Click Enable Code Source Trigger. Flow automatically adds the webhook URL to the corresponding Alibaba Cloud DevOps Codeup code repository.

After enabling the trigger, in the Triggering events section, select the desired event types, such as code commit, tag creation, merge request completed, and merge request created/updated. You can also enable branch or tag filtering and code path filtering. When you are finished, click Add.

After you enable the trigger, Flow automatically registers a webhook on the Webhooks settings page of your Alibaba Cloud DevOps Codeup code repository. The webhook covers push events, tag push events, and merge request events.

Other code sources

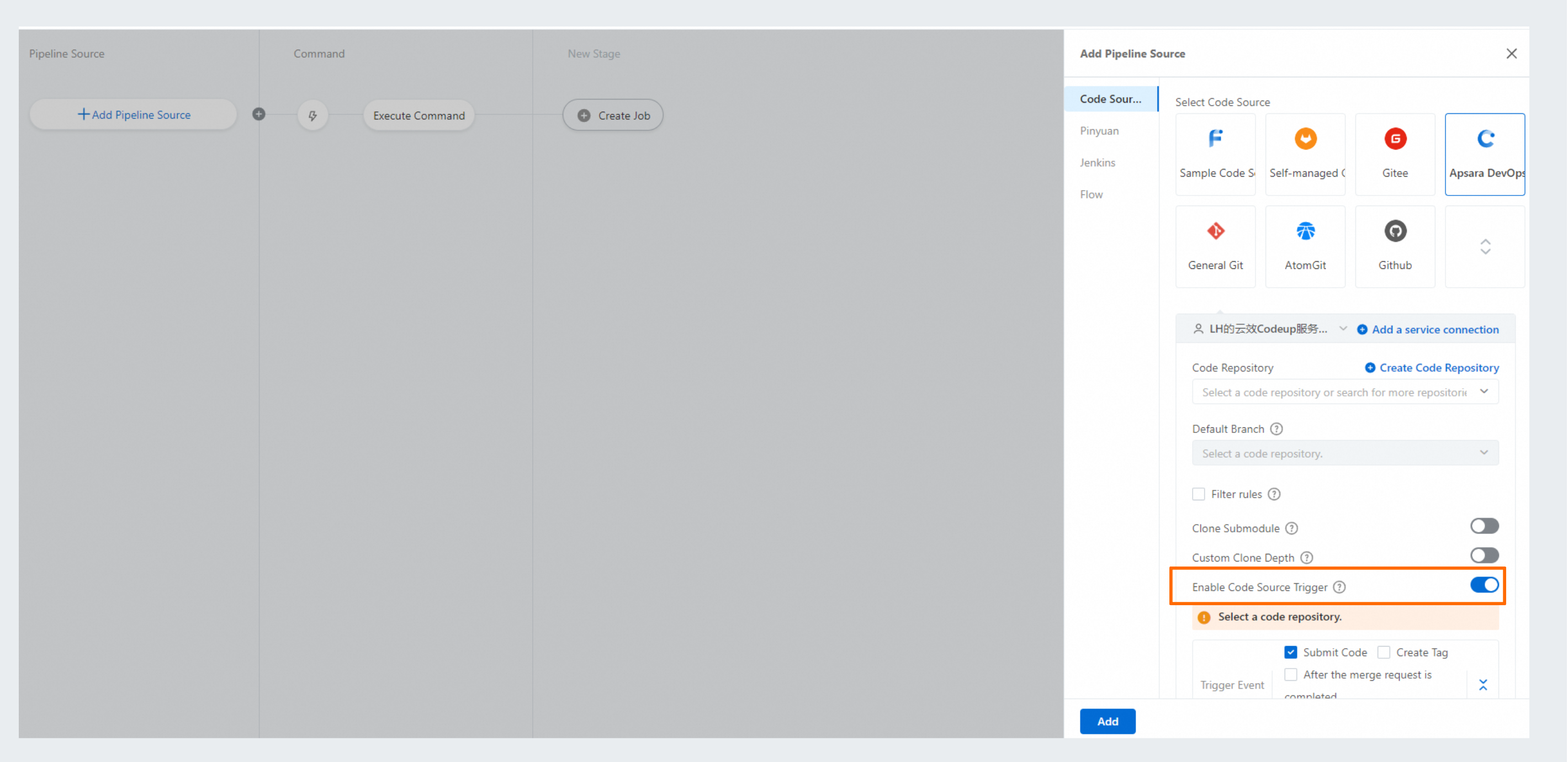

1. On the pipeline's edit page, click Edit Code Source. Enable Code Source Trigger, and copy the webhook URL.

   In the Triggering events section, select code commit, and add the copied webhook URL to the webhook trigger settings of the corresponding code repository.

2. Add the copied webhook URL to the settings of the corresponding code repository. Alibaba Cloud DevOps supports code source triggers for GitLab, GitHub, Gitee, and General Git repositories. Configuration methods vary by repository type.

   GitLab

   Go to your GitLab code repository and navigate to . Paste the webhook URL copied from the pipeline into the URL field.

   In the Trigger section, select Push events.

   GitHub

   Go to your GitHub code repository, navigate to , and click Add Webhook. Paste the webhook URL copied from the Flow pipeline into the Payload URL field. For Content Type, select application/json.

   For the trigger, keep the default option: Just the push event..

   Gitee

   Go to your Gitee code repository and navigate to . Paste the webhook URL copied from the Flow pipeline into the URL field.

   General Git

   Using GitLab as an example, go to your GitLab code repository and navigate to . Paste the webhook URL copied from the pipeline into the URL field.

   SVN

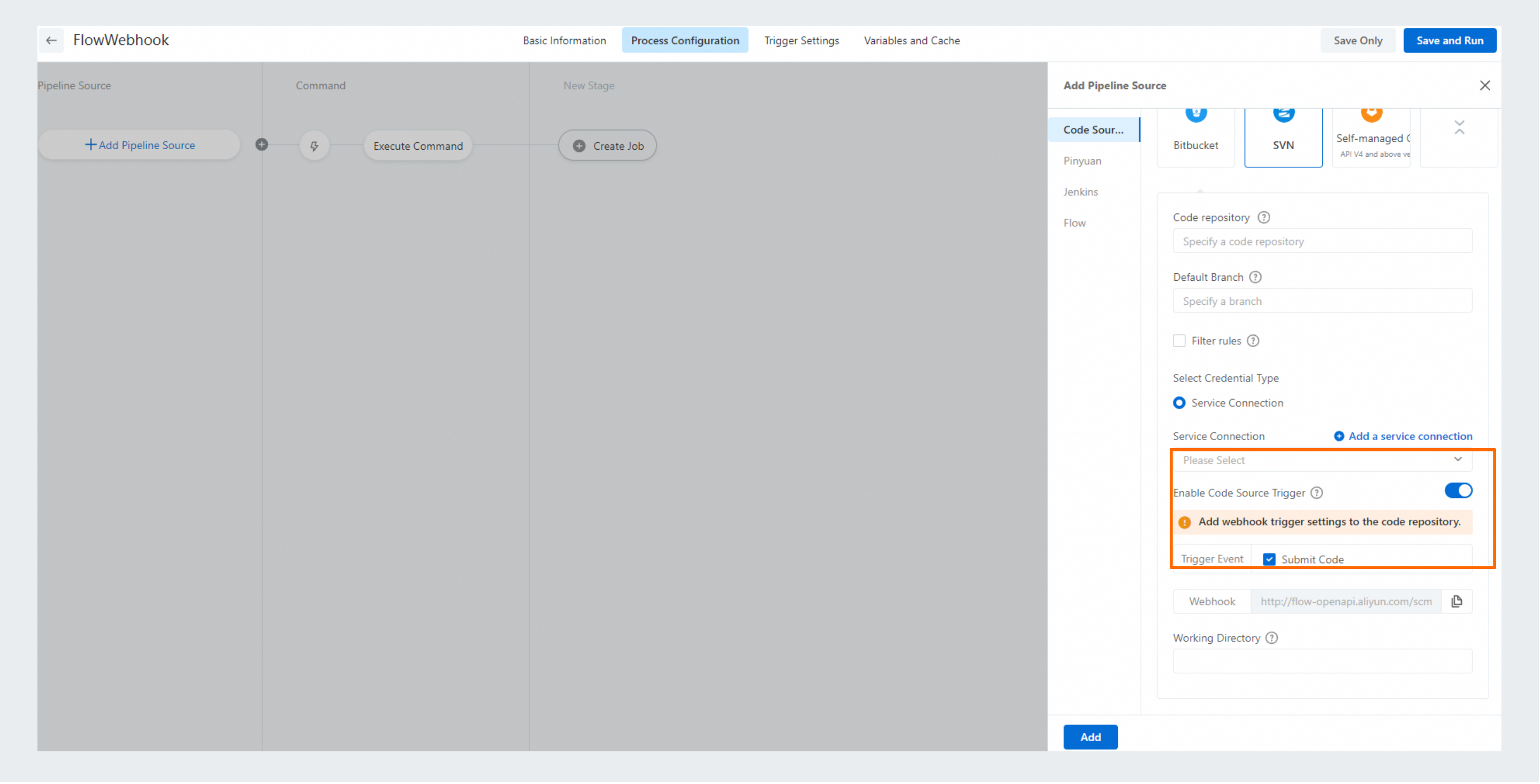

   1. On the pipeline edit page, enable the code source trigger and copy the webhook URL.

      For the triggering event, select code commit. The webhook URL is http://flow-openapi.aliyun.com/scm.

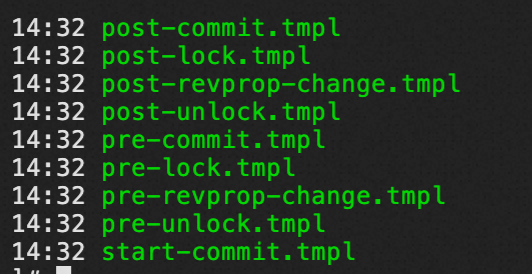

   2. On the SVN server, navigate to the hooks directory of your repository. Find the hook script templates. Each template corresponds to an event. To use a template, remove the .tmpl suffix.

      14:32  post-commit.tmpl
      14:32  post-lock.tmpl
      14:32  post-revprop-change.tmpl
      14:32  post-unlock.tmpl
      14:32  pre-commit.tmpl
      14:32  pre-lock.tmpl
      14:32  pre-revprop-change.tmpl
      14:32  pre-unlock.tmpl
      14:32  start-commit.tmpl

   3. Take post-commit as an example. The post-commit file is a shell script. SVN executes this script after a change is detected, such as a code commit, branch creation, or tag creation. The following example script shows how to trigger a Flow pipeline run upon a code commit:

      #!/bin/sh
      # The repository path and the commit revision number are passed to the script as arguments.
      REPOS="$1"
      REV="$2"
      # Use svnlook to find the directories changed in this commit.
      CHANGED_DIRS=$(svnlook dirs-changed -r "$REV" "$REPOS")
      # Get the first changed directory path, which is usually the top-level directory.
      FIRST_CHANGED_PATH=$(echo "$CHANGED_DIRS" | head -n 1)
      # Assume the branch structure follows the standard format (branches/branch-name). You can parse the branch name from the output.
      BRANCH_NAME=$(echo "$FIRST_CHANGED_PATH" | sed 's#.*/$branches/.*/$$\1#')
      # Construct a curl command to send a request to the webhook URL provided by the pipeline.
      # Replace the webhook URL with the one from your pipeline, and format the request data as shown in the example.
      curl --location --request POST 'http://flow-openapi.aliyun.com/scm/webhook/MwfQPTyf4nif2UdWBooR' \
      --header 'Content-Type: application/json' \
      --data-raw "{
        \"ref\": \"refs/heads/$BRANCH_NAME\",
        \"repository\": {
          \"clone_url\": \"svn://8.142.XX.XXXcom/svn/repos/demo\"
        }
      }"

Triggering events

Use Triggering events to filter webhook events by code source. The following table lists supported events for each code source type.

Code commit: Triggered when you push a local branch to a remote branch or edit files on your code platform's web interface (for example, pushing local master to origin/master). Flow matches the target branch against the filter conditions and, if they match, triggers the pipeline using that branch.

Tag creation: Triggered when you push a local tag to the server or create a tag on your code platform's web interface (for example, pushing local tag release/0.0.1 to the server). Flow matches the tag name against the filter conditions and, if they match, triggers the pipeline using that tag as the code version.

Merge request created/updated: Triggered when you create or update a merge request on your code platform's web interface. Only Alibaba Cloud DevOps Codeup supports this event. For example, if you create a merge request from the remote dev branch (source) to master (target), Flow matches the target branch against the filter conditions and, if they match, triggers the pipeline using the source branch.

Merge request completed: Similar to the merge request created/updated event, except Flow uses the target branch for the run.

Filtering conditions
