The short video SDK allows you to create custom filters and transitions by writing OpenGL ES shaders (OpenGL ES 3.0 syntax) based on a general-purpose effect configuration file. A basic understanding of OpenGL ES and shading languages is required.

Overview

A filter or transition resource package folder contains an effect configuration file named config.json and related image materials. To apply a filter or transition during video editing or recording, specify the resource package folder when you call the corresponding editing or recording operation.

Configure an effect configuration file

The effect configuration file is in JSON format and describes a complete rendering process. The first level contains basic information about the effect, and the second level uses a node tree to describe how the effect is rendered.

First level - basic information

An effect's basic information includes the following fields:

Parameter	Description
name	The name of the effect.
module	The module identifier. Set this to `ALIVC_GECF`.
version	The version number. Value: 1.
type	The type of the effect. Valid values: 1 and 2. 1 indicates filter and 2 indicates transition.
nodeTree	The node tree that describes how the effect is rendered. For more information, see Second level - node tree.

The following code shows the configuration file of the Intense filter.

{
    "name": "Intense",
    "module": "ALIVC_GECF",
    "version": 1,
    "type": 1,
    "nodeTree": [
        {
            "nodeId": 0,
            "name": "Intense",
            "fragment": "/** ...... */",
            "textures": [
                {
                    "name": "inputImageTexture",
                    "srcType": "INPUT_NODE",
                    "nodeId": 0
                },
                {
                    "name": "inputImageTexture2",
                    "srcType": "IMAGE",
                    "path": "color.png"
                }
            ]
        }
    ]
}

Second level - node tree

The nodeTree contains one or more nodes that describe a rendering process.

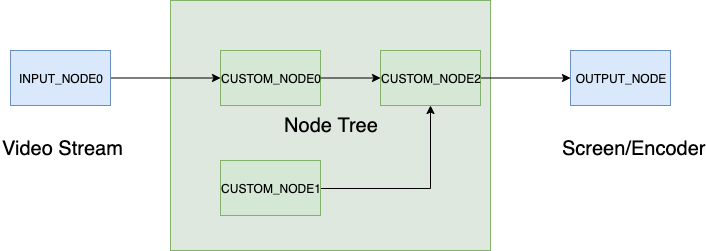

The following figure shows the rendering flow in the short video SDK: 滤镜及特效

As shown in the preceding figure, the rendering process is abstracted into a tree structure of nodes.

The input node INPUT_NODE represents the input source. During recording, the input node is the camera image data stream. During editing, the input node is the current video stream. Multiple input nodes can exist. For example, to apply a transition between two video clips, the first clip is INPUT_NODE0 and the second clip is INPUT_NODE1.
The middle section represents the nodeTree parameter in the effect configuration file. A node tree can contain one or more rendering nodes. The key to a node tree is the configuration of its rendering nodes.
The output node OUTPUT_NODE represents the rendered video stream. In preview mode, the output is displayed on screen. In production mode, the output is sent to the encoder.

Nodes

A node defines the rendering configuration for a single draw call, including the shader code and parameter descriptions required for a custom effect. The following table describes the node parameters.

Parameter	Description
nodeId	The ID of the node.
name	The name of the node.
vertex	The vertex shader code. Mutually exclusive with the vertexPath parameter. If this parameter is not specified, the SDK uses the following default implementation. `attribute vec4 position; attribute vec4 inputTextureCoordinate; varying vec2 textureCoordinate; void main() { gl_Position = position; textureCoordinate = inputTextureCoordinate.xy; }`
vertexPath	The path to the vertex shader code file. Mutually exclusive with the vertex parameter.
attributes	The list of vertex attributes, declaring the names and types of attributes used in vertex shading. Valid values of type: POSITION and TEXTURECOORD. POSITION indicates the vertex coordinate, and TEXTURECOORD indicates the texture coordinate. This parameter is optional. If not specified, the SDK uses the following default implementation. `[ { "name": "position", "type": "POSITION" }, { "name": "inputTextureCoordinate", "type": "TEXTURECOORD" } ]`
fragment	The fragment shader code. Mutually exclusive with the fragmentPath parameter.
fragmentPath	The path to the fragment shader code file. Mutually exclusive with the fragment parameter.
textures	The list of textures, specifying the `sampler2D` texture attributes used in the fragment shader: name: the name of a texture. srcType: the data source type of the texture. Valid values: IMAGE: The texture comes from an image. Requires the `path` attribute. Place the image file in the resource package. INPUT_NODE: The texture comes from the image data passed in by the input node. Requires the nodeId attribute. CUSTOM_NODE: The texture comes from the image data processed by a custom node. Requires the nodeId attribute. nodeId: the ID of the node. Required when srcType is CUSTOM_NODE or INPUT_NODE. When srcType is INPUT_NODE, valid values of nodeId are 0 and 1. For filters, set this to 0. For transitions, set this to 0 for the video stream before the transition and 1 for the video stream after the transition. path: the path to the resource file. Required when srcType is IMAGE.
params	The list of uniforms, specifying the `uniforms` attributes used in the fragment shader: name: The name of the parameter. type: Specifies the parameter type. For more information, see Supported types for the type parameter. value: The parameter value. maxValue: The maximum parameter value. minValue: The minimum value for the parameter.

The type attribute of the params parameter supports the following values.

Type	Example value
INT	[1]
FLOAT	[-2.0]
VEC2I	[3, 2]
VEC3I	[1, 2, 3]
VEC4I	[4, 3, 2, 1]
VEC2F	[-1.0, 1.0]
VEC3F	[0.5, 0.5, 0.5]
VEC4F	[1.0, -1.0, 1.0, -1.0]
MAT3F	[1.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 1.0]
MAT4F	[1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0]

The following code shows the configuration file of the Translate transition.

{
    "name": "Translate",
    "module": "ALIVC_GECF",
    "version": 1,
    "type": 2,
    "nodeTree": [
        {
            "nodeId": 0,
            "name": "Translate",
            "vertex": "/** ...... */",
            "attributes": [
                {
                    "name": "a_position",
                    "type": "POSITION"
                },
                {
                    "name": "a_texcoord",
                    "type": "TEXTURECOORD"
                }
            ],
            "fragment": "/** ...... */",
            "textures": [
                {
                    "name": "RACE_Tex0",
                    "srcType": "INPUT_NODE",
                    "nodeId": 0
                },
                {
                    "name": "RACE_Tex1",
                    "srcType": "INPUT_NODE",
                    "nodeId": 1
                }
            ],
            "params": [
                {
                    "name": "direction",
                    "type": "INT",
                    "value": [
                        0
                    ],
                    "maxValue": [
                        3
                    ],
                    "minValue": [
                        0
                    ]
                }
            ]
        }
    ]
}

Built-in variables

The short video SDK provides the following built-in variables that you can declare in your shader.

uniform highp float BUILTIN_PROGRESS; // Transition progress: 0 to 1
uniform highp float BUILTIN_WIDTH;    // Image width
uniform highp float BUILTIN_HEIGHT;   // Image height

Use an effect in the short video SDK

To use an effect, create an effect object, apply it, and update the effect parameters as needed.

The initialized effect object contains an AliyunEffectConfig object that describes the effect configurations. The internal structure of AliyunEffectConfig corresponds to the structure of the effect configuration file. If the configuration file contains the params parameter, you can obtain the AliyunParam object from AliyunEffectConfig -> nodeTree -> params. The value field in AliyunParam holds the parameter value. You can update effect parameters in one of the following ways.

Update the parameters by calling the update method of the AliyunValue object.
Update the parameters by calling the effect update method. For details, see step iii in the following section.

Android Procedure

Filters
1. Call EffectFilter(String path) to create a filter object. path specifies the path of the filter folder.
2. Call int addAnimationFilter(EffectFilter filter); to apply the filter.
3. Call int updateAnimationFilter(EffectFilter filter); to update the filter parameters.
Transitions
1. Call TransitionBase(String path) to create a transition object. path specifies the path of the transition folder.
2. Call int setTransition(int index, TransitionBase transition); to apply the transition.
3. Call int updateTransition(int clipIndex, TransitionBase transitionBase); to update the transition parameters.

Procedures for iOS

Filters
1. Call - (instancetype)initWithFile:(NSString *)path; of AliyunEffectFilter to create a filter object. path specifies the path of the filter folder.
2. Call - (int)applyAnimationFilter:(AliyunEffectFilter *)filter; to apply the filter.
3. Call - (int)updateAnimationFilter:(AliyunEffectFilter *)filter; to update the filter parameters.
Transitions
1. Call -(instancetype)initWithPath:(NSString *)path; of AliyunTransitionEffect to create a transition object. path specifies the path of the transition folder.
2. Call - (int)applyTransition:(AliyunTransitionEffect *)transition atIndex:(int)clipIdx; to apply the transition.
3. Call -(int)updateTransition:(AliyunTransitionEffect *)transition atIndex:(int)clipIdx; to update the transition parameters.
