Integrate AgentScope Runtime with Tablestore - Tablestore

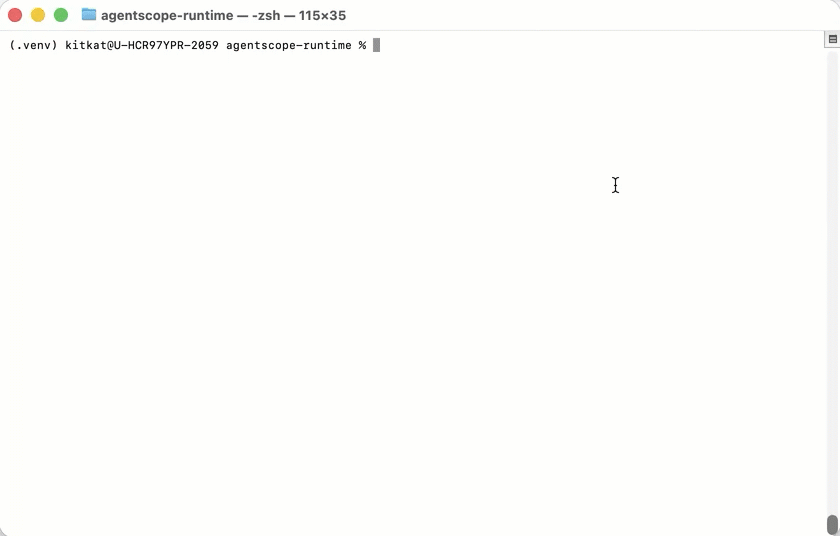

2026-01-30_17-03-06 (1)

Core features

Service	Feature	Scenarios
TablestoreMemoryService	Stores long-term memory and supports full-text index	User preferences, knowledge bases, and cross-session memory
TablestoreSessionHistoryService	Stores session history	Conversation context and message records

Preparations

Before using the Tablestore storage service, complete the following environment configuration and dependency installation.

Prepare the environment: Make sure a Python runtime environment is installed. Run the python3 --version command to check the version.
Download the project: Download and unzip the AgentScope Runtime 1.0.5 release package agentscope-runtime.zip. After unzipping, navigate to the project folder.

Important
The Tablestore integration feature is only available in AgentScope Runtime 1.0.5 and earlier versions. Make sure you use the specified release package.
```
cd agentscope-runtime
```
Create a virtual environment: Create and activate a Python virtual environment.
```
python3 -m venv .venv && source .venv/bin/activate
```
Install dependencies: Install the core project dependencies and the Tablestore extension.
```
pip3 install -e . && pip3 install tablestore-for-agent-memory langchain-community
```

Configure environment variables: Set the following required environment variables to connect to Tablestore and call the Large Language Model (LLM).

Environment variable	Description
`TABLESTORE_ENDPOINT`	The endpoint for the Tablestore instance. You can find this in the Tablestore console.
`TABLESTORE_INSTANCE_NAME`	The name of the Tablestore instance.
`TABLESTORE_ACCESS_KEY_ID`	The AccessKey ID of your Alibaba Cloud account or Resource Access Management (RAM) user.
`TABLESTORE_ACCESS_KEY_SECRET`	The AccessKey secret of your Alibaba Cloud account or RAM user.
`DASHSCOPE_API_KEY`	The API key from the Alibaba Cloud Model Studio platform. This is used to call the LLM.

export TABLESTORE_ENDPOINT="https://<instance>.<region-id>.ots.aliyuncs.com"
export TABLESTORE_INSTANCE_NAME="<instance-name>"
export TABLESTORE_ACCESS_KEY_ID="<your-access-key-id>"
export TABLESTORE_ACCESS_KEY_SECRET="<your-access-key-secret>"
export DASHSCOPE_API_KEY="<your-dashscope-api-key>"

Example code: Memory

The Memory Service manages the long-term memory of an AI Agent. It supports cross-session information storage and semantic retrieval.

Add long-term memory

The following example shows how to write user information to Tablestore as long-term memory. Save the code to the examples/tablestore_memory_add.py file.

import os
import asyncio

from tablestore import AsyncOTSClient
from agentscope_runtime.engine.services.memory import TablestoreMemoryService
from agentscope_runtime.engine.schemas.agent_schemas import (
    Message,
    MessageType,
    Role,
    TextContent,
    ContentType,
)


async def main():
    endpoint = os.getenv("TABLESTORE_ENDPOINT")
    instance_name = os.getenv("TABLESTORE_INSTANCE_NAME")
    access_key_id = os.getenv("TABLESTORE_ACCESS_KEY_ID")
    access_key_secret = os.getenv("TABLESTORE_ACCESS_KEY_SECRET")

    client = AsyncOTSClient(endpoint, access_key_id, access_key_secret, instance_name)

    memory_service = TablestoreMemoryService(
        tablestore_client=client,
        table_name="agentscope_runtime_memory",
    )
    await memory_service.start()
    print("Memory Service started successfully")

    user_id = "user_001"
    session_id = "session_001"

    messages = [
        Message(
            type=MessageType.MESSAGE,
            role=Role.USER,
            content=[TextContent(type=ContentType.TEXT, text="I like Sichuan food")],
        ),
        Message(
            type=MessageType.MESSAGE,
            role=Role.USER,
            content=[TextContent(type=ContentType.TEXT, text="My birthday is March 15th")],
        ),
    ]

    print(f"Preparing to write {len(messages)} memories:")
    for msg in messages:
        print(f"  - [{msg.role}] {msg.get_text_content()}")

    await memory_service.add_memory(
        user_id=user_id,
        messages=messages,
        session_id=session_id,
    )
    print(f"Write successful, user_id={user_id}, session_id={session_id}")

    await memory_service.stop()


if __name__ == "__main__":
    asyncio.run(main())

Run the example:

python examples/tablestore_memory_add.py

Search long-term memory

The following example shows how to query a user's long-term memory using semantic retrieval. Save the code to the examples/tablestore_memory_search.py file.

Note

After data is written, the search index needs a few seconds to sync. If you cannot find data when running the following example, wait for the search index synchronization to complete.

import os
import asyncio

from tablestore import AsyncOTSClient
from agentscope_runtime.engine.services.memory import TablestoreMemoryService
from agentscope_runtime.engine.schemas.agent_schemas import (
    Message,
    MessageType,
    Role,
    TextContent,
    ContentType,
)


async def main():
    endpoint = os.getenv("TABLESTORE_ENDPOINT")
    instance_name = os.getenv("TABLESTORE_INSTANCE_NAME")
    access_key_id = os.getenv("TABLESTORE_ACCESS_KEY_ID")
    access_key_secret = os.getenv("TABLESTORE_ACCESS_KEY_SECRET")

    client = AsyncOTSClient(endpoint, access_key_id, access_key_secret, instance_name)

    memory_service = TablestoreMemoryService(
        tablestore_client=client,
        table_name="agentscope_runtime_memory",
    )
    await memory_service.start()
    print("Memory Service started successfully")

    user_id = "user_001"

    query = [
        Message(
            type=MessageType.MESSAGE,
            role=Role.USER,
            content=[TextContent(type=ContentType.TEXT, text="What kind of food do I like?")],
        )
    ]
    print(f"Search query: {query[0].get_text_content()}")

    results = await memory_service.search_memory(user_id=user_id, messages=query)
    print(f"Search results, found {len(results)} related memories:")
    for mem in results:
        print(f"  - [{mem.role}] {mem.get_text_content()}")

    all_memories = await memory_service.list_memory(user_id=user_id)
    print(f"User {user_id} has a total of {len(all_memories)} long-term memories")

    await memory_service.stop()


if __name__ == "__main__":
    asyncio.run(main())

Run the example:

python examples/tablestore_memory_search.py

Example code: Session

The Session History Service manages sessions and message records to save conversation context.

Create a session and add messages

The following example shows how to create a session and write conversation messages. Save the code to the examples/tablestore_session_create.py file.

import os
import asyncio

from tablestore import AsyncOTSClient
from agentscope_runtime.engine.services.session_history import TablestoreSessionHistoryService
from agentscope_runtime.engine.schemas.agent_schemas import (
    Message,
    MessageType,
    Role,
    TextContent,
    ContentType,
)


async def main():
    endpoint = os.getenv("TABLESTORE_ENDPOINT")
    instance_name = os.getenv("TABLESTORE_INSTANCE_NAME")
    access_key_id = os.getenv("TABLESTORE_ACCESS_KEY_ID")
    access_key_secret = os.getenv("TABLESTORE_ACCESS_KEY_SECRET")

    client = AsyncOTSClient(endpoint, access_key_id, access_key_secret, instance_name)

    session_service = TablestoreSessionHistoryService(
        tablestore_client=client,
        session_table_name="agentscope_runtime_session",
        message_table_name="agentscope_runtime_message",
    )
    await session_service.start()
    print("Session History Service started successfully")

    user_id = "user_001"
    session_id = "session_003"

    session = await session_service.create_session(
        user_id=user_id,
        session_id=session_id,
    )
    print(f"Session created successfully: session_id={session.id}, user_id={user_id}")

    user_msg = Message(
        type=MessageType.MESSAGE,
        role=Role.USER,
        content=[TextContent(type=ContentType.TEXT, text="Hello, my name is John Doe")],
    )
    await session_service.append_message(session, user_msg)
    print(f"Writing message: [{user_msg.role}] {user_msg.get_text_content()}")

    assistant_msg = Message(
        type=MessageType.MESSAGE,
        role=Role.ASSISTANT,
        content=[TextContent(type=ContentType.TEXT, text="Hello John Doe! How can I help you?")],
    )
    await session_service.append_message(session, assistant_msg)
    print(f"Writing message: [{assistant_msg.role}] {assistant_msg.get_text_content()}")

    print(f"Wrote 2 messages to session {session_id}")

    await session_service.stop()


if __name__ == "__main__":
    asyncio.run(main())

Run the example:

python examples/tablestore_session_create.py

Get session history

The following example shows how to retrieve the historical message records for a specific session. Save the code to the examples/tablestore_session_get.py file.

Note

After data is written, the search index needs a few seconds to sync. If you cannot find data when running the following example, wait for the search index synchronization to complete.

import os
import asyncio

from tablestore import AsyncOTSClient
from agentscope_runtime.engine.services.session_history import TablestoreSessionHistoryService


async def main():
    endpoint = os.getenv("TABLESTORE_ENDPOINT")
    instance_name = os.getenv("TABLESTORE_INSTANCE_NAME")
    access_key_id = os.getenv("TABLESTORE_ACCESS_KEY_ID")
    access_key_secret = os.getenv("TABLESTORE_ACCESS_KEY_SECRET")

    client = AsyncOTSClient(endpoint, access_key_id, access_key_secret, instance_name)

    session_service = TablestoreSessionHistoryService(
        tablestore_client=client,
        session_table_name="agentscope_runtime_session",
        message_table_name="agentscope_runtime_message",
    )
    await session_service.start()
    print("Session History Service started successfully")

    user_id = "user_001"
    session_id = "session_003"

    session = await session_service.get_session(user_id, session_id)
    print(f"Getting session {session_id}, found {len(session.messages)} messages:")
    for msg in session.messages:
        text = msg.get_text_content() if hasattr(msg, "get_text_content") else str(msg)
        role = msg.role if hasattr(msg, "role") else "unknown"
        print(f"  - [{role}] {text}")

    sessions = await session_service.list_sessions(user_id=user_id)
    print(f"User {user_id} has a total of {len(sessions)} sessions")

    await session_service.stop()


if __name__ == "__main__":
    asyncio.run(main())

Run the example:

python examples/tablestore_session_get.py

Example code: Interactive chat demo

The following example shows how to build a complete interactive chat application that integrates LLM calls, session history storage, and long-term memory retrieval. Save the code to the examples/tablestore_chat_demo.py file.

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
# This example shows how to build an interactive chat demo that uses Tablestore to store session history and long-term memory
# Before running, configure the following environment variables:
#   TABLESTORE_ENDPOINT, TABLESTORE_INSTANCE_NAME,
#   TABLESTORE_ACCESS_KEY_ID, TABLESTORE_ACCESS_KEY_SECRET, DASHSCOPE_API_KEY

import os
import asyncio
import uuid
import sys
import io
import logging

from tablestore import AsyncOTSClient
from dashscope import Generation
from rich.console import Console
from rich.live import Live
from rich.spinner import Spinner

console = Console()

from agentscope_runtime.engine.services.memory import TablestoreMemoryService
from agentscope_runtime.engine.services.session_history import TablestoreSessionHistoryService
from agentscope_runtime.engine.schemas.agent_schemas import (
    Message,
    MessageType,
    Role,
    TextContent,
    ContentType,
)

memory_service = None
session_service = None
current_session = None
current_session_id = None
user_id = "cli_user"
chat_history = []

# Table and index names
MEMORY_TABLE = "chat_demo_memory"
SESSION_TABLE = "chat_demo_session"
MESSAGE_TABLE = "chat_demo_message"
# Memory service uses a fixed index name in SDK
MEMORY_SEARCH_INDEX = "agentscope_runtime_knowledge_search_index_name"
# Session service uses custom index names to avoid conflicts with other demos
SESSION_SECONDARY_INDEX = f"{SESSION_TABLE}_secondary_index"
SESSION_SEARCH_INDEX = f"{SESSION_TABLE}_search_index"
MESSAGE_SECONDARY_INDEX = f"{MESSAGE_TABLE}_secondary_index"
MESSAGE_SEARCH_INDEX = f"{MESSAGE_TABLE}_search_index"


async def delete_table_with_indexes(client, table_name):
    """Delete a table and all its indexes using native Tablestore SDK."""
    import tablestore

    try:
        # Delete search indexes first
        try:
            search_indexes = await client.list_search_index(table_name)
            for index_tuple in search_indexes:
                await client.delete_search_index(index_tuple[0], index_tuple[1])
        except Exception:
            pass

        # Delete the table
        await client.delete_table(table_name)
        print(f"  Deleted table: {table_name}")
    except tablestore.OTSServiceError as e:
        if "OTSObjectNotExist" not in str(e):
            print(f"  Warning: Failed to delete {table_name}: {e}")


async def init_services():
    global memory_service, session_service

    client = AsyncOTSClient(
        os.getenv("TABLESTORE_ENDPOINT"),
        os.getenv("TABLESTORE_ACCESS_KEY_ID"),
        os.getenv("TABLESTORE_ACCESS_KEY_SECRET"),
        os.getenv("TABLESTORE_INSTANCE_NAME"),
    )

    # Check existing tables using native SDK
    existing_tables = await client.list_table()

    memory_exists = MEMORY_TABLE in existing_tables
    session_existing = [t for t in [SESSION_TABLE, MESSAGE_TABLE] if t in existing_tables]
    session_all_exist = len(session_existing) == 2
    session_none_exist = len(session_existing) == 0

    # Handle incomplete session tables - delete existing ones and recreate
    if not session_all_exist and not session_none_exist:
        print(f"Incomplete session tables detected: {session_existing}")
        print("Cleaning up...")
        for t in session_existing:
            await delete_table_with_indexes(client, t)
        # Wait for deletion to complete
        await asyncio.sleep(3)
        session_all_exist = False

    # Create service instances
    memory_service = TablestoreMemoryService(
        tablestore_client=client,
        table_name=MEMORY_TABLE,
    )
    session_service = TablestoreSessionHistoryService(
        tablestore_client=client,
        session_table_name=SESSION_TABLE,
        message_table_name=MESSAGE_TABLE,
    )

    # Suppress SDK logs during init
    logging.getLogger("tablestore_for_agent_memory").setLevel(logging.CRITICAL)
    original_stderr = sys.stderr
    sys.stderr = io.StringIO()

    try:
        # Init memory service
        if memory_exists:
            _init_memory_service_without_create(memory_service)
        else:
            await memory_service.start()

        # Init session service - always use custom init to avoid index name conflicts
        if session_all_exist:
            _init_session_service_without_create(session_service)
        else:
            # Create tables and indexes using SDK with custom index names
            await _create_session_tables(client)
            _init_session_service_without_create(session_service)

    finally:
        sys.stderr = original_stderr
        logging.getLogger("tablestore_for_agent_memory").setLevel(logging.WARNING)

    print("Services initialized")


async def _create_session_tables(client):
    """Create session and message tables with custom index names."""
    from tablestore_for_agent_memory.memory.async_memory_store import AsyncMemoryStore

    # Create the memory store with custom index names
    store = AsyncMemoryStore(
        tablestore_client=client,
        session_table_name=SESSION_TABLE,
        message_table_name=MESSAGE_TABLE,
        session_secondary_index_name=SESSION_SECONDARY_INDEX,
        session_search_index_name=SESSION_SEARCH_INDEX,
        message_secondary_index_name=MESSAGE_SECONDARY_INDEX,
        message_search_index_name=MESSAGE_SEARCH_INDEX,
    )
    # Init tables and indexes
    await store.init_table()
    # Wait for table creation
    await asyncio.sleep(1)


def _init_memory_service_without_create(service):
    """Initialize memory service store without creating tables."""
    from tablestore_for_agent_memory.knowledge.async_knowledge_store import AsyncKnowledgeStore

    service._knowledge_store = AsyncKnowledgeStore(
        tablestore_client=service._tablestore_client,
        vector_dimension=service._vector_dimension,
        enable_multi_tenant=False,
        table_name=service._table_name,
        search_index_name=MEMORY_SEARCH_INDEX,
        search_index_schema=service._search_index_schema,
        text_field=service._text_field,
        embedding_field=service._embedding_field,
        vector_metric_type=service._vector_metric_type,
    )


def _init_session_service_without_create(service):
    """Initialize session service store without creating tables."""
    from tablestore_for_agent_memory.memory.async_memory_store import AsyncMemoryStore

    service._memory_store = AsyncMemoryStore(
        tablestore_client=service._tablestore_client,
        session_table_name=SESSION_TABLE,
        message_table_name=MESSAGE_TABLE,
        session_secondary_index_name=SESSION_SECONDARY_INDEX,
        session_search_index_name=SESSION_SEARCH_INDEX,
        message_secondary_index_name=MESSAGE_SECONDARY_INDEX,
        message_search_index_name=MESSAGE_SEARCH_INDEX,
        session_secondary_index_meta=service._session_secondary_index_meta,
        session_search_index_schema=service._session_search_index_schema,
        message_search_index_schema=service._message_search_index_schema,
    )


async def create_new_session():
    global current_session, current_session_id, chat_history
    current_session_id = f"session_{uuid.uuid4().hex[:8]}"
    current_session = await session_service.create_session(
        user_id=user_id,
        session_id=current_session_id,
    )
    chat_history = []
    print(f"New session created: {current_session_id}")


def create_message(role: str, text: str) -> Message:
    return Message(
        type=MessageType.MESSAGE,
        role=role,
        content=[TextContent(type=ContentType.TEXT, text=text)],
    )


async def save_message(role: str, text: str):
    if current_session is None:
        return
    msg = create_message(role, text)
    await session_service.append_message(current_session, msg)


async def search_memory(query: str) -> str:
    msg = create_message(Role.USER, query)
    results = await memory_service.search_memory(user_id=user_id, messages=[msg])
    if not results:
        return ""
    texts = [r.get_text_content() for r in results[:3] if r.get_text_content()]
    return "\n".join([f"  - {t}" for t in texts])


async def add_memory(text: str):
    msg = create_message(Role.USER, text)
    await memory_service.add_memory(
        user_id=user_id,
        messages=[msg],
        session_id=current_session_id,
    )
    print(f"Memory saved: {text}")


def call_llm(messages: list, memory_context: str = "") -> str:
    system_prompt = "You are a helpful AI assistant."
    if memory_context:
        system_prompt += f"\n\nUser's long-term memory:\n{memory_context}"

    dashscope_messages = [{"role": "system", "content": system_prompt}]
    for role, content in messages:
        dashscope_messages.append({"role": role, "content": content})

    response = Generation.call(
        model="qwen-turbo",
        messages=dashscope_messages,
        api_key=os.getenv("DASHSCOPE_API_KEY"),
        result_format="message",
    )
    if response.status_code == 200:
        return response.output.choices[0].message.content
    return f"Error: {response.code} - {response.message}"


async def chat(user_input: str):
    global chat_history
    memory_context = await search_memory(user_input)
    if memory_context:
        print(f"[Memory] Found related memories:\n{memory_context}")

    messages = chat_history + [("user", user_input)]

    with Live(Spinner("dots", text="Thinking...", style="cyan"), console=console, refresh_per_second=10):
        response = call_llm(messages, memory_context)

    await save_message(Role.USER, user_input)
    await save_message(Role.ASSISTANT, response)
    chat_history.append(("user", user_input))
    chat_history.append(("assistant", response))

    console.print(f"\n[bold green]Assistant:[/bold green] {response}\n")


async def list_sessions():
    sessions = await session_service.list_sessions(user_id=user_id)
    print(f"Total {len(sessions)} sessions:")
    for s in sessions[:10]:
        print(f"  - {s.id}")


async def list_memories():
    memories = await memory_service.list_memory(user_id=user_id)
    print(f"Total {len(memories)} memories:")
    for m in memories[:10]:
        text = m.get_text_content()
        if text:
            print(f"  - {text[:60]}...")


async def load_session(session_id: str):
    global current_session, current_session_id, chat_history
    current_session_id = session_id
    current_session = await session_service.get_session(user_id, session_id)
    chat_history = []
    for msg in current_session.messages:
        text = msg.get_text_content() if hasattr(msg, "get_text_content") else str(msg)
        role = msg.role if hasattr(msg, "role") else "unknown"
        chat_history.append((role, text))
    print(f"Loaded session: {session_id}, {len(current_session.messages)} messages")


def print_help():
    print("""
Commands:
  /new          - Create new session
  /sessions     - List all sessions
  /load <id>    - Load session by ID
  /remember <content> - Save long-term memory
  /memories     - List all long-term memories
  /history      - Show current chat history
  /help         - Show this help
  /quit         - Exit

Otherwise, just type your message to chat.
""")


async def main():
    await init_services()
    await create_new_session()
    print_help()

    while True:
        try:
            user_input = input("You: ").strip()
        except (EOFError, KeyboardInterrupt):
            print("\nBye!")
            break

        if not user_input:
            continue

        if user_input == "/quit":
            print("Bye!")
            break
        elif user_input == "/help":
            print_help()
        elif user_input == "/new":
            await create_new_session()
        elif user_input == "/sessions":
            await list_sessions()
        elif user_input == "/memories":
            await list_memories()
        elif user_input == "/history":
            print(f"Current session: {current_session_id}")
            for role, text in chat_history:
                print(f"  [{role}] {text[:80]}...")
        elif user_input.startswith("/load "):
            session_id = user_input[6:].strip()
            await load_session(session_id)
        elif user_input.startswith("/remember "):
            text = user_input[10:].strip()
            await add_memory(text)
        else:
            await chat(user_input)

    await memory_service.stop()
    await session_service.stop()


if __name__ == "__main__":
    asyncio.run(main())

Run the example:
```
python examples/tablestore_chat_demo.py
```

Interactive commands:

Command	Feature
`/new`	Create a new session
`/sessions`	List all sessions
`/load <id>`	Load a specific session
`/remember <content>`	Save long-term memory
`/memories`	List all memories
`/history`	Show current session history
`/help`	Show help information
`/quit`	Exit

References

Agent Memory SDK
