Use the PackId mechanism to associate log context, Use the PackId mechanism to associate log context - Simple Log Service

A contextual query specifies a log source, such as a specific machine or file. It retrieves the logs before and after a specific log from that source to obtain contextual information. When you process a large volume of logs, you can add a PackId identifier to group related logs. Using a PackId lets you quickly and completely query related log groups to efficiently locate the log context. This topic describes how to add a PackId to a log.

How it works

The server uses the PackId mechanism to associate log context. The PackId is in the format Context Prefix-Log Group ID, for example, 5FA51423DDB54FDA-1E3. The PackId consists of the following parts:

Context Prefix: An uppercase hexadecimal number. For example, 5FA51423DDB54FDA. Logs with the same context prefix belong to the same log context.
Log Group ID: An uppercase hexadecimal number. For example, 1E3. Within the same log context, the Log Group ID increments. For example, 1E3 and 1E4 are adjacent log groups in the same log context.

The client generates the PackId and sends it to the server with the log write request. Logs that have the same context prefix are considered to be in the same log context.

Automatically generate a PackId

Logs written using a producer SDK: Log data sent from the same producer object instance belongs to the same context and can be used directly for contextual queries. For example, when you use Aliyun Log Java Producer to write log data or write logs with the C SDK, the system automatically generates and includes a PackId as the context identity.
Logs collected by Logtail: For logs collected using Logtail, a PackId is automatically generated and included. Logs from the same log file on the same collection object, such as a host or pod, belong to the same context and can be used directly for contextual queries.

Manually generate a PackId and upload it using the PutLogs API

Parameter descriptions

You can use the PutLogs API to write logs to Simple Log Service. After you manually generate a PackId, place it in the LogTags property of the LogGroup in the PutLogs request. Set the Key to __pack_id__. The following code provides an example:

{
  "Topic": "my-topic",
  "Source": "127.0.0.1",
  "LogTags": [
      {
        "Key": "__pack_id__",
        "Value": "5FA51423DDB54FDA-1"
      },
      {
        "Key": "my_other_tag_key",
        "Value": "my_other_tag_value"
      }
   ],
   "Logs": [
     {
       "Time": 1728961415,
        "Contents": [
            {
              "Key": "hello",
              "Value": "world"
            }
        ]
     }
   ]
}

Sample code

Java example

Add the following dependencies to the pom.xml file.

 <dependency>
    <groupId>com.google.guava</groupId>
    <artifactId>guava</artifactId>
    <version>27.0.1-jre</version>
</dependency>
<dependency>
    <groupId>com.aliyun.openservices</groupId>
    <artifactId>aliyun-log</artifactId>
    <version>0.6.111</version>
</dependency>
<dependency>
    <groupId>org.slf4j</groupId>
    <artifactId>slf4j-api</artifactId>
    <version>2.0.12</version>
</dependency>

Use the following code to manually generate a PackId and upload it using the PutLogs API. Replace the parameters project, logstore, endpoint, accessKeyId, and accessKeySecret as needed.

package org.example;

import com.aliyun.openservices.log.Client;
import com.aliyun.openservices.log.common.LogItem;
import com.aliyun.openservices.log.common.TagContent;
import com.aliyun.openservices.log.exception.LogException;
import com.aliyun.openservices.log.request.PutLogsRequest;
import com.google.common.base.Charsets;
import com.google.common.hash.Hashing;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.lang.management.ManagementFactory;
import java.net.InetAddress;
import java.net.NetworkInterface;
import java.net.SocketException;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.Enumeration;
import java.util.List;
import java.util.concurrent.atomic.AtomicLong;

public class Main {
    private static final String TAG_PACK_ID = "__pack_id__";
    private static final int TOKEN_LEN = 4;

    public static void main(String[] args) throws LogException {
        System.out.println("Hello world!");
        // Use the same PackIdGenerator for the same context.
        PackIdGenerator generator1 = new PackIdGenerator();
        System.out.println(generator1.generateNewPackId());
        System.out.println(generator1.generateNewPackId());
        System.out.println(generator1.generateNewPackId());
        // Use different PackIdGenerators for different contexts.
        PackIdGenerator generator2 = new PackIdGenerator();
        System.out.println(generator2.generateNewPackId());
        System.out.println(generator2.generateNewPackId());

        // Configure for logs.
        String project = "project";
        String logstore = "logstore";
        String topic = "topic";
        String source = "127.0.0.1";
        Client client = new Client("endpoint", "accessKeyId", "accessKeySecret");
        List<LogItem> logs = new ArrayList<>();
        LogItem log = new LogItem();
        log.PushBack("hello", "world");
        logs.add(log);

        // Send a log request.
        PutLogsRequest req = new PutLogsRequest(project, logstore, topic, source, logs);
        // Put the pack ID in the tag list.
        req.SetTags(Arrays.asList(new TagContent(TAG_PACK_ID, generator1.generateNewPackId())));
        client.PutLogs(req);

        // Send a log request.
        PutLogsRequest req2 = new PutLogsRequest(project, logstore, topic, source, logs);
        req.SetTags(Arrays.asList(new TagContent(TAG_PACK_ID, generator1.generateNewPackId())));
        client.PutLogs(req2);
    }

    public static class NetworkUtils {
        private NetworkUtils() {
        }

        public static boolean isIpAddress(final String ipAddress) {
            if (ipAddress == null || ipAddress.isEmpty()) {
                return false;
            }
            try {
                final String[] tokens = ipAddress.split("\\.");
                if (tokens.length != TOKEN_LEN) {
                    return false;
                }
                for (String token : tokens) {
                    int i = Integer.parseInt(token);
                    if (i < 0 || i > 255) {
                        return false;
                    }
                }
                return true;
            } catch (Exception ex) {
                return false;
            }
        }

        public static String getLocalMachineIp() {
            try {
                Enumeration<NetworkInterface> networkInterfaces = NetworkInterface.getNetworkInterfaces();
                while (networkInterfaces.hasMoreElements()) {
                    NetworkInterface ni = networkInterfaces.nextElement();
                    if (!ni.isUp()) {
                        continue;
                    }
                    Enumeration<InetAddress> addresses = ni.getInetAddresses();
                    while (addresses.hasMoreElements()) {
                        final InetAddress address = addresses.nextElement();
                        if (!address.isLinkLocalAddress() && address.getHostAddress() != null) {
                            String ipAddress = address.getHostAddress();
                            if ("127.0.0.1".equals(ipAddress)) {
                                continue;
                            }
                            if (isIpAddress(ipAddress)) {
                                return ipAddress;
                            }
                        }
                    }
                }
            } catch (SocketException ex) {
                // swallow it
            }
            return null;
        }
    }

    public static class PackIdGenerator {
        private static final Logger LOGGER = LoggerFactory.getLogger(PackIdGenerator.class);
        private static final AtomicLong GENERATORID = new AtomicLong(0);
        private final String packIdPrefix;
        private final AtomicLong batchId = new AtomicLong(0);

        public PackIdGenerator() {
            packIdPrefix = generatePackIdPrefix(GENERATORID.getAndIncrement()).toUpperCase() + "-";
        }

        public String generateNewPackId() {
            return packIdPrefix + Long.toHexString(batchId.getAndIncrement()).toUpperCase();
        }

        private String generatePackIdPrefix(Long instanceId) {
            String ip = NetworkUtils.getLocalMachineIp();
            if (ip == null) {
                LOGGER.warn("Failed to get local machine ip, set ip to 127.0.0.1");
                ip = "127.0.0.1";
            }
            String name = ManagementFactory.getRuntimeMXBean().getName();
            String input = ip + "-" + name + "-" + instanceId;
            return Hashing.farmHashFingerprint64().hashString(input, Charsets.US_ASCII).toString();
        }
    }

}

Parameter descriptions in the sample code

Parameter	Parameter descriptions	Example
project	The name of the Simple Log Service project.	test-project
logstore	The name of the Logstore in Simple Log Service.	test-logstore
endpoint	The public endpoint of Simple Log Service. For more information, see Endpoints.	cn-hangzhou.log.aliyuncs.com
accessKeyId	The ID used to identify the user. For more information, see Create an AccessKey pair.	LTAI****************
accessKeySecret	The password used to verify that you own the AccessKey ID. For more information, see Create an AccessKey pair.	yourAccessKeySecret

Go example

Run the following commands in the command line to install the Go SDK and the protobuf dependency package.
```
go get -u github.com/aliyun/aliyun-log-go-sdk
go get google.golang.org/protobuf
```

Use the following code to manually generate a PackId and upload it using the PutLogs API. Replace the parameters project, logstore, endpoint, accessKeyId, and accessKeySecret as needed.

package main

import (
	"crypto/md5"
	"fmt"
	"os"
	"sync/atomic"
	"time"

	sls "github.com/aliyun/aliyun-log-go-sdk"
	"google.golang.org/protobuf/proto"
)

func main() {
	// Use the same PackIdGenerator for the same context.
	g1 := NewPackIdGenerator()
	fmt.Println(g1.Generate())
	fmt.Println(g1.Generate())
	fmt.Println(g1.Generate())
	// Use different PackIdGenerators for different contexts.
	g2 := NewPackIdGenerator()
	fmt.Println(g2.Generate())
	fmt.Println(g2.Generate())

	// Configure for logs.
	project := "project"
	logstore := "logStore"
	topic := "topic"
	source := "source"

	client := sls.CreateNormalInterface("endpoint", "accessKeyId", "accessKeySecret", "")

	logs := []*sls.Log{
		{
			Time: proto.Uint32(uint32(time.Now().Unix())),
			Contents: []*sls.LogContent{
				{
					Key:   proto.String("hello"),
					Value: proto.String("world"),
				},
				{
					Key:   proto.String("hi"),
					Value: proto.String("world"),
				},
			},
		},
	}
	// Use the PostLogStoreLogsV2 API to write logs.
	err := client.PostLogStoreLogsV2(project, logstore, &sls.PostLogStoreLogsRequest{
		LogGroup: &sls.LogGroup{
			Topic:  &topic,
			Source: &source,
			Logs:   logs,
			LogTags: []*sls.LogTag{
				{
					Key:   proto.String("__pack_id__"), // Add the pack ID to the tag list.
					Value: proto.String(g1.Generate()),
				},
			},
		},
	})
	if err != nil {
		panic(err)
	}

	// Use the PutLogs API to write logs. g1.Generate() regenerates a new pack ID.
	err = client.PutLogs(project, logstore, &sls.LogGroup{
		Topic:  &topic,
		Source: &source,
		Logs:   logs,
		LogTags: []*sls.LogTag{
			{
				Key:   proto.String("__pack_id__"), // Add the pack ID to the tag list.
				Value: proto.String(g1.Generate()),
			},
		},
	})
	if err != nil {
		panic(err)
	}

}

type PackIdGenerator struct {
	prefix string
	id     atomic.Uint64
}

func NewPackIdGenerator() *PackIdGenerator {
	return &PackIdGenerator{
		prefix: generatePackIDPrefix(),
		id:     atomic.Uint64{},
	}
}

func (g *PackIdGenerator) Generate() string {
	return fmt.Sprintf("%s-%X", g.prefix, g.id.Add(1))
}

// Make context by (hostname, pid, time).
func generatePackIDPrefix() string {
	m := md5.New()
	m.Write([]byte(time.Now().String()))
	hostName, _ := os.Hostname()
	m.Write([]byte(hostName))
	m.Write([]byte(fmt.Sprintf("%v", os.Getpid())))
	return fmt.Sprintf("%X", m.Sum(nil))
}

Parameter descriptions in the sample code

Parameter name	Description	Example
project	The name of the Simple Log Service project.	test-project
logstore	The name of the Logstore in Simple Log Service.	test-logstore
endpoint	The public endpoint of Simple Log Service. For more information, see Endpoints.	cn-hangzhou.log.aliyuncs.com
accessKeyId	The ID used to identify the user. For more information, see Create an AccessKey pair.	LTAI****************
accessKeySecret	The password used to verify that you own the AccessKey ID. For more information, see Create an AccessKey pair.	yourAccessKeySecret

View log context information

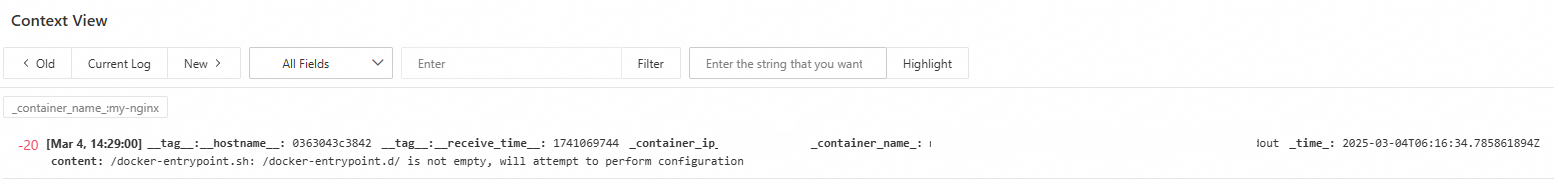

On the page of the target Project, click the target LogStore. On the Raw Logs > Raw tab, find the target log and click the icon.
Note
When logs are submitted using the PutLogs API, Simple Log Service groups logs that have the same PackId context prefix into a single log context. You can click the Context View feature to view the contextual information of a specific log. This displays all log groups that share the same context prefix and highlights the target log.
Scroll up or down to view the context of the specified log.

References

To learn how to view the context of a log in the console, see Contextual query.
To learn how to write log data to Simple Log Service using an SDK or API, see Use Aliyun Log Java Producer to write log data, C SDK, or PutLogs.
