Simple Log Service:Collect standard output from ACK clusters - old version (DaemonSet)

CRD - AliyunPipelineConfig (recommended)

You need only to create an AliyunPipelineConfig custom resource to create a collection configuration. After the resource is created, the collection configuration automatically takes effect.

1. Log on to the ACK console.

2. On the Clusters page, find the target cluster and click its name. In the navigation pane on the left, choose Workloads > Custom Resources.

3. On the Custom Resources page, click the CRDs tab, then click Create from YAML.

4. Modify the parameters in the following YAML template based on your business requirements, copy and paste the template to the editor, and then click Create.

   Note

   You can use the Logtail configuration generatorto generate a YAML script for your scenario. This tool helps you quickly complete the configuration and reduces manual operations.

   The following YAML template collects standard output in multi-line text mode from pods that have the app: ^(.*test.*)$ label in the default namespace. The collected logs are sent to the k8s-stdout Logstore (automatically created) in the k8s-log-<YOUR_CLUSTER_ID> project. You need to modify the following parameters in the YAML template based on your business requirements:

   1. project, for example, k8s-log-<YOUR_CLUSTER_ID>.

      Log on to the Simple Log Service console, and check the name of the project that is generated after the log collection component is installed.

   2. IncludeK8sLabel, for example, app: ^(.*test.*)$. The label used to filter pods. In this example, pods whose label key is app and label value contains test are collected.

   3. Endpoint and Region, for example, cn-hangzhou.log.aliyuncs.com and cn-hangzhou.

   For information about the config field in the YAML template, including the supported input and output plug-ins, processing plug-in types, and container filtering methods, see PipelineConfig. For information about all parameters in the YAML template, see CR parameters.

   apiVersion: telemetry.alibabacloud.com/v1alpha1
   # Create a CR from the ClusterAliyunPipelineConfig CRD.
   kind: ClusterAliyunPipelineConfig
   metadata:
     # The name of the resource. The name must be unique in your Kubernetes cluster. This name is also the name of the log collection configuration. If the name is duplicated, the configuration does not take effect.
     name: example-k8s-stdout
   spec:
     # Specify the project to which logs are collected.
     project:
       name: k8s-log-<YOUR_CLUSTER_ID>
     # Create a Logstore to store logs.
     logstores:
       - name: k8s-stdout
     # Define the log collection configuration.
     config:
       # Enter a sample log. You can leave this parameter empty.
       sample: |
         2024-06-19 16:35:00 INFO test log
         line-1
         line-2
         end
       # Configure the input plug-in.
       inputs:
             # Use the service_docker_stdout plug-in to collect text logs from containers.
         - Type: service_docker_stdout
           Stdout: true
           Stderr: true
           # Configure conditions to filter containers. Multiple options are evaluated by using a logical AND.
           # Specify the namespace of the pods to which the required containers belong. Regular expression matching is supported.
           K8sNamespaceRegex: "^(default)$"
           # Enable container metadata preview.
           CollectContainersFlag: true
           # Collect pods whose labels meet the specified conditions. Multiple entries are evaluated by using a logical OR.
           IncludeK8sLabel:
             app: ^(.*test.*)$
           # Configure settings for multi-line log collection. This configuration is invalid for single-line log collection.
           # Specify the regular expression that is used to match the beginning of the first line of a log.
           BeginLineRegex: \d+-\d+-\d+.*
       # Configure the output plug-in.
       flushers:
         # Use the flusher_sls plug-in to send logs to a specific Logstore.
         - Type: flusher_sls
           # Make sure that the Logstore exists.
           Logstore: k8s-stdout
           # Make sure that the endpoint is valid.
           Endpoint: cn-hangzhou.log.aliyuncs.com
           Region: cn-hangzhou
           TelemetryType: logs

CRD - AliyunLogConfig

You need only to create an AliyunLogConfig custom resource to create a collection configuration. After the resource is created, the collection configuration automatically takes effect.

1. Log on to the ACK console.

2. On the Clusters page, find the target cluster and click its name. In the navigation pane on the left, choose Workloads > Custom Resources.

3. On the Custom Resources page, click the CRDs tab, then click Create from YAML.

4. Modify the parameters in the following YAML template based on your business requirements, copy and paste the template to the editor, and then click Create.

   This YAML script creates a collection configuration named simple-stdout-example. The configuration collects standard output in multi-line mode from all containers whose names start with app in the cluster. The collected logs are sent to the k8s-stdout Logstore in the k8s-log-<YOUR_CLUSTER_ID> project.

   For information about the logtailConfig field in the YAML template, including the supported input and output plug-ins, processing plug-in types, and container filtering methods, see AliyunLogConfigDetail. For information about all parameters in the YAML template, see CR parameters.

   # Standard output configuration
   apiVersion: log.alibabacloud.com/v1alpha1
   kind: AliyunLogConfig
   metadata:
     # The name of the resource. The name must be unique in your Kubernetes cluster.
     name: simple-stdout-example
   spec:
     # Specify the name of the project. If you leave this parameter empty, the project named k8s-log-<your_cluster_id> is used.
     # project: k8s-log-test
     # Specify the name of the Logstore. If the Logstore that you specify does not exist, Simple Log Service automatically creates a Logstore.
     logstore: k8s-stdout
     # Configure the log collection settings.
     logtailConfig:
       # The type of the data source. If you want to collect stdout logs, you must set the value to plugin.
       inputType: plugin
       # The name of the Logtail configuration. The name must be the same as the resource name that is specified in metadata.name.
       configName: simple-stdout-example
       inputDetail:
         plugin:
           inputs:
             - type: service_docker_stdout
               detail:
                 # The settings that allow Logtail to collect both stdout and stderr logs.
                 Stdout: true
                 Stderr: true
                 # Specify the namespace of the pods to which the required containers belong. Regular expression matching is supported.
                 K8sNamespaceRegex: "^(default)$"
                 # Specify the name of the required containers. Regular expression matching is supported.
                 K8sContainerRegex: "^(app.*)$"
                 # Configure settings for multi-line log collection.
                 # Specify the regular expression that is used to match the beginning of the first line of a log.
                 BeginLineRegex: \d+-\d+-\d+.*


Simple Log Service console

1. Log on to the Simple Log Service console.

2. In the Projects section, click the project that you specified when you installed the log collection component, such as k8s-log-<YOUR_CLUSTER_ID>. On the project details page, click the Logtail configuration of the destination Logstore, add a collection configuration, and then click K8S-Standard Output-Old Version.

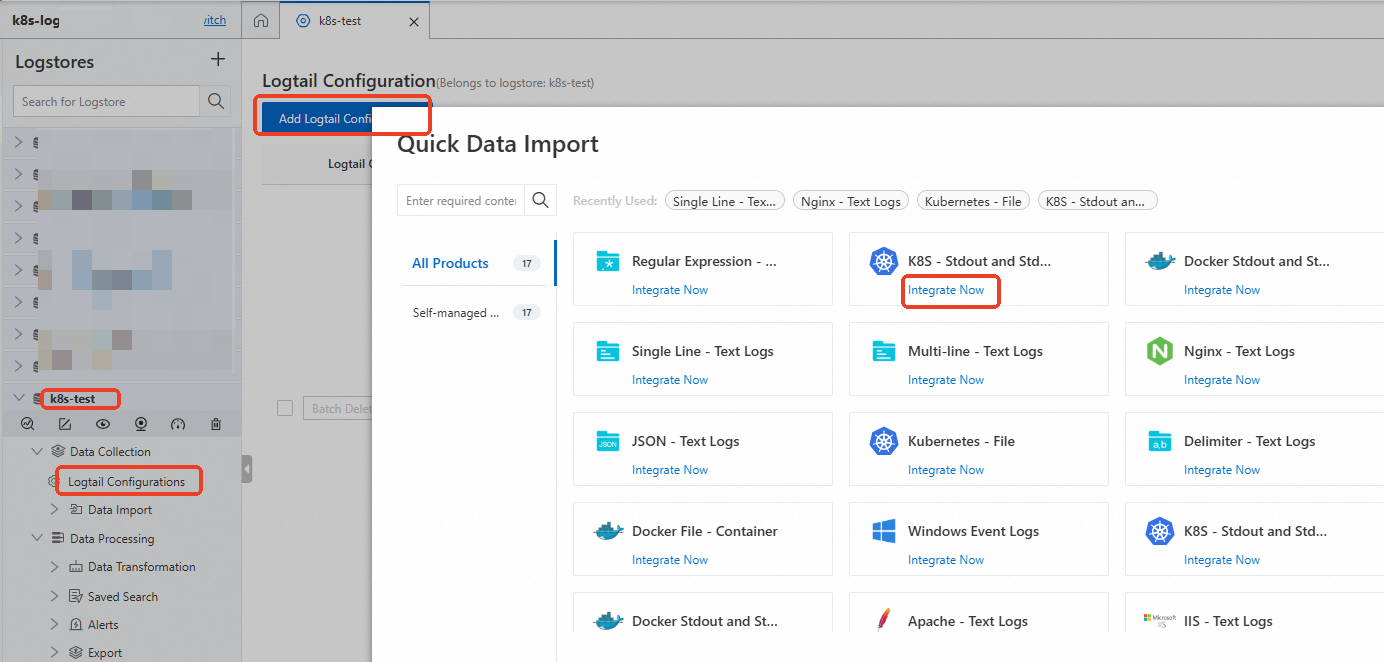

3. Because you have installed the log collection component for the ACK cluster in the previous step, click Use Existing Machine Group.

4. On the Machine Group Settings page, select the k8s-group-${your_k8s_cluster_id} machine group in the ACK DaemonSet section for the Kubernetes scenario, click > to add the machine group to the Selected Server Groups section, and then click Next.

5. Create a Logtail configuration. Configure the required parameters and click Next. Approximately 1 minute is required to create a Logtail configuration.

   This section describes only the required parameters. For information about all parameters, see Logtail configuration.

   • Global Settings

     In the Global Settings section, enter a configuration name.

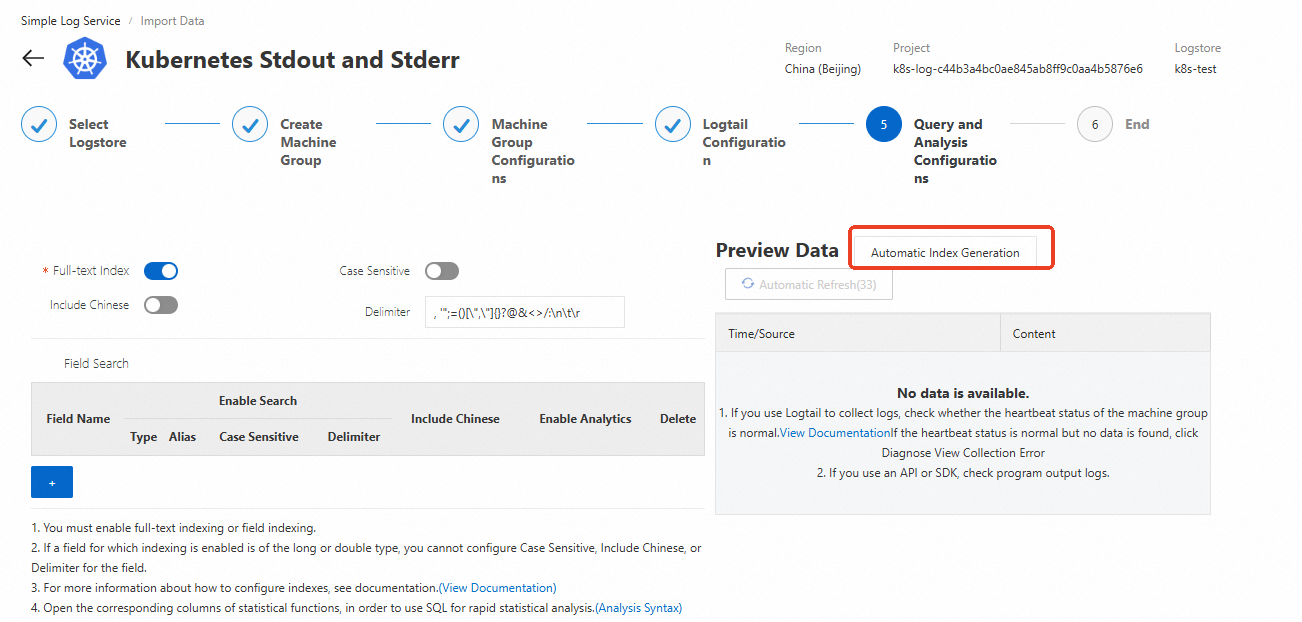

6. Create Index and Preview Data: Simple Log Service enables full-text indexing by default. In this case, all fields in logs are indexed for queries. You can also manually create field indexes based on the collected logs, or click Generate Index. Simple Log Service generates field indexes. You can use field indexes to perform term queries on specific fields. This reduces indexing fees and improves query efficiency. For more information, see Create indexes.

Environment variables

1. Create an application and configure Simple Log Service.

   Use the ACK console

   1. Log on to the Container Service for Kubernetes (ACK) console. In the left-side navigation pane, click Clusters.

   2. On the Clusters page, click the name of the cluster that you want to manage. In the left-side navigation pane, choose Workloads > Deployments.

   3. On the Deployments page, set Namespace in the upper part of the page, and then click Create From Image in the upper-right corner of the page.

   4. On the Basic Information tab, set Name, click Next, and then go to the Container page.

      Only parameters related to Simple Log Service are described in the following section. For more information about other application configurations, see Create a stateless application by using a Deployment.

   5. In the Log Collection section, configure log-related settings.

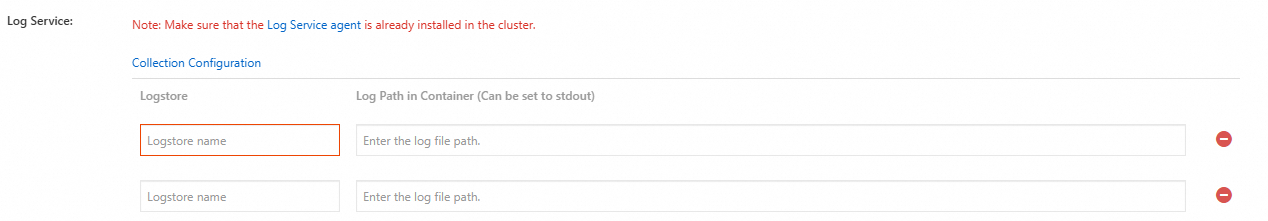

      1. Configure Collection Configuration.

         Click Collection Configuration to create a collection configuration. Each collection configuration consists of Logstore and Log Path In Container (stdout Available).

         • Logstore: Specify the name of the Logstore that is used to store the collected log data. If the Logstore does not exist, ACK automatically creates a Logstore in the Simple Log Service project that is associated with your ACK cluster.

           Note

           The default log retention period of Logstores is 90 days.

         • Log Path in Container (stdout available): To collect the stdout of a container, set the value to stdout.



           All settings are added as configuration entries to the corresponding Logstore. By default, logs are collected in simple mode (by row).

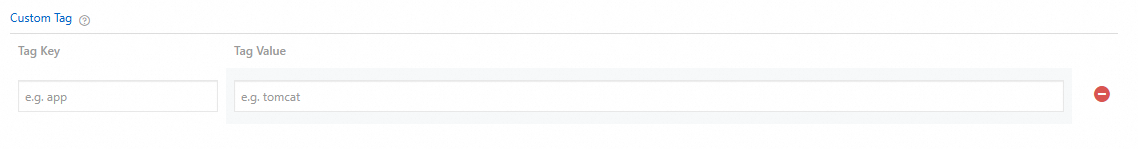

      2. Configure Custom Tag.

         Click Custom Tag to create a custom tag. Each custom tag is a key-value pair that is appended to the collected logs. You can use custom tags to mark container log data, such as version numbers.



   6. After you complete all configurations, you can click Next in the upper-right corner to proceed to the next step.

      For subsequent operations, see Create a stateless application by using a Deployment.

   Use a YAML template

   1. Log on to the Container Service for Kubernetes (ACK) console. In the left-side navigation pane, click Clusters.

   2. On the Clusters page, click the name of the cluster that you want to manage. In the left-side navigation pane, choose Workloads > Deployments.

   3. On the Deployments page, set Namespace in the upper part of the page, and then click Create From YAML in the upper-right corner of the page.

   4. Configure the YAML template.

      The syntax of the YAML template is the same as the Kubernetes syntax. However, to specify a collection configuration for a container, you must use env to add collection configurations and custom tags to the container. You must also create the corresponding volumeMounts and volumes based on the collection configuration. The following code is an example:

      apiVersion: apps/v1
      kind: Deployment
      metadata:
        annotations:
          deployment.kubernetes.io/revision: '1'
        labels:
          app: deployment-stdout
          cluster_label: CLUSTER-LABEL-A
        name: deployment-stdout
        namespace: default
      spec:
        progressDeadlineSeconds: 600
        replicas: 1
        revisionHistoryLimit: 10
        selector:
          matchLabels:
            app: deployment-stdout
        strategy:
          rollingUpdate:
            maxSurge: 25%
            maxUnavailable: 25%
          type: RollingUpdate
        template:
          metadata:
            labels:
              app: deployment-stdout
              cluster_label: CLUSTER-LABEL-A
          spec:
            containers:
              - args:
                  - >-
                    while true; do date '+%Y-%m-%d %H:%M:%S'; echo 1; echo 2; echo 3;
                    echo 4; echo 5; echo 6; echo 7; echo 8; echo 9;
                    sleep 10; done
                command:
                  - /bin/sh
                  - '-c'
                  - '--'
                env:
                  - name: cluster_id
                    value: CLUSTER-A
                  - name: aliyun_logs_log-stdout
                    value: stdout
                image: 'mirrors-ssl.aliyuncs.com/busybox:latest'
                imagePullPolicy: IfNotPresent
                name: timestamp-test
                resources: {}
                terminationMessagePath: /dev/termination-log
                terminationMessagePolicy: File
            dnsPolicy: ClusterFirst
            restartPolicy: Always
            schedulerName: default-scheduler
            securityContext: {}
            terminationGracePeriodSeconds: 30

      1. Use environment variables to create collection configurations and custom tags. All environment variables related to configurations use aliyun_logs_ as the prefix.

         • The following code shows how to create a collection configuration:

           - name: aliyun_logs_log-varlog
             value: /var/log/*.log

           In this example, a collection configuration is created. The format is aliyun_logs_{key}, where {key} is log-varlog.

           • aliyun_logs_log-varlog: This environment variable indicates that a configuration is created to collect logs from the /var/log/*.log path to a Logstore named log-varlog. The name of the log collection configuration is also log-varlog. The purpose is to collect the content of the /var/log/*.log files in the container to the log-varlog Logstore.

         • The following code shows how to create a custom tag:

           - name: aliyun_logs_mytag1_tags
             value: tag1=v1

           After you configure a tag, the corresponding field is automatically appended to the logs when the logs are collected from the container. mytag1 is a name that does not contain underscores (_).

      2. If you specify a collection path other than stdout in your collection configuration, you must create the corresponding volumeMounts in this section.

         In this example, the collection configuration is added to collect logs from the /var/log/*.log path. Therefore, the corresponding volumeMounts for /var/log is added.

   5. After you complete the YAML template, click Create to submit the configuration to the Kubernetes cluster.

2. Use environment variables to configure advanced settings.

   You can use environment variables to configure various parameters for log collection. You can use environment variables to configure advanced settings to meet your log collection requirements.

   Important

   You cannot use environment variables to configure log collection in edge computing scenarios.

   Field	Description	Example	Note
   aliyun_logs_{key}	This variable is required. {key} can contain only lowercase letters, digits, and hyphens (-). If the aliyun_logs_{key}_logstore variable is not configured, a Logstore named {key} is created to store the collected log data. To collect the stdout of a container, set the value to stdout. You can also set the value to a log file path in the containers.	- name: aliyun_logs_catalina value: stdout - name: aliyun_logs_access-log value: /var/log/nginx/access.log	By default, logs are collected in simple mode. If you want to parse log content, we recommend that you use the Simple Log Service console and refer to Collect Kubernetes text logs by using the DaemonSet method or Collect Kubernetes stdout logs by using the DaemonSet method (old version) for configuration. {key} indicates the name of the log collection configuration in Simple Log Service. The name must be unique in the Kubernetes cluster.
   aliyun_logs_{key}_tags	This variable is used to add tags to log data. The value must be in the following format: {tag-key}={tag-value}.	- name: aliyun_logs_catalina_tags value: app=catalina	N/A.
   aliyun_logs_{key}_project	This variable is optional. The variable specifies a project in Simple Log Service. The default project is the one that you specified when you created the cluster.	- name: aliyun_logs_catalina_project value: my-k8s-project	The project must be in the same region as the log collection component.
   aliyun_logs_{key}_logstore	This variable is optional. The variable specifies a Logstore in Simple Log Service. Default value: {key}.	- name: aliyun_logs_catalina_logstore value: my-logstore	N/A.
   aliyun_logs_{key}_shard	This variable is optional. The variable specifies the number of shards of the Logstore. Valid values: 1 to 10. Default value: 2. Note If the specified Logstore already exists, this variable does not take effect.	- name: aliyun_logs_catalina_shard value: '4'	N/A.
   aliyun_logs_{key}_ttl	This variable is optional. The variable specifies the log retention period. Valid values: 1 to 3650. To retain log data permanently, set the value to 3650. The default retention period is 90 days. Note If the specified Logstore already exists, this variable does not take effect.	- name: aliyun_logs_catalina_ttl value: '3650'	N/A.
   aliyun_logs_{key}_machinegroup	This variable is optional. The variable specifies the node group in which the application is deployed. The default value is the same as the default machine group that is used when the log collection component is installed. For more information about how to use this parameter, see Collect container logs from an ACK cluster.	- name: aliyun_logs_catalina_machinegroup value: my-machine-group	N/A.
   aliyun_logs_{key}_logstoremode	This variable is optional. The variable specifies the type of the Logstore in Simple Log Service. Default value: standard. Valid values: Note If the specified Logstore already exists, this variable does not take effect. standard: supports the all-in-one data analytics feature of Simple Log Service. This type is suitable for real-time monitoring, interactive analysis, and building a complete observability system. query: supports high-performance queries. The indexing traffic fee is about half of that for the standard type. However, SQL analysis is not supported. This type is suitable for scenarios in which a large amount of data is stored for a long period (weeks or months) and log analysis is not required.	- name: aliyun_logs_catalina_logstoremode value: standard - name: aliyun_logs_catalina_logstoremode value: query	To use this variable, make sure that the logtail-ds image version is 1.3.1 or later.

   • Custom Requirement 1: Collect Data From Multiple Applications To The Same Logstore

     If you want to collect data from multiple applications to the same Logstore, you can set the aliyun_logs_{key}_logstore parameter. For example, the following configurations collect stdout logs from two applications to the stdout-logstore Logstore.

     In this example, the {key} value for Application 1 is app1-stdout, and the {key} value for Application 2 is app2-stdout.

     Environment variables for Application 1:

     # Configure environment variables
         - name: aliyun_logs_app1-stdout
           value: stdout
         - name: aliyun_logs_app1-stdout_logstore
           value: stdout-logstore

     Environment variables for Application 2:

     # Configure environment variables
         - name: aliyun_logs_app2-stdout
           value: stdout
         - name: aliyun_logs_app2-stdout_logstore
           value: stdout-logstore

   • Custom Requirement 2: Collect Data From Multiple Applications To Different Projects

     If you want to collect data from different applications to multiple projects, perform the following steps:

     1. Create a machine group in each project. Select Custom ID as the identifier. Set the custom identifier to k8s-group-{cluster-id}, where {cluster-id} is the ID of your cluster. You can customize the machine group name.

     2. Specify the project, Logstore, and machine group in the environment variables for each application. The name of the machine group is the same as the one you created in the previous step.

        In the following example, the {key} value for Application 1 is app1-stdout, and the {key} value for Application 2 is app2-stdout. If the two applications are deployed in the same Kubernetes cluster, you can use the same machine group for the applications.

        Environment variables for Application 1:

        # Configure environment variables
            - name: aliyun_logs_app1-stdout
              value: stdout
            - name: aliyun_logs_app1-stdout_project
              value: app1-project
            - name: aliyun_logs_app1-stdout_logstore
              value: app1-logstore
            - name: aliyun_logs_app1-stdout_machinegroup
              value: app1-machine-group

        Environment variables for Application 2:

        # Configure environment variables for Application 2
            - name: aliyun_logs_app2-stdout
              value: stdout
            - name: aliyun_logs_app2-stdout_project
              value: app2-project
            - name: aliyun_logs_app2-stdout_logstore
              value: app2-logstore
            - name: aliyun_logs_app2-stdout_machinegroup
              value: app1-machine-group
