Quick Tracking:In-application H5 Data Reporting

1. H5 Bridge Usage Scenarios

Scenario 1: How to report H5 data to H5 applications and APP applications at the same time

An H5 activity page (for example, a "Spring Day" campaign) is embedded in multiple apps. With H5 bridging enabled, you can meet the following analysis requirements:

• App operators can view the complete user journey before and after customers participate in H5 activities within the app.

• H5 activity operators can view aggregated H5 activity data across all apps.

Operations

1. Create two applications:

• An app that has its own appKey_app

• A Web/H5 application that has its own appKey_h5

2. SDK configuration enableJSBridge=true is enabled and custom javaScriptProxy is injected into the application WebView page.

Report logs

When a tracking event is triggered on the H5 side, the following data is reported:

Reporting client	Log content
Apps	appKey is the app's "appKey_app" User account for the app User attributes that are reported by the tracking point of the app Device ID is the device ID of the app System Properties Global attributes are merged between the global attributes that are tracked in the app and the global attributes that are configured by H5 nodes The event code and the event attribute of the custom event are both h5-based tracking content
H5 application in webview	appKey_h5 H5 user account User attributes reported by the tracking point whose user attribute is H5 The ID of an H5 device H5 system attribute Global attributes are global attributes of the H5 embedding point The event code and event attribute of the custom event are the tracking content triggered in H5

Scenario 2: How to report H5 data to a unique APP application

Some pages may be implemented in H5 due to technical architecture choices. With this configuration, you can meet the following analysis requirement:

• View complete business, operations, and product data within a single app dataset.

Operations

1. Create an app with only one appKey_app

2. SDK configuration enableJSBridge=true is enabled and custom javaScriptProxy is injected on the application WebView page. For more information, see 2.1.

3. The H5 appKey is left empty. In this case, the H5 SDK prints warning logs but does not affect the number of sends. and set aplus-jsbridge-only to true to disable H5 data reporting

Report logs

When a tracking event is triggered on the H5 side, the following data is reported:

Reporting client	Log content
Apps	appKey is the app's "appKey_app" User account for the app User attributes that are reported by the tracking point of the app Device ID is the device ID of the app System Properties Global attributes are merged between the global attributes that are tracked in the app and the global attributes that are configured by H5 nodes The event code and the event attribute of the custom event are both h5-triggered tracking content
H5 application in webview	Report without logs

Scenario 3: How to report H5 data only to H5 applications

Use this scenario when app business, operations, and product teams do not need to see H5 data in the app dataset.

Operations

1. Create two applications:

• An app that has its own appKey_app

• A Web/H5 application that has its own appKey_h5

2. No API calls are made. The app application and the h5 application are tracked separately.

Report logs

When a tracking event is triggered on the H5 side, the following data is reported:

Reporting client	Log content
Apps	Report without logs
H5 application in webview	appKey_h5 H5 user account User attributes reported by the tracking whose user attribute is H5 The ID of an H5 device H5 system attribute Global attributes are global attributes of HTML5 tags The event code and the event attribute of the custom event are both h5-based tracking content

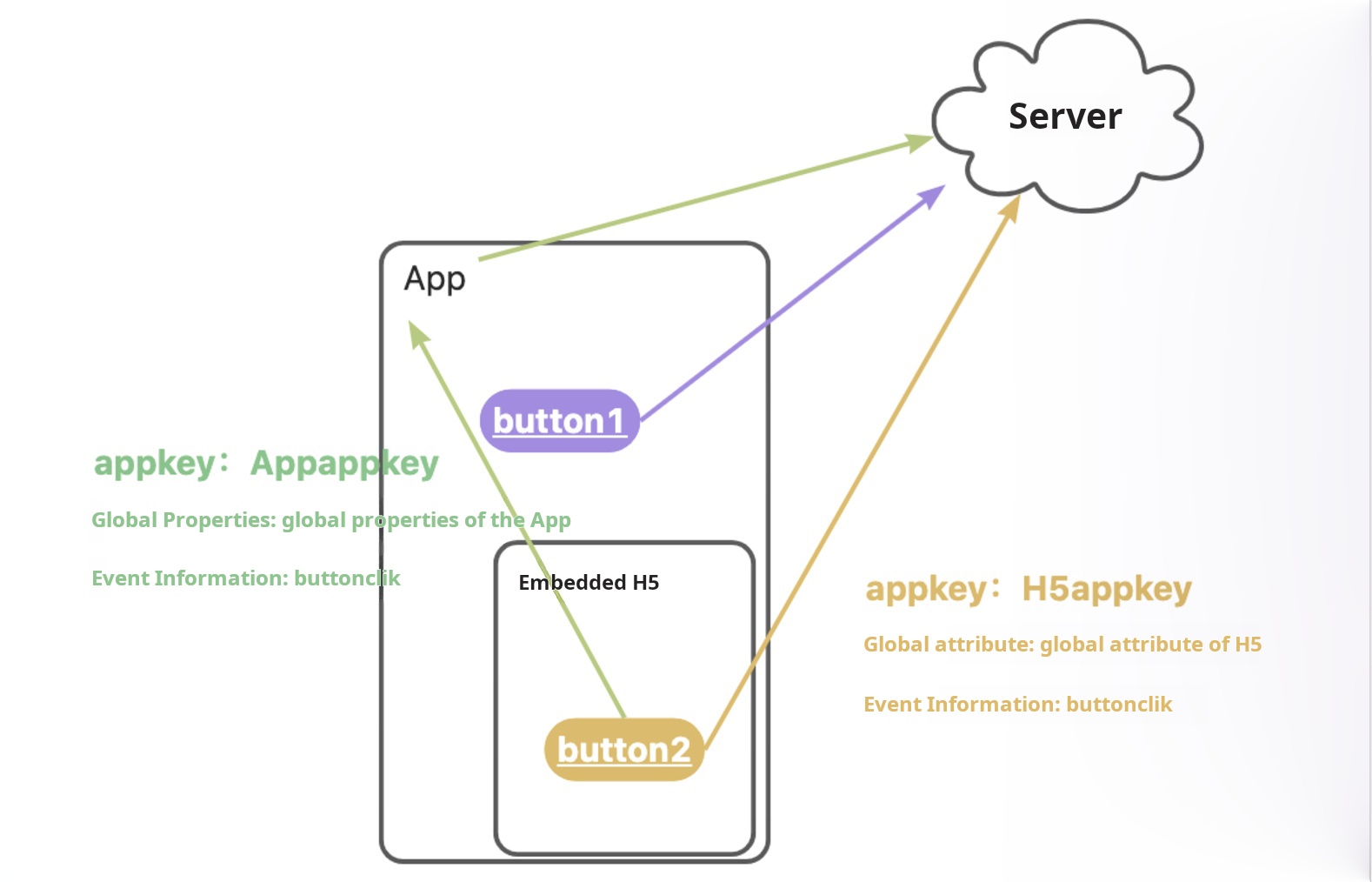

2. Description of H5 Bridging Principle

The following prerequisites apply to all three scenarios:

• HarmonyOS Next App integrates QuickTracking HarmonyOS Next SDK

• In-app H5 page integrates QuickTracking H5 SDK

2.1. HarmonyOS Next Application Code

Bridging API description

Enable the SDK configuration enableJSBridge=true before calling the bridging API. Otherwise, the API call is invalid.

import { createJSBridgeProxy } from '@quicktracking/analytics';

function createJSBridgeProxy(controller: WebviewController)

Parameters

Value	Description
controller	HarmonyOS Next system webview controller WebviewController

Sample code

import { webview } from '@kit.ArkWeb'
import { BusinessError } from '@kit.BasicServicesKit'
import { promptAction } from '@kit.ArkUI'
import { createJSBridgeProxy } from '@quicktracking/analytics';

@Entry
@Component
struct WebPage {
  @State message: string = 'Hello World';
  controller: webview.WebviewController = new webview.WebviewController();
  responseWeb: WebResourceResponse = new WebResourceResponse();

  onPageShow(): void {
    // When you need to introduce other user-defined JSProxy
    // const qtJSProxy:QTJSProxyObject =  createJSBridgeProxy(this.controller);
    // this.controller.registerJavaScriptProxy(qtJSProxy.object, qtJSProxy.name, qtJSProxy.methodList)
    // this.controller.registerJavaScriptProxy(this.testObjtest,"objName",["test"],["asyncTestBool"]);
  }

  build() {
    Column() {
      Web({src: $rawfile('index.html'), controller: this.controller})
        .javaScriptAccess(true)
        .javaScriptProxy(createJSBridgeProxy(this.controller))
    }
    .height('100%')
    .width('100%')
  }
}

2.2. H5 Application Side Code

Report logs only through the APP channel and disable the H5 channel reporting log API

aplus_queue.push({
  action: 'aplus.setMetaInfo',
  arguments: ['aplus-jsbridge-only', true]
});

Important: If H5 sets aplus-jsbridge-only to true, the H5 SDK stops reporting tracking events. Do not enable this setting on non-in-app H5 pages.

H5 global attributes take effect globally

After you enable this API, global properties configured through globalproperty in aplus.appendMetaInfo or aplus.setMetaInfo are synchronized to the native app. This option is disabled by default.

Important: This API is supported only in qt_web_v2.0.12 and later.

aplus_queue.push({
  action: 'aplus.setMetaInfo',
  arguments: ['aplus-globalproperty-sync-enable', true]
});

For example, if you set the global attribute "Current City: Beijing" in the app and "Current City: Shanghai" in the in-app H5, the global attribute for events triggered in both H5 and app native becomes "Current City: Shanghai". If you do not enable this option, global attributes set in H5 do not take effect in the native app.
