Quick Tracking:Embedding API

1. How do I view a tracking solution?

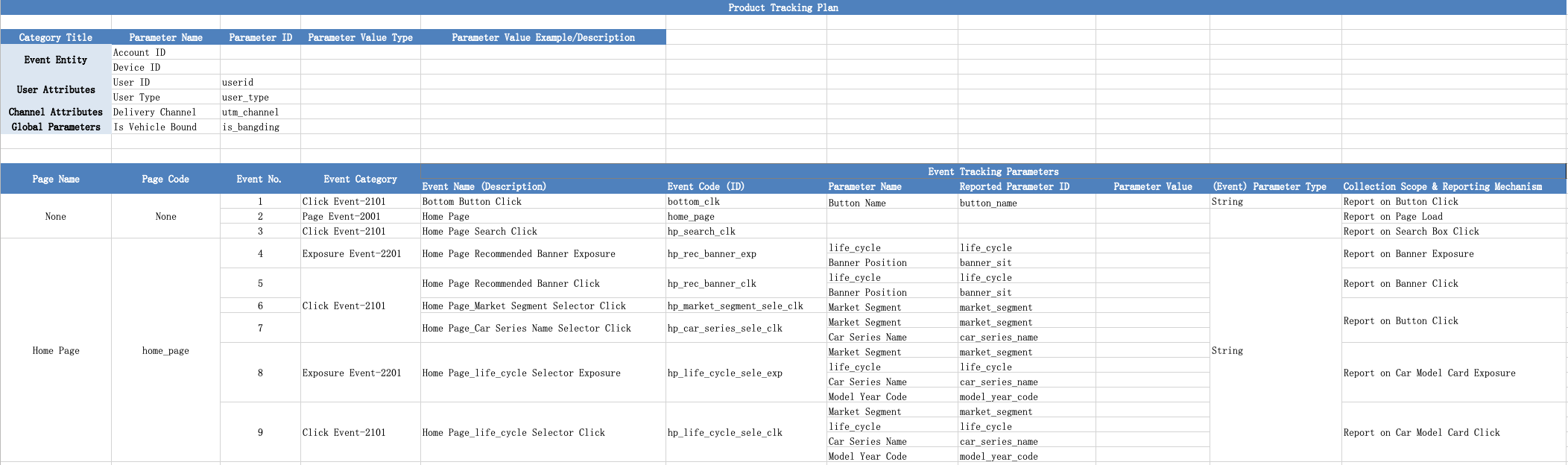

Before embedding points, it is necessary to determine where to bury points and which points to bury, that is, it is necessary to sort out the clear requirements for embedding points. In the Quick Tracking platform, explicit tracking requirements are called tracking solutions, and a specification template is designed for the tracking solution. Examples:

In the burial point scheme, the required burial points are as follows:

1. Event subject: refers to "who" triggered this event, which is divided into device ID and account ID. The reported event must have one of them.

• Device ID: The default device ID of a macOS device is a unique device ID at the application level. The device ID is automatically generated by the Quick Tracking SDK or configured by calling the setCustomDeviceId operation.

• Account ID: the account ID of the client user to log on to the system. When a user logs on from different devices, the device ID changes, but the account ID does not change. For example, a user logs in using two computers respectively.

2. User attribute: for the attribute of account ID, for example, the user with account ID of "testdemo@111", "birthday" of "1999-02-13", "member level" of "platinum", etc. The "birthday" and "membership" ratings are user attributes.

3. Global attribute: the attribute carried by each event after global setting once

4. Page browsing events: events reported during page loading (events with equal page code and event code in the tracking scheme are also events marked in blue)

5. Click, exposure, and custom events: events reported when the client user interacts with the client.

Instruction notes

• Limits on the input parameter size:

2. Apply a prefab event

2.1 to manually trigger an application startup event

Interface functions:

// Manually trigger the application startup event.
-(void)trackAppStart:(NSDictionary *_Nullable)properties;

Parameter:

Examples:

NSDictionary *appStartProperties = @{
    @"appStartTest": @"appStartTest",
    @"times": @1024,
    @"subContents": @[@"test1", @"test2", @"test3"]
};
[[QuickTrackingSDK sharedInstance] trackAppStart:appStartProperties];

2.2 manually triggered application exit event

Interface functions:

// Manually trigger the application exit event.
-(void)trackAppEnd:(NSDictionary *_Nullable)properties;

Parameter:

Examples:

NSDictionary *appEndProperties = @{
    @"appEndTest": @"appEndTest"
};
[[QuickTrackingSDK sharedInstance] trackAppEnd:appEndProperties];

3 Device ID

The SDK supports custom device IDs. If you want to use a custom device ID, you must set the setCustomDeviceId API parameter to a valid value. The default value is the unique identifier of the encrypted device.

3.1 Custom Device ID

Interface functions:

// Specify the custom device ID.
-(void)setCustomDeviceId:(NSString *_Nonnull)customDeviceID;

Parameter:

Examples:

[[QuickTrackingSDK sharedInstance] setCustomDeviceId:@"your_deviceId"];

3.2 Read Device ID

Interface functions:

// Read the device ID.
-(NSString *_Nullable)getDeviceID;

Examples:

NSString *deviceID = [[QuickTrackingSDK sharedInstance] getDeviceID];

Note:

This method depends on SDK initialization completion and may return a null value

4 Account ID

4.1 User Login

Quick Tracking SDK uses devices as the standard when counting users. If you need to count your own accounts, use the following method.

Interface functions:

// Log on to the application.
- (void)onProfileSignIn:(NSString *_Nonnull)userId;

Parameter:

Examples:

[[QuickTrackingSDK sharedInstance] onProfileSignIn:@"your_userId"];

4.2 User Logout

If you no longer need to bind a user account, you can call the user logout method provided by the SDK. After the user logout method is called, the SDK no longer sends user account-related content.

Interface functions:

// Log out.
- (void)onProfieSignOff;

Examples:

[[QuickTrackingSDK sharedInstance] onProfieSignOff];

5. Upload user attributes

The event encoding is fixed as $$_user_profile custom event upload, and the event attributes carried by the event are placed in the user table as user attributes.

Interface functions:

// Upload user properties.
- (void)uploadUserProfile:(NSDictionary *_Nullable)properties;

Parameter:

Examples:

NSDictionary *userProfile = @{
  @"name": @"your_name",
  @"email": @"example@example.com"
};
[[QuickTrackingSDK sharedInstance] uploadUserProfile:userProfile];

Note:

The SDK does not cache user properties. To report user properties, you must call the user account to set the API onProfileSignIn to ensure data accuracy.

6. Global attributes

6.1 Register Global Attributes

Interface functions:

// Set global properties.
-(void)registerGlobalProperties:(NSDictionary * _Nonnull)properties;

Parameter:

Examples:

[[QuickTrackingSDK sharedInstance] registerGlobalProperties:@{
    @"content": @"Test",
    @"times": @1024,
    @"subContents": @[@"abc", @"def", @"ghi"]
}];

Note:

If the key of an existing global attribute is the same as the key of an existing global attribute, the existing value is updated. If the key of an existing global attribute is different from the key of an existing global attribute, a new global attribute is inserted.

6.2 delete a global attribute

Interface functions:

// Delete global attributes based on the key.
-(void)unregisterGlobalProperty:(NSString *_Nonnull)propertyName;

Parameter:

Examples:

[[QuickTrackingSDK sharedInstance] unregisterGlobalProperty:@"your_key"];

6.3 to obtain a single global attribute based on a key

Interface functions:

// Obtain global properties based on the key.
-(id _Nullable)getGlobalProperty:(NSString *_Nonnull)propertyName;

Parameter:

Return value:

Examples:

id value = [[QuickTrackingSDK sharedInstance] getGlobalProperty:@"your_key"];

6.4 Get All Global Attributes

Interface functions:

// Obtain all global attributes.
-(NSDictionary *_Nullable)getGlobalProperties;

Return value:

Examples:

NSDictionary *globalProperties = [[QuickTrackingSDK sharedInstance] getGlobalProperties];

6.5 Clear All Global Attributes

Interface functions:

// Clear all global attributes.
-(void)clearGlobalProperties;

Examples:

[[QuickTrackingSDK sharedInstance] clearGlobalProperties];

7. Page browsing events

Before use, please go to the data collection-> tracking management-> event management module in the QuickTracking management background to create the corresponding page event, and then pass in the corresponding page code (page_ name).

7.1 page startup

Interface functions:

// Statistics page entry behavior
+(void)onPageStart:(id _Nonnull)pageContext page_name:(NSString * _Nonnull)page_name options:(NSDictionary *_Nullable)options;

Parameter:

Examples:

NSDictionary *pageOptions = @{
    @"url": @"your_url",
    @"page_title": @"your_page_title"
};
[QuickTrackingSDK onPageStart:self page_name:@"your_page_name" options:pageOptions];

7.2 Page Leave

Interface functions:

// Count the page leaving behavior.
+(void)onPageEnd:(id _Nonnull)pageContext page_name:(NSString * _Nonnull)page_name;

Parameter:

Examples:

[QuickTrackingSDK onPageEnd:self page_name:@"your_page_name"];

7.3 setting page event properties

Interface functions:

// Set the properties of the page event.
+(void)updatePageProperties:(id _Nonnull)pageContext page_name:(NSString *_Nonnull)page_name properties:(NSDictionary *_Nonnull)properties;

Parameter:

Examples:

NSDictionary *pageProperties = @{
    @"page_type": @"main",
    @"user_role": @"admin"
};
[QuickTrackingSDK updatePageProperties:self page_name:@"your_name" properties:pageProperties];

8. Event tracking

Custom events can be used to track user behavior and record the specific details of behavior occurrence.

Before using, go to the Data Collection> Tracking Management> Event Management module in the Quick Tracking management background, create a custom event, and then pass in the corresponding event code in the project.

Interface functions:

// The tracking event.
- (void)event:(NSString *_Nonnull)eventCode;
// The tracking event has event attributes.
- (void)event:(NSString *_Nonnull)eventCode properties:(NSDictionary *_Nullable)properties;
// The tracking event is encoded with the page code.
- (void)event:(NSString *_Nonnull)eventCode page_name:(NSString *_Nonnull)page_name;
// Track events with page code and event attributes
- (void)event:(NSString *_Nonnull)eventCode page_name:(NSString *_Nonnull)page_name properties:(NSDictionary *_Nullable)properties;

Parameter:

Examples:

// The tracking event.
NSString *eventCodeSimple = @"your_event_code";
[[QuickTrackingSDK sharedInstance] event:eventCodeSimple];

// The tracking event with page attributes
NSString *eventCodeWithProperties = @"your_event_code";
NSDictionary *yourProperties = @{
    @"item_name": @"your_item_name",
    @"item_price": @20
};
[[QuickTrackingSDK sharedInstance] event:eventCodeWithProperties properties:yourProperties];

// The tracking event is encoded with the page code.
NSString *eventCodeWithPage = @"your_event_code";
NSString *page_name = @"homepage";
[[QuickTrackingSDK sharedInstance] event:eventCodeWithPage page_name:page_name];

// Track events with page code and event attributes
NSString *eventCodeWithPageWithProperties = @"your_event_code";
NSString *page_name = @"settings_page";
NSDictionary *properties = @{
    @"button_name": @"save_settings",
    @"user_id": @"test"
};
[[QuickTrackingSDK sharedInstance] event:eventCodeWithPageWithProperties page_name:page_name properties:properties];

9. Other

9.1 to disable the SDK

After you call this operation, the SDK does not collect events and does not send network requests.

Interface functions:

// Disable the SDK.
+(void)disableSDK;

Examples:

[QuickTrackingSDK disableSDK];

9.2 open the SDK

If the SDK is disabled, the data collection feature is restored after the SDK is called.

Interface functions:

// Enable the SDK.
+(void)enableSDK;

Examples:

[QuickTrackingSDK enableSDK];
