The Numeric widget lets you add number-type fields to a data form.
Scenarios
Use this widget to collect numerical data such as competition scores and product prices.

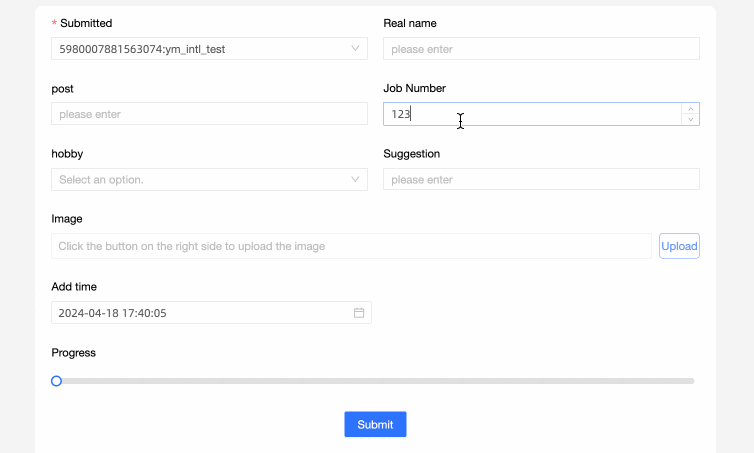

Renderings
Control configuration

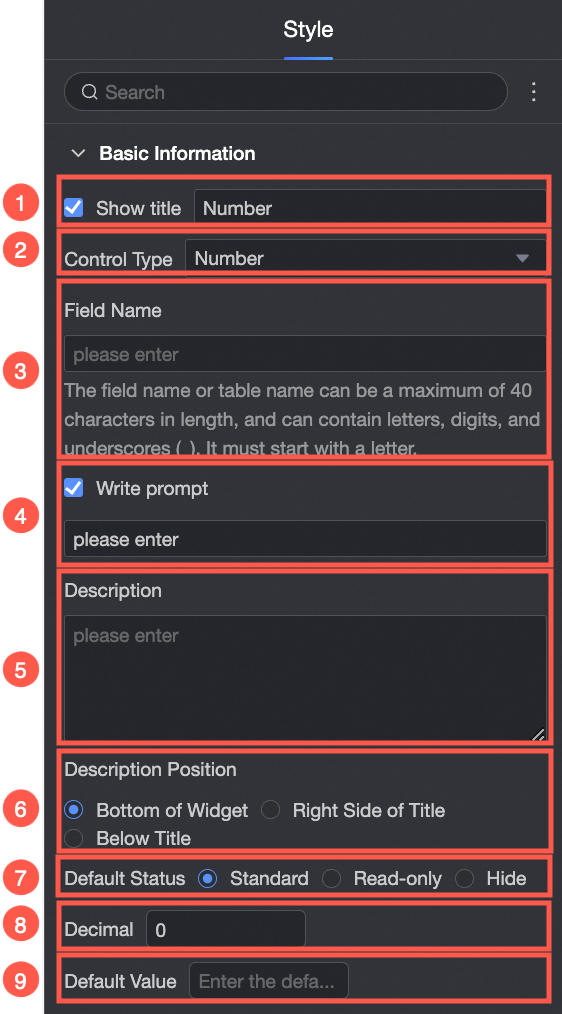

Basic parameters
|
Parameter |
Description |
|
|
① Show Title: Specify whether to display the title of the Numeric widget. You can customize the display name as the column name of the data form. |
|
② Control type: After you select a control, you can replace the control type. The drop-down list supports other basic and advanced control types. |
|
|
③ Table Field Name: The field name in the table created from this data form. Note
The field or table name must start with a letter and can contain letters, digits, and underscores (_). The name can be up to 40 characters in length. |
|
|
④ Prompt: Set Prompt for the widget. For example, enter |
|
|
⑤ Description: A custom description for the control. |
|
|

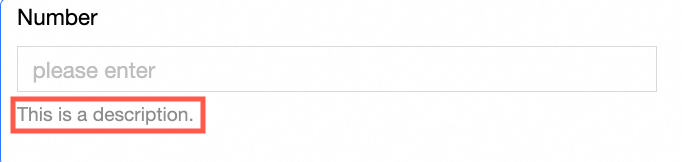

⑥ Description Information Location: Set the position of the description. The options are Bottom, Right, and Below. For example, set the description to the right of the title:
|
|
|
Default State: The default state of the widget. Valid values: Normal, Read-only, and Hidden. |
|
|
⑧ Decimal Digits: The maximum number of decimal places allowed. |
|
|
Default Value: The default value of the widget. |

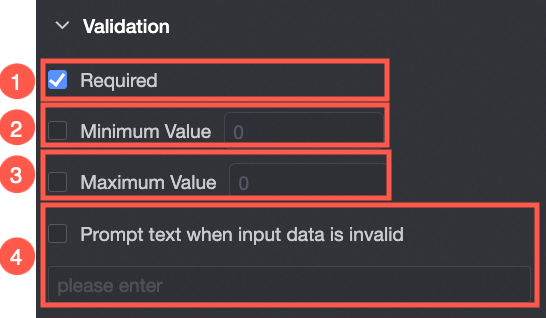

Validation
|
Parameter |
Description |
|
|
① Required: Specify whether this field is required. If you select this option, the control is set to Required. |
|
② Minimum Value: Specify whether to enforce a minimum value. If you select this option, you can set the Minimum Value parameter. The entered value cannot be less than the minimum value. |
|
|
③ Maximum Value: Specify whether to enforce a maximum value. If you select this option, you can set the Maximum Value parameter. The entered value cannot exceed the maximum value. |
|
|
④ Input data invalid prompt text: Takes effect only when a validation rule is enabled. For example, if Required is selected and no value is entered, a custom error message is displayed. |
Section
|
Parameter |
Description |
|
|

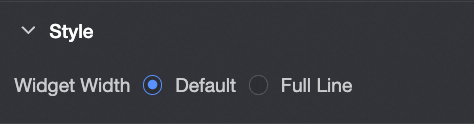

Widget Width: You can select Default or Whole Line. Note
You can also drag the widget border to adjust the width.
|
