Enable GPP to Boost Secondary Index Query Performance - PolarDB

In read-heavy workloads where most queries go through secondary indexes, the standard MySQL lookup path is a common bottleneck: each query requires two separate B-tree scans—one on the secondary index, and a second on the primary key index to fetch the row. As data volume and query concurrency grow, this double traversal compounds the I/O cost.

Guess Primary Key Page No (GPP) eliminates the second scan for most queries by embedding a predicted page location directly in each secondary index entry. When the prediction is correct, the lookup becomes a single I/O path. In practice, the GPP hit rate is above 99% in production environments, and query performance improves by over 50% in certain scenarios.

GPP is enabled by default on PolarDB-X instances. To change the setting, update the opt_index_format_gpp_enabled parameter in the PolarDB-X console.

How it works

Without GPP, a secondary index lookup follows this two-step path:

Scan the secondary index B-tree to find the matching entry and retrieve the primary key value.
Traverse the primary key B-tree from the root to locate and read the data page.

GPP augments each secondary index entry with a 4-byte hint encoding the predicted page number of the corresponding primary key record:

Without GPP:
  Secondary index scan → get primary key value
  Primary key B-tree traversal (root → data page) → read row

With GPP:
  Secondary index scan → get primary key value + page hint
  Jump directly to predicted data page → read row  (skips B-tree traversal)

When the B-tree structure has not changed since the hint was written, GPP uses the hint to jump directly to the data page. If the B-tree has changed (for example, after a page split or merge), the hint may be stale and GPP falls back to the standard two-scan path. Because fallbacks are rare (hit rate above 99% in production), the net effect is a significant reduction in per-query I/O.

Prerequisites

Before you begin, make sure your instance meets the following requirements:

Instance edition: Standard Edition or Enterprise Edition
Engine version: MySQL 8.0
Data node version: xcluster8.4.19-20240731 or later (released on or after July 31, 2024)

For version naming rules, see Release notes. To check the current version of your instance, see View and update the version of an instance.

Billing

GPP is free. However, GPP adds 4 bytes of overhead to each secondary index entry. For most tables, this increases storage by less than 5%, with a corresponding increase in storage costs.

Limits and considerations

Consideration	Details
Version downgrade	GPP changes the underlying storage structure. After GPP is enabled, the instance cannot be downgraded to a version that does not support GPP.
Existing indexes	Enabling GPP does not automatically apply GPP to existing secondary indexes. Rebuild each index manually to use GPP (see procedure below).
Unsupported types	GPP does not apply to temporary tables, system tables, compressed tables, full-text indexes, or spatial indexes.

Rebuild an existing secondary index for GPP

To enable GPP for an existing secondary index:

Create a replacement index:
```
ALTER TABLE ... ADD INDEX idx_new ...;
```

Swap the index names:

ALTER TABLE ... RENAME idx TO idx_old, RENAME idx_new TO idx;

Drop the original index:
```
ALTER TABLE ... DROP INDEX idx_old;
```

Enable GPP

GPP is enabled by default. To change the setting:

Go to the PolarDB-X console.
Navigate to Configuration Management > Parameter Settings > Storage Layer tab.
Change the value of opt_index_format_gpp_enabled.

The change takes effect immediately without restarting the instance.

Parameter value	Effect
`ON`	New tables and secondary indexes are created with GPP enabled by default.
`OFF`	New tables and secondary indexes use the standard secondary index format, consistent with community MySQL.

Performance benchmark

Standard benchmark tools such as Sysbench query by primary key in read-only workloads (for example, the oltp_read_only script), which bypasses secondary index lookups entirely. To measure GPP's actual impact, the following tests were run with queries targeting a secondary index key (k) instead of the primary key (id).

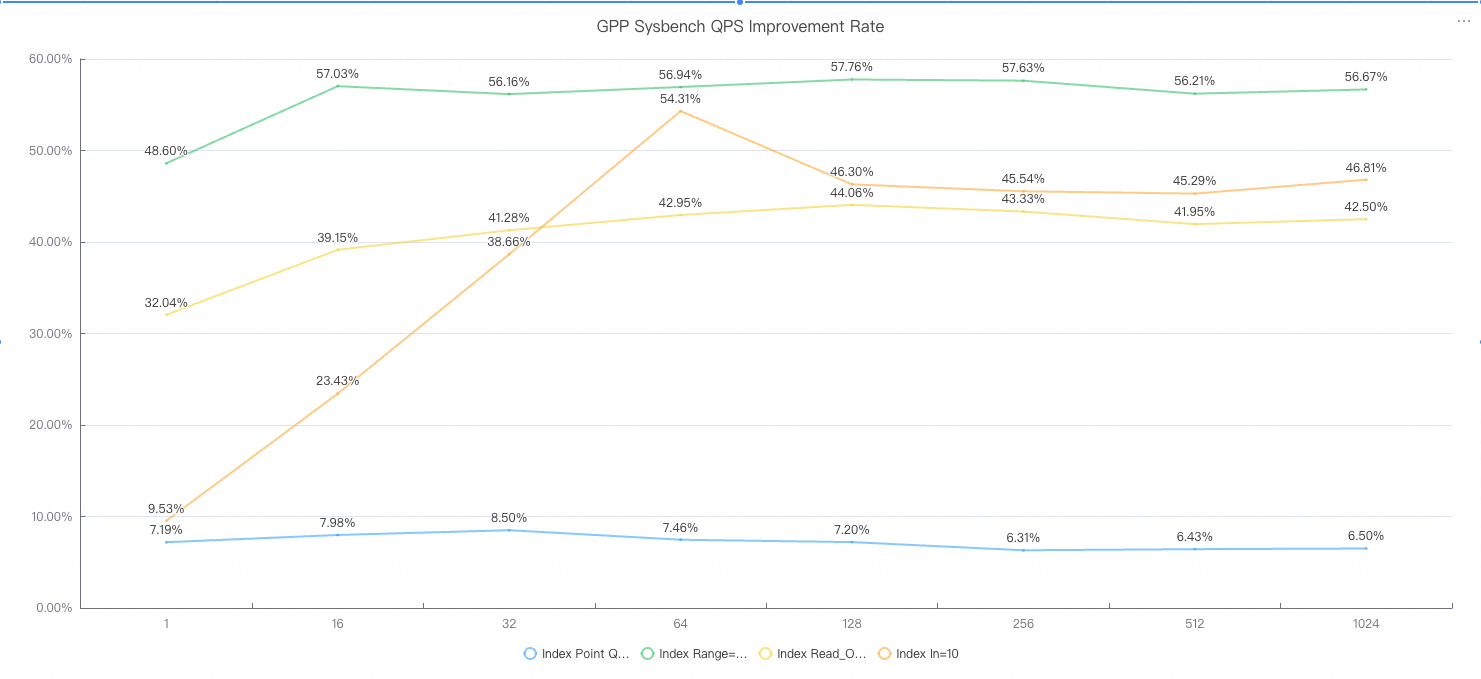

The chart below shows the QPS (Queries Per Second) improvement rate for a PolarDB-X instance with GPP enabled compared to one without.

FAQ

After upgrading an instance, do existing secondary indexes automatically use GPP?

No. GPP requires changes to the underlying storage structure of each index. After upgrading, manually rebuild the secondary indexes that should use GPP. See Limits and considerations for the rebuild procedure.

Is it safe to toggle `opt_index_format_gpp_enabled`?

Yes. Enabling or disabling this parameter is a dynamic, instance-level operation—no restart is required and your services are not affected. The parameter only controls whether new indexes are created with GPP by default. Existing indexes are not changed.

Does GPP increase costs or degrade performance?

Cost: GPP adds 4 bytes per index entry. For most business tables, storage increases by less than 5%.
Performance: A GPP lookup can miss if the B-tree structure has changed since the hint was written. If the miss rate significantly exceeds the hit rate, GPP can degrade table lookup performance. In practice, the hit rate in production environments is typically above 99%, so performance degradation is rare.

Which table types and database modes does GPP support?

GPP is supported in both Standard Edition and Enterprise Edition.

In Enterprise Edition, GPP supports partitioned tables, single tables, and broadcast tables, in both DRDS mode and AUTO mode.
