Mount storage by using OSS, NAS, and Docker images - Platform For AI

Mount different types of storage

For unstructured data that is primarily read, such as models, images, and videos, use OSS.
If you frequently read and write small files, or if multiple service instances need to share a read/write directory, use a General-purpose NAS file system.
For high-performance computing (HPC) or AI training that requires extremely low latency and high throughput, use an Extreme NAS file system or CPFS.
For large-scale parallel computing or AI training frameworks, use CPFS.

Note

CPFS file systems can only be mounted when deploying EAS services using Lingjun resource quotas.
NAS supports mounting only from internal network addresses in the same region. Establish a direct network connection to the vSwitch where the NAS file system is located. For more information, see Network access configuration.

OSS mount

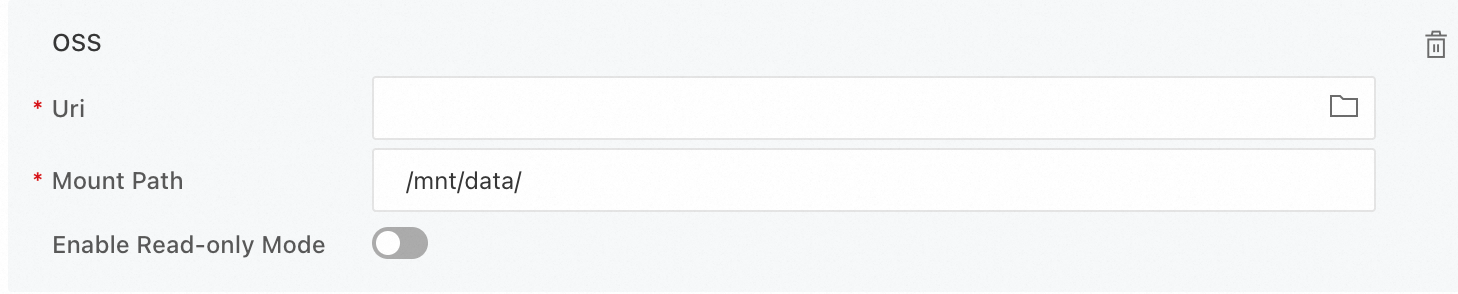

This is the most common storage mount method. The following figure shows the console configuration interface.

The following code provides a JSON configuration example:

{
  "storage": [
        {
            "oss": {
                "path": "oss://bucket/path/",
                "readOnly": false
            },
            "mount_path": "/mnt/data/"
        }
    ]
}

Parameters:

Parameter (Console)	Parameter (JSON)	Description
Uri	oss.path	Path of the source OSS bucket. For more information about creating a bucket, see Getting Started.
Mount Path	mount_path	Destination path in the service instance to which storage is mounted. Use this path to read source files or data. Example: `/mnt/data`.
Read-only	oss.readOnly	Specifies whether to mount the storage in read-only mode.

NAS mount

Mount a NAS file system, including a General-purpose NAS file system, an Extreme NAS file system, or CPFS, using an internal network address within the same region. Also establish a direct network connection to the vSwitch where the NAS file system is located. For more information, see Network access configuration.

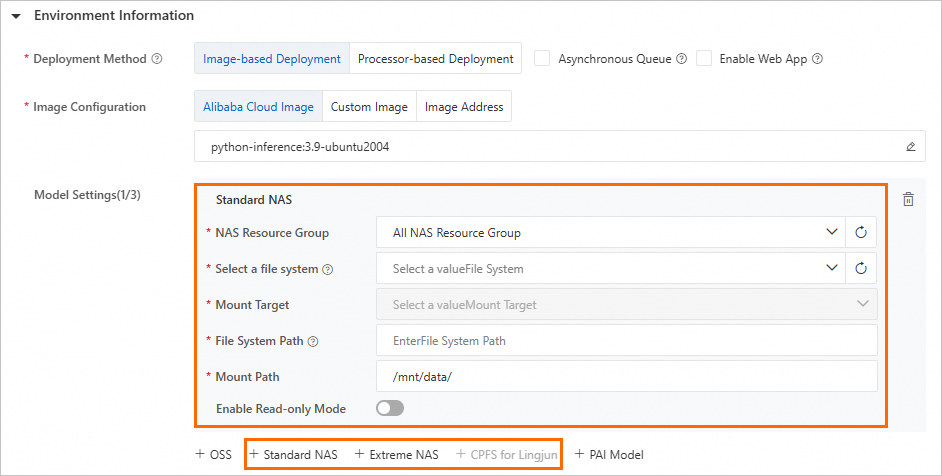

The following figure shows the console configuration interface.

The following code provides a JSON configuration example:

{
  "storage": [
        {
            "nfs": {
                "path": "/",
                "server": "06ba74****-a****.cn-hangzhou.nas.aliyuncs.com",
                "readOnly": false
            },
            "mount_path": "/mnt/data/"
        }
    ]
}

Parameters:

Parameter (Console)	Parameter (JSON)	Description
Storage Permission Resource Group	nfs.resourceGroup	Resource group to which the file system belongs. This parameter filters file systems by resource group. For more information about resource groups, see Best practices for resource group design. If All Storage Permission Resource Groups is selected, this parameter is not required in the JSON file.
Select File System	None	ID of the created NAS file system. Log on to the NAS console to view the NAS file system ID in the corresponding region.
File System Mount Target	nfs.server	Address of the NAS mount target. EAS accesses the NAS file system through the mount target. For more information about viewing the address, see View mount target addresses. Note After selecting a mount target in the console, the system automatically selects the virtual private cloud (VPC) that is associated with the mount target.
File System Path	nfs.path	Source path in the NAS file system to mount. This is the path within the NAS instance. Example: `/`. Ensure the path exists to avoid errors.
Mount Path	mount_path	Destination path in the service instance to which storage is mounted. Use this path to read source files or data. Example: `/mnt/data`.
Read-only	nfs.readOnly	Specifies whether to mount the storage in read-only mode.

Mount a custom dataset

Create a PAI dataset from data or configuration files and register it as a public AI Asset. This allows easy mounting and referencing of the dataset when deploying services.

Note

Only custom datasets that use Object Storage Service (OSS) can be mounted.

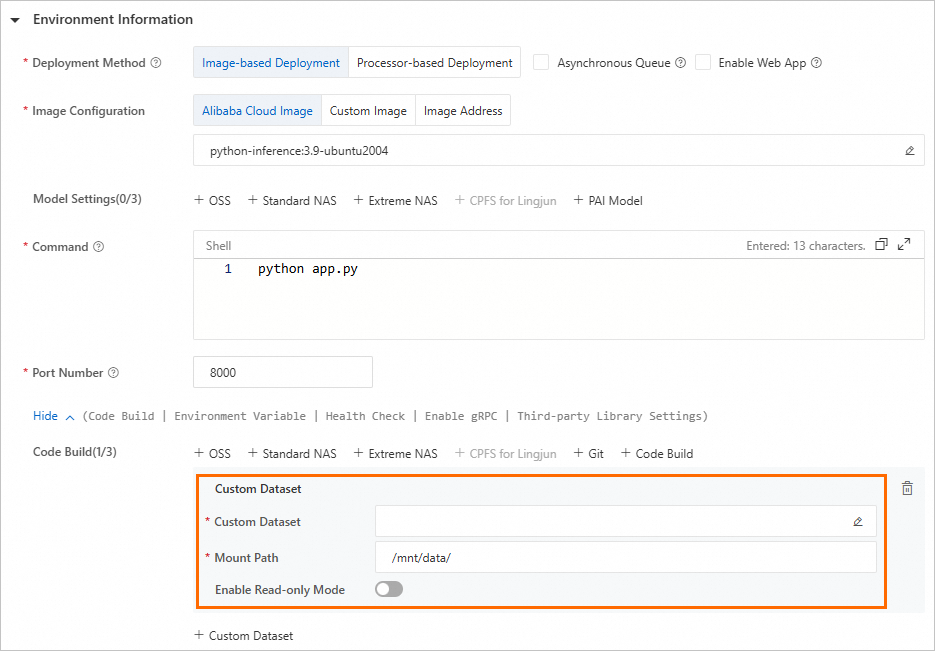

The following figure shows the console configuration interface.

The following code provides a JSON configuration example:

"storage": [
        {
            "dataset": {
                "id": "d-pcsah1t86bm8******",
                "version": "v1",
                "read_only": false
            },
            "mount_path": "/mnt/data/"
        }
    ]

Parameters:

Parameter (Console)	Parameter (JSON)	Description
Custom Dataset	dataset.id	Registered custom dataset of the Object Storage Service (OSS) type. For more information about creating a custom dataset and obtaining its ID, see Create and manage datasets.
Version	version	Version of the dataset. Example: v1.
Read-only	dataset.read_only	Specifies whether to mount the dataset in read-only mode.
Mount Path	mount_path	Destination path in the service instance to which the dataset is mounted. Example: `/mnt/data/`.

Mount code

Git mount: Mounts code from a Git repository to a service instance in read-only mode. The code is pulled when the instance starts. If code changes, restart the service instance for changes to take effect.
Code configuration: Create a PAI code set from a Git repository and register it as a public AI Asset. This allows easy mounting and referencing of the code set when deploying a service.

Git mount

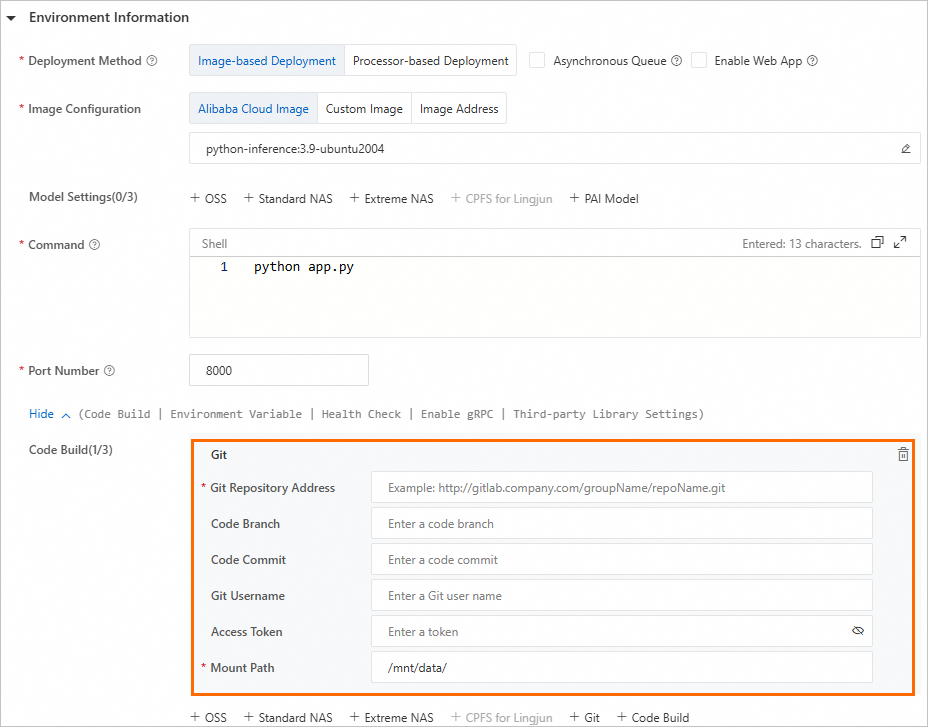

The following figure shows the console configuration interface.

The following code provides a JSON configuration example:

{
  "storage": [
        {
            "git": {
                "repo": "https://codeup.aliyun.com/xxx/eas/aitest.git",
                "branch": "master",
                "commit": "xxx",
                "username": "username",
                "password": "password or access token"
            },
            "mount_path": "/mnt/data/"
        }
    ]
}

Parameters:

Parameter (Console)	Parameter (JSON)	Description
Git URL	git.repo	HTTPS address of the Git repository to mount. The Git protocol is not supported.
Branch	git.branch	Branch of the Git repository to pull. The default value is master.
Commit	git.commit	Commit ID of the Git repository to pull.
Username	git.username	Username used to log on to the private Git repository.
Access Token	git.password	Password or access token used to log on to the private Git repository. For more information about obtaining a token, see Appendix: Obtain a token for your GitHub account.
Mount Path	mount_path	Destination path in the service instance to which the repository is mounted. Example: `/mnt/data`.

Code configuration

This method mounts the code set to a service instance in read-only mode.

The following figure shows the console configuration interface.

The following code provides a JSON configuration example:

"storage": [
        {
            "code": {
                "id": "code-4d3b42a1152****"
            },
            "mount_path": "/mnt/data/"
        }
    ]

Parameters:

Parameter (Console)	Parameter (JSON)	Description
Code Configuration	code.id	Registered code set. For more information about creating a code set and obtaining its ID, see Code configuration.
Mount Path	mount_path	Destination path in the service instance to which the code set is mounted. Example: `/data_image`.

Mount a PAI model

Register the models that a service requires as public PAI AI Assets to centrally manage them in PAI. For more information, see Register and manage models. Mount the models to service instances in read-only mode during service deployment.

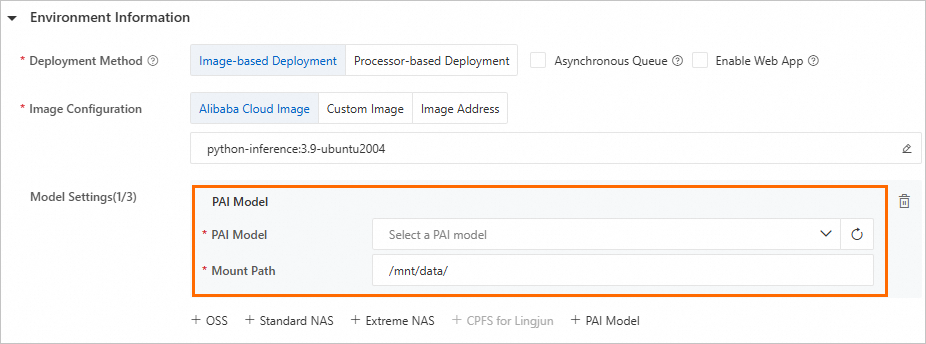

The following figure shows the console configuration interface.

Parameters:

Parameter (Console)	Description
PAI Model	Registered PAI model. For more information about creating a model, see Register and manage models.
Mount Path	Destination path in the service instance to which the model is mounted. Example: `/mnt/data/`.

Other mounts

Image mount: This method does not mount a directory from a Docker image directly to a service instance. Instead, it first copies files from a specified directory in the source image to a local shared volume and then mounts the local shared volume at runtime. If the directory to mount contains a large amount of data, this process can consume significant local storage and increase instance startup time. Use this feature only when necessary.
EmptyDir mount: Use this method to allow an instance to read from and write to a local disk directory at runtime. This ensures that written content is not lost if the instance unexpectedly restarts.

Image mount

Configuration method
```
{
    "storage": [
        {
            "image": {
                "image": "registry-vpc.cn-xxxx.aliyuncs.com/eas/image_name:v1",
                "path": "/path/to/mount/"
            },
            "mount_path": "/data_image"
        }
    ]
}
```
Note
Images can be mounted from an internal network address in the same region. If the image is private, use the dockerAuth parameter to specify authentication information for the image repository. For more information about using the dockerAuth parameter, see Use a custom image.

Parameters

Parameter (JSON)	Description
image.image	Internal network address of the image repository to mount.
image.path	Path in the image to mount to the service instance.
mount_path	Destination path in the service instance to which the image is mounted. Example: `/data_image`.

EmptyDir mount

Configuration method

{
    "name": "service_name",
    "storage": [
        {
            "empty_dir": {},
            "mount_path": "/data_image"
        }
    ]
}

Parameters

Parameter (JSON)	Description
mount_path	Destination path in the service instance.
empty_dir	Indicates an EmptyDir type with an empty map value. This stores data on the local disk. Other properties cannot be configured.

Configure shared memory

If high storage performance is required, use the following configuration to enable shared memory.

{
    "storage": [
        {
            "empty_dir": {
              "medium": "memory",
              "size_limit": 20
            },
            "mount_path": "/dev/shm"
        }
    ]
}

Where:

Parameter (JSON)	Description
medium	Set this parameter to memory.
mount_path	Set this parameter to `/dev/shm`.
size_limit	Upper limit of the memory. Unit: GB.

Complete JSON configuration example

The following code provides a complete configuration example. For more information, see Deploy services using JSON.

{
    "name": "service_name",
    "model_path": "http://path/to/model",
    "processor": "pmml",
    "storage": [
        {
            "oss": {
                "path": "oss://bucket/path/",
                "readOnly": false
            },
            "mount_path": "/mnt/data/"
        },
        {
            "nfs": {
                "path": "/",
                "server": "06ba74****-a****.cn-hangzhou.nas.aliyuncs.com",
                "readOnly": false
            },
            "mount_path": "/mnt/data/"
        },
        {
            "image": {
                "image": "registry-vpc.cn-shanghai.aliyuncs.com/eas/test_image:v1",
                "path": "/path/to/mount/"
            },
            "mount_path": "/data_image"
        },
        {
            "empty_dir": {
              "medium": "memory",
              "size_limit": 20
            },
            "mount_path": "/dev/shm"
        },
        {
            "git": {
                "repo": "https://codeup.aliyun.com/xxx/eas/aitest.git",
                "branch": "master",
                "commit": "xxx",
                "username": "username",
                "password": "password or access token"
            },
            "mount_path": "/mnt/data/"
        }
    ],
    "metadata": {
        "cpu": 1,
        "instance": 1,
        "resource": "eas-r-xxx"
    }
}

FAQ

Why am I getting a "file not found" error after mounting an OSS bucket?

This error is usually caused by an incorrect path. Check mount configuration and access path.

For example, if you mount oss://my-bucket/ to /mnt/data, the file oss://my-bucket/subfolder/myfile.txt in OSS must be accessed using the path /mnt/data/subfolder/myfile.txt in the container, not /mnt/data/myfile.txt.
Can I use an FTP or SSH tool to connect to an instance to upload or download files?

No. EAS instances do not provide FTP or SSH access.
Can I mount an OSS bucket that is in a different region from my EAS service?

No. EAS cannot mount OSS buckets across regions. Use the cross-region replication feature of OSS to synchronize data to an OSS bucket in the same region as the EAS service.
If no storage is mounted, where are the files that I download to the instance stored? Files are saved to the system disk of the instance. The system disk is cleared when the instance is restarted or updated, resulting in data loss. To make data persistent, mount storage.
