Object Storage Service:Use an OSS accelerator to speed up model training

Task 1: Create a GPU-accelerated instance on Elastic GPU Service

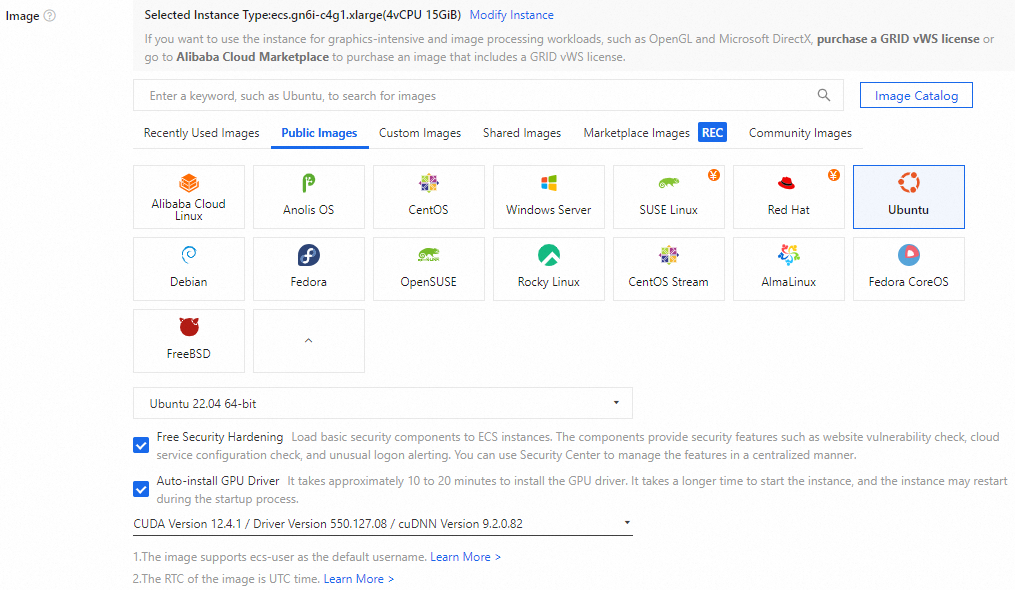

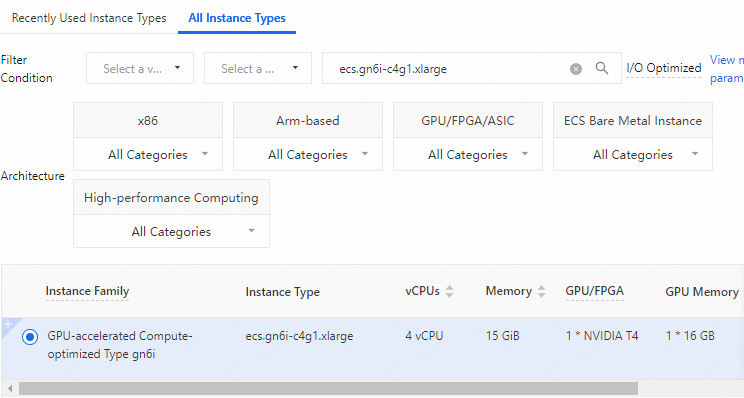

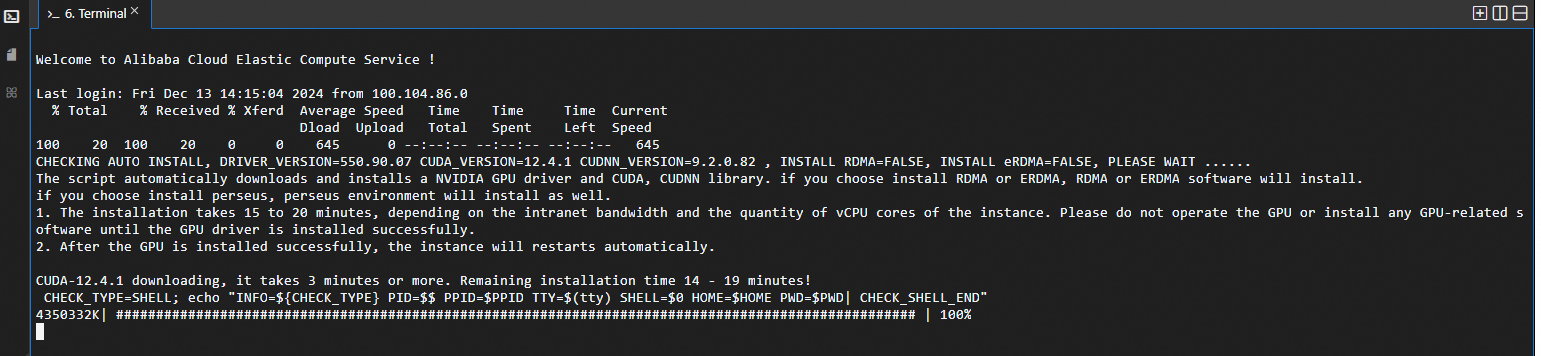

The following steps show how to create and connect to a GPU-accelerated instance for model training. In this task, the instance type is ecs.gn6i-c4g1.xlarge, the operating system is Ubuntu 22.04, and the CUDA version is 12.4.1. When you use custom instance specifications, make sure that you use the latest CUDA version.

Task 2: Create an OSS bucket and an OSS accelerator for the bucket

The following steps show how to create an OSS bucket in the same region as the GPU-accelerated instance for storing datasets, and create an OSS accelerator to accelerate dataset access. If the GPU-accelerated instance and the bucket reside in the same region and the internal endpoint is used for data access, no traffic fees are incurred.

1. Create a bucket and obtain the internal endpoint of the bucket

   Important

   The OSS accelerator feature is in public preview in the following regions: China (Hangzhou), China (Shanghai), China (Beijing), China (Ulanqab), China (Shenzhen), and Singapore. Make sure that the bucket is located in the region where the GPU-accelerated instance was created. In the previous task, a GPU-accelerated instance was created in the China (Hangzhou) region. As a result, the bucket must also be located in the China (Hangzhou) region.

   1. On the Buckets page of the OSS console, click Create Bucket.

   2. In the Create Bucket panel, following the on-screen information to complete the bucket creation.

   3. Go to the Overview page of the bucket. From the Port section, record the endpoint for Access from ECS over the VPC (internal network). The endpoint will be used to upload datasets and checkpoints during model training.



2. Create an OSS accelerator and record the name of the accelerator

   1. On the Buckets page of the OSS console, click the name of the bucket. In the left-side navigation tree, choose Bucket Settings > OSS Accelerator.

   2. Click Create Accelerator, and in the Create Accelerator panel, set the capacity (500 GB in this example), then click Next.

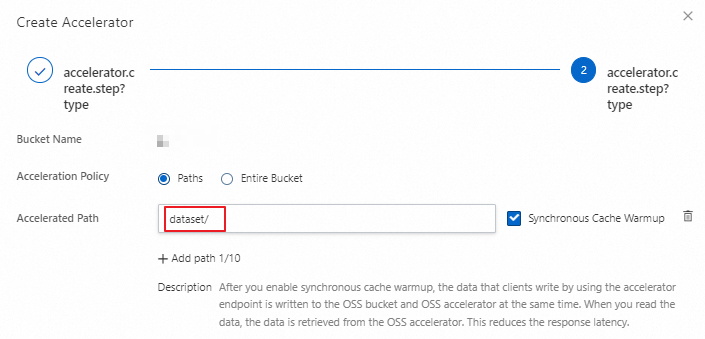

   3. Select Paths for Acceleration Policy and add the directory of the dataset in the bucket to the accelerated paths. Click OK, and follow the on-screen information to complete the creation process.

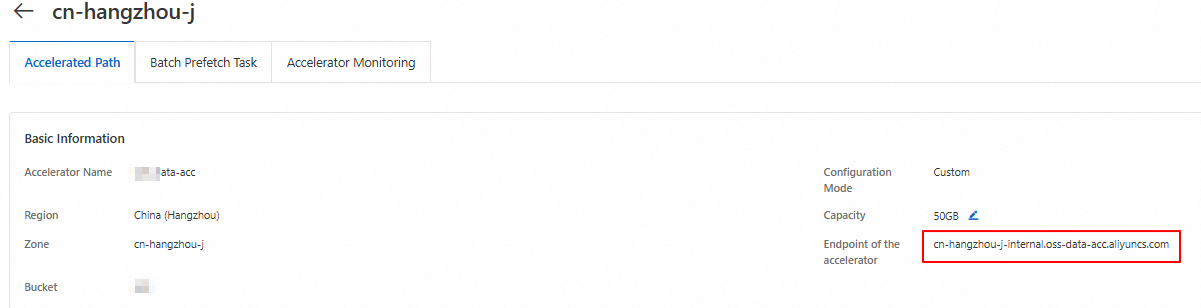

   4. Record the accelerated endpoint, which will be used to download datasets from the bucket during model training.



Task 3: Train the model

The following steps cover model training processes, including the environment configuration, dataset upload, and acceleration with the OSS accelerator.

1. Prepare the environment for model training

   1. Prepare the conda environment and configure dependencies.

      1. Run the following command to install conda:

         curl -L https://repo.anaconda.com/miniconda/Miniconda3-latest-Linux-x86_64.sh -o /tmp/miniconda.sh && bash /tmp/miniconda.sh -b -p /opt/conda/ && rm /tmp/miniconda.sh && /opt/conda/bin/conda clean -tipy && export PATH=/opt/conda/bin:$PATH  && conda init bash && source ~/.bashrc && conda update conda

      2. Run the vim environment.yaml command to create and open an environment configuration file named environment.yaml. Add the following configurations to the environment configuration file and save the environment configuration file:

         name: py312
         channels:
           - defaults
           - conda-forge
           - pytorch
         dependencies:
           - python=3.12
           - pytorch>=2.5.0
           - torchvision
           - torchaudio
           - transformers
           - torchdata
           - oss2

      3. Run the following command to create a conda environment named py312 based on the environment configuration file:

         conda env create -f environment.yaml

      4. Run the conda activate py312 command to activate the py312 environment. The following figure shows that the environment is activated.



         Important

         Proceed with the following steps in the conda environment that is activated.

   2. Configure environment variables.

      Run the following commands to configure environment variables. Remember to replace <ACCESS_KEY_ID> and <ACCESS_KEY_SECRET> with the AccessKey ID and AccessKey secret of the RAM user that you want to use. For information about how to create an AccessKey ID and AccessKey secret, see Create an AccessKey pair.

      export OSS_ACCESS_KEY_ID=<ACCESS_KEY_ID>
      export OSS_ACCESS_KEY_SECRET=<ACCESS_KEY_SECRET>

   3. Install and configure the OSS connector.

      1. Run the following command to install the OSS connector:

         pip install osstorchconnector

      2. Run the following command to create a configuration file:

         mkdir -p /root/.alibabacloud && touch /root/.alibabacloud/credentials

      3. Run the vim /root/.alibabacloud/credentials command to open the configuration file. Add the following configurations to the file, and then save the file. For more information about how to configure the OSS connector, see Configure OSS Connector for AI/ML.

         Replace the example AccessKey ID and AccessKey secret with your actual information. For more information about how to create an AccessKey ID and AccessKey secret, see Create an AccessKey pair.

         {
           "AccessKeyId": "LTAI************************",
           "AccessKeySecret": "At32************************"
         }

      4. Run the following command to make the credentials file read-only:

         chmod 400 /root/.alibabacloud/credentials

      5. Run the following command to create a configuration file for the OSS connector:

         mkdir -p /etc/oss-connector/ && touch /etc/oss-connector/config.json

      6. Run the vim /etc/oss-connector/config.json command to open the configuration file. Add the following configurations to the configuration file and save the configuration file. In most cases, you can use the default configurations.

         {
             "logLevel": 1,
             "logPath": "/var/log/oss-connector/connector.log",
             "auditPath": "/var/log/oss-connector/audit.log",
             "datasetConfig": {
                 "prefetchConcurrency": 24,
                 "prefetchWorker": 2
             },
             "checkpointConfig": {
                 "prefetchConcurrency": 24,
                 "prefetchWorker": 4,
                 "uploadConcurrency": 64
             }
         }


2. Prepare data

   1. Upload the training set and validation set to the bucket.

      1. Run the following commands to download the training set and validation set to the ECS instance. Take note that the data used in this training task is only a portion of the entire dataset.

         wget https://help-static-aliyun-doc.aliyuncs.com/file-manage-files/zh-CN/20241216/jsnenr/n04487081.tar
         wget https://help-static-aliyun-doc.aliyuncs.com/file-manage-files/zh-CN/20241218/dxrciv/n10148035.tar
         wget https://help-static-aliyun-doc.aliyuncs.com/file-manage-files/zh-CN/20241216/senwji/val.tar

      2. Run the following commands to extract datasets from the downloaded packages to the dataset directory created in the current path:

         tar -zxvf n10148035.tar && tar -zxvf n04487081.tar && tar -zxvf val.tar
         mkdir dataset && mkdir ./dataset/train && mkdir ./dataset/val
         mv n04487081 ./dataset/train/ && mv n10148035 ./dataset/train/ && mv IL*.JPEG ./dataset/val/

      3. Run the python3 upload_dataset.py command to run the script file, which uploads the datasets to the bucket.

         # upload_dataset.py

         from torchvision import transforms
         from PIL import Image
         import oss2
         import os
         from oss2.credentials import EnvironmentVariableCredentialsProvider

         # In this example, the internal endpoint for the China (Hangzhou) region is used.
         OSS_ENDPOINT = "oss-cn-hangzhou-internal.aliyuncs.com"    # The internal OSS endpoint.
         OSS_BUCKET_NAME = "<YourBucketName>"    # The name of the bucket.
         BUCKET_REGION = "cn-hangzhou"    # The ID of the region in which the bucket is located.

         # Specify a custom prefix in the names of the datasets in the bucket.
         OSS_URI_BASE = "dataset/imagenet/ILSVRC/Data"

         def to_tensor(img_path):
             IMG_DIM_224 = 224
             compose = transforms.Compose([
                     transforms.RandomResizedCrop(IMG_DIM_224),
                     transforms.RandomHorizontalFlip(),
                     transforms.ToTensor(),
                     transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225])
                 ])
             img = Image.open(img_path).convert('RGB')
             img_tensor = compose(img)
             numpy_data = img_tensor.numpy()
             binary_data = numpy_data.tobytes()
             return binary_data

         def list_dir(directory):
             for root, _, files in os.walk(directory):
                 rel_root = os.path.relpath(root, start=directory)
                 for file in files:
                     rel_filepath = os.path.join(rel_root, file) if rel_root != '.' else file
                     yield rel_filepath
         IMG_DIR_BASE = "./dataset"
         """
             IMG_DIR_BASE stores the local path of the images. You can specify the local path by using an absolute or relative path.
             The structure of the local path must be consistent with that of the datasets:
             {IMG_DIR_BASE}/
                 train/
                     n10148035/
                         ...
                     n11879895/
                         ...
                     ...
                 val/
                     ...
         """

         bucket_api = oss2.Bucket(oss2.ProviderAuthV4(EnvironmentVariableCredentialsProvider()), OSS_ENDPOINT, OSS_BUCKET_NAME, region=BUCKET_REGION)

         for phase in [ "val", "train"]:
             IMG_DIR = "%s/%s" % (IMG_DIR_BASE, phase)
             for _, img_relative_path in enumerate(list_dir(IMG_DIR)):
                 img_bin_name = img_relative_path.replace(".JPEG", ".pt")
                 object_key = "%s/%s/%s" % (OSS_URI_BASE, phase, img_bin_name)
                 bucket_api.put_object(object_key, to_tensor("%s/%s" % (IMG_DIR,img_relative_path)))

   2. Download the files that store image data labels. The files are used to establish dataset mapping.

      wget https://help-static-aliyun-doc.aliyuncs.com/file-manage-files/zh-CN/20241220/izpskr/imagenet_class_index.json
      wget https://help-static-aliyun-doc.aliyuncs.com/file-manage-files/zh-CN/20241220/lfilrp/ILSVRC2012_val_labels.json

3. Start model training

   1. Create a module that is used to process ImageNet datasets. The module uses the accelerated endpoint to download datasets from the cache and creates a data loader.

      oss_dataloader.py

      # oss_dataloader.py

      import json
      import numpy as np
      from torch.utils.data import DataLoader
      import torch

      class ImageCls():
          def __init__(self):
              self.__syn_to_class = {}
              self.__syn_to_label = {}
              with open("imagenet_class_index.json", "rb") as f:
                  cls_list = json.load(f)
                  for cls, v in cls_list.items():
                      syn = v[0]
                      label = v[1]
                      self.__syn_to_class[syn] = int(cls)
                      self.__syn_to_label[int(cls)] = label

          def __len__(self):
              return len(self.__syn_to_label)

          def __getitem__(self, syn):
              cls = self.__syn_to_class[syn]
              return cls

      class ImageValSet():
          def __init__(self):
              self.__val_to_syn = {}
              with open("ILSVRC2012_val_labels.json", "rb") as f:
                  val_syn_list = json.load(f)
                  for val, syn in val_syn_list.items():
                      self.__val_to_syn[val] = syn

          def __getitem__(self, val):
              return self.__val_to_syn[val]

      imageCls = ImageCls()
      imageValSet = ImageValSet()


      IMG_DIM_224 = 224
      OSS_URI_BASE = "oss://<YourBucketName>/dataset/imagenet/ILSVRC/Data"

      # Specify the accelerated OSS endpoint to download datasets. Replace the endpoint with your actual information.
      ENDPOINT = "cn-hangzhou-j-internal.oss-data-acc.aliyuncs.com"

      def obj_to_tensor(object):
          data = object.read()
          numpy_array_from_binary = np.frombuffer(data, dtype=np.float32).reshape([3, IMG_DIM_224, IMG_DIM_224])
          return torch.from_numpy(numpy_array_from_binary)

      def train_tensor_transform(object):
          tensor_from_binary = obj_to_tensor(object)
          key = object.key
          syn = key.split('/')[-2]

          return tensor_from_binary, imageCls[syn]

      def val_tensor_transform(object):
          tensor_from_binary = obj_to_tensor(object)
          key = object.key
          image_name = key.split('/')[-1].split('.')[0] + ".JPEG"
          return tensor_from_binary, imageCls[imageValSet[image_name]]


      def make_oss_dataloader(dataset, batch_size, num_worker, shuffle):
          image_datasets = {
              'train': dataset.from_prefix(OSS_URI_BASE + "/train/", endpoint=ENDPOINT, transform=train_tensor_transform),
              'val': dataset.from_prefix(OSS_URI_BASE + "/val/", endpoint=ENDPOINT, transform=val_tensor_transform),
          }
          dataloaders = {
              'train': DataLoader(image_datasets['train'], batch_size=batch_size, shuffle=shuffle, num_workers=num_worker),
              'val': DataLoader(image_datasets['val'], batch_size=batch_size, shuffle=shuffle, num_workers=num_worker)
          }

          return dataloaders

   2. Create a module to initialize a pretrained ResNet18 model.

      pre_trained_model.py

      # pre_trained_model.py

      from torchvision import models
      import torch.nn as nn
      import torch

      def make_resnet_model(cls_count=1000):
          device = torch.device("cuda:0")
          model = models.resnet18(pretrained=True)
          num_ftrs = model.fc.in_features
          model.fc = nn.Linear(num_ftrs, cls_count)

          model = model.to(device)
          if torch.cuda.device_count() > 1:
              model = nn.DataParallel(model)

          return model, device

   3. Create a module to train a ResNet model. This module trains a given model based on the specified data loaders and number of epochs.

      resnet_train.py

      # resnet_train.py

      from osstorchconnector import OssCheckpoint
      import torch.optim as optim
      import torch
      import torch.nn as nn

      OSS_CHECKPOINT_URI = "oss://<YourBucketName>/checkpoints/resnet18.pt"

      # Specify the internal OSS endpoint.
      ENDPOINT = "oss-cn-hangzhou-internal.aliyuncs.com"

      def train(model, dataloaders, device, epoch_num):
          optimizer = optim.SGD(model.parameters(), lr=0.001, momentum=0.9)
          exp_lr_scheduler = optim.lr_scheduler.StepLR(optimizer, step_size=7, gamma=0.1)
          criterion = nn.CrossEntropyLoss()

          best_acc = 0.0
          for epoch in range(epoch_num):
              for phase in ['train', 'val']:
                  if phase == 'train':
                      model.train()
                  else:
                      model.eval()

                  running_loss = 0.0
                  running_corrects = 0

                  # Traverse through data.
                  dataset_size = 0
                  for (inputs, labels) in dataloaders[phase]:
                      inputs = inputs.to(device)
                      labels = labels.to(device)

                      with torch.set_grad_enabled(phase == 'train'):
                          outputs = model(inputs)
                          _, preds = torch.max(outputs, 1)
                          loss = criterion(outputs, labels)

                          # Perform backpropagation and optimization only in the training phase.
                          if phase == 'train':
                              optimizer.zero_grad()
                              loss.backward()
                              optimizer.step()

                      # Collect statistics.
                      running_loss += loss.item() * inputs.size(0)
                      running_corrects += torch.sum(preds == labels.data)
                      dataset_size += inputs.size(0)

                  if phase == 'train':
                      exp_lr_scheduler.step()

                  epoch_loss = running_loss / dataset_size
                  epoch_acc = running_corrects / dataset_size

                  print(f'[Epoch {epoch}/{epoch_num - 1}][{phase}] {dataset_size} imgs {epoch_acc}')


                  if phase == 'val' and epoch_acc > best_acc:
                      best_acc = epoch_acc
                      # Upload checkpoints to OSS.
                      checkpoint = OssCheckpoint(endpoint=ENDPOINT)
                      with checkpoint.writer(OSS_CHECKPOINT_URI) as checkpoint_writer:
                          torch.save(model.state_dict(), checkpoint_writer)

   4. Create a script file that integrates model training processes.

      main.py

      # main.py

      from oss_dataloader import make_oss_dataloader
      from pre_trained_model import make_resnet_model
      from osstorchconnector import OssMapDataset
      from resnet_train import train

      # Define basic training parameters.
      NUM_EPOCHS = 30 # epoch number
      BATCH_SIZE = 64 # batch size
      NUM_WORKER = 4 # dataloader worker number

      # Use the pretrained ResNet18 model.
      model, device = make_resnet_model()

      # Use the OssMapDataset dataset to construct a Dataloader.
      dataloaders = make_oss_dataloader(OssMapDataset, BATCH_SIZE, NUM_WORKER, True)

      # Call the train function.
      train(model, dataloaders, device, NUM_EPOCHS)

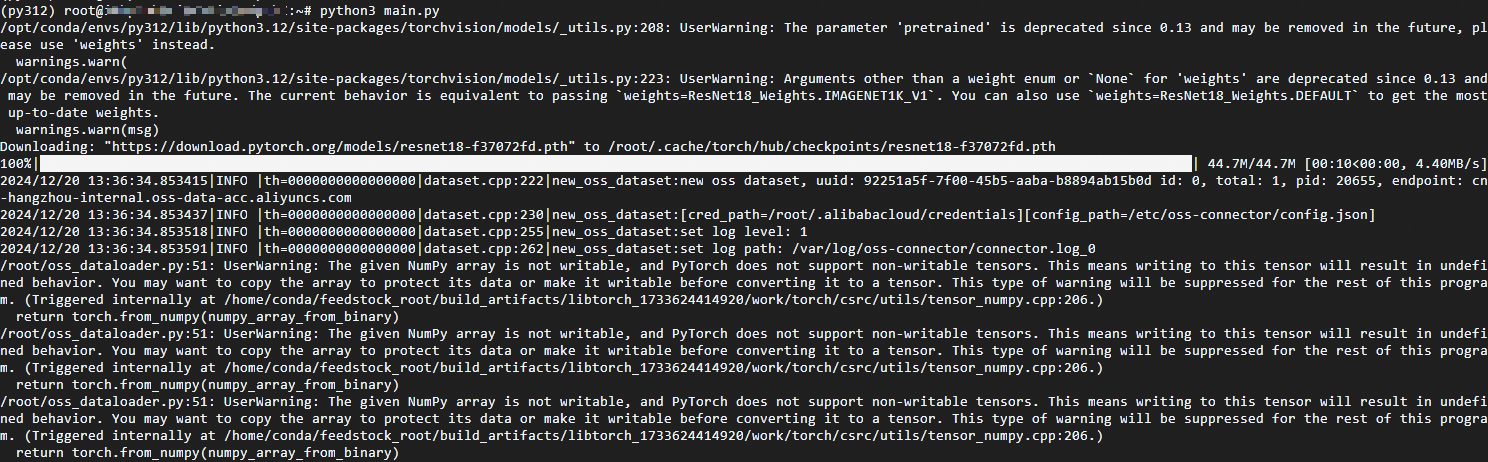

   5. Run the python3 main.py command to start the training. The following figure shows that the training has started.

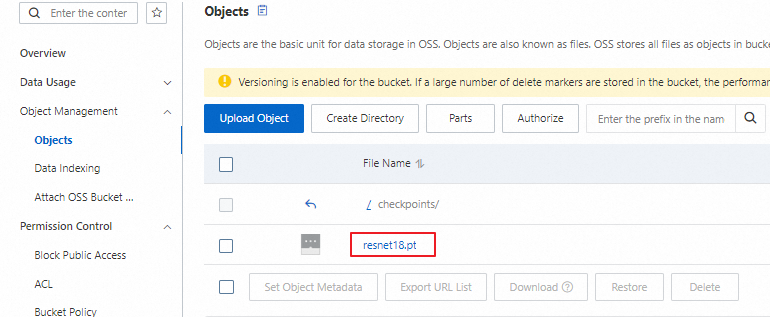

4. Verify the result

   On the Buckets page, click Object Management > Objects to check whether the checkpoints directory contains the resnet18.pt object. The following figure shows that checkpoints are uploaded to OSS.
