Managed Service for OpenTelemetry:Use OpenTelemetry to perform tracing analysis on OpenResty

Step 1: Build the ngx_otel_module module

This section guides you through the process of building the ngx_otel_module module. We will start by preparing the build environment, installing the necessary tools and dependencies, obtaining the configuration information of your current OpenResty system, downloading the matching Nginx source code, configuring compilation parameters, and finally compiling the ngx_otel_module module for OpenTelemetry integration. You can also refer to the official ngx_otel_module documentation for building instructions. For more information, see build ngx_otel_module from source.

1. Install build tools and dependencies.

   sudo apt update

   sudo apt install cmake build-essential libssl-dev zlib1g-dev libpcre3-dev

   sudo apt install pkg-config libc-ares-dev libre2-dev # for gRPC

2. Determine the Nginx version and compilation configuration used by OpenResty.

   openresty -V

   The following is an example of the output.

   /# openresty -V
   nginx version: openresty/1.25.3.2
   built with OpenSSL 1.1.1w  11 Sep 2023
   TLS SNI support enabled
   configure arguments: --prefix=/usr/local/openresty/nginx --with-cc-opt='-O2 -DNGX_LUA_ABORT_AT_PANIC -I/usr/local/openresty/zlib/include -I/usr/local/openresty/pcre/include -I/usr/local/openresty/openssl111/include' --add-module=../ngx_devel_kit-0.3.3 --add-module=../echo-nginx-module-0.63 --add-module=../xss-nginx-module-0.06 --add-module=../ngx_coolkit-0.2 --add-module=../set-misc-nginx-module-0.33 --add-module=../form-input-nginx-module-0.12 --add-module=../encrypted-session-nginx-module-0.09 --add-module=../srcache-nginx-module-0.33 --add-module=../ngx_lua-0.10.26 --add-module=../ngx_lua_upstream-0.07 --add-module=../headers-more-nginx-module-0.37 --add-module=../array-var-nginx-module-0.06 --add-module=../memc-nginx-module-0.20 --add-module=../redis2-nginx-module-0.15 --add-module=../redis-nginx-module-0.3.9 --add-module=../ngx_stream_lua-0.0.14 --with-ld-opt='-Wl,-rpath,/usr/local/openresty/luajit/lib -L/usr/local/openresty/zlib/lib -L/usr/local/openresty/pcre/lib -L/usr/local/openresty/openssl111/lib -Wl,-rpath,/usr/local/openresty/zlib/lib:/usr/local/openresty/pcre/lib:/usr/local/openresty/openssl111/lib' --with-pcre-jit --with-stream --with-stream_ssl_module --with-stream_ssl_preread_module --with-http_v2_module --with-http_v3_module --without-mail_pop3_module --without-mail_imap_module --without-mail_smtp_module --with-http_stub_status_module --with-http_realip_module --with-http_addition_module --with-http_auth_request_module --with-http_secure_link_module --with-http_random_index_module --with-http_gzip_static_module --with-http_sub_module --with-http_dav_module --with-http_flv_module --with-http_mp4_module --with-http_slice_module --with-http_gunzip_module --with-threads --with-stream --without-pcre2 --with-http_ssl_module

3. Download the corresponding version of the Nginx source code.

   Replace {OPENRESTY_NGINX_VERSION} with the corresponding version tag. To find the tag name, visit https://github.com/nginx/nginx/tags. For example, for version 1.25.3.2, the corresponding version tag is release-1.25.3.

   git clone https://github.com/nginx/nginx.git
   cd nginx
   git checkout {OPENRESTY_NGINX_VERSION}  # Switch to the corresponding version tag

4. Configure Nginx compilation parameters.

   Execute the following command in the nginx source code root directory.

   {NGINX_CONFIGURE_ARGUMENTS} is the configure arguments content obtained in Step 2: Determine the Nginx version and compilation configuration used by OpenResty, with the parameters related to --add-module removed.

   ./auto/configure {NGINX_CONFIGURE_ARGUMENTS} --with-compat

5. Download the ngx_otel_module module source code.

   cd ..
   git clone https://github.com/nginxinc/nginx-otel.git
   cd /nginx-otel

6. Compile the ngx_otel_module module.

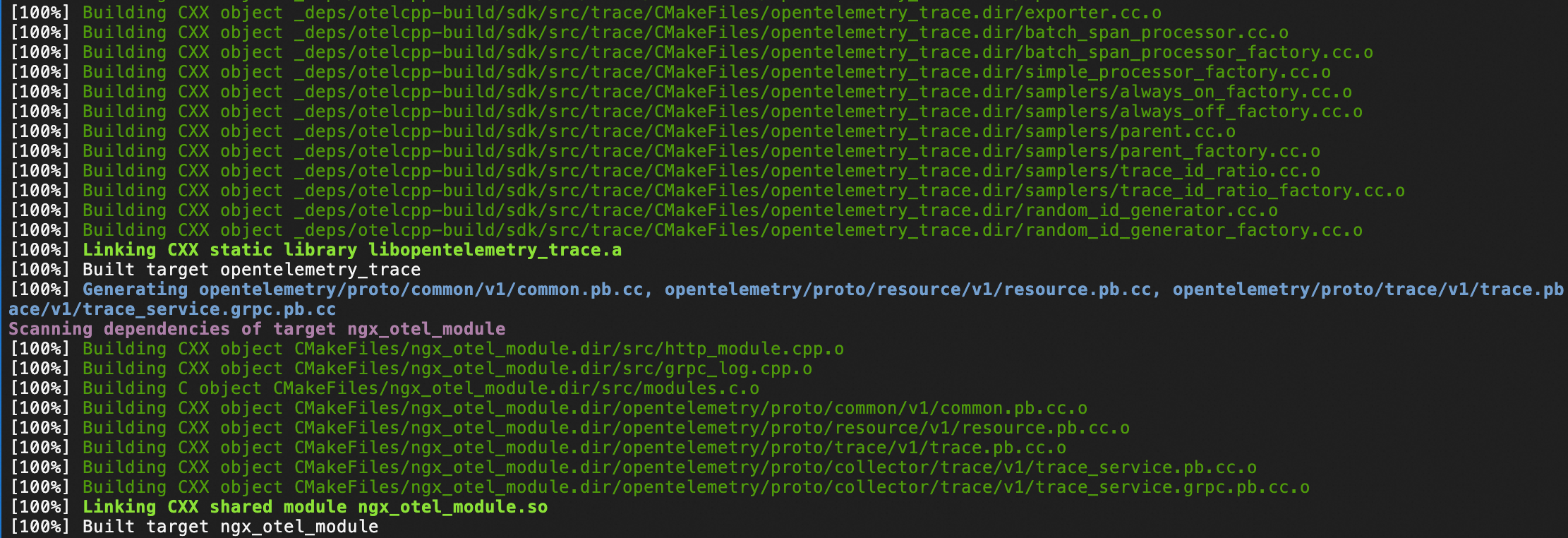

   Create and enter the build directory to compile. After compilation is complete, the ngx_otel_module.so file will be generated in the build directory.

   mkdir build
   cd build
   cmake -DNGX_OTEL_NGINX_BUILD_DIR=/nginx/objs ..
   make



Step 2: Enable the ngx_otel_module module

1. Copy the ngx_otel_module.so module file to the nginx modules directory.

   mkdir -p /usr/local/openresty/nginx/modules/
   cp ngx_otel_module.so /usr/local/openresty/nginx/modules/

2. Configure nginx.conf.

   To enable tracing for OpenResty, you need to load the ngx_otel_module module and add configuration items in the Nginx main configuration file /usr/local/openresty/nginx/conf/nginx.conf. For more parameter configuration information about the ngx_otel_module module, see ngx_otel_module module documentation.

   • Global configuration: Enable tracing for all HTTP requests.

     load_module modules/ngx_otel_module.so; # Load ngx_otel_module
     ...
     http {
         ...

         otel_exporter {
             endpoint "${GRPC_ENDPOINT}"; # gRPC endpoint obtained in the prerequisites
             header Authentication "${GRPC_TOKEN}"; # Authentication token obtained in the prerequisites
         }

         otel_trace on;                     # Enable tracing
         otel_service_name ${SERVICE_NAME};  # Application name
         otel_trace_context propagate;         # Inject trace context to downstream services
         ...
     }

   • Single location configuration: Enable tracing for a single location.

     load_module modules/ngx_otel_module.so; # Load ngx_otel_module

     ...

     http {

         otel_exporter {
             endpoint "${GRPC_ENDPOINT}"; # gRPC endpoint obtained in the prerequisites
             header Authentication "${GRPC_TOKEN}"; # Authentication token obtained in the prerequisites
         }

         server {
             listen 127.0.0.1:80;

             location /hello {
                 otel_trace         on;             # Enable tracing only for 127.0.0.1:80/hello
                 otel_service_name ${SERVICE_NAME}  # Application name
                 otel_trace_context propagate;         # Inject trace context to downstream services

                 ...
             }
         }
     }

3. Check if the nginx.conf configuration is correct.

   /usr/local/openresty/nginx/sbin/nginx -t

   The expected output is as follows, indicating that the configuration is correct.

   nginx: the configuration file /usr/local/openresty/nginx/conf/nginx.conf syntax is ok
   nginx: configuration file /usr/local/openresty/nginx/conf/nginx.conf test is successful

4. Reload the configuration.

   # Method 1: Use the openresty command to reload the configuration
   openresty -s reload

   # Method 2: Use the nginx command to reload the configuration
   /usr/local/openresty/nginx/sbin/nginx -s reload

Step 3: View OpenResty traces

After completing the above configuration and reloading, you can send requests to OpenResty to generate traces. Then, log on to the Managed Service for OpenTelemetry console to view the OpenResty traces generated by OpenTelemetry.

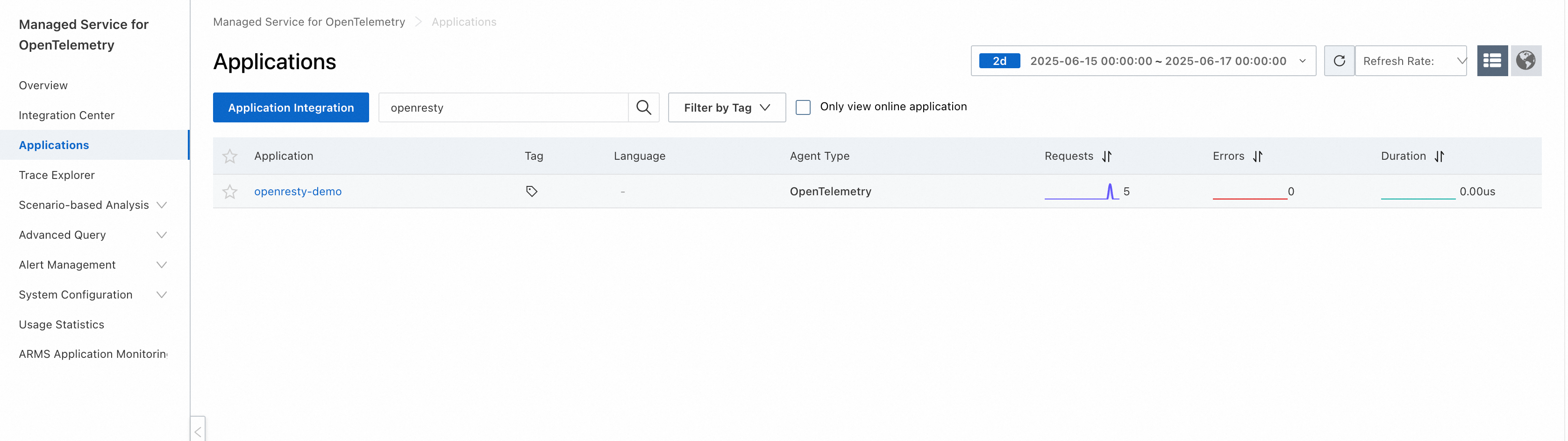

1. View the OpenResty application in the application list.



2. View OpenResty traces on the trace analysis page.

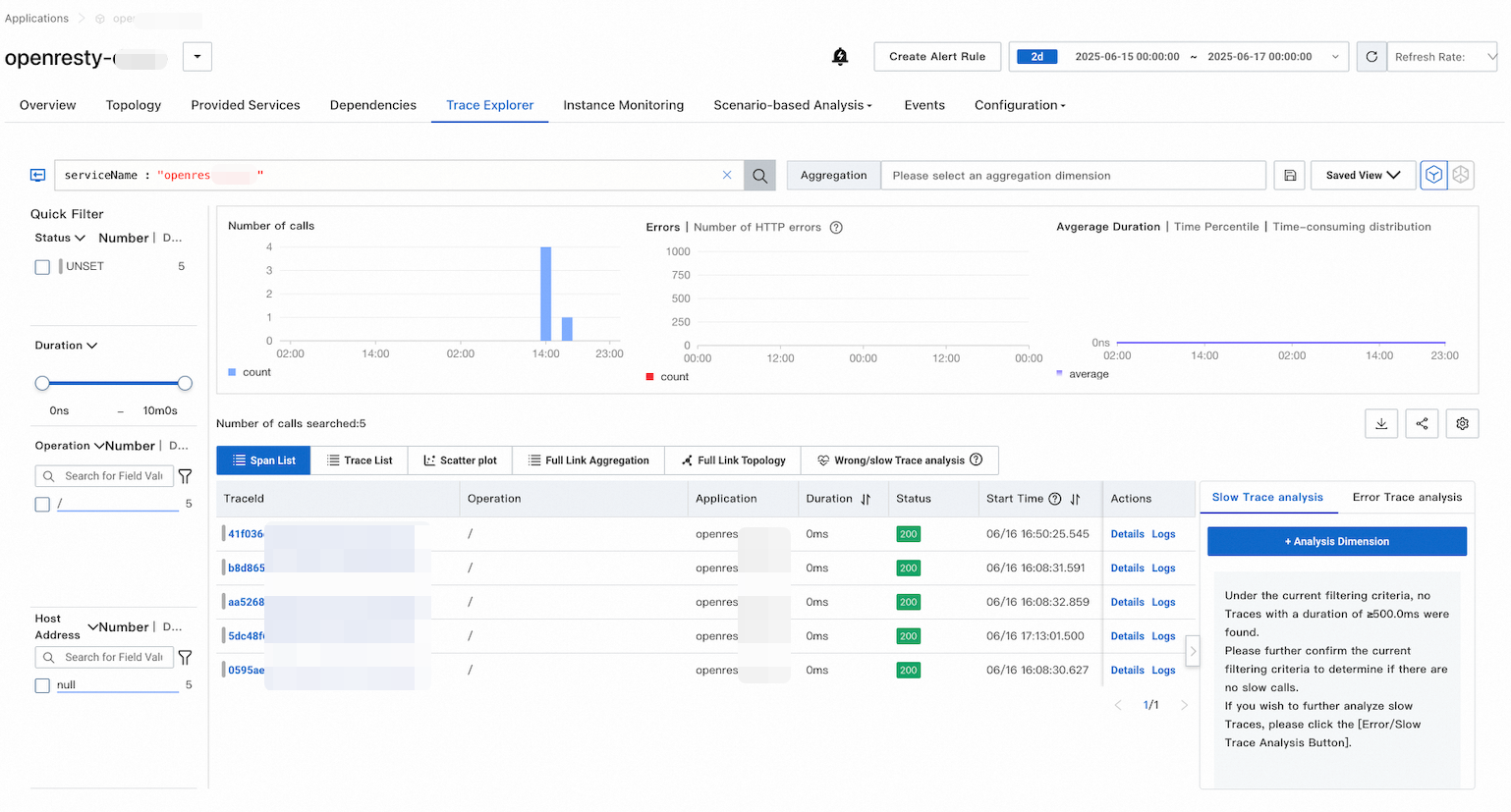

   • View all traces for a specific time period.

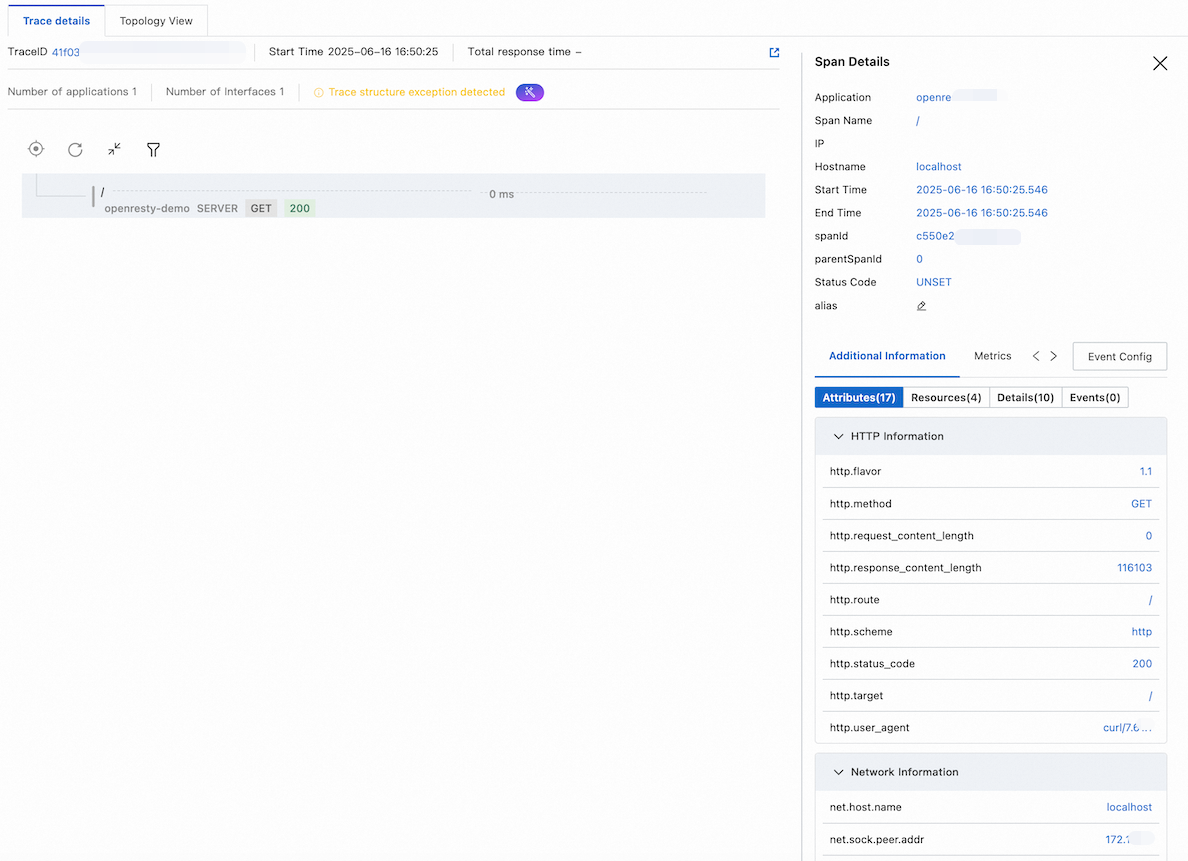

   • View the complete trace details for a single trace.
