Integrate an OpenAPI MCP server in Dify - OpenAPI Explorer

This topic describes how to deploy a Dify server and integrate it with an OpenAPI Model Context Protocol (MCP) server by using a custom OAuth application for authentication.

Prerequisites

Before you begin, ensure that you have:

An Elastic Compute Service (ECS) instance with a minimum of 2 vCPUs and 4 GiB of RAM
Docker installed on the ECS instance
Dify version 1.8.0 or later

Overview

The MCP is an open standard that enables AI applications to securely connect with external tools and data sources. This integration allows your Dify applications to interact with Alibaba Cloud services through natural language queries.

How it works

The integration works as follows:

The OpenAPI MCP server exposes Alibaba Cloud APIs as tools for AI agents.
After you connect Dify to the OpenAPI MCP server, Dify automatically discovers the available tools.
Your Dify agents can then invoke these tools to perform actions based on natural language prompts.
Secure access to your Alibaba Cloud resources is managed through the OAuth 2.1 authorization flow.

Integration steps

The integration process consists of the following steps:

Deploy a Dify server on an ECS instance.
Create an OAuth application in the RAM console.
Create an OpenAPI MCP server.
Connect Dify to the OpenAPI MCP server.
Configure a model in Dify.
Test the integration.

Procedure

Step 1: Deploy a Dify server

This procedure shows how to deploy a Dify server on an ECS instance by using Docker.

Install Docker on the ECS instance.
Run the following command to download the Dify code:
```
git clone https://github.com/langgenius/dify.git
```
Run the following command to create a Dify configuration file:
```
cd dify/docker
cp .env.example .env
vim .env
```

In the .env configuration file, find the following configuration items and set their values:

Note

The values that you set here must match the callback URI that you configure for the OAuth application in a later step.

Configuration item	Value
CONSOLE_API_URL	`http://<Public IP address or domain name of the ECS instance>`. For a local deployment, use `http://127.0.0.1`.
CONSOLE_WEB_URL	`http://<Public IP address or domain name of the ECS instance>`. For a local deployment, use `http://127.0.0.1`.
SERVICE_API_URL	`http://<Public IP address or domain name of the ECS instance>`. For a local deployment, use `http://127.0.0.1`.
APP_API_URL	`http://<Public IP address or domain name of the ECS instance>`. For a local deployment, use `http://127.0.0.1`.
APP_WEB_URL	`http://<Public IP address or domain name of the ECS instance>`. For a local deployment, use `http://127.0.0.1`.
FILES_URL	`http://<Public IP address or domain name of the ECS instance>`. For a local deployment, use `http://127.0.0.1`.

Run the following commands to start the Dify server:
```
# Stop and remove all containers and networks for the project
docker compose down

# Create and start all services in the background (detached mode)
docker compose up -d
```

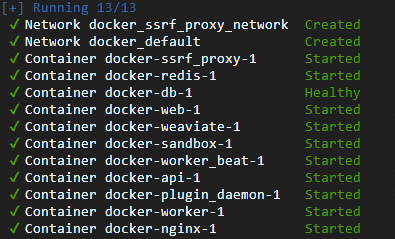

If the server starts successfully, you see the following container status messages indicating all services are running. If an error occurs, re-run docker compose up -d until all services start successfully.

Step 2: Create an OAuth application

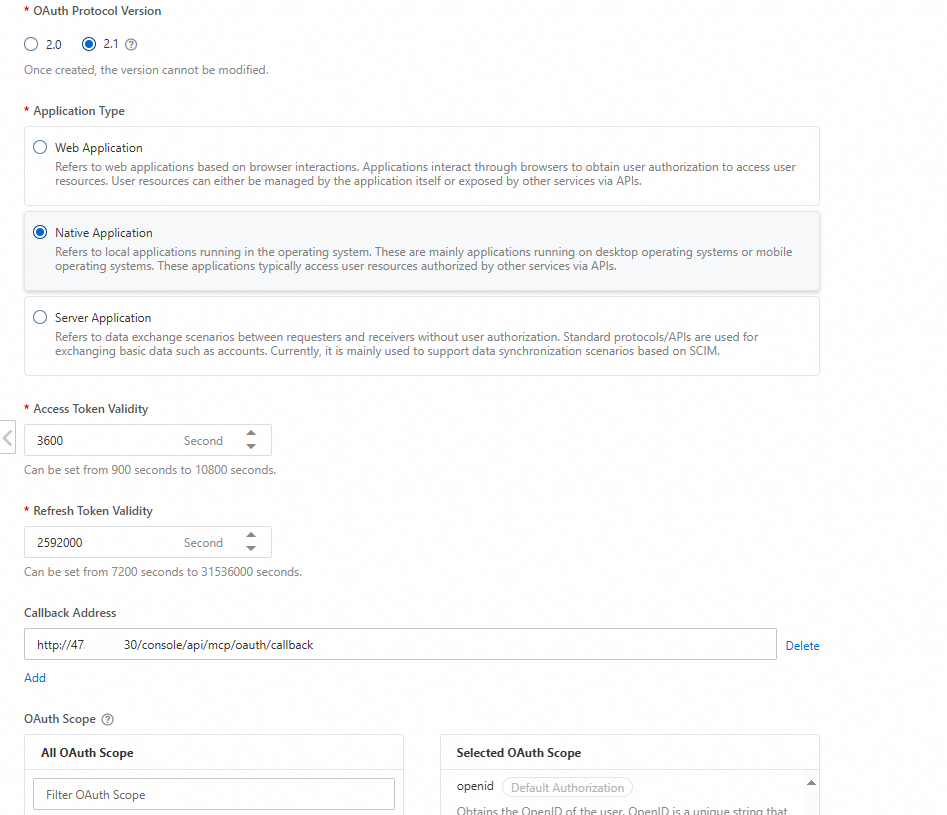

Create an OAuth application in the Resource Access Management (RAM) console. When you configure the parameters, note the following:

Parameter	Description
OAuth Protocol Version	Must be 2.1.
Application Type	Select Web Application or Native Application. This application type is used for server-side applications like Dify.
Access Token Validity	Set an appropriate validity period based on your security requirements.
Refresh Token Validity	Set an appropriate validity period based on your security requirements.
Callback Address	This must be `http://<Public IP address or domain name of the ECS instance>/console/api/mcp/oauth/callback`. This URI must use the same URL that you configured in the Dify `.env` file.
OAuth Scope	Must be `/acs/mcp-server`.

Step 3: Create an OpenAPI MCP server

Go to the Alibaba Cloud OpenAPI MCP Server page.
Create an MCP server or select an existing one.
Set OAuth configuration to Custom OAuth and select the OAuth application you created in Step 2.
Note
When you select Custom OAuth, the OpenAPI MCP server uses your application to handle the authorization flow. It redirects users to the callback URI to grant Dify access.

Step 4: Connect Dify to the MCP server

In your browser, navigate to the public IP address of your ECS instance to access the Dify console. Complete the initial setup and logon.

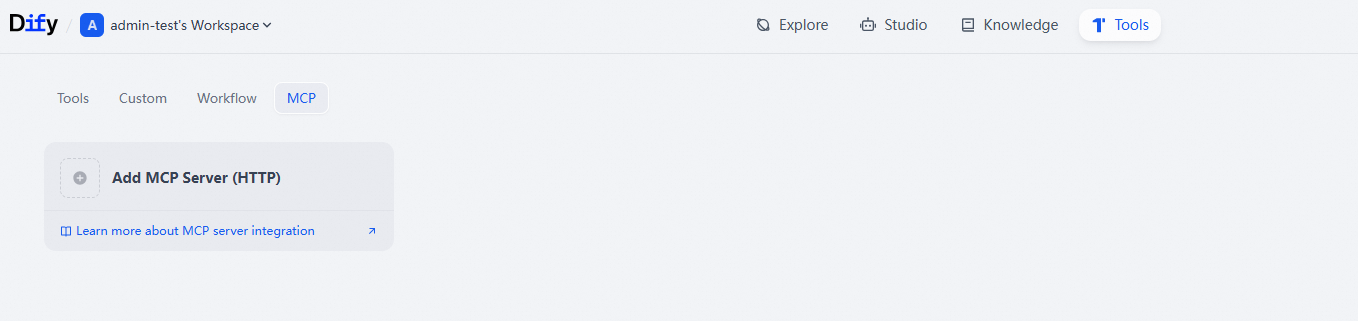

Navigate to Tools > MCP and add your MCP server. For Server URL, enter the Streamable HTTP endpoint from your Alibaba Cloud OpenAPI MCP Server.

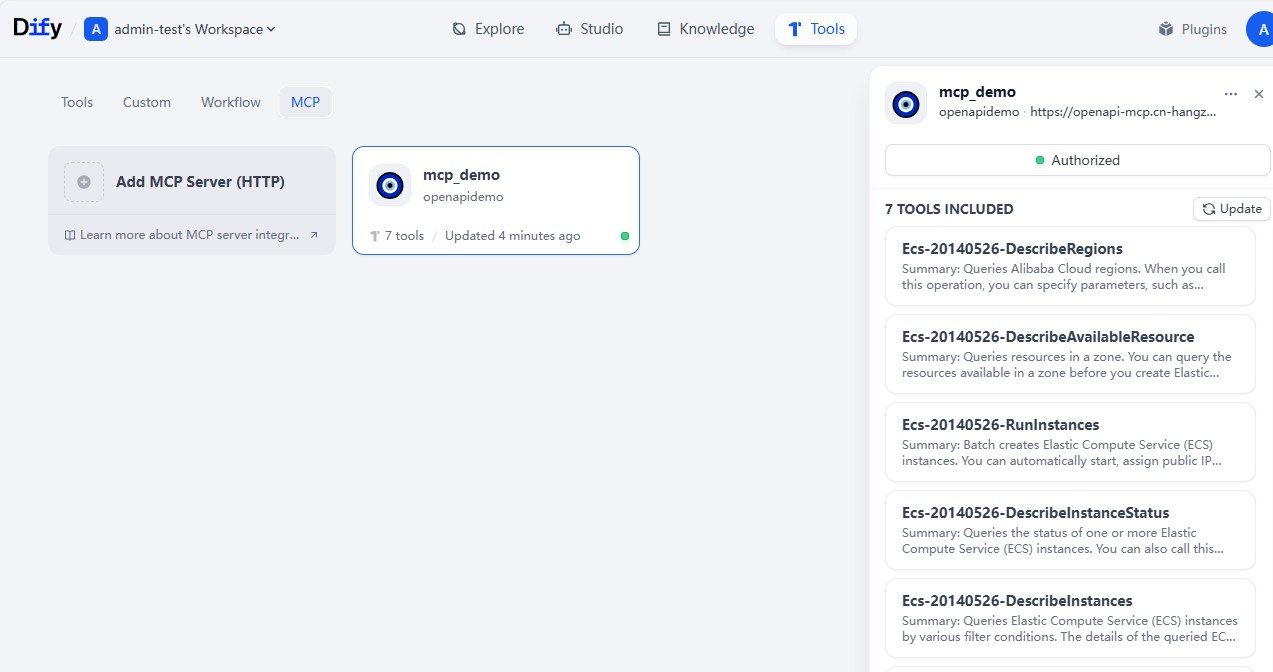

Click Add & Authorize to initiate the OAuth flow. After you approve the authorization request, Dify automatically discovers and displays the tools available from the MCP server.

Step 5: Configure a model in Dify

Dify supports a variety of AI models, including Qwen, DeepSeek, and OpenAI's GPT series. For more information, see Model configuration overview.

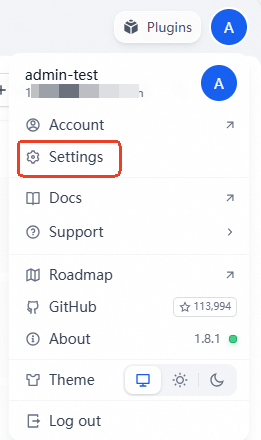

In the Dify console, navigate to Settings from your user profile menu.

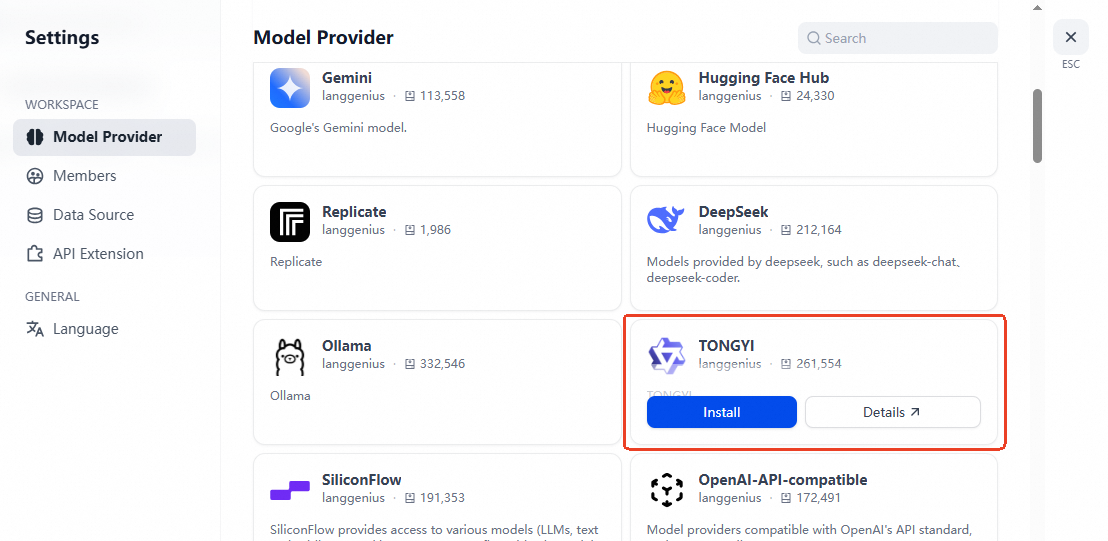

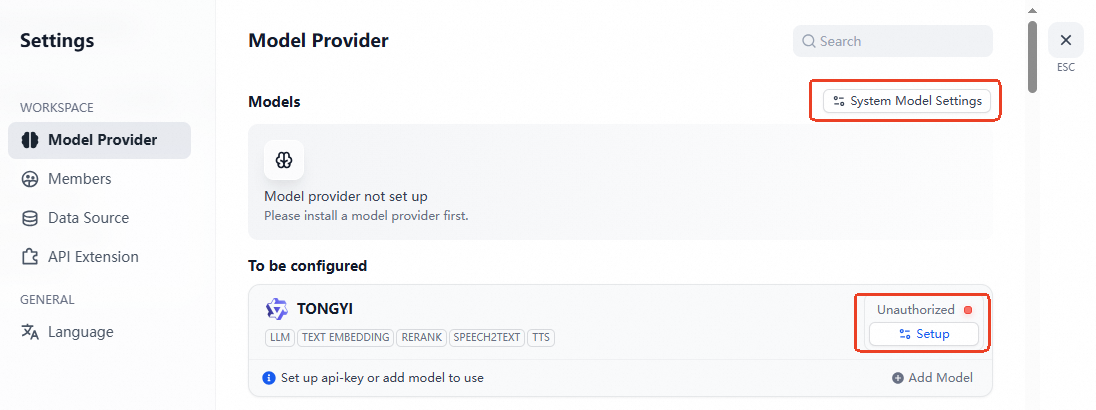

In the Model Provider section, add and configure a model. This example uses a Qwen model. For more information about Qwen, see Model overview.
Enter your API key and configure the model settings. You must set a default model for reasoning and another for embeddings.
Note
The model that you choose for reasoning must support tool use, such as qwen3-max-preview or DeepSeek-R1.

Step 6: Test the integration

Test the integration by creating a simple agent application in Dify.

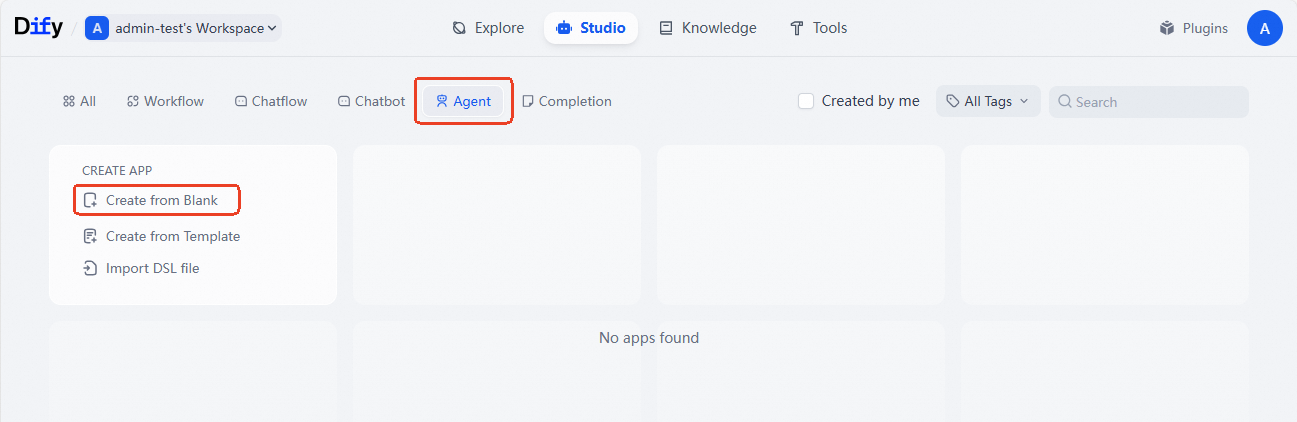

Create an agent application. Make sure to select Agent as the application type.

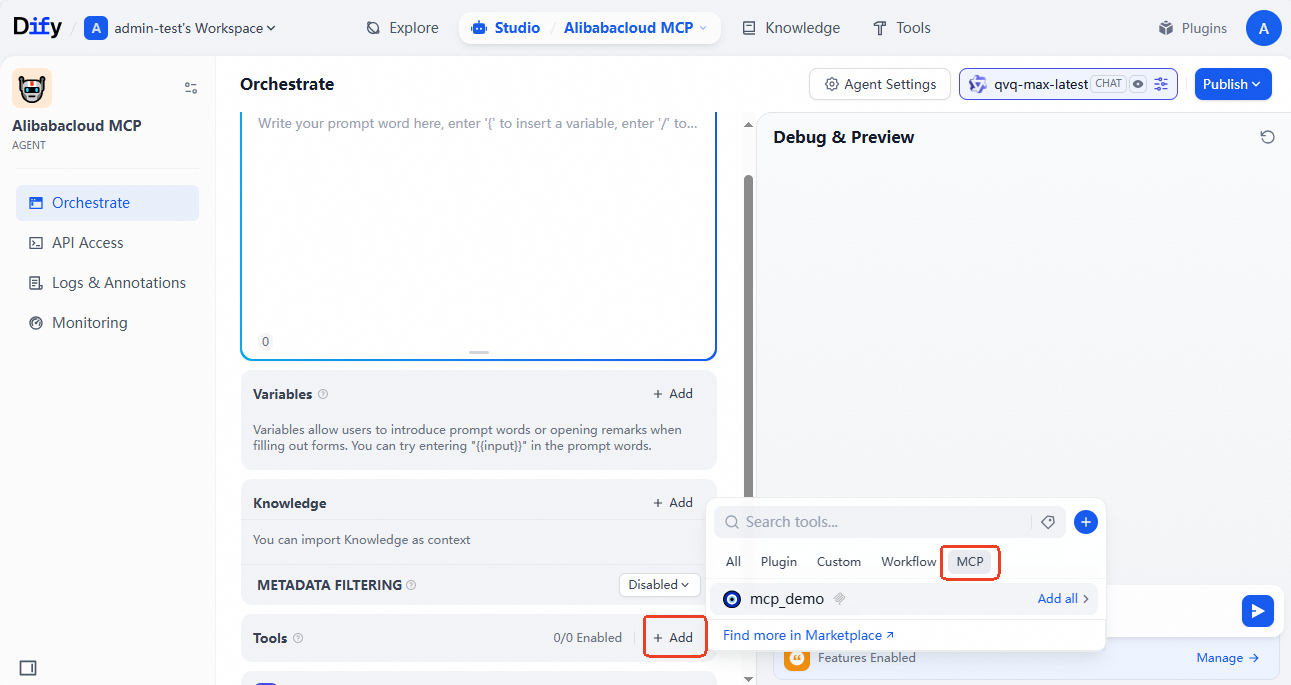

In the agent's settings, click Add in the Tools section. Select the MCP server that you added to Dify.

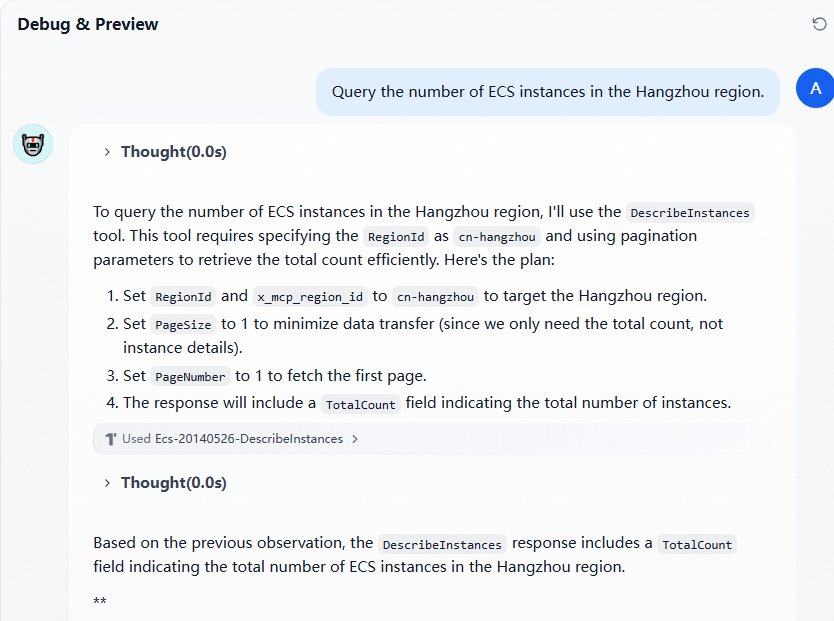

Go to the Debug & Preview panel and test the integration with a natural language prompt, such as "Query the number of ECS instances in the Hangzhou region."
