CloudOps Orchestration Service:Use OOS to run commands across accounts and regions

How it works

RAM Role A within Account 123456 assumes RAM Role B within Account 654321 to manage the resources within Account 654321.

Preparations

Create RAM roles

Create RAM roles named OOSServiceRole within Account 123456 and Account 654321. For more information, see Use RAM to grant permissions to OOS.

Modify the trust policy of the RAM roles

Trust policy for the OOSServiceRole role within Account 654321:

{
    "Statement": [
        {
            "Action": "sts:AssumeRole",
            "Effect": "Allow",
            "Principal": {
                "RAM": [
                    "acs:ram::123456:root"
                ]
            }
        }
    ],
    "Version": "1"
}

Trust policy for the OOSServiceRole role within Account 123456:

{
    "Statement": [
        {
            "Action": "sts:AssumeRole",
            "Effect": "Allow",
            "Principal": {
                "Service": [
                    "oos.aliyuncs.com"
                ]
            }
        }
    ],
    "Version": "1"
}

Grant permissions to the RAM roles

1. Grant the AliyunSTSAssumeRoleAccess permission to the OOSServiceRole role within Account 123456.

2. Grant the required permissions to the OOSServiceRole role within Account 654321. In this example, the AliyunECSFullAccess permission is granted to the OOSServiceRole role within Account 654321.

Procedure

1. Log on to the Operation Orchestration Service (OSS) console.

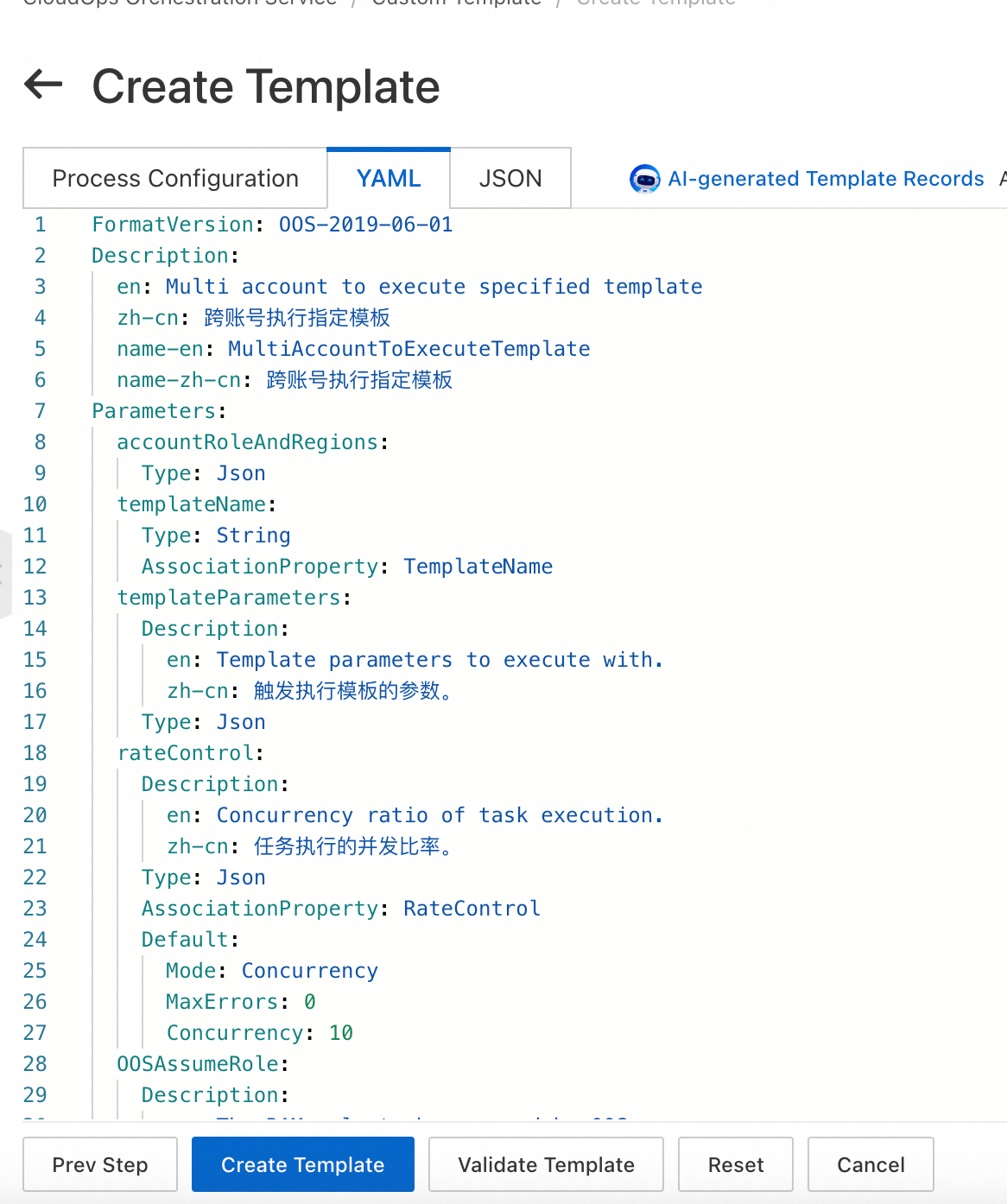

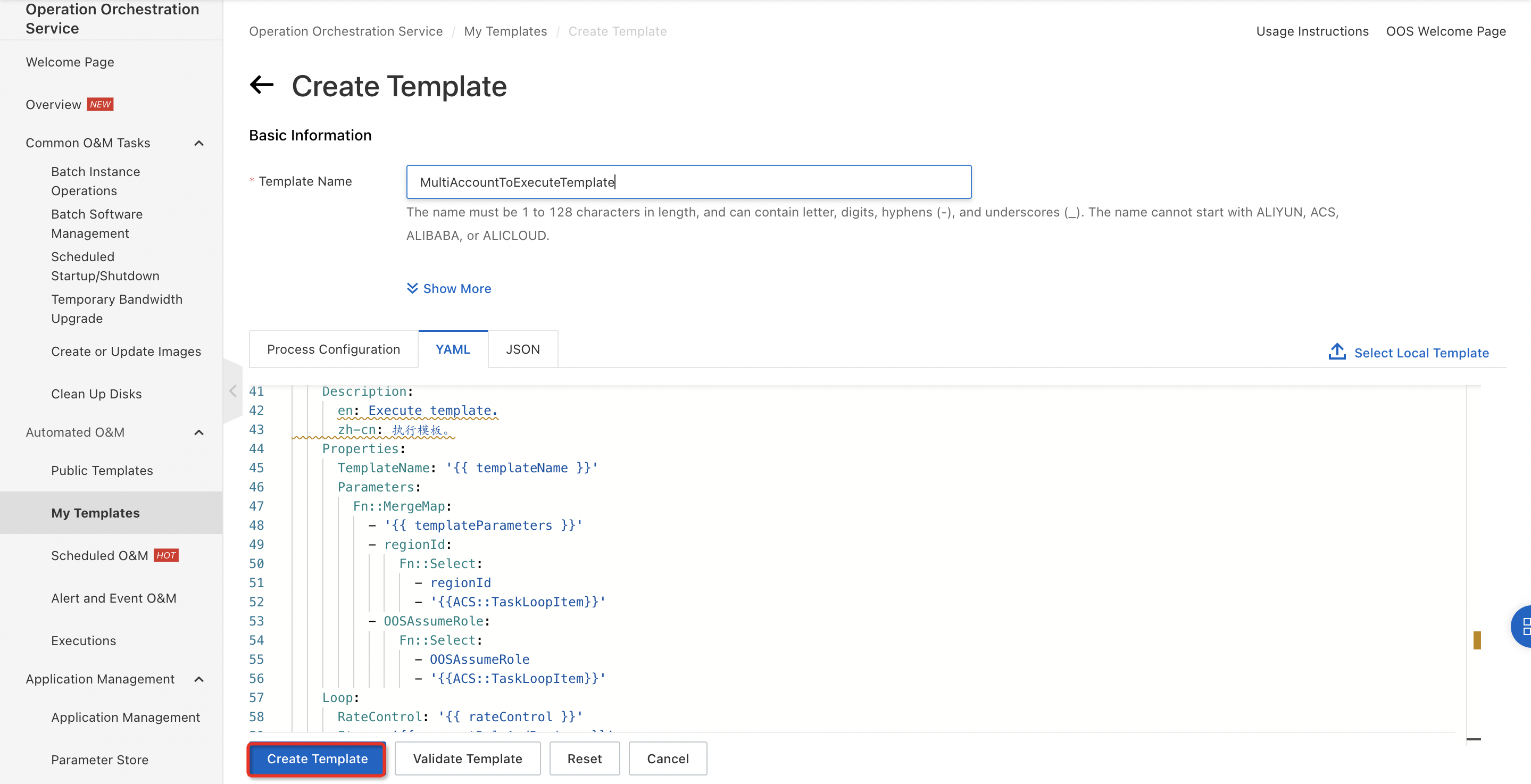

2. In the left-side navigation pane, click My Templates to go to the My Templates page. In the upper-left corner, click Create Template. Use the template code in the Appendix to create a template for running commands across accounts and regions.

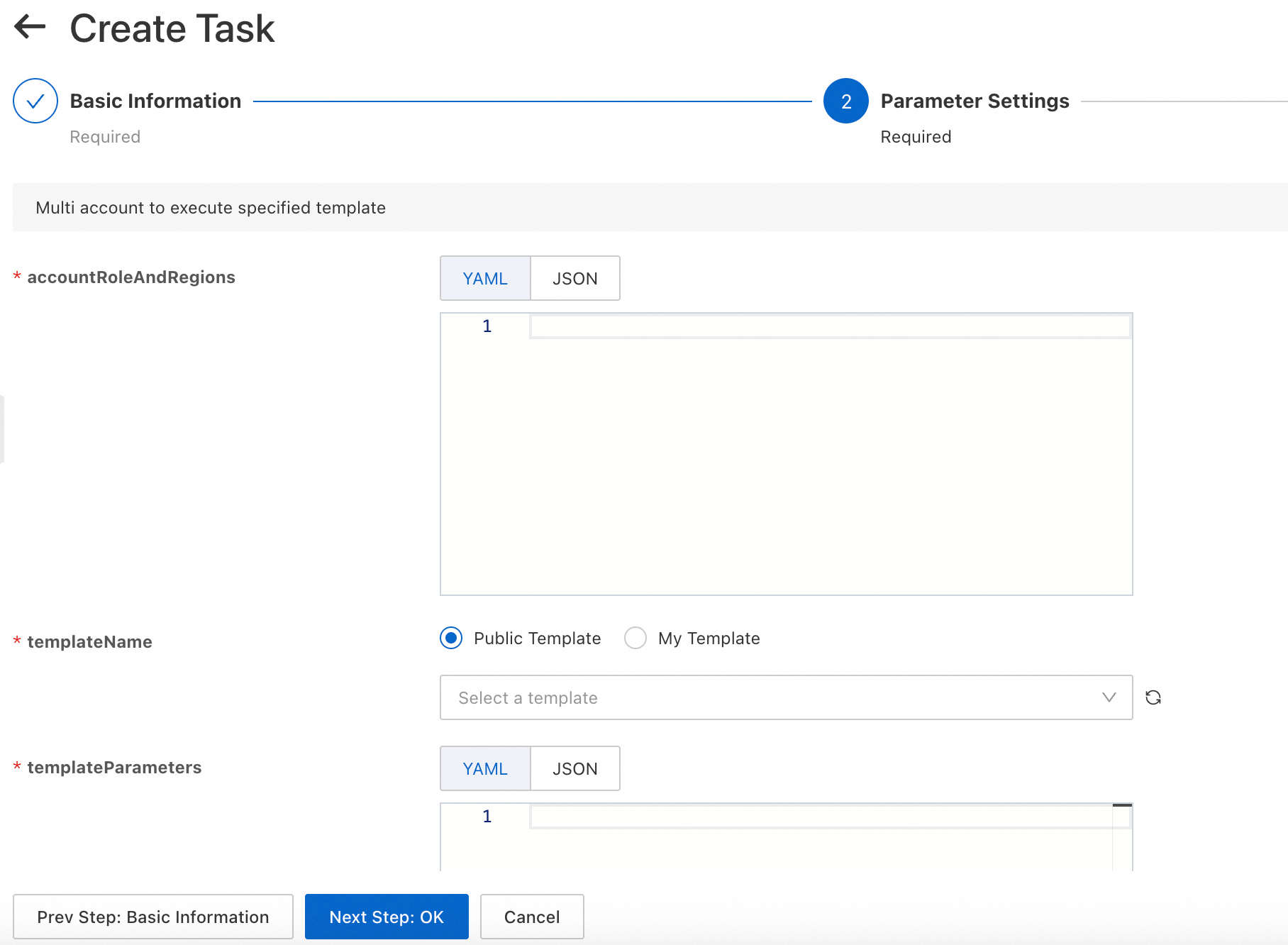

3. In the left-side navigation pane, click Executions to go to the Executions page. In the upper-left corner, click Create to create an execution.

The following part describes the configurations of some parameters in the Basic Information step of the Create page:

accountRoleAndRegions:

Enter the following code in the accountRoleAndRegions field to allow the execution of commands on running ECS instances in the China (Shanghai) and China (Bejing) regions within Account 654321:

[
  {
    "OOSAssumeRole": "OOSServiceRole|654321/OOSServiceRole",
    "RegionId": "cn-shanghai"
  },
  {
    "OOSAssumeRole": "OOSServiceRole|654321/OOSServiceRole",
    "RegionId": "cn-beijing"
  }
]

templateParameters:

targets: Select running instances in the specified region within the specified account.

{
  "commandType": "RunShellScript",
  "commandContent": "echo hello",
  "workingDir": "",
  "windowsPasswordName": "",
  "rateControl": {
    "MaxErrors": 0,
    "Concurrency": 10,
    "Mode": "Concurrency"
  },
  "enableParameter": false,
  "targets": {
    "Type": "All",
    "Parameters": {
      "Status": "Running",
      "RegionId": "{{regionId}}"
    },
    "RegionId": "{{regionId}}"
  },
  "timeout": 600,
  "username": ""
}

Appendix

Template code for running commands across accounts and regions

FormatVersion: OOS-2019-06-01
Description:
  en: Multi account to execute specified template
  zh-cn: description in Chinese
  name-en: MultiAccountToExecuteTemplate
  name-zh-cn: name in Chinese
Parameters:
  accountRoleAndRegions:
    Type: Json
  templateName:
    Type: String
    AssociationProperty: TemplateName
  templateParameters:
    Description:
      en: Template parameters to execute with.
      zh-cn: description in Chinese
    Type: Json
    AssociationProperty: TemplateParameter
    AssociationPropertyMetadata:
      TemplateName: $templateName
  rateControl:
    Description:
      en: Concurrency ratio of task execution.
      zh-cn: description in Chinese
    Type: Json
    AssociationProperty: RateControl
    Default:
      Mode: Concurrency
      MaxErrors: 0
      Concurrency: 10
  OOSAssumeRole:
    Description:
      en: The RAM role to be assumed by OOS.
      zh-cn: description in Chinese
    Type: String
    Default: OOSServiceRole
RamRole: '{{ OOSAssumeRole }}'
Tasks:
  - Name: executeTemplate
    Action: 'ACS::Template'
    Description:
      en: Execute template.
      zh-cn: description in Chinese
    Properties:
      TemplateName: '{{ templateName }}'
      Parameters:
        'Fn::MergeMap':
          - '{{ templateParameters }}'
          - regionId:
              'Fn::Select':
                - RegionId
                - '{{ACS::TaskLoopItem}}'
          - OOSAssumeRole:
              'Fn::Select':
                - OOSAssumeRole
                - '{{ACS::TaskLoopItem}}'
    Loop:
      RateControl: '{{ rateControl }}'
      Items: '{{ accountRoleAndRegions }}'
