NAT Gateway:Deploy multiple Internet NAT gateways in one VPC

Scenarios

This topic uses the scenario shown in the following figure to demonstrate how to deploy multiple Internet NAT gateways in a VPC and use them with route tables to flexibly allocate and isolate public egresses for multiple business systems.

• Deploy multiple Internet NAT gateways (NATGW-1 and NATGW-2) in one VPC, located in vSwitch-A1 and vSwitch-A2 respectively.

• Bind vSwitch-A1 and vSwitch-A2 to different route tables, and add default routes (0.0.0.0/0) pointing to different NAT gateways to split internal network traffic.

• Configure SNAT entries for ECS instances of different businesses, specify elastic IP addresses to split and isolate public network traffic.

• Configure DNAT entries to forward external users' public network traffic to internal ECS instances to meet remote access requirements of external users.

Step 1: Prepare cloud network resources

Before deploying Internet NAT gateways for vSwitches, you need to create cloud resources such as VPC, vSwitch, ECS, and EIP.

Step 2: Create Internet NAT gateways

1. Log on to the NAT Gateway console.

2. On the Internet NAT Gateway page, click Create Internet NAT Gateway.

3. On the NAT Gateway page, configure the purchase information, and then click Buy Now.

   Configuration	Description
   Instance Name	Create two Internet NAT gateways with instance names NATGW-1 and NATGW-2, for selection when adding route entries later.
   Region	Select the region where you want to create the Internet NAT gateway.
   Network And Zone	Select the VPC and vSwitch to which the NAT gateway belongs. After the NAT gateway is created, you cannot change the VPC or vSwitch. Select vSwitch-A1 for the NATGW-1 instance. Select vSwitch-A2 for the NATGW-2 instance.
   Network Type	In this topic, select Internet NAT Gateway. Internet NAT Gateway: provides Network Address Translation capabilities and can be associated with EIPs to allow ECS instances to access the Internet, enabling communication between private and public networks. VPC NAT Gateway: also provides Network Address Translation capabilities but cannot be associated with EIPs. It can only provide address translation within private networks for ECS instances, suitable for scenarios such as hiding internal addresses and avoiding address conflicts.
   Elastic IP Address	In this topic, Configure Later is selected.

Step 3: Bind elastic IP addresses

Bind EIP1 to NATGW-1, and bind EIP2 and EIP3 to NATGW-2.

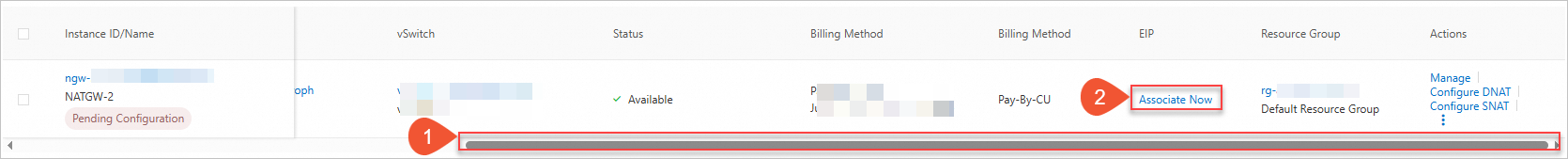

1. On the Internet NAT Gateway page, find the target instance, and click Associate Now in the Elastic IP Address column.

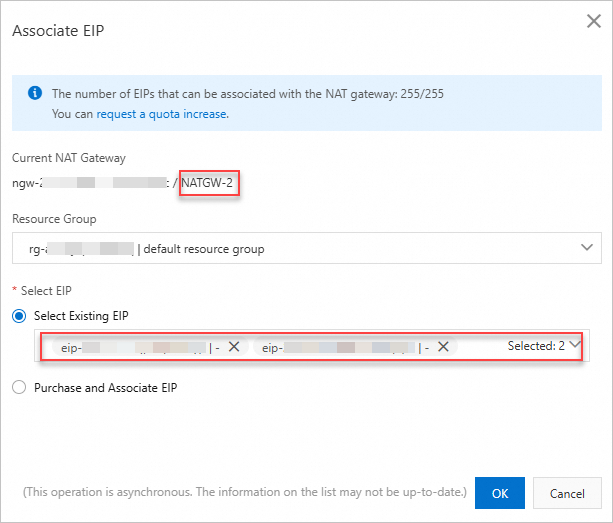

2. In the Associate EIP panel, select Select Existing EIPs, and then select an EIP from the drop-down list.

   Take binding EIP2 and EIP3 to NATGW-2 as an example.

   Note

   Each EIP that you associate with a NAT gateway occupies a private IP address of the vSwitch to which the NAT gateway belongs. Make sure that the vSwitch has sufficient available private IP addresses. Otherwise, you cannot associate new EIPs with the NAT gateway.



Step 4: Create SNAT entries and DNAT entries

1. On the Internet NAT Gateway page, find the target Internet NAT gateway instance, and then click Configure SNAT in the Actions column.

2. On the SNAT Management tab, click Create SNAT Entry.

3. On the Create SNAT Entry page, configure the following parameters, and then click Confirm.

   Taking NATGW-2 as an example, create an SNAT entry to provide ECS2 instance with the ability to access the Internet through EIP1. You can adjust the SNAT entry granularity according to your needs.

   Configuration	Description
   SNAT Entry Granularity	In this case, select ECS/ENI Granularity, and select ECS2 instance from the Select By ECS Or ENI drop-down list. VPC Granularity: Suitable for scenarios where all ECS instances in the VPC, along with ECS instances in other VPCs or data centers that have achieved internal network interconnection through CEN or dedicated lines and have configured 0.0.0.0/0 route entries pointing to this VPC, need to access the Internet through the same elastic IP address. VSwitch Granularity: Suitable for scenarios that require fine-grained control over Internet access, allowing only specified vSwitches to have Internet access capability. ECS/ENI Granularity: Suitable for scenarios that require fine-grained control over Internet access, allowing only specified ECS instances or elastic network interfaces to have Internet access capability. Custom CIDR Block Granularity: Suitable for scenarios that require flexible specification of any IP CIDR blocks to configure Internet access capability through NAT gateway uniformly, covering various network environments such as within VPC, across VPCs, or across on-premises data centers, meeting the needs of complex or customized network structures. Note If you select multiple vSwitches or ECS instances/ENIs, multiple SNAT entries will be created using the same public IP address.
   Select Elastic IP Address	Click Elastic IP Address and select EIP2 from the drop-down list.

4. On the DNAT Management tab, click Create DNAT Entry.

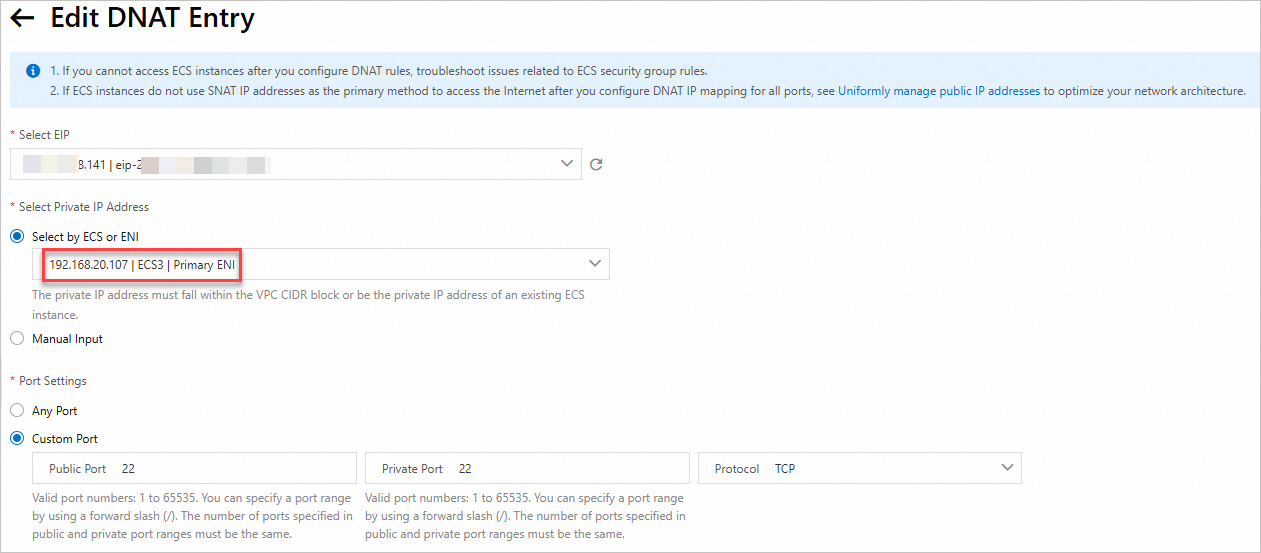

5. On the Create DNAT Entry page, configure the following parameters, and then click Confirm.

   Create a DNAT entry for ECS3. This topic uses SSH service as a verification method for remote access. Please ensure that port 22 is allowed in the security group to which the ECS3 instance belongs. For specific operations, see Manage security group rules. You can create DNAT entries according to your actual needs.

   Note

   SSH: a cryptographic network protocol that uses TCP and port 22.



Step 5: Bind a custom route table to vSwitch-A2

A route table consists of route entries. Each route entry specifies the destination to which network traffic is routed. You can use the default route table or create a custom route table to manage network traffic.

1. In the left-side navigation pane, click Route Tables. On the Route Tables page, click Create Route Table.

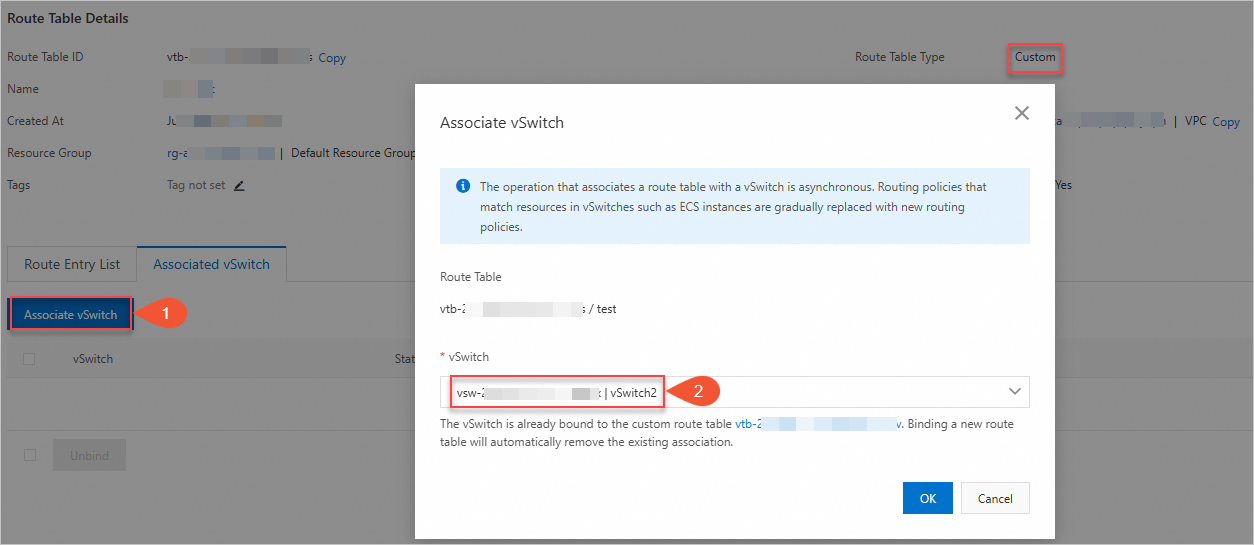

2. On the Route Tables page, find the route table and click Associate Resource>Bind.

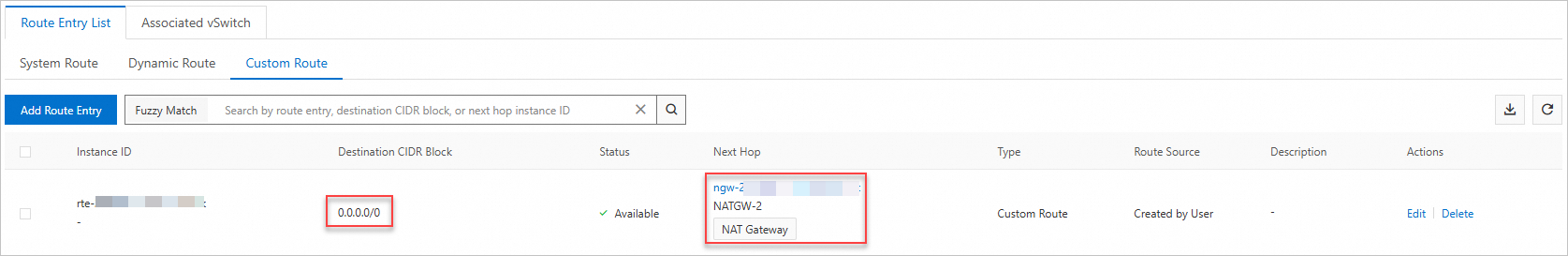

3. On the Route Entry List tab, click Custom Route Entry > Add Route Entry. After the configuration is complete, it appears as shown in the following figure:



Verification

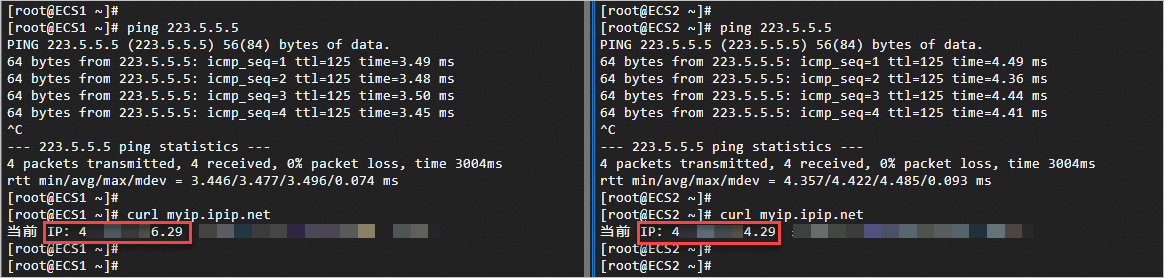

ping 223.5.5.5
curl myip.ipip.net

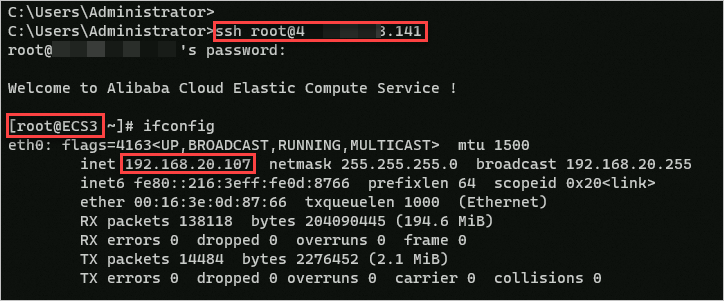

ssh root@EIP3
ifconfig
